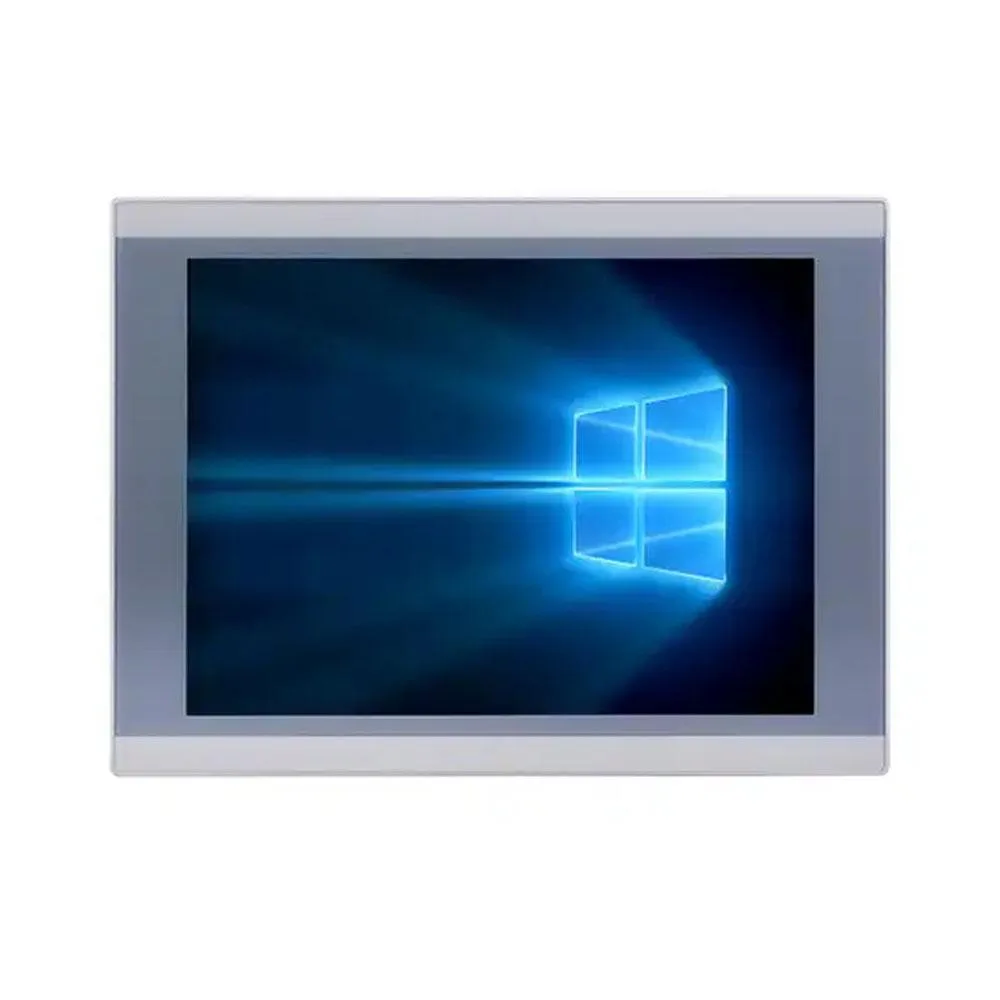

Silver 12.1 inch fanless all-in-one panel PC with IP65 front bezel and 10-point capacitive touchscreen

partaker

partaker A1 12.1" all-in-one PC i7-8565U 8GB 256GB SSD 1TB HDD

SKU CH-GK03-NGQRY

12.1-inch industrial panel PC with IP65 front protection, 10-point capacitive touch, Intel Core i7-8565U, 8GB DDR4, 256GB SSD plus 1TB HDD, fanless aluminium alloy cooling and Windows 11 Pro

  • Form FactorAll-in-One
  • ColorSilver
  • Operating SystemWindows 11 Pro
  • CPU TypeIntel Core i7 8th Gen
  • CPU NameIntel Core i7-8565U
  • GPU/VGA TypeIntel UHD Graphics

CPU Type Intel Core i7 8th Gen

CPU Name Intel Core i7-8565U

GPU Intel UHD Graphics

Memory 8GB DDR4

SSD 256GB

  • 256GB
  • 512GB
  • 1TB

HDD 1TB

Les versions barrées existent, mais ne sont pas disponibles ici.

  • IP65 front panel resists dust and water ingress
  • 10-point capacitive touch screen supports multi-touch control
  • Fanless aluminium alloy chassis runs silently 24/7
  • Intel Core i7-8565U with 8 GB DDR4 handles industrial workloads
  • Dual storage: 256 GB SSD plus 1 TB HDD for speed and capacity

Industrial Panel PC

The Partaker A1 is a 12.1 inch all-in-one computer built around an Intel Core i7-8565U processor with 8GB of DDR4 memory. It combines a 256GB SSD and a 1TB HDD inside a fanless aluminium chassis rated IP65 on the front panel. The unit ships with Windows 11 Pro installed and is designed for continuous 7 x 24 hour operation in industrial environments. Its 10-point projected capacitive touchscreen supports glove and wet-finger input.

Touchscreen and I/O

The 1024 x 768 TFT LED panel delivers 350 cd/m2 brightness and a 1000:1 contrast ratio with 80 degree viewing angles in all directions. Ten-point capacitive touch allows multi-gesture control without a keyboard or mouse. Connectivity includes HDMI, VGA, two USB 3.0, two USB 2.0, dual LAN, two COM ports, audio in and out, and a 12V DC input. A Mini PCIe slot with a SIM holder provides optional wireless expansion.

Embedded Mounting

The system measures 306.8 x 235.12 x 54.5 mm with a 301 x 229 mm cut-out for embedded installation. Embedded buckle kits are included for panel mounting, while wall, desktop and cantilever options are also supported. Fanless cooling limits operating temperature to 0 to 50 °C with the SSD or 0 to 40 °C when the mechanical hard drive is active. Memory can be expanded to 64 GB across two SODIMM slots.

Points forts

  • IP65 front panel resists dust and water ingress
  • 10-point capacitive touch screen supports multi-touch control
  • Fanless aluminium alloy chassis runs silently 24/7
  • Intel Core i7-8565U with 8 GB DDR4 handles industrial workloads
  • Dual storage: 256 GB SSD plus 1 TB HDD for speed and capacity

Caractéristiques

ModelA1-PA-121TPC-CE6B(I78)-8G256G1TB
Form FactorAll-in-One
ColorSilver
Operating SystemWindows 11 Pro
CPU TypeIntel Core i7 8th Gen
CPU NameIntel Core i7-8565U
GPU/VGA TypeIntel UHD Graphics
Memory Capacity8GB DDR4
Memory Slots (Available/Total)2 total
Maximum Memory Supported64 GB
SSD256GB
HDD1TB
Screen Size12.1"
TouchscreenYes

Autres versions de ce modèle

5 de plus dans cette gamme

Même famille, mémoire, ventirad ou fréquence différents — comparez avant de vous décider.

Questions sur cet article

Will the 10-point projected capacitive touch screen need replacement after heavy use?

The touch panel is rated for 200 million touches and the LED backlight for 30,000 hours minimum, so replacement is unlikely in typical industrial service.

What thermal limit appears first during continuous 24/7 operation?

The fanless aluminium chassis is rated for 0–50 °C with the SSD installed and 0–40 °C when the 2.5" HDD is active, so sustained loads are bounded by that envelope.

How much power does the fanless i7-8565U system draw when running all day?

The unit operates from a 12 V DC supply fed by a 100–240 V AC adapter; with no moving parts the only heat comes from the CPU and chipset under load.
