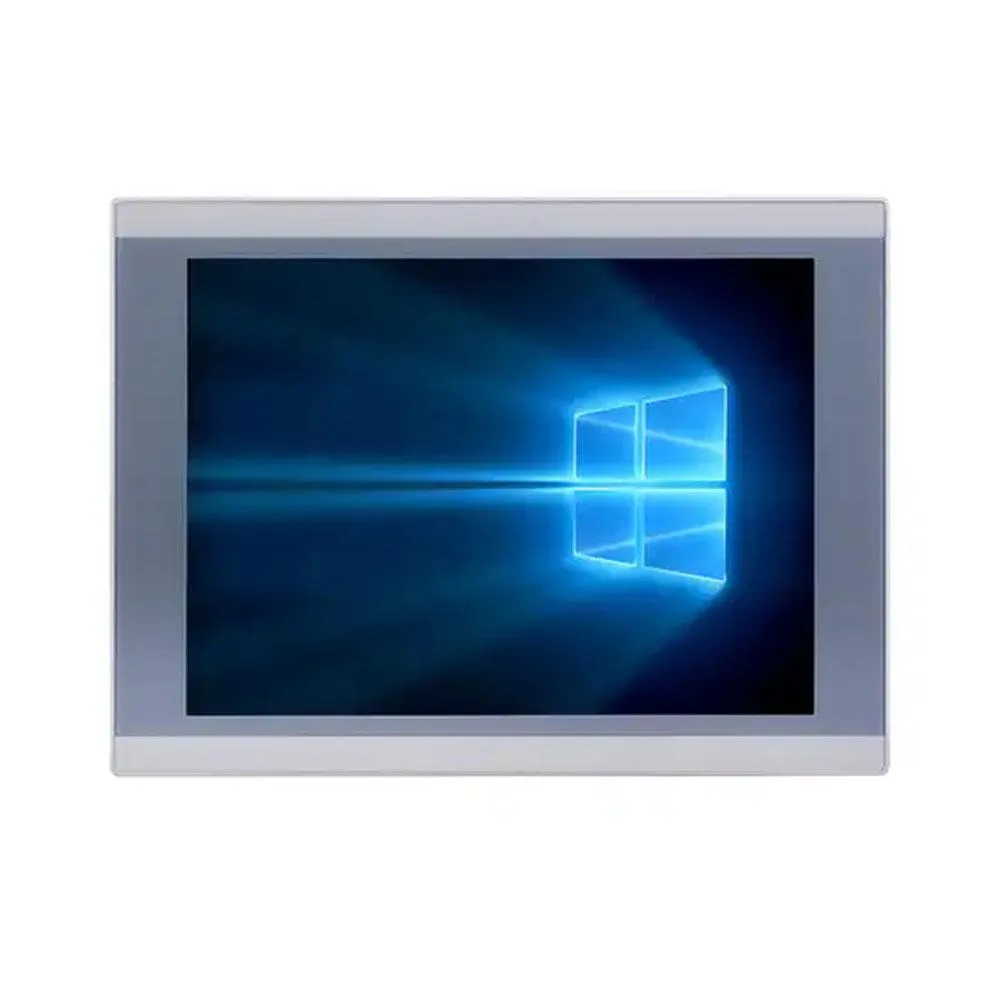

Silver 12.1 inch fanless all-in-one panel PC with IP65 front bezel and 10-point capacitive touchscreen

partaker

partaker A1 12.1" IP65 All-in-One PC i7-1165G7 32GB 1TB

SKU CH-CJM0-PPHYE

A 12.1-inch IP65 industrial all-in-one with 10-point capacitive touch, Intel Core i7-1165G7, 32GB DDR4 and 1TB SSD for continuous operation

  • Form FactorAll-in-One
  • ColorSilver
  • Operating SystemWindows 11 Pro
  • CPU TypeIntel Core i7 11th Gen
  • CPU NameIntel Core i7-1165G7
  • GPU/VGA TypeIntel Iris Xe Graphics

CPU Type Intel Core i7 11th Gen

CPU Name Intel Core i7-1165G7

GPU Intel Iris Xe Graphics

Memory 32GB DDR4

  • 16GB DDR4
  • 32GB DDR4
  • 8GB DDR4

SSD 1TB

HDD None

  • 1TB
  • None

Les versions barrées existent, mais ne sont pas disponibles ici.

  • IP65 front panel resists dust and water jets
  • 10-point capacitive touch handles multi-finger input
  • Fanless aluminium chassis runs silently 24/7
  • 32 GB DDR4 and 1 TB SSD support heavy workloads
  • i7-1165G7 with Iris Xe graphics drives dual displays

Industrial all-in-one with IP65 front panel

The Partaker A1 integrates a 12.1-inch TFT LED display with a 10-point projected capacitive touchscreen into a fanless aluminium chassis. An Intel Core i7-1165G7 processor with Intel Iris Xe graphics drives Windows 11 Pro on 32 GB of DDR4-3200 memory and a 1 TB SSD. The front panel meets IP65 protection for dust and water jets.

Fanless cooling sustains 7 × 24 operation

Passive aluminium alloy cooling eliminates moving parts and runs silently across a 0–50 °C operating range with the installed SSD. The CPU maintains up to 4.70 GHz under continuous load without thermal throttling from fan failure. A hardware watchdog timer with 255 levels provides automatic recovery if the system hangs during unattended shifts.

Replaces legacy panel PCs needing sealed front

The embedded mounting cutout of 301 × 229 mm fits existing cabinet openings while upgrading to a modern 1024 × 768 panel at 350 cd/m² brightness. Dual LAN, dual COM and dual USB 3.0 ports consolidate PLC, HMI and data-logging cabling into one unit. Expansion via M.2 Key E for WIFI6 and Key B for 5G with a SIM slot adds wireless connectivity without rewiring the enclosure.

Points forts

  • IP65 front panel resists dust and water jets
  • 10-point capacitive touch handles multi-finger input
  • Fanless aluminium chassis runs silently 24/7
  • 32 GB DDR4 and 1 TB SSD support heavy workloads
  • i7-1165G7 with Iris Xe graphics drives dual displays

Caractéristiques

ModelA1-PA-121TPC-CE6B(I7B)-32G1TBSSD
Form FactorAll-in-One
ColorSilver
Operating SystemWindows 11 Pro
CPU TypeIntel Core i7 11th Gen
CPU NameIntel Core i7-1165G7
GPU/VGA TypeIntel Iris Xe Graphics
Memory Capacity32GB DDR4
Memory Slots (Available/Total)2 total
Maximum Memory Supported64 GB
SSD1TB
HDDNo
Screen Size12.1"
TouchscreenYes

Autres versions de ce modèle

5 de plus dans cette gamme

Même famille, mémoire, ventirad ou fréquence différents — comparez avant de vous décider.

Questions sur cet article

How loud and hot does the fanless aluminium chassis get during 24/7 operation?

The fanless aluminium alloy cooling runs silently. Operating temperature range is 0–50 °C with the installed SSD, so the chassis stays within industrial limits during continuous use.

What power source and mounting hardware do I need before installing the unit?

A 12 V DC supply is required; a 100–240 V AC adapter and power cord are included. Embedded buckle kits for panel mounting are also supplied.

Will my legacy VGA monitor and USB 2.0 peripherals work with the HDMI, VGA and USB ports?

Yes. The I/O provides one HDMI, one VGA, two USB 3.0 and two USB 2.0 ports, so older VGA displays and USB 2.0 devices connect directly.
