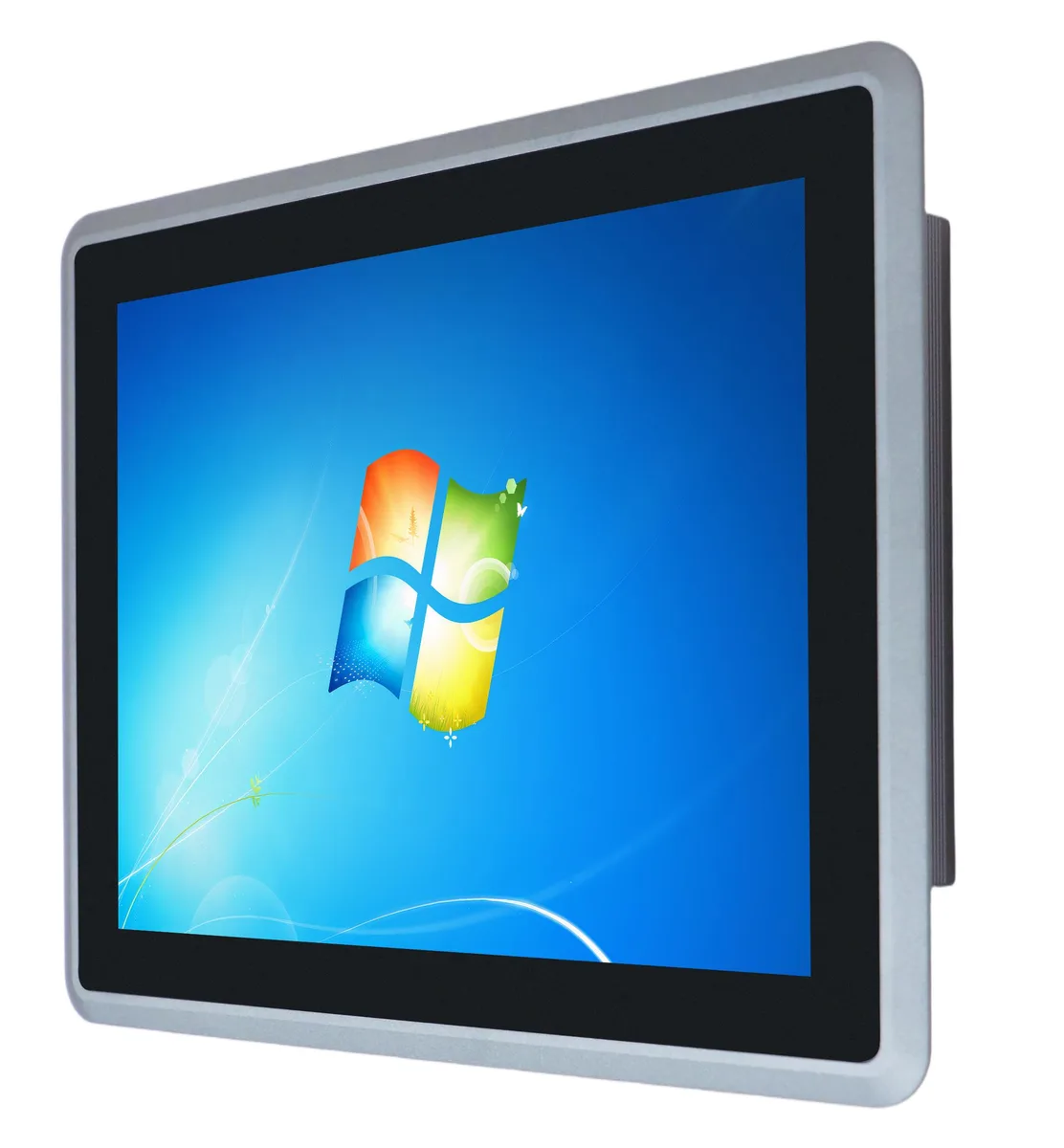

Gray 12.1 inch all-in-one industrial panel PC with capacitive touch screen and aluminum alloy chassis

partaker

Partaker A26 12.1" AI edge system i3-3217U 8GB 128GB

SKU CH-VCWQ-S9NJD

A 12.1 inch fanless industrial panel PC with an IP65 front panel, capacitive touch screen, Intel Core i3-3217U processor, 8GB DDR3 memory and 128GB mSATA storage running Windows 10 Pro

  • TypeAll-in-One PC
  • Form FactorAll-in-One
  • ColorGray
  • Operating SystemWindows 10 Pro
  • CPU TypeIntel Core i3 3rd Gen
  • CPU NameIntel Core i3-3217U

A26 12.1" Capacitive i3 3217U 8GB RAM / 128GB SSD

  • 1″ capacitive multi-touch display at 1024×768 for clear industrial interfaces
  • Fanless aluminium chassis runs silently from -20 to +60 °C
  • IP65-rated front panel resists dust and water in harsh environments
  • Dual Gigabit LAN plus two RS232/485 ports connect machinery and networks
  • Intel Core i3-3217U at 1.80 GHz with 8 GB DDR3 and 128 GB mSATA storage

Compact Industrial Panel PC

The Partaker A26 is a 12.1 inch fanless all-in-one system built around an Intel Core i3-3217U processor running at 1.80 GHz. It comes with 8GB of DDR3 memory and a 128GB mSATA drive, ready for Windows 10 Pro deployment. The aluminium alloy chassis and IP65-rated front panel target integrators who need a silent, dust-resistant touchscreen for machine interfaces or data capture in harsh environments.

Embedded Mounting And I/O Wiring

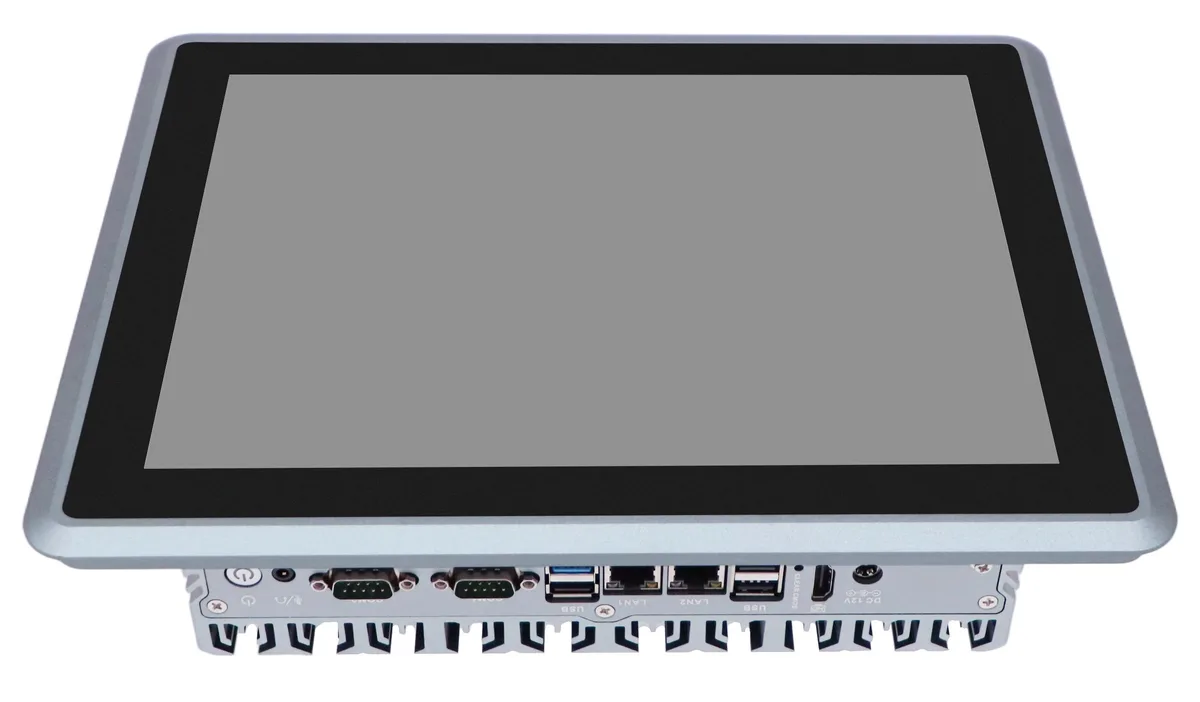

The unit fits a standard panel cutout of 298.5 by 237 mm and also supports VESA mounting for flexible installation. Dual Gigabit LAN ports, two RS232/485 COM ports, four USB sockets and HDMI output cover most legacy and modern peripherals. Installers must route the DC12V supply cable through the cutout; optional 9 to 36V wide-voltage modules require a separate order. The capacitive touch overlay works with gloves but can misread conductive debris if the screen is not kept clean.

Legacy Platform Constraints

The third-generation dual-core CPU and DDR3 memory ceiling limit headroom for contemporary AI inference or heavy multitasking. Video output relies on HDMI and an internal LVDS link fixed to 1024 by 768 resolution, so external displays cannot exceed that native grid. Expansion is restricted to two mini-PCIe slots, one pre-wired for wireless modules with a SIM holder. Buyers who need more storage, additional serial ports or newer instruction-set extensions should look beyond this platform.

Points forts

  • 1″ capacitive multi-touch display at 1024×768 for clear industrial interfaces
  • Fanless aluminium chassis runs silently from -20 to +60 °C
  • IP65-rated front panel resists dust and water in harsh environments
  • Dual Gigabit LAN plus two RS232/485 ports connect machinery and networks
  • Intel Core i3-3217U at 1.80 GHz with 8 GB DDR3 and 128 GB mSATA storage

Caractéristiques

TypeAll-in-One PC
Form FactorAll-in-One
ColorGray
Operating SystemWindows 10 Pro
CPU TypeIntel Core i3 3rd Gen
CPU NameIntel Core i3-3217U
Screen Size12.1"
Screen TypeMulti-Touch Screen

Autres versions de ce modèle

5 de plus dans cette gamme

Même famille, mémoire, ventirad ou fréquence différents — comparez avant de vous décider.

Questions sur cet article

How do I verify the 12.1-inch capacitive touch panel is responsive after mounting?

Power on the unit and confirm the Windows 10 Pro desktop appears at 1024×768 resolution, then test multi-touch gestures across the full 450 cd/m² screen area.

What ships with the A26 and which expansion items must be ordered separately?

The box includes the panel PC with 8GB DDR3, 128GB mSATA SSD, dual Gigabit LAN, HDMI, 2 COM ports, 4 USB ports, audio jack and 12 V DC input; GPIO, extra COM, USB, Wi-Fi/4G modules and wide-voltage 9–36 V DC are optional extras.

Which memory and storage configuration matches the listed i3-3217U model?

This version comes with a single 8GB DDR3 module (the maximum supported) and a 128GB mSATA drive; no other RAM or SSD capacities are offered for this SKU.
