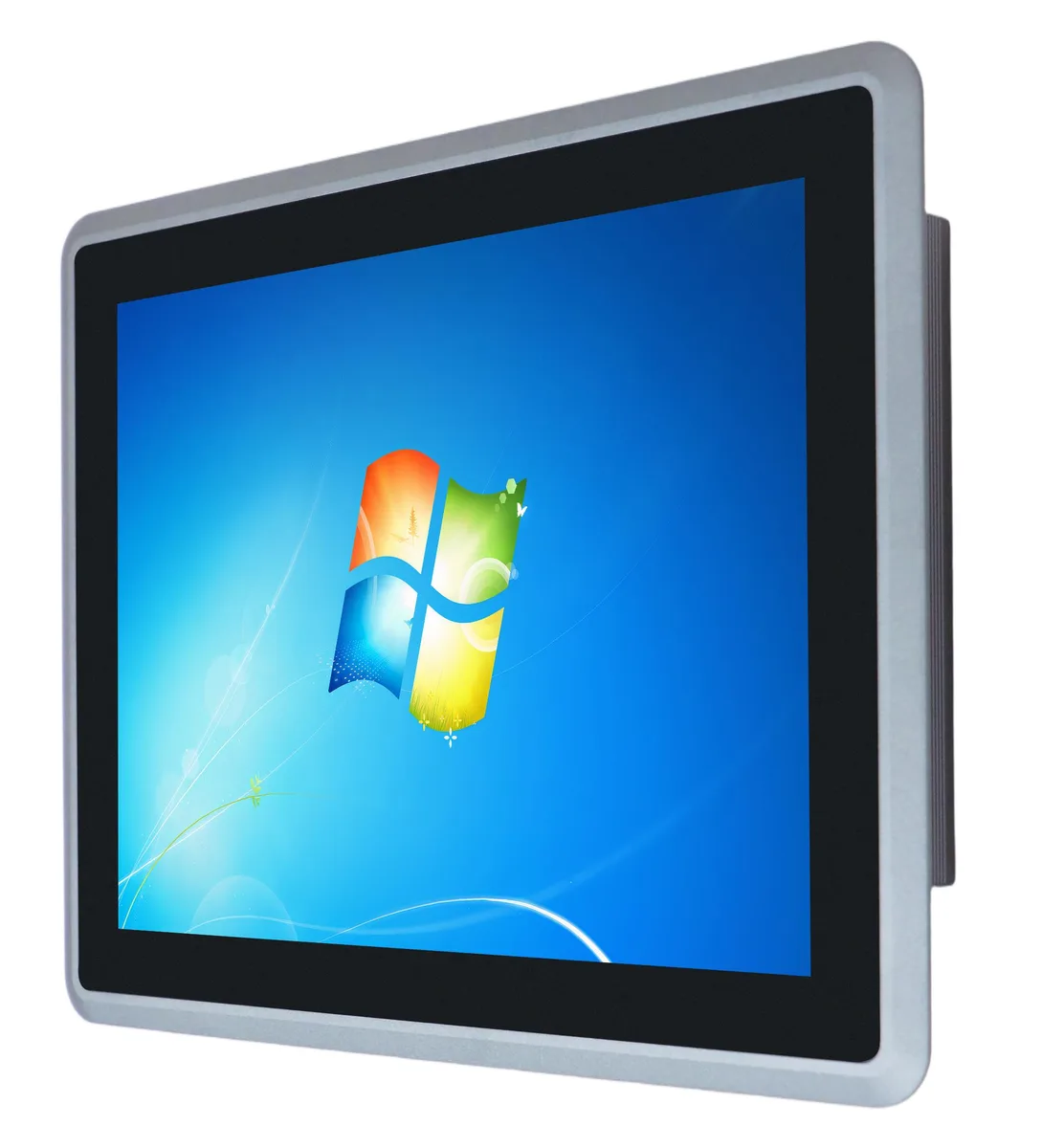

Gray 12.1 inch fanless aluminum panel PC with IP65 front and capacitive touch screen

partaker

Partaker A26 12.1" AI edge system i5-3317U 8GB 128GB

SKU CH-CAD3-EGECD

Fanless 12.1-inch industrial panel PC with capacitive touch screen, Intel Core i5-3317U processor, 8GB DDR3 memory, 128GB mSATA storage and IP65 front protection

  • TypeAll-in-One PC
  • Form FactorAll-in-One
  • ColorGray
  • Operating SystemWindows 10 Pro
  • CPU TypeIntel Core i5 3rd Gen
  • CPU NameIntel Core i5-3317U

A26 12.1" Capacitive I5 3317U 8GB RAM / 128GB SSD

  • 1-inch capacitive multi-touch screen with 1024x768 resolution for clear industrial control
  • Fanless aluminum alloy chassis enables silent operation in high-dust environments
  • IP65-rated front panel protects against dust and water ingress with flexible mounting
  • Dual Gigabit Ethernet ports plus four USB and two COM ports for factory equipment integration
  • Intel Core i5-3317U processor with 8GB DDR3 and 128GB mSATA for automation tasks

Industrial touch panel PC

The Partaker A26 is a 12.1 inch fanless all-in-one system built around an Intel Core i5-3317U processor with 8GB DDR3 memory and a 128GB mSATA drive. It runs Windows 10 Pro on a capacitive XGA multi-touch screen rated at 450 cd/m2 brightness. The aluminum alloy chassis carries an IP65 front rating for dust and water protection in harsh environments.

Embedded mounting and I/O

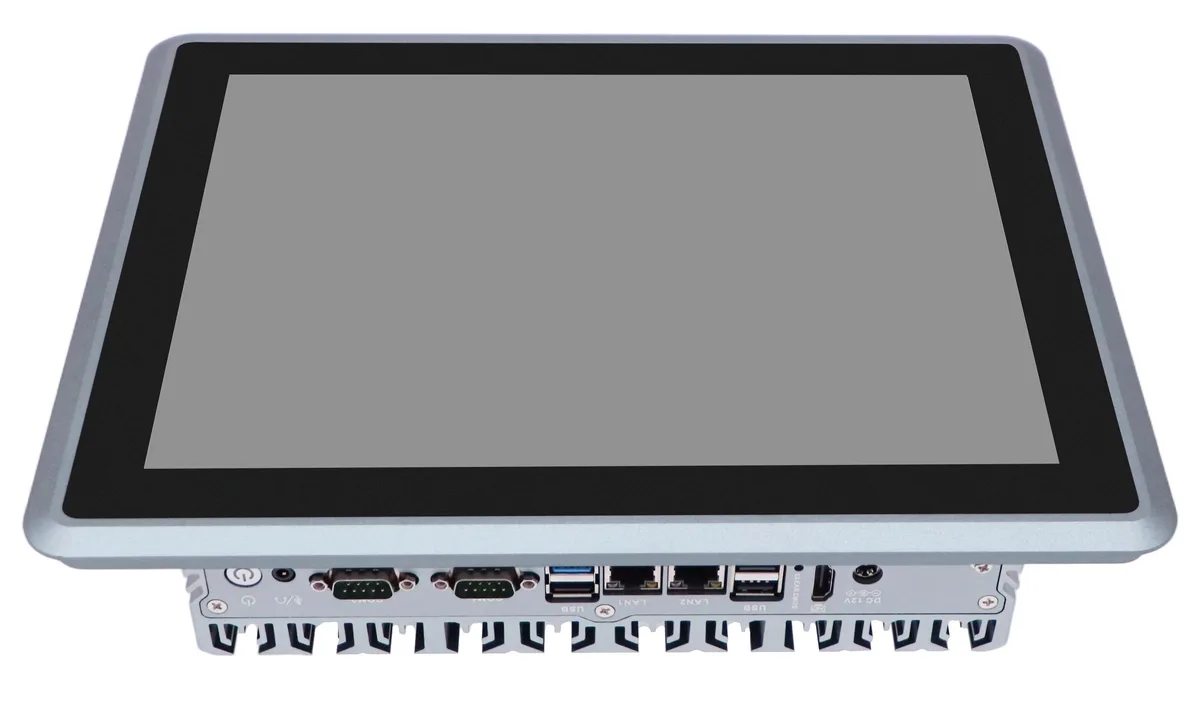

Installation uses a 298.5 by 237 mm panel cutout for embedded mounting or standard VESA patterns for arm or wall brackets. The single 12V DC input simplifies wiring, while an optional 9-36V wide-range input accommodates unstable factory power. Dual Gigabit LAN, two configurable RS232/485 COM ports, four USB ports and HDMI provide immediate connectivity for PLCs, sensors and secondary displays.

Platform and expansion limits

The CPU tops out at 2.60 GHz with two cores, and the single DDR3 slot maxes at 8GB, so memory cannot be expanded beyond the shipped configuration. Storage is limited to one mSATA slot with no 2.5 inch bay. Two mini PCIe slots accept wireless modules, but the second slot shares bandwidth with the first. Operating temperature spans -20 to +60 °C with an SSD installed.

Points forts

  • 1-inch capacitive multi-touch screen with 1024x768 resolution for clear industrial control
  • Fanless aluminum alloy chassis enables silent operation in high-dust environments
  • IP65-rated front panel protects against dust and water ingress with flexible mounting
  • Dual Gigabit Ethernet ports plus four USB and two COM ports for factory equipment integration
  • Intel Core i5-3317U processor with 8GB DDR3 and 128GB mSATA for automation tasks

Caractéristiques

TypeAll-in-One PC
Form FactorAll-in-One
ColorGray
Operating SystemWindows 10 Pro
CPU TypeIntel Core i5 3rd Gen
CPU NameIntel Core i5-3317U
Screen Size12.1"
Screen TypeMulti-Touch Screen

Autres versions de ce modèle

5 de plus dans cette gamme

Même famille, mémoire, ventirad ou fréquence différents — comparez avant de vous décider.

Questions sur cet article

How can I confirm the Partaker A26 is running correctly after installation?

Verify the Intel Core i5-3317U processor initialises, the 12.1-inch capacitive touch screen displays the Windows 10 Pro desktop at 1024x768 resolution, both Realtek Gigabit Ethernet ports show link lights, and the dual 82W speakers produce audio.

What comes in the box with the Partaker A26 and what must I source separately?

The unit ships with the 12.1-inch IP65-rated panel PC, 8GB DDR3 memory, 128GB mSATA SSD, Windows 10 Pro licence, and DC 12V power input. Optional wide-range 9-36V DC input, GPIO, extra COM or USB ports, and Wi-Fi/4G modules are not included.

Which memory and storage configuration should I choose for the Partaker A26?

This model is supplied with a single 8GB DDR3 module and a 128GB mSATA drive; the board supports a maximum of 8GB DDR3 and one mSATA slot, so no larger memory or additional internal storage can be added.
