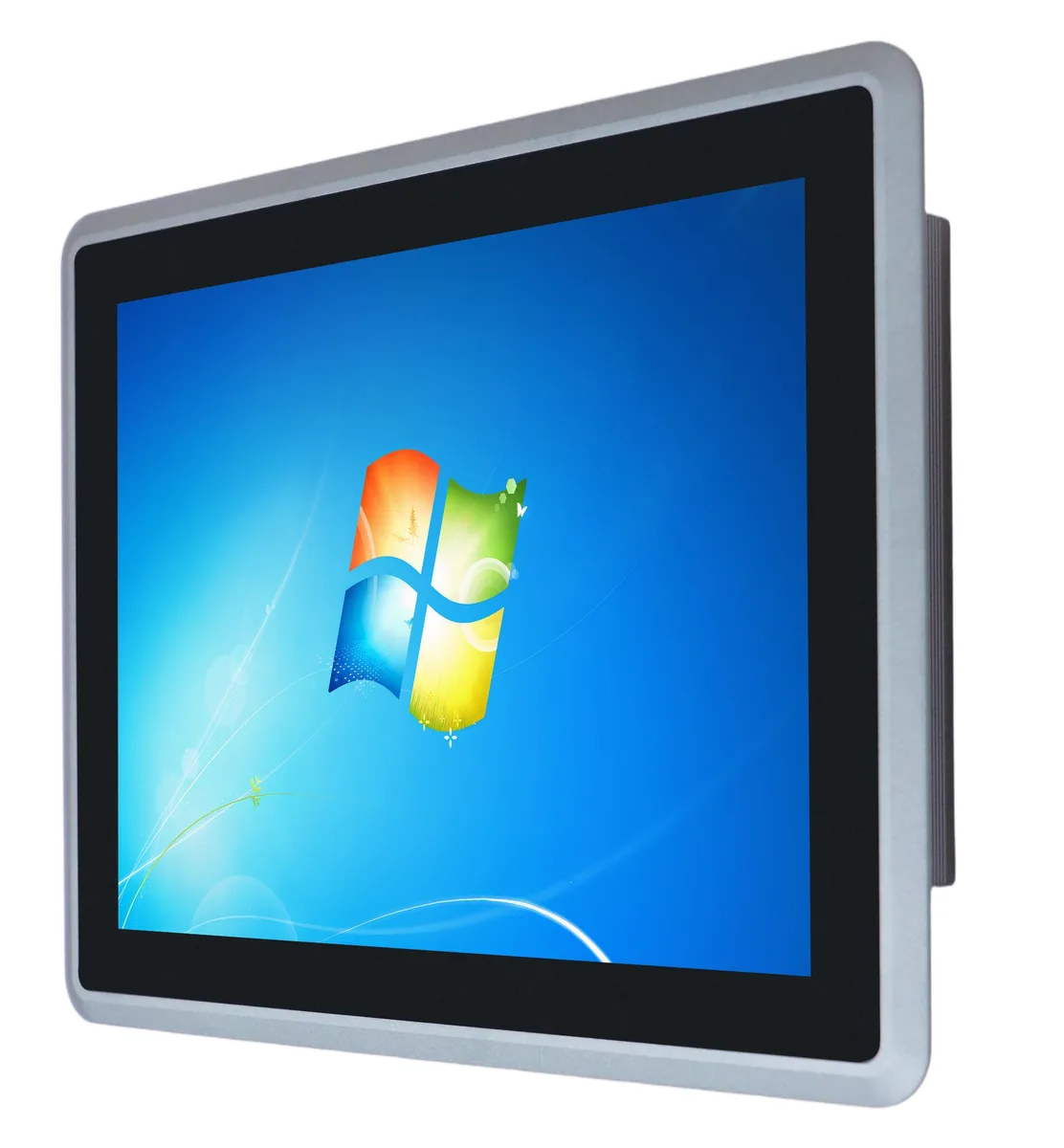

Gray 12.1 inch fanless all-in-one panel PC with capacitive touch screen and aluminum alloy chassis

partaker

partaker A26 12.1" AI edge system i5-4200U 8GB 256GB

SKU CH-DM35-V2S8D

Fanless 12.1-inch industrial panel PC with IP65 front protection, Intel Core i5-4200U processor, 8GB DDR3 memory and 256GB storage

  • TypeAll-in-One PC
  • Form FactorAll-in-One
  • ColorGray
  • Operating SystemWindows 10 Pro
  • CPU TypeIntel Core i5 4th Gen
  • CPU NameIntel Core i5-4200U

A26 12.1" Capacitive I5 4200U 8GB RAM / 256GB SSD

  • Fanless aluminium alloy chassis enables silent operation in high-dust environments
  • IP65-rated front panel resists dust and water ingress for reliable industrial use
  • Intel Core i5-4200U dual-core processor up to 2.60 GHz handles automation workloads
  • 1-inch capacitive multi-touch screen with 1024x768 resolution provides clear visual control
  • Dual Gigabit LAN ports plus two configurable RS232/485 COM ports connect machinery directly

Industrial Panel PC for Edge AI

The Partaker A26 is a 12.1-inch all-in-one system built around an Intel Core i5-4200U processor with 8 GB of DDR3 memory and a 256 GB mSATA drive. It ships with Windows 10 Pro and a capacitive multi-touch screen at 1024x768 resolution. The fanless aluminium chassis carries an IP65-rated front panel for dust and water resistance in harsh environments.

Fanless Chassis with Flexible Mounting and Power

The sealed aluminium body dissipates heat without moving parts, allowing operation from -20 °C to +60 °C with solid-state storage. A standard 12 V DC input is fitted, while a wide-range 9-36 V option can be specified for unstable supplies. The unit fits a 298.5x237 mm panel cutout for embedded installs and also supports VESA mounting, freeing cabinet space otherwise needed for separate IPCs and monitors.

Dual LAN, Dual COM and Expansion Slots

Two Realtek Gigabit Ethernet ports enable redundant networks or PXE boot, while two configurable RS232/485 COM ports connect legacy PLCs and sensors directly. Four USB ports and audio round out the I/O. Two mini-PCIe slots accept Wi-Fi, Bluetooth or cellular modules with a SIM holder, and the board supports up to 16 GB of DDR3 plus an extra mSATA slot for storage growth without redesigning the enclosure.

Points forts

  • Fanless aluminium alloy chassis enables silent operation in high-dust environments
  • IP65-rated front panel resists dust and water ingress for reliable industrial use
  • Intel Core i5-4200U dual-core processor up to 2.60 GHz handles automation workloads
  • 1-inch capacitive multi-touch screen with 1024x768 resolution provides clear visual control
  • Dual Gigabit LAN ports plus two configurable RS232/485 COM ports connect machinery directly

Caractéristiques

TypeAll-in-One PC
Form FactorAll-in-One
ColorGray
Operating SystemWindows 10 Pro
CPU TypeIntel Core i5 4th Gen
CPU NameIntel Core i5-4200U
Screen Size12.1"
Screen TypeMulti-Touch Screen

Autres versions de ce modèle

5 de plus dans cette gamme

Même famille, mémoire, ventirad ou fréquence différents — comparez avant de vous décider.

Questions sur cet article

How much RAM can the system handle before the memory ceiling is reached?

The board accepts two DDR3 modules up to a combined 16 GB, so 16 GB is the hard limit for memory expansion.

What are the thermal and acoustic characteristics when the unit runs continuously?

The fanless aluminium-alloy chassis operates silently and is rated for -20 °C to +60 °C ambient with a solid-state drive installed.

Which power source must already be on site for the standard configuration to start?

A 12 V DC supply is required for the standard model; the wide-range 9–36 V DC option is a factory customisation, not included by default.
