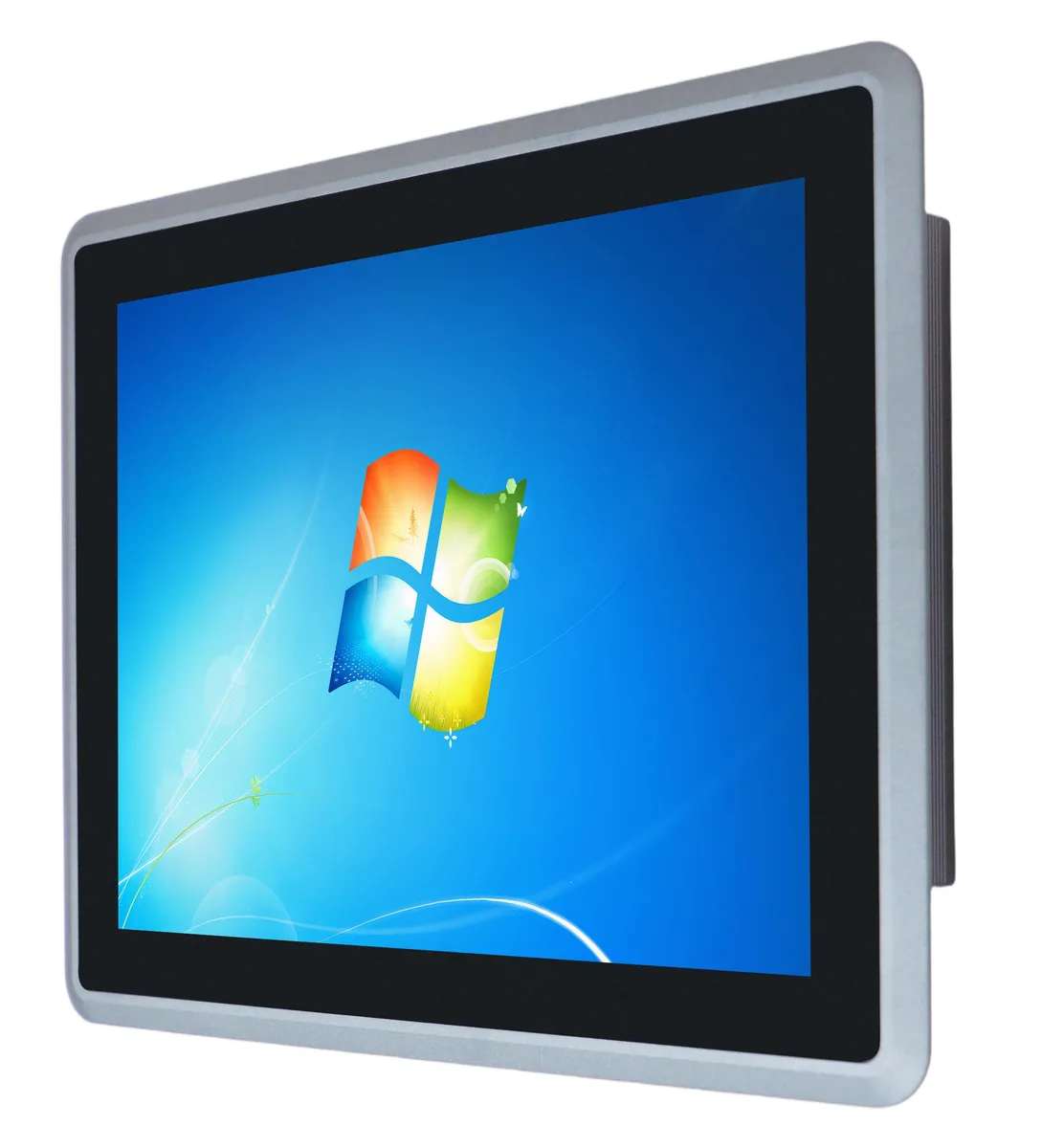

Gray 12.1 inch fanless aluminum panel PC with capacitive touch screen

partaker

partaker A26 12.1 inch fanless industrial panel PC i5 5200U 8GB 512GB

SKU CH-NCBB-E2CW7

A 12.1-inch fanless industrial panel PC with an IP65-rated capacitive touchscreen, Intel Core i5-5200U processor, 8GB DDR3 memory and 512GB mSATA storage.

  • TypeAll-in-One PC
  • Form FactorAll-in-One
  • ColorGray
  • Operating SystemWindows 10 Pro
  • CPU TypeIntel Core i5 5th Gen
  • CPU NameIntel Core i5-5200U

A26 12.1" Capacitive I5 5200U 8GB RAM / 512GB SSD

  • Silent operation in dusty areas with fanless aluminium chassis
  • Resists dust and water jets via IP65 front panel
  • Connects legacy and modern gear through dual Gigabit LAN and two RS232/485 COM ports
  • Runs 24/7 from -20 °C to 60 °C with solid-state storage
  • Expandable to 16 GB DDR3 and mSATA for growing workloads

Industrial Panel PC for Control Cabinets

The Partaker A26 integrates a 12.1 inch capacitive touch display with an Intel Core i5-5200U processor, 8 GB of DDR3 memory and a 512 GB mSATA drive in a fanless aluminium chassis. It ships with Windows 10 Pro and carries an IP65-rated front panel suitable for dusty or wet production floors. The 4:3 aspect ratio screen delivers 1024 x 768 resolution at 450 cd/m2 brightness.

Embedded Mounting and Expandable I/O

A 298.5 x 237 mm cut-out allows flush panel mounting while VESA compatibility offers an alternative fixing method. Dual Gigabit Ethernet ports, two configurable RS232/485 COM ports, four USB ports, HDMI and audio connect directly to PLCs, sensors and HMIs. Two Mini PCIe slots accept wireless or cellular modules, and the system operates on 12 V DC with an optional 9-36 V wide-range input.

Bundled Accessories Extend Connectivity

The package includes a GPIO header providing four channels, four additional COM ports and two extra USB ports that are not populated on the standard rear I/O. These interfaces enable direct wiring to legacy machinery, barcode scanners or light curtains without external adapters. A watchdog timer with 0-255 levels and timer power-on functions support unattended 24/7 operation.

Points forts

  • Silent operation in dusty areas with fanless aluminium chassis
  • Resists dust and water jets via IP65 front panel
  • Connects legacy and modern gear through dual Gigabit LAN and two RS232/485 COM ports
  • Runs 24/7 from -20 °C to 60 °C with solid-state storage
  • Expandable to 16 GB DDR3 and mSATA for growing workloads

Caractéristiques

TypeAll-in-One PC
Form FactorAll-in-One
ColorGray
Operating SystemWindows 10 Pro
CPU TypeIntel Core i5 5th Gen
CPU NameIntel Core i5-5200U
Screen Size12.1"
Screen TypeMulti-Touch Screen

Autres versions de ce modèle

5 de plus dans cette gamme

Même famille, mémoire, ventirad ou fréquence différents — comparez avant de vous décider.

Questions sur cet article

Does the i5-5200U throttle under continuous industrial workloads?

The fanless aluminum chassis dissipates heat passively, and the unit is rated for -20 °C to +60 °C operating temperature with a solid-state drive installed.

How loud is the A26 when running 24/7 in a control cabinet?

With no moving parts the system is completely silent; the aluminum alloy shell acts as a heatsink so there is no fan noise at any load.

What power supply must I provide for the DC 12 V input?

A 12 V DC source is required; an optional 9–36 V wide-range input can be specified at order time for greater flexibility.
