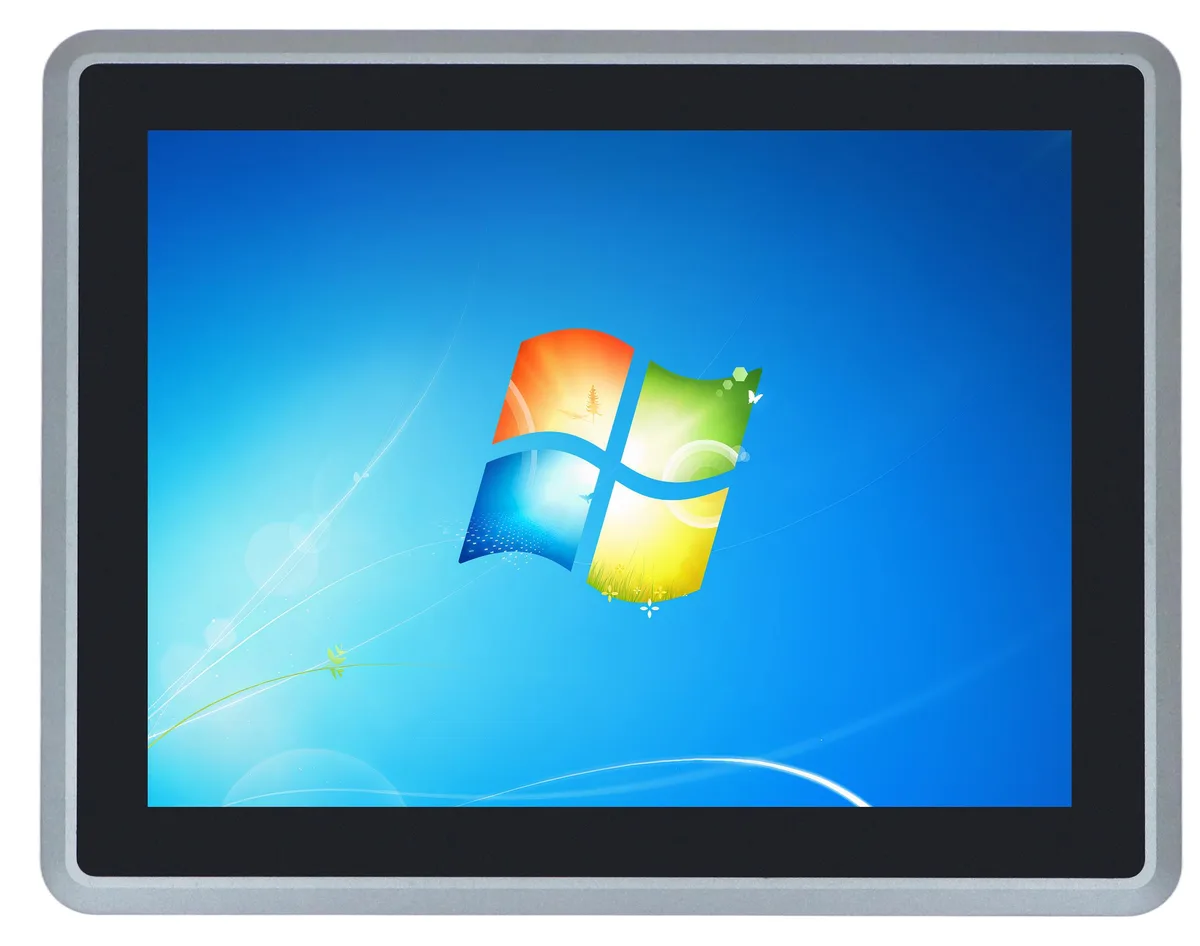

Gray 12.1 inch resistive touch panel PC in fanless aluminum alloy chassis with IP65 front

partaker

partaker A26 12.1 inch resistive touch AI edge system i5-6200U 16GB 512GB

SKU CH-3316-KV3VE

A 12.1-inch resistive touch panel PC with an IP65 front, fanless aluminium chassis, Intel Core i5-6200U, 16GB DDR4 and 512GB storage

  • TypeAll-in-One PC
  • Form FactorAll-in-One
  • ColorGray
  • Operating SystemWindows 10 Pro
  • CPU TypeIntel Core i5 6th Gen
  • CPU NameIntel Core i5-6200U

A26 12.1" Resistive I5 6200U 16GB RAM / 512GB SSD

  • Fanless aluminium alloy chassis enables silent, maintenance-free operation in dusty environments
  • IP65-rated front panel provides dust and water resistance for harsh industrial settings
  • 1-inch resistive touch screen rated for 50 million touches ensures long-term reliability
  • Dual Gigabit Ethernet ports plus four USB and two COM ports simplify factory equipment integration
  • 16 GB DDR4 memory and 512 GB mSATA storage support demanding multitasking and data processing

Industrial 12.1-inch Resistive Touch Panel PC

The Partaker A26 is a fanless all-in-one system built around an Intel Core i5-6200U processor with 16GB of DDR4 memory and a 512GB mSATA drive. It ships with Windows 10 Pro on a 12.1-inch XGA display rated at 450 cd/m2 brightness. The IP65 front panel and aluminum alloy chassis target machine operators and integrators who need a sealed, maintenance-free interface for factory floors or outdoor kiosks.

Silent Fanless Operation on 12V DC

A solid aluminum housing dissipates heat without moving parts, so the unit runs at 0 dB in normal use while drawing power from a standard 12V DC source. An optional 9-36V wide-range input can be specified for unstable supply lines. Dual Realtek Gigabit ports, two configurable RS232/485 COM ports, four USB ports and HDMI keep peripheral cables to a minimum, reducing failure points in dusty or wet environments.

Sustained Load Handling With Watchdog Supervision

Under continuous workload the i5-6200U maintains its 2.80 GHz boost within the passively cooled envelope, while the AMI EFI BIOS watchdog (0-255 levels) can restart the system automatically if software hangs. Two mini-PCIe slots accept Wi-Fi, 4G or additional I/O cards, and the resistive touch layer is rated for 50 million actuations. The 82W stereo speakers remain audible over moderate machinery noise without active cooling ever spinning up.

Points forts

  • Fanless aluminium alloy chassis enables silent, maintenance-free operation in dusty environments
  • IP65-rated front panel provides dust and water resistance for harsh industrial settings
  • 1-inch resistive touch screen rated for 50 million touches ensures long-term reliability
  • Dual Gigabit Ethernet ports plus four USB and two COM ports simplify factory equipment integration
  • 16 GB DDR4 memory and 512 GB mSATA storage support demanding multitasking and data processing

Caractéristiques

TypeAll-in-One PC
Form FactorAll-in-One
ColorGray
Operating SystemWindows 10 Pro
CPU TypeIntel Core i5 6th Gen
CPU NameIntel Core i5-6200U
Screen Size12.1"
Screen TypeMulti-Touch Screen

Autres versions de ce modèle

5 de plus dans cette gamme

Même famille, mémoire, ventirad ou fréquence différents — comparez avant de vous décider.

Questions sur cet article

How do I mount the A26 in a panel cutout and which orientation step is often missed?

Cut a 298.5 by 237 mm opening, insert the unit from the front, and secure the rear brackets; the step often missed is aligning the IP65 gasket evenly before tightening so the front seal stays waterproof.

Which component will need replacement first and what is its rated life?

The resistive touch layer is rated for 50 million touches; after that the screen may need replacement while the fanless aluminum chassis and solid-state storage typically last longer.

What thermal limit appears first during continuous full-load operation?

The i5-6200U reaches its 2.80 GHz turbo ceiling and, without active cooling, the aluminum chassis becomes the bottleneck, so sustained compute throttles before any other subsystem.
