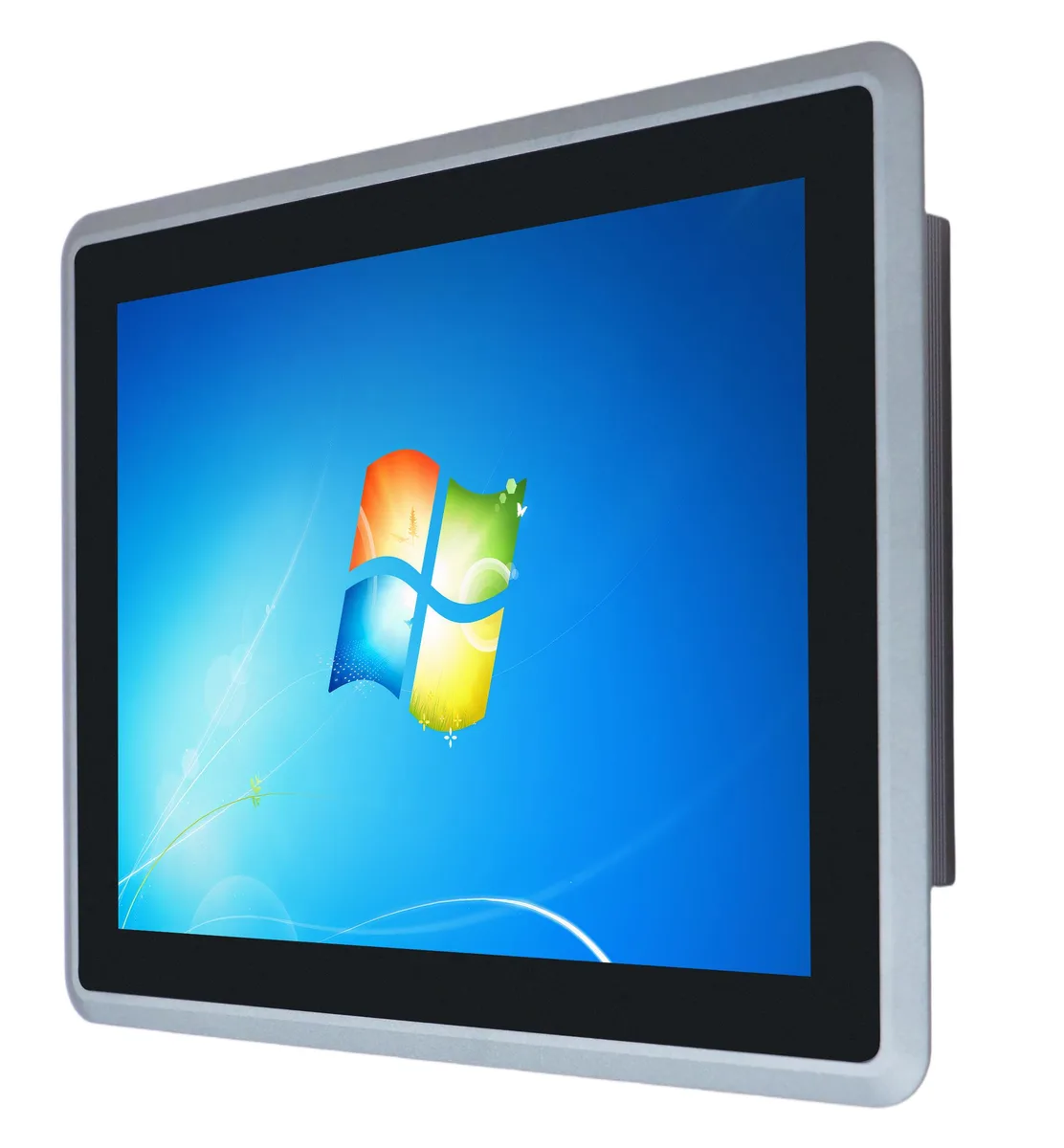

Gray 12.1 inch resistive touch all-in-one panel PC with flat IP65 front and aluminum alloy chassis

partaker

partaker A26 12.1" Resistive Touch AI edge system i3-5005U 16GB 256GB

SKU CH-KDE7-ZXCTN

A 12.1-inch resistive-touch industrial panel PC with an Intel Core i3-5005U, 16 GB DDR3 and a 256 GB mSATA drive, built in a fanless aluminium chassis with an IP65 front panel, dual Gigabit LAN.

  • TypeAll-in-One PC
  • Form FactorAll-in-One
  • ColorGray
  • Operating SystemWindows 10 Pro
  • CPU TypeIntel Core i3 5th Gen
  • CPU NameIntel Core i3-5005U

A26 12.1" Resistive I3 5005U 16GB RAM / 256GB SSD

  • Resistive touch rated for 50 million operations
  • Fanless aluminium alloy chassis for silent operation
  • IP65 front panel resists dust and water jets
  • Dual Gigabit LAN plus two configurable COM ports
  • 16 GB DDR3 and 256 GB mSATA storage included

12.1" Resistive Touch Industrial Panel PC

The Partaker A26 is a fanless all-in-one system built around a 12.1-inch resistive TFT-LCD with XGA resolution and an IP65-rated front panel. An Intel Core i3-5005U dual-core processor at 2.00 GHz drives Windows 10 Pro on up to 16GB of DDR3 memory and a 256GB mSATA drive. The aluminium alloy chassis operates silently from a 12V DC supply, with an optional 9-36V wide-range input.

Suited for embedded automation

It fits machine-interface, SCADA and kiosk roles that need a compact sealed display with dual Gigabit Ethernet, dual configurable RS232/485 COM ports, four USB ports and VESA or panel-mount options. The resistive screen survives 50 million touches and works with gloves. Buyers who need a capacitive multi-touch experience, more than 16GB of system memory, or an M.2 storage slot should consider other platforms.

Single mSATA storage slot defines expansion ceiling

Only one mSATA drive is supported, so total onboard capacity is fixed at the shipped 256GB unless the drive is swapped. Two Mini PCIe sockets accept Wi-Fi, Bluetooth or cellular modules with a SIM holder, but they cannot add a second boot drive. Verify that the application can live within a single mSATA volume before ordering.

Points forts

  • Resistive touch rated for 50 million operations
  • Fanless aluminium alloy chassis for silent operation
  • IP65 front panel resists dust and water jets
  • Dual Gigabit LAN plus two configurable COM ports
  • 16 GB DDR3 and 256 GB mSATA storage included

Caractéristiques

TypeAll-in-One PC
Form FactorAll-in-One
ColorGray
Operating SystemWindows 10 Pro
CPU TypeIntel Core i3 5th Gen
CPU NameIntel Core i3-5005U
Screen Size12.1"
Screen TypeMulti-Touch Screen

Autres versions de ce modèle

5 de plus dans cette gamme

Même famille, mémoire, ventirad ou fréquence différents — comparez avant de vous décider.

Questions sur cet article

How can I confirm the Partaker A26 is running correctly after installation?

Power on the unit and verify the Windows 10 Pro desktop appears on the 12.1-inch XGA display at 1024x768 resolution. Test the resistive touch response and check that both Gigabit Ethernet ports show link lights.

What ships with the A26 and what must I source separately?

The system includes the aluminum-alloy panel PC with i3-5005U processor, 16 GB DDR3 memory, 256 GB mSATA SSD, Windows 10 Pro licence, dual COM ports, four USB ports, dual LAN, HDMI, audio and 12 V DC input. Wireless modules, SIM cards, GPIO, extra COM or USB ports, and 9–36 V wide-voltage input are optional extras.

Which A26 configuration should I choose for my application?

Select the i3-5005U or i3-5010U variant; both are dual-core 2.00 GHz with 3 MB cache. The standard build provides 16 GB DDR3 and 256 GB mSATA storage. Add a Mini PCIe Wi-Fi/4G module with SIM holder if wireless connectivity is needed, or specify the 9–36 V DC input for mobile power environments.
