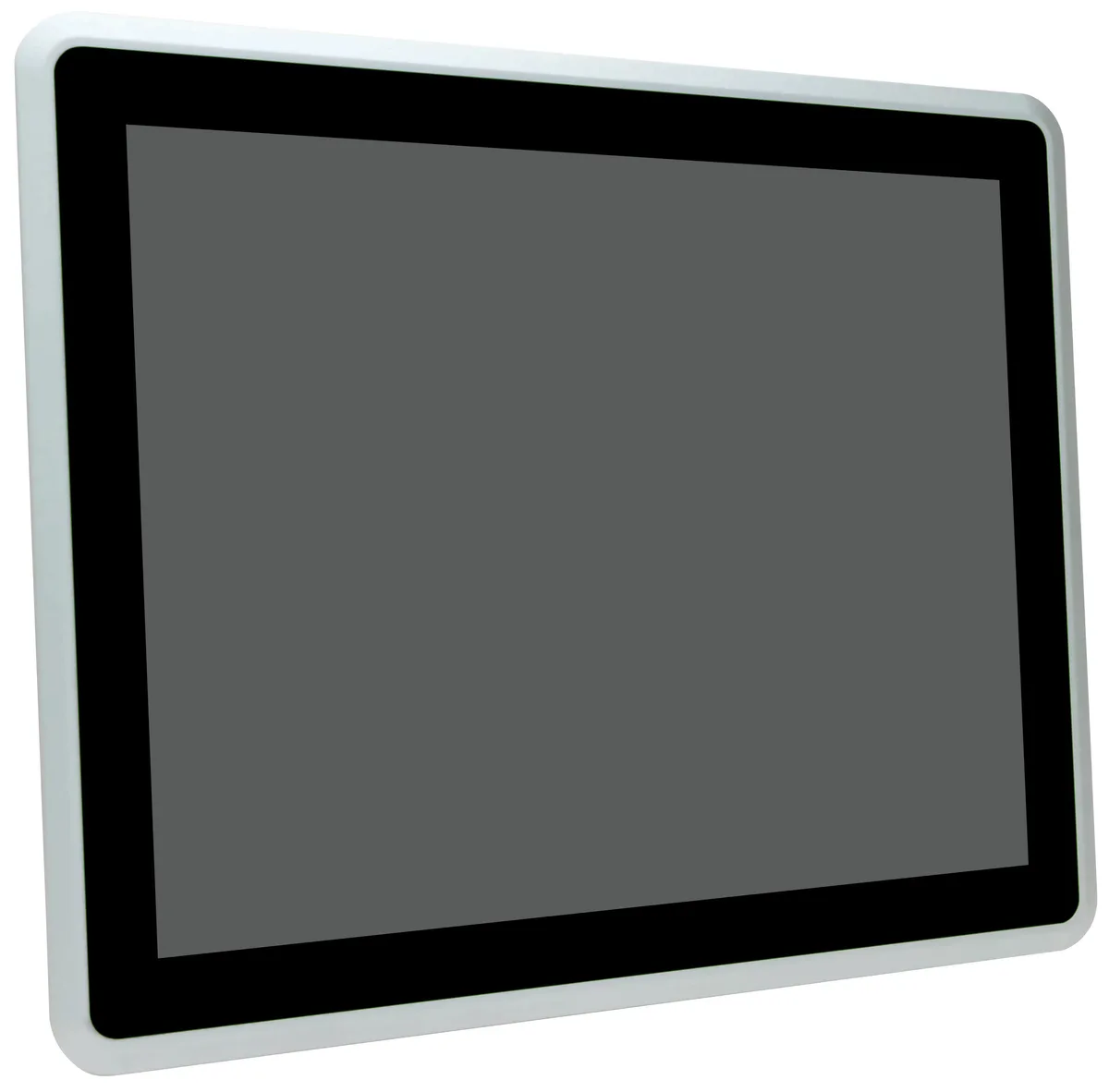

Gray 15 inch IP65 industrial panel PC with flat capacitive touchscreen and aluminum alloy chassis

partaker

partaker A27 15" IP65 panel PC i3-3217U 4GB 128GB

SKU CH-XXF4-3H92M

A 15-inch fanless panel PC with an IP65 front, Intel Core i3-3217U, 4 GB DDR3, 128 GB storage and Windows 10 Pro

  • TypeAll-in-One PC
  • Form FactorAll-in-One
  • ColorGray
  • Operating SystemWindows 10 Pro
  • CPU TypeIntel Core i3 3rd Gen
  • CPU NameIntel Core i3-3217U

A27 15" Capacitive I3 3217U 4GB RAM / 128GB SSD

  • 4GB RAM / 128GB SSD
  • 8GB RAM / 128GB SSD
  • 8GB RAM / 256GB SSD
  • 8GB RAM / 512GB SSD

Les versions barrées existent, mais ne sont pas disponibles ici.

  • IP65 front panel resists dust and water ingress
  • Fanless aluminium alloy chassis enables silent maintenance-free operation
  • Intel Core i3-3217U dual-core processor at 1.80 GHz delivers efficient performance
  • 15 inch 1024×768 capacitive touchscreen provides responsive multi-touch control
  • Dual Gigabit LAN plus 2 COM and 4 USB ports support industrial connectivity

15 inch IP65 industrial panel PC

The Partaker A27 combines a 15 inch TFT LCD with a capacitive multi-touch screen in an all-metal, fanless chassis rated IP65 at the front. It runs Windows 10 Pro on an Intel Core i3-3217U dual-core processor at 1.80 GHz with 4 GB of DDR3 memory and a 128 GB mSATA drive. The unit is built for embedded mounting in harsh environments where dust and water resistance are required.

Dual Gigabit Ethernet and legacy I/O limits

Connectivity centres on two Realtek Gigabit LAN ports with wake-on-LAN and PXE support, two configurable RS232/485 COM ports expandable to six, four USB ports, one HDMI output and an internal LVDS link to the panel. Expansion relies on two mini PCIe slots that can host Wi-Fi, Bluetooth or 4G modules with a SIM holder; optional GPIO and extra COM or USB interfaces are not fitted as standard. The 12 V DC input accepts an optional 9–36 V wide-range supply for unstable power grids.

4 GB DDR3 and 128 GB mSATA headroom

The system ships with 4 GB of DDR3 in a single slot and supports up to 8 GB total, giving modest headroom for heavier automation workloads. The 128 GB mSATA SSD provides solid-state storage with no moving parts, suitable for the rated -20 to +60 °C operating range. Display output is fixed at 1024×768 on the 4:3 panel with 350 cd/m² brightness; synchronous or asynchronous dual display is possible via HDMI. The dual-core i3-3217U handles typical HMI and monitoring tasks but will saturate under sustained multi-threaded compute loads.

Points forts

  • IP65 front panel resists dust and water ingress
  • Fanless aluminium alloy chassis enables silent maintenance-free operation
  • Intel Core i3-3217U dual-core processor at 1.80 GHz delivers efficient performance
  • 15 inch 1024×768 capacitive touchscreen provides responsive multi-touch control
  • Dual Gigabit LAN plus 2 COM and 4 USB ports support industrial connectivity

Caractéristiques

TypeAll-in-One PC
Form FactorAll-in-One
ColorGray
Operating SystemWindows 10 Pro
CPU TypeIntel Core i3 3rd Gen
CPU NameIntel Core i3-3217U
Screen Size15"
Screen TypeMulti-Touch Screen

Autres versions de ce modèle

5 de plus dans cette gamme

Même famille, mémoire, ventirad ou fréquence différents — comparez avant de vous décider.

Questions sur cet article

Should I select the 4GB RAM and 128GB SSD configuration or plan for the 8GB DDR3 maximum?

The unit ships with 4GB DDR3 and a 128GB mSATA drive; the board supports up to 8GB DDR3 if your application needs more memory headroom.

What does the 1.80 GHz i3-3217U deliver in a fanless industrial chassis?

The dual-core 1.80 GHz processor runs without a fan in the sealed aluminum housing, providing steady performance for automation and monitoring tasks from -20 to +60 °C.

How do the dual Gigabit Ethernet ports and mini PCIe slots limit expansion?

Two Realtek Gigabit LAN ports handle wired networking; two mini PCIe slots accept one Wi-Fi/Bluetooth/4G module with SIM holder and one additional Wi-Fi card for wireless options.
