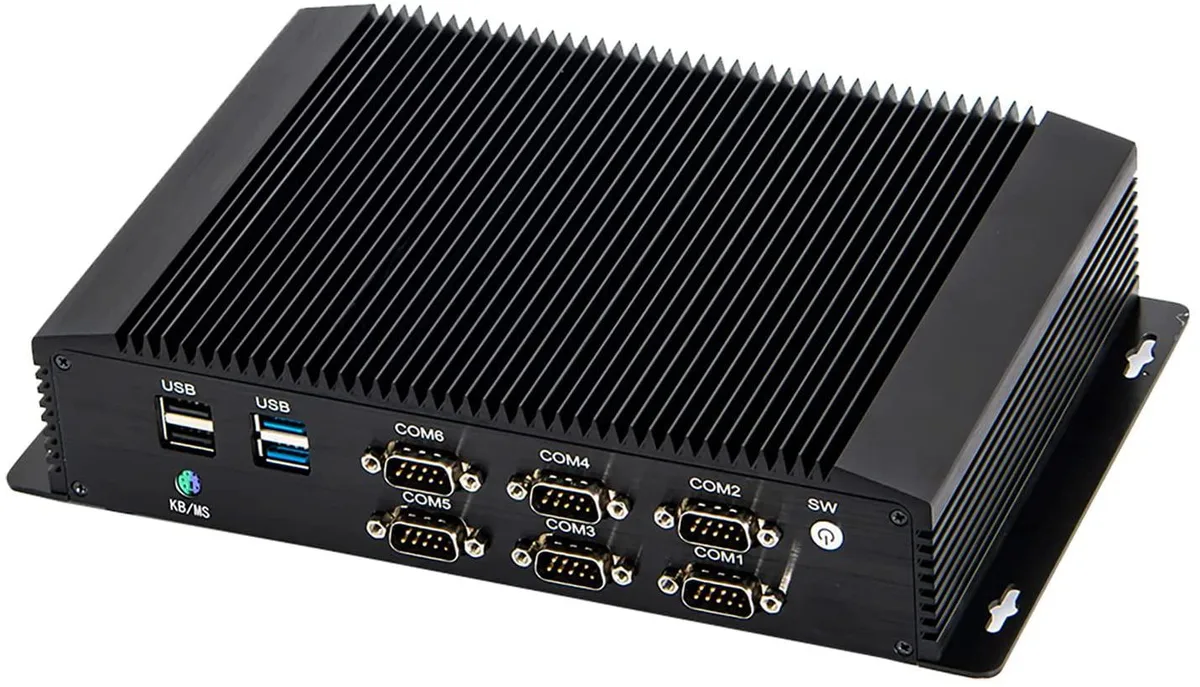

Black fanless mini desktop with mounting ears

partaker

partaker Fanless Industrial PC I27 Intel Core i5-7267U 16GB 256GB Windows 10 Pro

SKU CH-SED9-Y8WNG

Fanless industrial desktop with a 3.1 GHz Intel Core i5-7267U, 16 GB DDR4, 256 GB SSD, six COM ports, dual LAN, GPIO and Windows 10 Pro

  • TypeBusiness Desktops & Workstations
  • ColorBlack
  • MonitorMonitor not included
  • Operating SystemWindows 10 Pro
  • Windows 11Ready
  • CPU TypeIntel Core i5 7th Gen

CPU Type Intel Core i5 7th Gen

CPU Name 3.10GHz

GPU Intel Iris Plus Graphics 650

Memory 16GB DDR4

SSD 256GB

Les versions barrées existent, mais ne sont pas disponibles ici.

  • Fanless design enables silent operation in noise-sensitive environments
  • Intel Core i5-7267U dual-core processor reaches 3.5 GHz for responsive industrial workloads
  • 16 GB DDR4 memory and 256 GB SSD provide fast boot and multitasking
  • Six COM ports with RS232 RS422 RS485 BIOS switching connect diverse legacy equipment
  • Dual Intel LAN plus Wi-Fi 802.11ac ensure reliable wired and wireless connectivity

Fanless Industrial PC I27

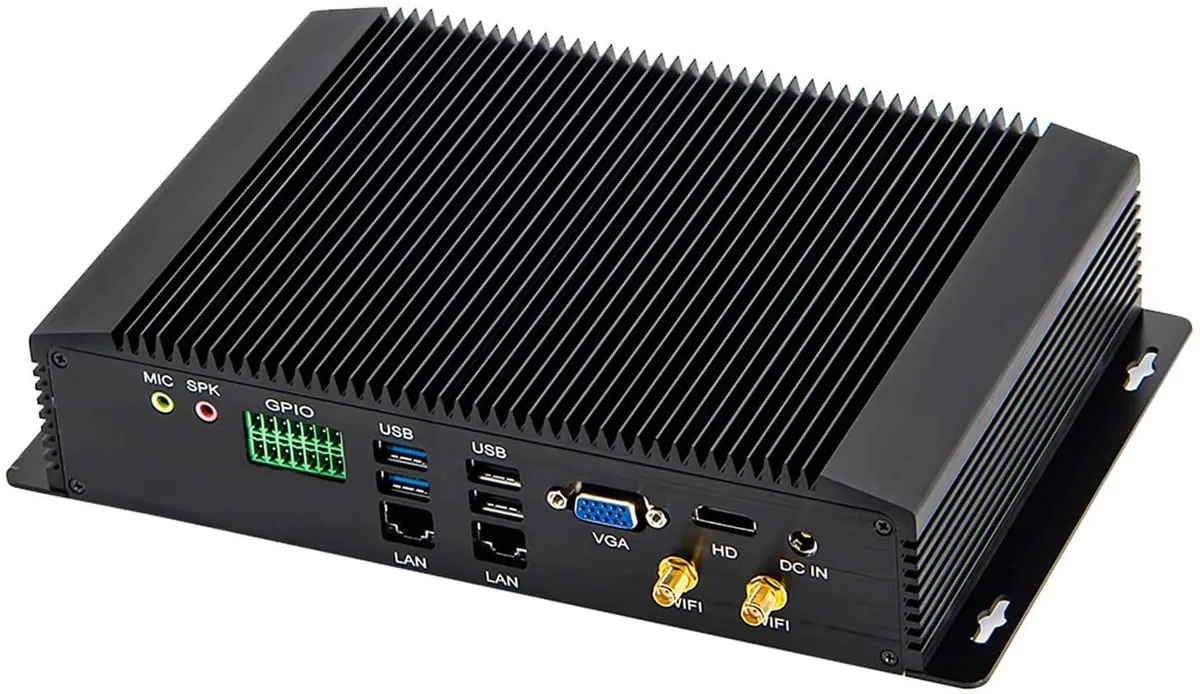

The Partaker I27 is a fanless mini desktop built around an Intel Core i5-7267U dual-core processor with 16 GB of DDR4 memory and a 256 GB SSD. It ships with Windows 10 Pro and includes six COM ports, dual LAN, HDMI, VGA, GPIO and PS/2 connectors for industrial automation and edge-computing tasks.

Connectivity and expansion limits

The board provides one mSATA slot, one M.2 2280 slot supporting SATA or NVMe drives and one 2.5-inch SATA bay, but only a single SO-DIMM slot capped at 32 GB of DDR4-2400. Wireless uses a half-size or full-size Mini PCIe card with dual antennas for 802.11ac on 2.4 and 5 GHz bands, and the two Intel I213 controllers handle wired networking.

Installation notes

Mounting ears let the unit bolt directly to a DIN rail or wall bracket, and the fanless chassis relies on passive convection so airflow around the case must remain unobstructed. The BIOS allows soft switching of COM1 and COM2 between RS-232, RS-422 and RS-485 modes, which avoids jumper errors, but the single memory slot means a capacity upgrade requires replacing the module rather than adding a second stick.

Points forts

  • Fanless design enables silent operation in noise-sensitive environments
  • Intel Core i5-7267U dual-core processor reaches 3.5 GHz for responsive industrial workloads
  • 16 GB DDR4 memory and 256 GB SSD provide fast boot and multitasking
  • Six COM ports with RS232 RS422 RS485 BIOS switching connect diverse legacy equipment
  • Dual Intel LAN plus Wi-Fi 802.11ac ensure reliable wired and wireless connectivity

Caractéristiques

TypeBusiness Desktops & Workstations
ColorBlack
MonitorMonitor not included
Operating SystemWindows 10 Pro
Windows 11Ready
CPU TypeIntel Core i5 7th Gen
CPU Name3.10GHz
GPU/VGA TypeIntel Iris Plus Graphics 650
Memory Capacity16GB DDR4
SSD256GB
HDDNo
Screen SizeNo Screen

Autres versions de ce modèle

5 de plus dans cette gamme

Même famille, mémoire, ventirad ou fréquence différents — comparez avant de vous décider.

Questions sur cet article

Which CPU option fits the I27 if I need four cores and eight threads?

The i5-8250U and i7-8550U both provide four cores and eight threads on the same I27 motherboard, while the i5-7267U in this unit is a dual-core four-thread chip.

What does the 3.5 GHz maximum turbo mean for everyday workloads on the i5-7267U?

The processor runs at a 3.1 GHz base and can boost to 3.5 GHz for short bursts, so single-threaded tasks such as web browsing or light CAD see the higher clock only while thermal headroom allows.

What storage speeds does the M.2 2280 slot support on this I27?

The M.2 2280 slot accepts both SATA and NVMe drives at up to 6 Gb/s on the SATA interface, so an NVMe SSD will run at its rated PCIe speed while a SATA SSD is limited to the 6 Gb/s link.
