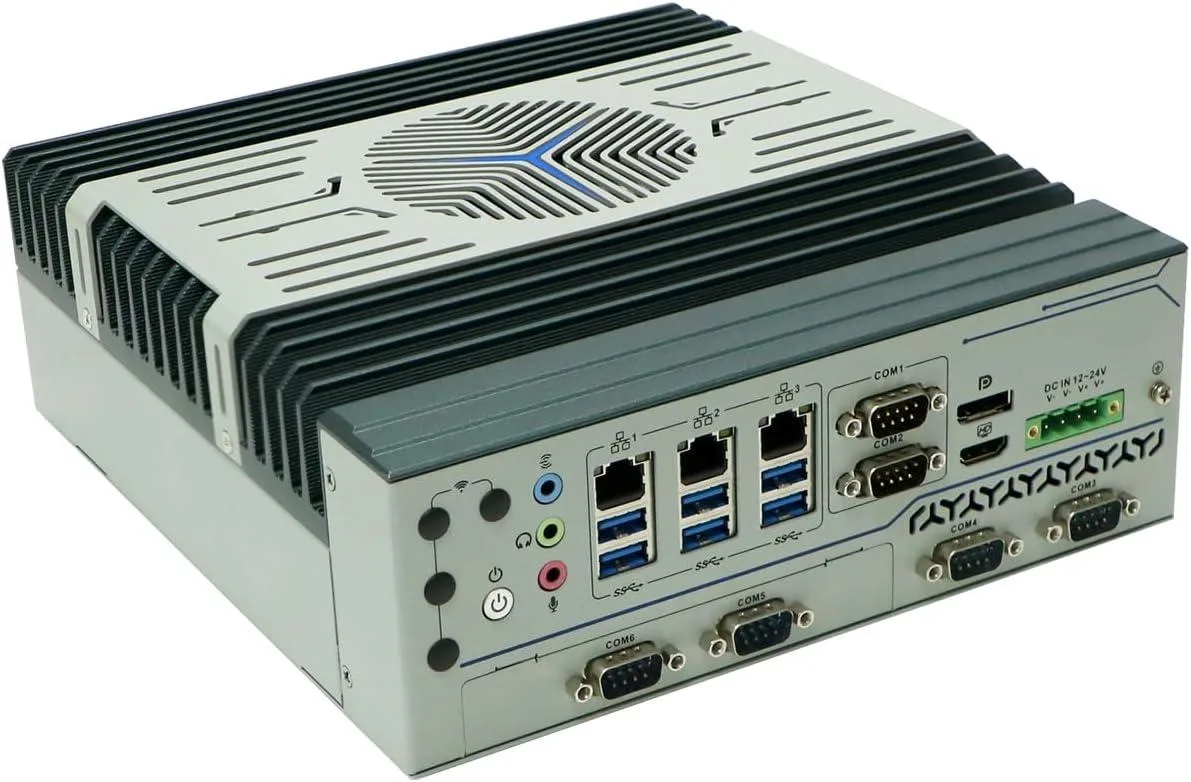

Grey fanless industrial desktop with finned aluminium sides and front I/O ports

partaker

Partaker I14 desktop PC Intel Core i5-10500T 32GB DDR4 1TB SSD

SKU CH-RGZZ-2JTDY

Industrial desktop with Intel Core i5-10500T, 32 GB DDR4, 1 TB SSD, three 2.5 GbE LAN ports, six COM ports and 12-24 V Phoenix power input

  • TypeIndustrial Computer
  • ColorGray
  • MonitorMonitor not included
  • Operating SystemWindows 11 Pro
  • Windows 11Ready
  • CPU TypeIntel Core i5 10th Gen

Memory Capacity 32GB DDR4

SSD 1TB

HDD None

  • Industrial-grade aluminium chassis withstands 0–50 °C operation
  • Intel Core i5-10500T delivers up to 3.80 GHz processing
  • 32 GB DDR4 memory handles multitasking with 1 TB NVME storage
  • Triple 2.5 GbE LAN plus six COM ports for connectivity
  • 12–24 V Phoenix terminal ensures flexible industrial power input

Industrial desktop with i5-10500T

The Partaker I14 is a fan-cooled industrial desktop built around an Intel Core i5-10500T processor with 32GB of DDR4 memory and a 1TB SSD. It ships with Windows 11 Pro and provides six COM ports, three 2.5G LAN ports, HDMI and DisplayPort outputs, plus a 12-24V Phoenix terminal for wide-voltage DC input. The aluminium-alloy chassis measures 225 x 240 x 83mm and weighs 2.80 kg.

Thermals noise and 60-100W TDP

A single internal fan moves air across the heatsink while the system idles or runs typical industrial workloads within the 60-100W TDP envelope. The unit is rated for 0°C to 50°C ambient with a commercial drive and -20°C to 60°C with an industrial SSD, so fan speed stays modest in normal office or factory floor temperatures. Power draw scales with the 12-24V supply, keeping acoustic output low during standard multitasking.

Sustained load behaviour and watchdog

Under continuous full-load conditions the fan ramps to maintain the CPU within its thermal limits up to the 60°C ceiling, and the hardware watchdog can reset the system if a process stalls. PXE and Wake-on-LAN remain active for remote management during long-running tasks. The 32GB DDR4 configuration leaves headroom below the 64GB maximum for memory-intensive logging or edge-computing workloads.

Points forts

  • Industrial-grade aluminium chassis withstands 0–50 °C operation
  • Intel Core i5-10500T delivers up to 3.80 GHz processing
  • 32 GB DDR4 memory handles multitasking with 1 TB NVME storage
  • Triple 2.5 GbE LAN plus six COM ports for connectivity
  • 12–24 V Phoenix terminal ensures flexible industrial power input

Caractéristiques

TypeIndustrial Computer
ColorGray
MonitorMonitor not included
Operating SystemWindows 11 Pro
Windows 11Ready
CPU TypeIntel Core i5 10th Gen
CPU NameIntel Core i5-10500T
Memory Capacity32GB DDR4
SSD1TB
HDDNo
Screen SizeNo Screen

Autres versions de ce modèle

5 de plus dans cette gamme

Même famille, mémoire, ventirad ou fréquence différents — comparez avant de vous décider.

Questions sur cet article

How do I mount the Partaker I14 and wire the 12-24V Phoenix terminal without reversing polarity?

Secure the 225 x 240 x 83 mm chassis on a DIN rail or wall bracket, then connect the 4-pin Phoenix plug observing the + and - markings for 12-24 V DC input; the wide-voltage design tolerates the full range but reversed wires will prevent power-up.

Which components will need replacement first in a 24/7 industrial deployment?

The internal fan is the only moving part; plan to clean or swap it every 2-3 years, and budget for the CMOS battery on the AMI EFI BIOS board around the 5-year mark.

At what point does the i5-10500T hit its thermal ceiling during continuous full-load operation?

The 60-100 W TDP combined with the fan-cooled aluminium chassis keeps the CPU within spec up to 50 °C ambient with a commercial drive or 60 °C with an industrial SSD; sustained loads beyond that trigger throttling first.
