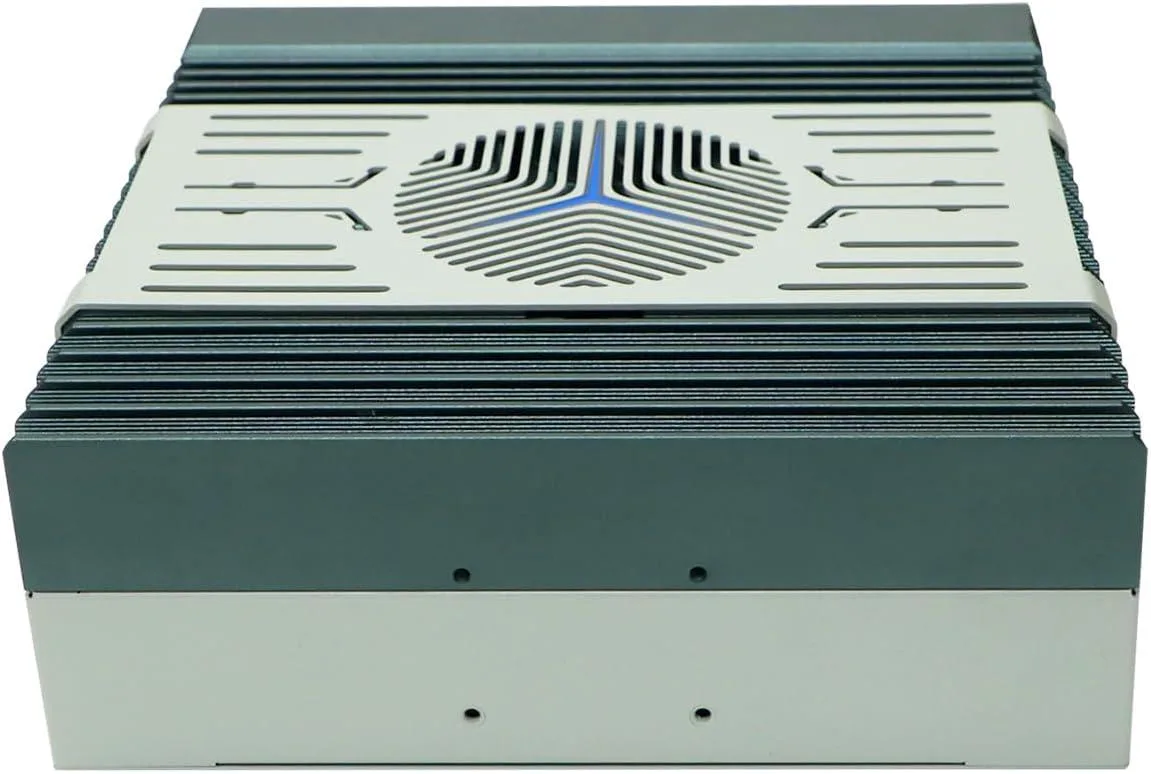

Grey industrial desktop PC, aluminium alloy case, 225 x 240 x 83 mm

partaker

partaker I14 industrial desktop PC i3-10300T 16GB DDR4 512GB

SKU CH-41DZ-YHXJS

Industrial desktop with Intel Core i3-10300T, 16GB DDR4, 512GB SSD, three 2.5G LAN ports, six COM ports and 12-24V Phoenix power input

  • TypeIndustrial Computer
  • ColorGray
  • MonitorMonitor not included
  • Operating SystemWindows 11 Pro
  • Windows 11Ready
  • CPU TypeIntel Core i3 10th Gen

Memory Capacity 16GB DDR4

SSD 512GB

HDD None

  • Intel Core i3-10300T delivers responsive multi-tasking for industrial workloads
  • 16 GB DDR4 memory handles data-intensive tasks with room to expand to 64 GB
  • 512 GB SSD provides fast boot and application loading
  • Three 2.5 GbE LAN ports ensure high-throughput network connectivity
  • Six COM ports including two configurable RS232/485 support diverse serial devices

Industrial Desktop PC with i3-10300T

This Partaker I14 industrial desktop computer ships new with Windows 11 Pro installed. It is built around an Intel Core i3-10300T processor, 16GB of DDR4 memory and a 512GB SSD. The fanless aluminium chassis measures 225 x 240 x 83mm and weighs 2.80 kgs. It operates on 12-24V DC input via a 4-pin Phoenix terminal.

Suited for machine vision.

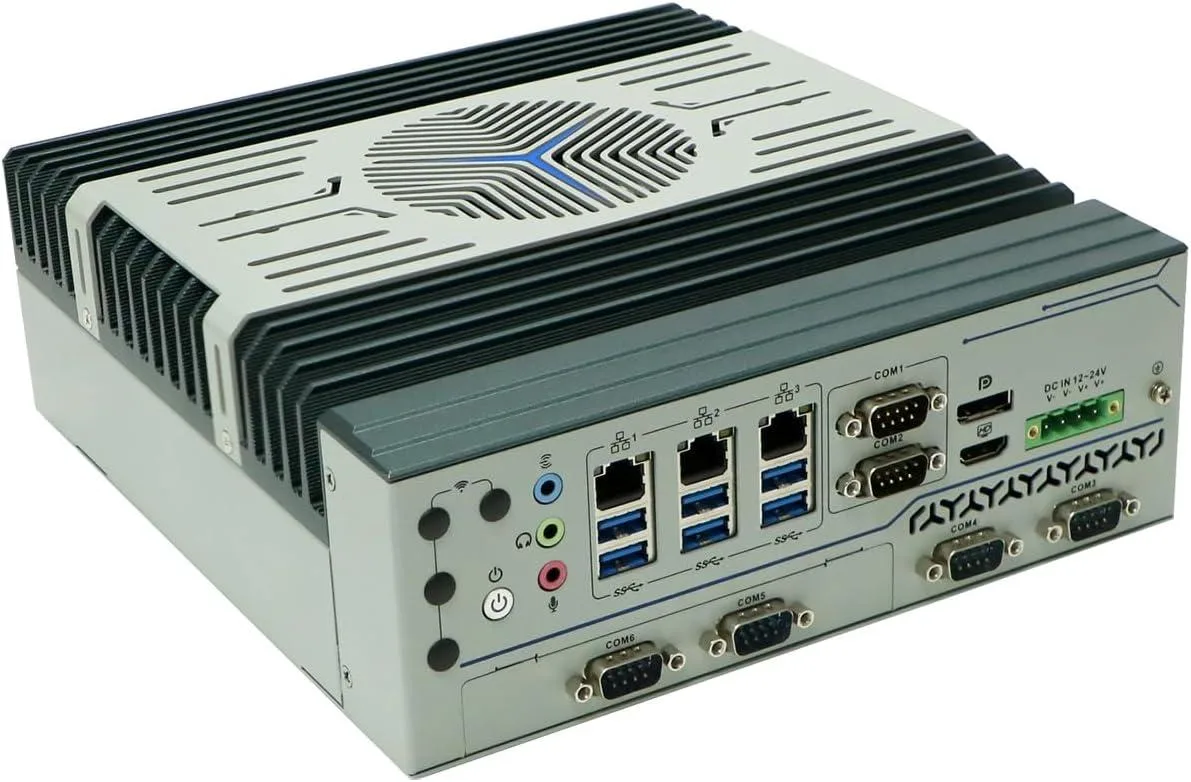

The three 2.5G LAN ports, six COM ports and dual HDMI outputs cover most industrial I/O requirements. Two M.2 slots and a Mini PCIe slot allow 4G/5G or Wi-Fi expansion. Builders who need more than 64GB of RAM, discrete graphics or a wider operating temperature range than 0°C to 50°C should look at a different platform.

12-24V wide-voltage Phoenix terminal input

The 4-pin Phoenix connector accepts 12V to 24V DC, replacing the standard ATX supply used in office PCs. Wiring must match the terminal pinout; a barrel jack or IEC cable will not connect. Verify your cabinet power budget before installation.

Points forts

  • Intel Core i3-10300T delivers responsive multi-tasking for industrial workloads
  • 16 GB DDR4 memory handles data-intensive tasks with room to expand to 64 GB
  • 512 GB SSD provides fast boot and application loading
  • Three 2.5 GbE LAN ports ensure high-throughput network connectivity
  • Six COM ports including two configurable RS232/485 support diverse serial devices

Caractéristiques

TypeIndustrial Computer
ColorGray
MonitorMonitor not included
Operating SystemWindows 11 Pro
Windows 11Ready
CPU TypeIntel Core i3 10th Gen
CPU NameIntel Core i3-10300T
Memory Capacity16GB DDR4
SSD512GB
HDDNo
Screen SizeNo Screen

Autres versions de ce modèle

5 de plus dans cette gamme

Même famille, mémoire, ventirad ou fréquence différents — comparez avant de vous décider.

Questions sur cet article

How do I install the Partaker I14 and what wiring mistake should I avoid?

Mount the 225 x 240 x 83 mm chassis on a DIN rail or wall bracket, then connect the 12-24 V DC supply to the 4-pin Phoenix terminal observing correct polarity; reversing the wires will prevent the unit from powering on.

Which components will need replacement during the service life of this industrial PC?

The 512 GB M.2 2280 SSD and the two 2.5-inch SATA drive bays are the only field-replaceable storage devices; the 16 GB DDR4 SODIMM modules can be upgraded to 64 GB, and the CMOS battery on the AMI EFI BIOS board will eventually require swapping.

What thermal limit appears first when the I14 runs continuous heavy workloads?

The CPU TDP of 60-100 W combined with the fanless aluminium-alloy enclosure means the 50 °C commercial operating ceiling is reached before any other component throttles, so sustained loads need adequate surface airflow.
