Compact fanless mini PC in a dark grey aluminium chassis

partaker

partaker I20 barebone mini PC i7-6700T 16G 512G

SKU CH-67Y9-EAMMQ

Fanless industrial mini PC with an Intel Core i7-6700T, 16GB DDR4, 512GB storage, dual LAN, six COM ports, CAN bus, and wide-temperature aluminium chassis

  • ColorBlack
  • CPU TypeIntel Core i7 6th Gen

CPU Type Intel Core i7

Group 16GB RAM / 512GB SSD

  • Fanless aluminium chassis runs silently in noise-sensitive areas
  • Intel Core i7-6700T quad-core CPU reaches 3.6 GHz turbo for demanding workloads
  • 16 GB DDR4 2400 MHz memory handles heavy multitasking
  • 512 GB SSD plus M.2 and mSATA slots give flexible storage growth
  • Dual Intel LAN, 10 USB and 6 COM ports connect diverse industrial gear

Industrial Mini PC with i7-6700T

The Partaker I20 is a fanless barebone system built around an Intel Core i7 6700T quad-core processor with eight threads. It ships with 16 GB of DDR4 memory and a 512 GB SSD installed. The all-aluminium chassis operates silently from zero to fifty degrees Celsius with commercial drives or minus twenty to sixty degrees with industrial SSDs.

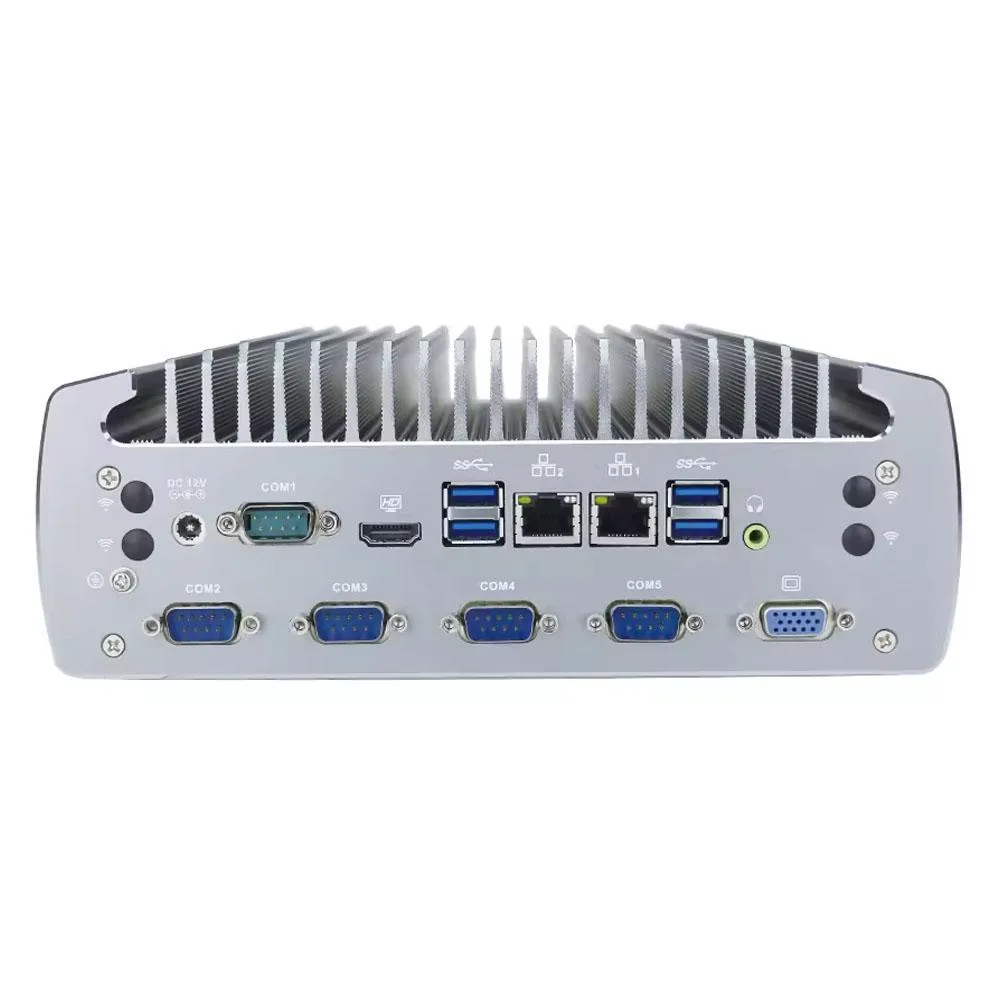

Dual Intel gigabit LAN and six serial ports

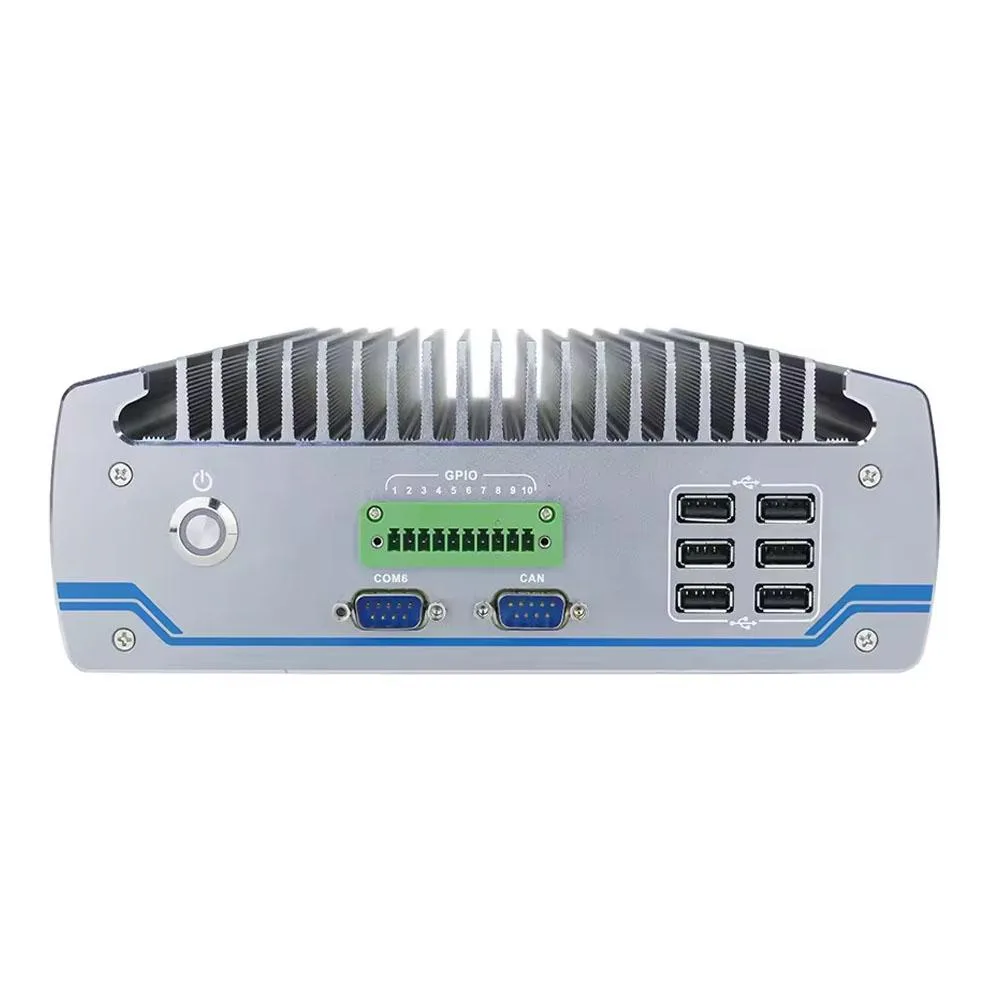

Two Intel i211-AT controllers provide 1000M Ethernet connectivity for redundant or segmented networks. Six COM ports are included, with the first two configurable for RS232, RS422 or RS485 protocols at baud rates from 5K to 1Mbit per second. A dedicated CAN bus channel compliant with specification 2.0A/B adds deterministic industrial communication.

Expandable storage and mounting for embedded use

The board accepts one MSATA drive, one 2.5 inch drive with an optional second bay, and one M.2 slot. Two Mini-PCIe sockets support additional MSATA, wireless or cellular modules with an external SIM slot. The unit supports desktop, wall-mount or embedded installation and runs on DC 12 V input with an optional 9 to 36 V wide-range supply.

Points forts

  • Fanless aluminium chassis runs silently in noise-sensitive areas
  • Intel Core i7-6700T quad-core CPU reaches 3.6 GHz turbo for demanding workloads
  • 16 GB DDR4 2400 MHz memory handles heavy multitasking
  • 512 GB SSD plus M.2 and mSATA slots give flexible storage growth
  • Dual Intel LAN, 10 USB and 6 COM ports connect diverse industrial gear

Caractéristiques

ColorBlack
CPU TypeIntel Core i7 6th Gen

Autres versions de ce modèle

5 de plus dans cette gamme

Même famille, mémoire, ventirad ou fréquence différents — comparez avant de vous décider.

Questions sur cet article

How does the i7-6700T perform in a fanless industrial chassis?

The quad-core, eight-thread CPU runs at 2.8 GHz base and 3.6 GHz turbo. Passive cooling relies on the aluminium case, so sustained loads may throttle once the surface reaches its thermal limit.

What bandwidth does the dual Intel i211-AT LAN actually deliver?

Each port is a 10/100/1000M link, so real-world throughput caps at 1 Gbit/s per connection regardless of the switch behind it.

What mounting hardware does the I20 need for wall installation?

The all-aluminium mini-ITX case includes VESA-compatible holes for standard wall or DIN-rail brackets; no proprietary rails are required.
