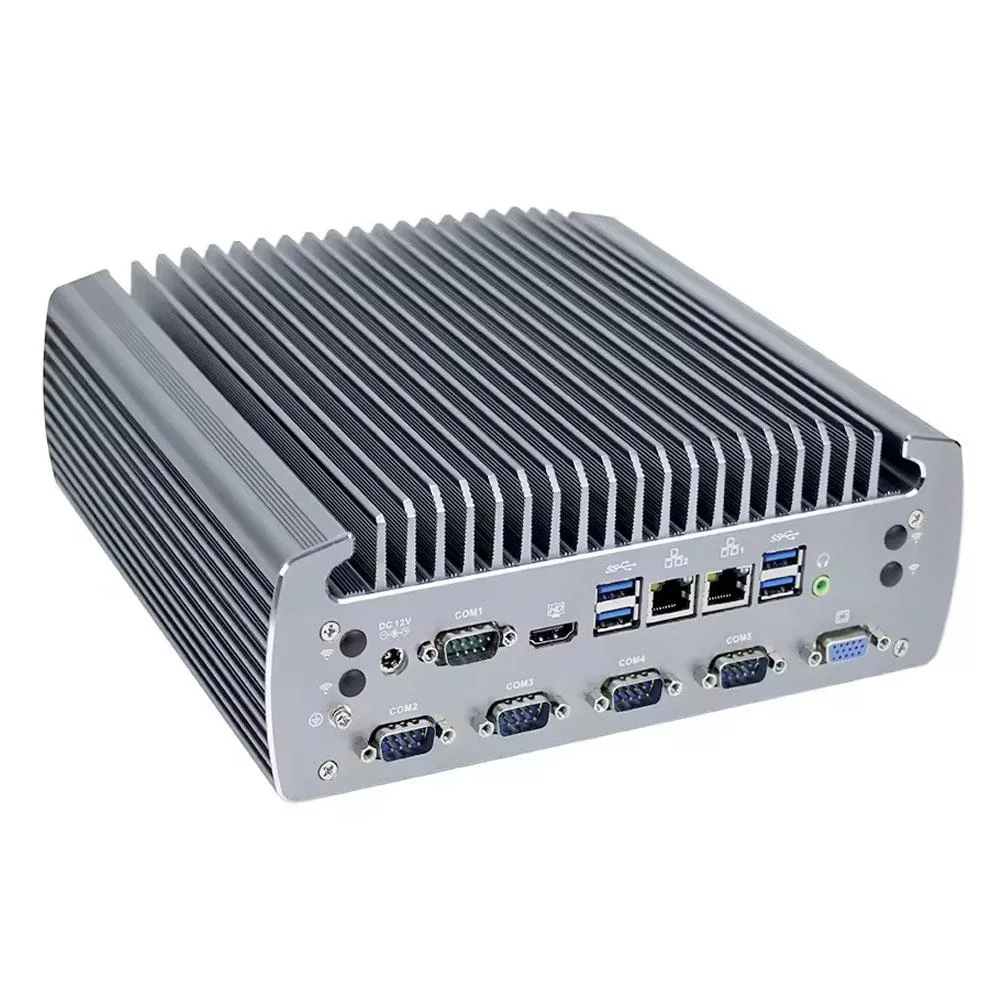

Titanium-grey aluminium fanless mini PC, compact rectangular chassis

partaker

Partaker I20 Core i3 6100T 16GB 256GB barebone mini PC

SKU CH-GW3E-T2AE3

Fanless industrial mini PC with Intel Core i3 6100T, 16GB DDR4, 256GB storage, dual LAN, HDMI, VGA, six COM ports, ten USB ports, CAN bus and wide-temperature aluminium chassis

  • ColorBlack
  • CPU TypeIntel Core i3 6th Gen

CPU Type Intel Core i3

Group 16GB RAM / 256GB SSD

  • Fanless aluminium chassis enables silent operation in noise-sensitive areas
  • Intel Core i3 6100T at 3.2 GHz delivers responsive performance for industrial workloads
  • 16 GB DDR4 2400 MHz memory supports smooth multitasking and fast data handling
  • 256 GB MSATA SSD provides reliable solid-state storage with wide temperature tolerance
  • Ten USB ports plus dual Gigabit LAN and six COM ports connect diverse peripherals and networks

Industrial fanless mini PC

The Partaker I20 is a fanless barebone system built around an Intel Core i3 6100T dual-core processor running at 3.2 GHz. It ships with 16 GB of DDR4 memory and a 256 GB SSD installed. The aluminium alloy chassis acts as a heatsink for silent operation in industrial and embedded deployments. Its compact form factor suits control cabinets, kiosks and edge-gateway roles.

Thermals noise and power

Passive cooling eliminates moving parts, so the unit runs completely silent and draws power through a 12 V DC input with an optional 9–36 V wide-range supply. The operating envelope spans 0 °C to 50 °C with a commercial drive and -20 °C to 60 °C with an industrial SSD, while humidity tolerance reaches 95 % non-condensing. Surface airflow across the case handles heat dissipation without fan noise.

Build integration

Dual Intel i211-AT Gigabit LAN ports, ten USB ports, six COM ports with configurable RS232/RS422/485, one CAN interface, HDMI and VGA outputs, plus a GPIO header provide extensive peripheral connectivity. Expansion is available through one M.2 slot, two Mini PCIe slots (one supporting mSATA, the other Wi-Fi/4G with a SIM slot) and space for up to two 2.5-inch drives. Mounting options include desktop, wall and embedded installations.

Points forts

  • Fanless aluminium chassis enables silent operation in noise-sensitive areas
  • Intel Core i3 6100T at 3.2 GHz delivers responsive performance for industrial workloads
  • 16 GB DDR4 2400 MHz memory supports smooth multitasking and fast data handling
  • 256 GB MSATA SSD provides reliable solid-state storage with wide temperature tolerance
  • Ten USB ports plus dual Gigabit LAN and six COM ports connect diverse peripherals and networks

Caractéristiques

ColorBlack
CPU TypeIntel Core i3 6th Gen

Autres versions de ce modèle

5 de plus dans cette gamme

Même famille, mémoire, ventirad ou fréquence différents — comparez avant de vous décider.

Questions sur cet article

How do I mount the 4.0 kg all-aluminium chassis on a VESA bracket, and which step is often missed?

Use the four VESA mounting holes on the rear; the step often missed is tightening all four screws evenly so the fanless case makes full contact with the bracket for heat dissipation.

Which storage drives may need replacement first in a 24/7 industrial deployment?

The 256 GB mSATA SSD and any installed 2.5-inch HDD or SSD are the only drives; SSDs last longer, so a mechanical HDD will typically need replacement first.

At what ambient temperature does the fanless i3-6100T begin to throttle under sustained load?

The chassis is rated to 50 °C with a commercial drive and 60 °C with an industrial SSD; sustained loads at the upper end of those ranges will trigger thermal throttling first.
