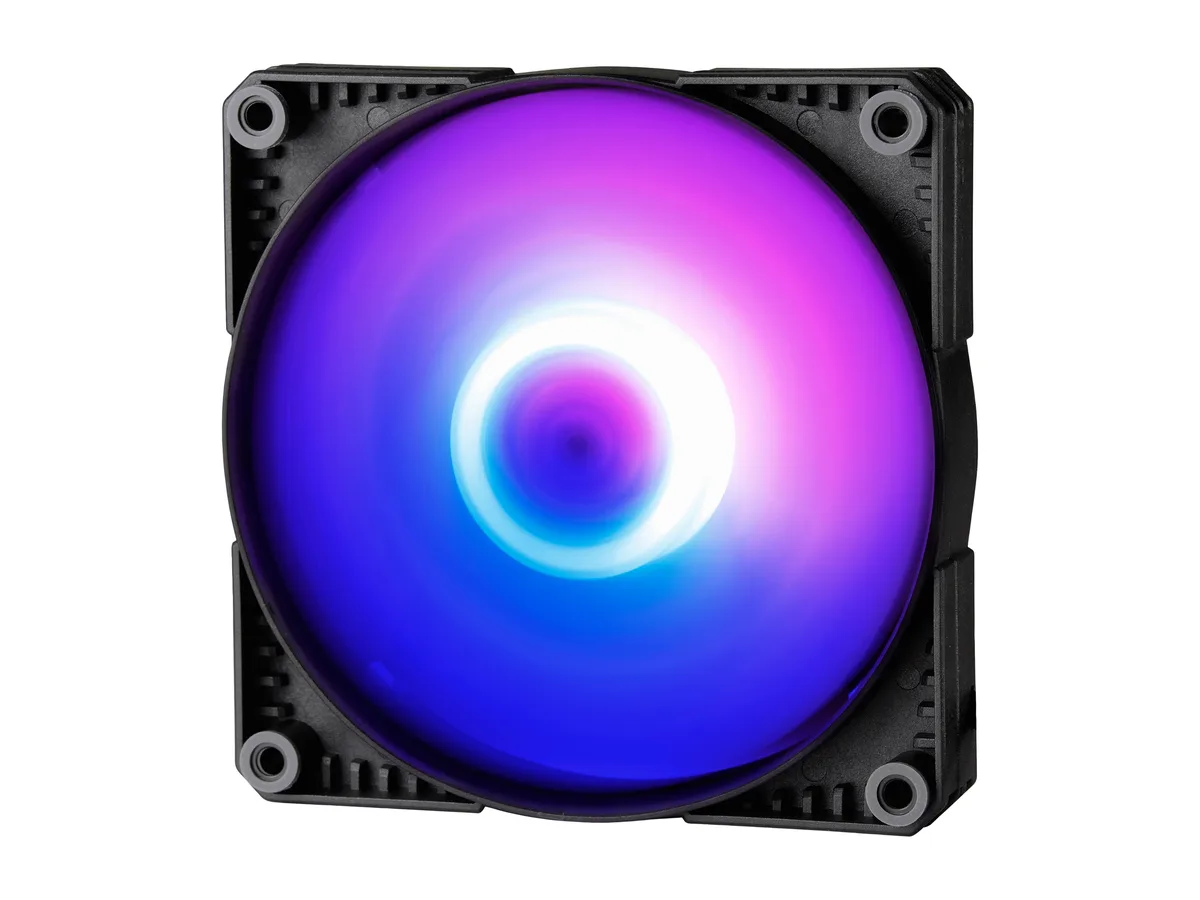

Three black 120 mm case fans with digital RGB lighting and rubber dampeners

Phanteks

Phanteks PH-F120SK_DRGB_PWM_3P 3-pack 120mm case fan

SKU CH-TH5X-0BBKH MPN PH-F120SK_DRGB_PWM_3P

Three 120 mm case fans with nine-blade design, 50 CFM airflow, 30.3 dB(A) noise, PWM speed control from 500 to 1500 RPM, digital RGB lighting and rubber dampening washers

  • Fan Counts3 Fans
  • Fan ControllerNo Controller
  • TypeCase Fan
  • CompatibilityCase
  • Fan Thickness25mm
  • Bearing TypeRifle
  • Nine-blade design delivers 50 CFM airflow at 1500 RPM
  • PWM control adjusts speed from 500 RPM for quiet operation
  • Rifle bearing and rubber dampeners keep noise to 30.3 dB(A)
  • Digital RGB lighting syncs with motherboards via 3-pin daisy-chain
  • 3-pack includes 120 mm fans, 24 rubber pads and cables

Three-pack 120mm DRGB case fans

This set supplies three Phanteks SK120 DRGB PWM fans for builders who want coordinated airflow and addressable lighting across a chassis. Each unit uses a nine-blade impeller driven by a rifle bearing to move up to 50 CFM while spinning between 500 and 1500 RPM. The 25 mm thick black frames fit standard 120 mm mounting points and include rubber pads to isolate vibration from the case structure.

Motherboard headers and daisy-chain wiring

Verify that your board or controller provides a 4-pin PWM header for speed control and a 3-pin 5 V DRGB header for lighting; the pack includes a DRGB daisy-chain cable and a 4-pin fan extension but no standalone controller. Three fans will occupy three PWM headers or require a splitter, and the DRGB chain needs one motherboard DRGB connector or a compatible Phanteks DRGB hub. Ensure the case has clearance for 120 x 120 x 25 mm fans at each intended location.

Sustained-load acoustics and thermal behaviour

At the rated maximum of 1500 RPM the fans produce 30.3 dB(A) while delivering their peak 50 CFM, so extended gaming or rendering sessions remain relatively quiet for the airflow provided. PWM curves let the firmware lower speed once temperatures stabilise, reducing noise further during long idle or light-load periods. The rifle bearing and rigid frame are designed to maintain consistent speed and low vibration over continuous operation without the rattling that can develop on lesser mounts.

Points forts

  • Nine-blade design delivers 50 CFM airflow at 1500 RPM
  • PWM control adjusts speed from 500 RPM for quiet operation
  • Rifle bearing and rubber dampeners keep noise to 30.3 dB(A)
  • Digital RGB lighting syncs with motherboards via 3-pin daisy-chain
  • 3-pack includes 120 mm fans, 24 rubber pads and cables

Caractéristiques

BrandPhanteks
SeriesSK PWM FAN 120mm D-RGB 3 Pack
ModelPH-F120SK_DRGB_PWM_3P
Fan Counts3 Fans
Fan ControllerNo Controller
TypeCase Fan
CompatibilityCase
Fan Thickness25mm
Bearing TypeRifle
RPM500 - 1500 +5% -10% RPM
Air Flow50 CFM
Noise Level30.3 dB(A)
Power Connector4 Pin
ColorBlack
LEDDigital RGB
FeaturesNine-blade design offers a higher airflow and quiet cooling solution for the best performance
PWM capabilities built-in to precisely control the speed to achieve optimized fan curve
Rigid frame design and included rubber dampeners helps to prevent vibration
Low-noise operation without sacrificing performance
Digital RGB lighting solution to sync with Phanteks DRGB products and compatible DRGB Motherboards
Includes 3x 120mm DRGB fans
Dimensions120 x 120 x 25 mm

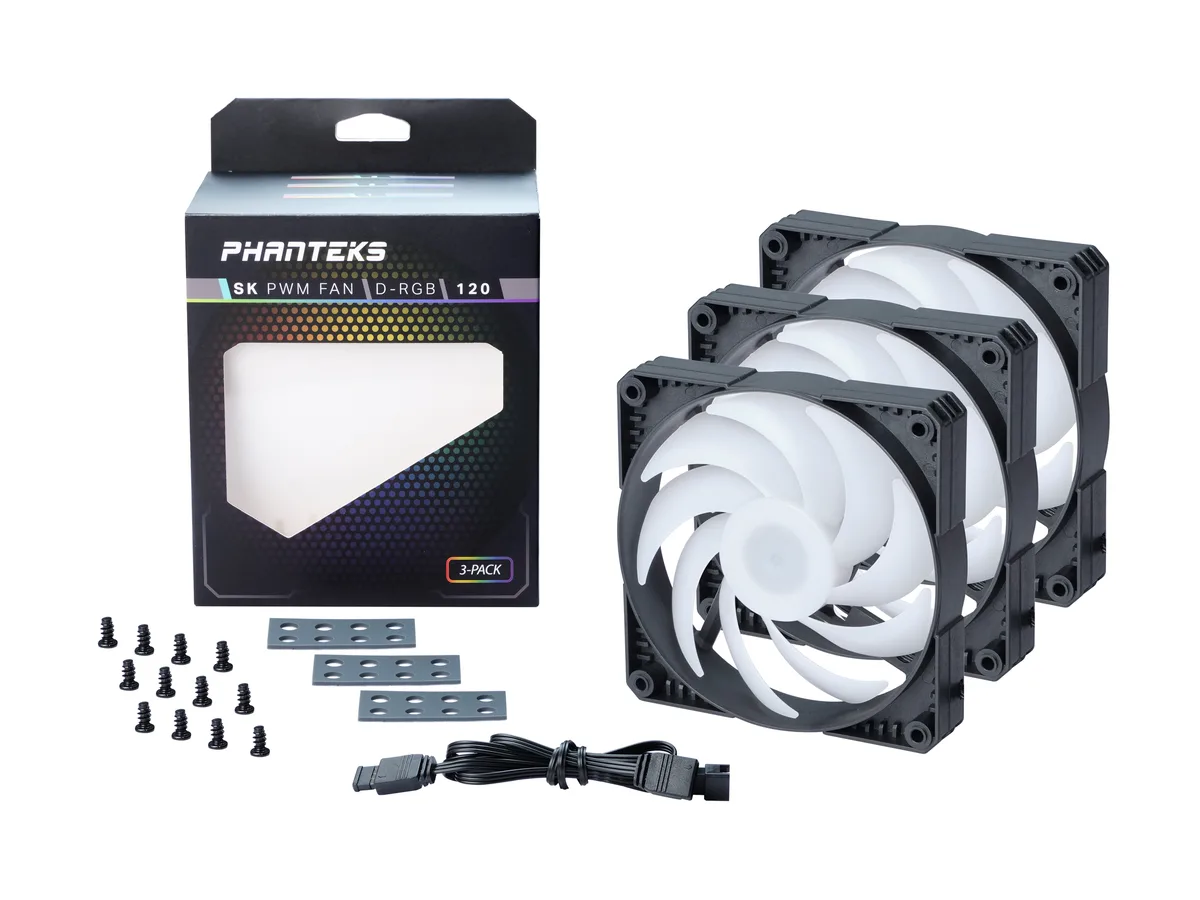

Package Contents3 x PH-F120SK_DRGB_PWM
12 x Fan Screws
24 x Rubber Pad
1 x PH-CB-DRGB3P_MB
1 x PH-CB-F4P
Poids d’expédition0.60 kg
Dimensions du colis173 × 123 × 81 mm

Questions sur cet article

What comes in the 3-pack box and what must I buy separately?

The box contains three 120 mm fans, twelve mounting screws, twenty-four rubber dampening pads, one 3-pin D-RGB daisy-chain cable and one 4-pin PWM extension cable. A D-RGB controller or compatible motherboard header is required to drive the lighting.

Should I choose the 120 mm or 140 mm version for my case?

This SKU is the 120 mm variant; the 140 mm model is a separate product. Pick 120 mm if your case mounts 120 x 120 x 25 mm fans, otherwise select the 140 mm version.

What does the 50 CFM airflow rating mean once the fans are installed?

At up to 1500 RPM each fan moves 50 CFM at 30.3 dB(A); three fans together provide roughly 150 CFM of case airflow while PWM lets the motherboard lower speed for quieter idle operation.
