Phanteks
Phanteks Revolt PH-P1200PR_BK01C 1200W power supply
Fully modular 1200 W ATX 3.0 unit with 80 PLUS Platinum efficiency, native 12VHPWR connector and 135 mm FDB fan
- ColorBlack
- TypeATX 3.0 Compatible
- Maximum Power1200 W
- Fans1 x 135 mm Fluid Dynamic Bearing (FDB) Fan
- Max PSU Length160 mm
- ModularFull Modular
Options 1200W (Black)
- 1200W (Black)
- 1000W (Black)
- 1200 W maximum power for demanding multi-GPU builds
- 80 PLUS Platinum 94% efficiency at 50% load cuts waste heat
- ATX 3.0 certified handling 235% transient power spikes
- Native 12VHPWR connector delivers 600 W to modern GPUs
- Fully modular cable-less design lets you choose only the cables you need
1200W ATX 3.0 Power Supply

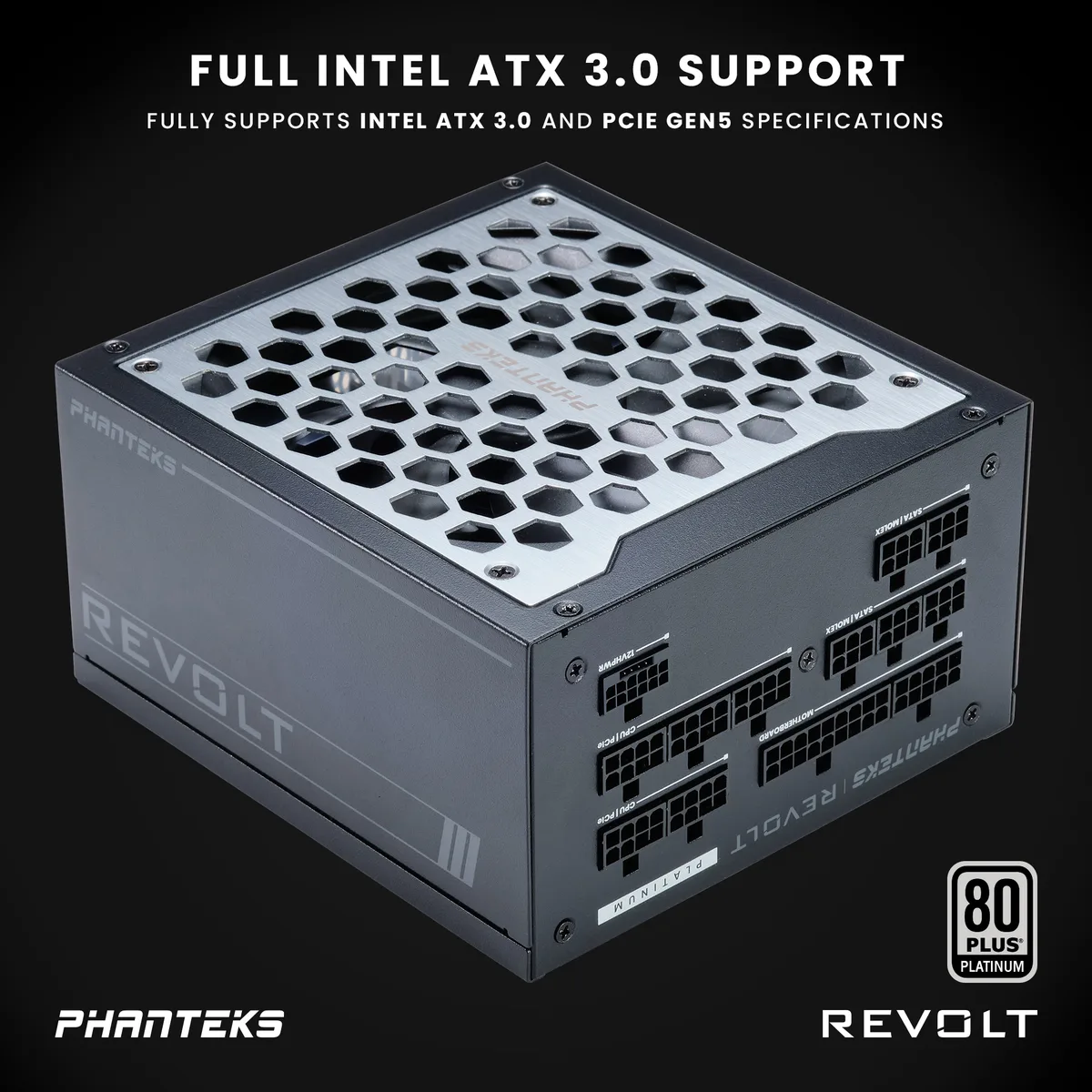

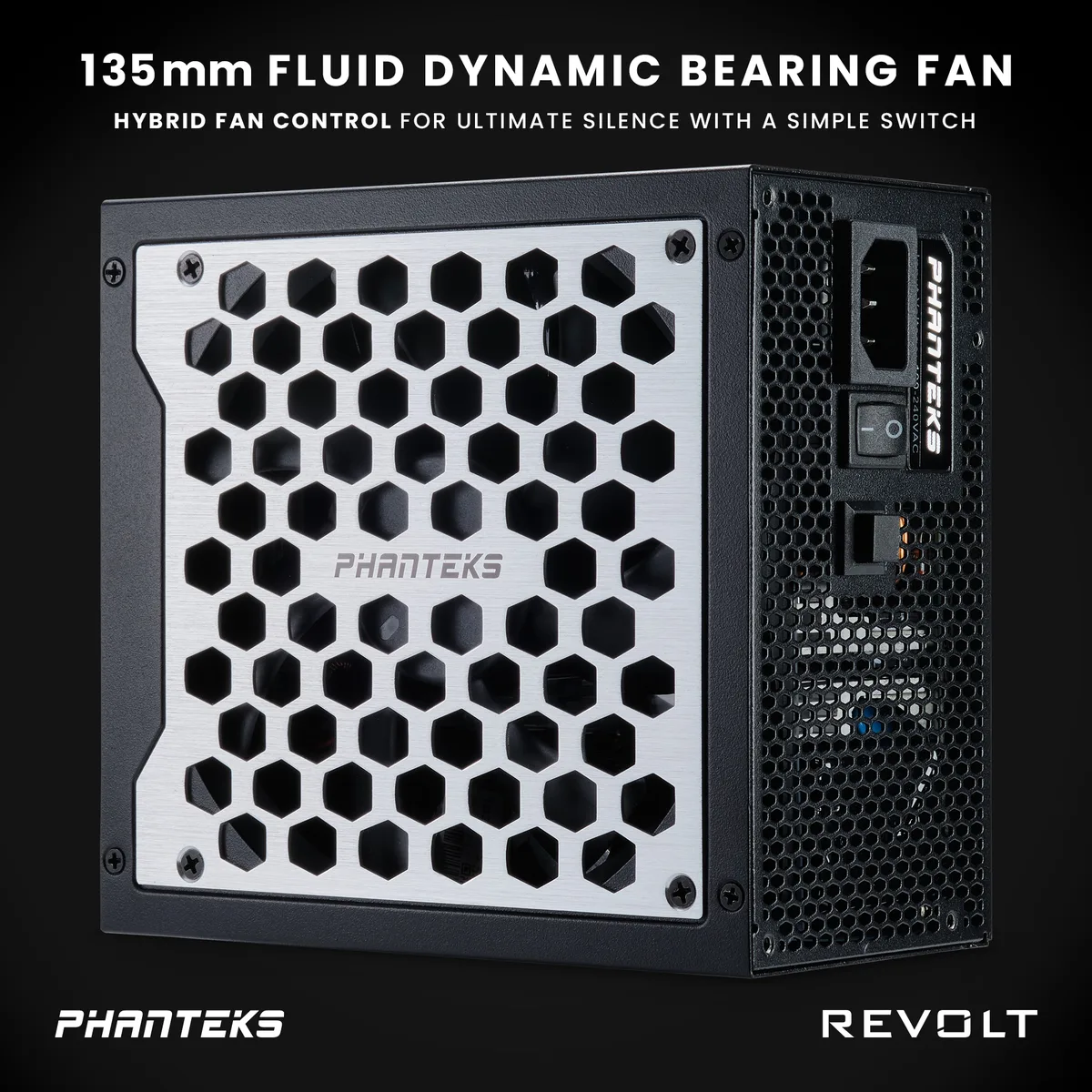

This Phanteks Revolt unit delivers 1200 W of continuous power and meets the Intel ATX 3.0 specification. It is built for enthusiasts who want to select their own CableMod cables rather than use stock looms. A 135 mm fluid-dynamic-bearing fan handles cooling.
80 PLUS Platinum Efficiency Headroom
The 80 PLUS Platinum rating guarantees 94% efficiency at 50% load, reducing waste heat and lowering electricity draw. The +12 V rail supplies up to 100 A, while minor rails provide 25 A each on 3.3 V and 5 V. Protection circuits cover over-power, over-voltage, under-voltage, short-circuit, over-current, over-temperature and no-load conditions.

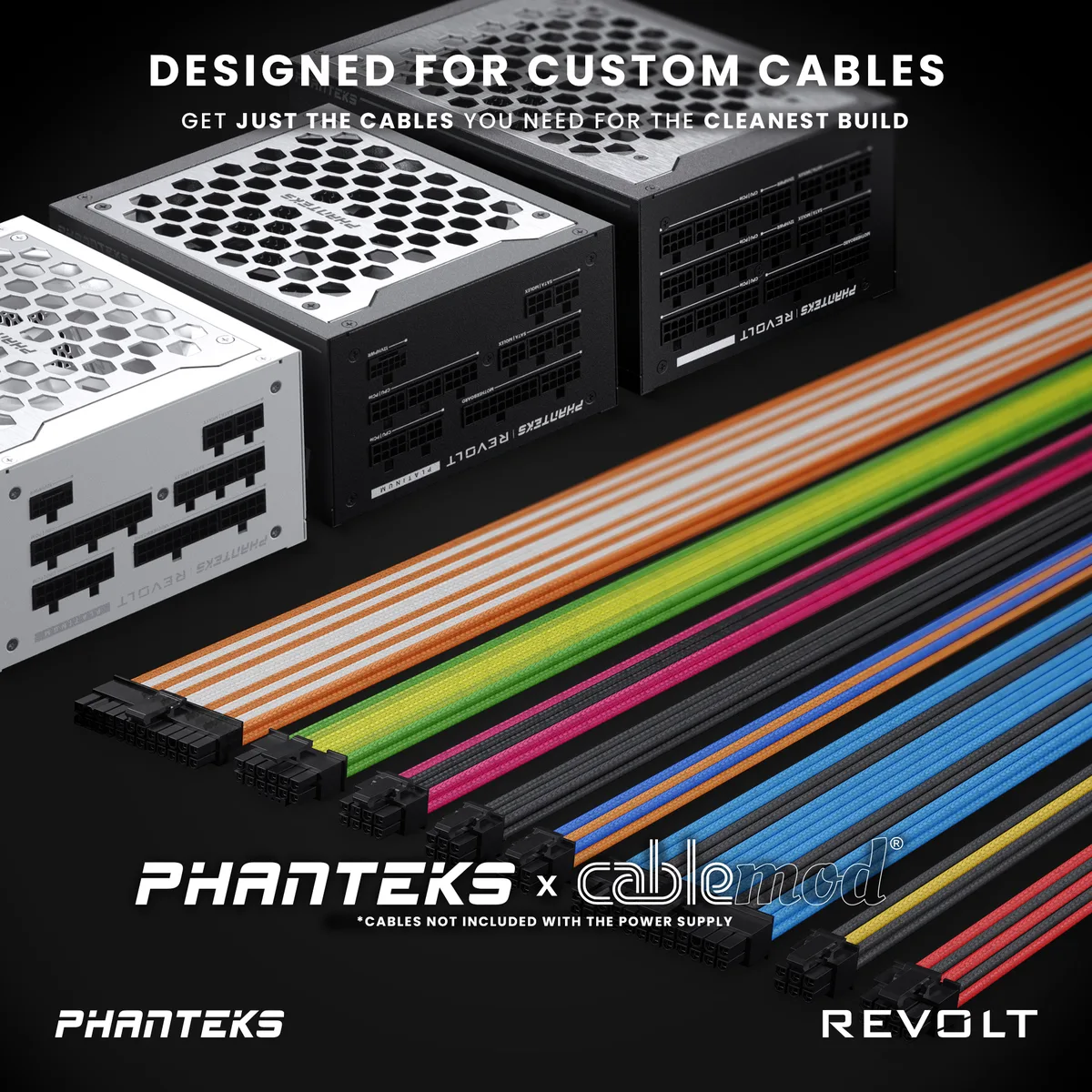

Cable-Less Upgrade For Custom Builds
This model replaces a standard fully modular PSU by omitting cables entirely, letting builders purchase only the exact lengths and connectors they need. The native 12VHPWR connector supports up to 600 W for PCIe 5.0 graphics cards, and the unit is rated to handle transient spikes of 235% of its rated output.
Points forts
- 1200 W maximum power for demanding multi-GPU builds
- 80 PLUS Platinum 94% efficiency at 50% load cuts waste heat
- ATX 3.0 certified handling 235% transient power spikes
- Native 12VHPWR connector delivers 600 W to modern GPUs
- Fully modular cable-less design lets you choose only the cables you need
Caractéristiques
| Brand | Phanteks |
|---|---|
| Series | Revolt |
| Model | PH-P1200PR_BK01C |
| Color | Black |
| Type | ATX 3.0 Compatible |
| Maximum Power | 1200 W |
| Fans | 1 x 135 mm Fluid Dynamic Bearing (FDB) Fan |
| Max PSU Length | 160 mm |
| Modular | Full Modular |
| Energy-Efficient | 80 PLUS PLATINUM Certified |
| Protection | OPP (Overpower Protection) OVP (Over Voltage Protection) UVP (Under voltage protection SCP (Short Circuit Protection) OCP (Over Current Protection) OTP (Over Temperature Protection) No-Load Protection Reset Protection |
| Input Voltage | 100 - 240 V |
| Input Frequency Range | 50/60 Hz |
| Input Current | 13-6.5A |
| Output | +12V@100A, +3.3V@25A, +5V@25A, [email protected] , +5VSB@3A |
| MTBF | Over 100,000 hours at 25 Celsius excluding the DC Fan |
| Features | Back Plate PSU Output Connector: Fully Modular 1x 18+10pin => Motherboard 5x 8pin => CPU / PCIe 5x 6pin => SATA / Molex 1x 12VHPWR => PCIe Operating Temp: 0 to 50 Celsius (The rated power will derate from 100% to 80% from 40 Celsius to 50 Celsius linearly) Operating Humidity: To 85% relative humidity (non-condensing) Storage Temperature: -40 to 85 Celsius Storage Humidity: To 95% relative humidity (non-condensing) |
| Dimensions | 6.3 in x 5.9 in x 3.4 in |
| Weight | 4.98 lbs |
| Package Content | 1x PH-P1200PR_BK01C Power Supply 1x C14 (female) - C13 (male) Power cord (1500mm) Accessory: 1x User’s manual 1x Installation guide 1x PSU bag 1x Zip tie bag 1x Screw pack 1x Velcro pack 1x PSU tester |
| Poids d’expédition | 2.72 kg |
| Dimensions du colis | 330 × 203 × 127 mm |
Autres versions de ce modèle
1 de plus dans cette gamme
Même famille, mémoire, ventirad ou fréquence différents — comparez avant de vous décider.
Questions sur cet article
Does the unit ship with any cables included?
No cables are included; the box contains only the power supply, a C14-to-C13 power cord, manual, installation guide, PSU bag, zip ties, screws, Velcro straps and a PSU tester.
What connector does the PSU provide for a modern graphics card?
It has one native 12VHPWR connector that can deliver up to 600 watts directly to a PCIe 5.0 GPU.
Will this 1200 watt unit fit in a standard ATX case?
The housing is 160 mm deep, so it fits most ATX cases, but verify your case's maximum PSU length before buying.
