Black mid-tower case with solid panels, three 120 mm fans at the bottom, no side window

Phanteks

Phanteks XT Pro Silent PH-XT523PSC_BK01 PC case

SKU CH-VMF4-CTPK6 MPN PH-XT523PSC_BK01

Mid-tower chassis with solid sound-dampened panels, three pre-installed 120 mm fans and top-mounted 360 mm radiator support for silent, high-performance builds

  • TypeE-ATX Mid Tower Chassis
  • ColorBlack
  • Case MaterialSteel Chassis, ABS plastic
  • With Power SupplyNo
  • Motherboard CompatibilityATX, micro-ATX, mini-ITX, E-ATX (up to 280mm wide), Rear-Sid
  • Side Panelwithout Side Window

Options Pro Silent (Black)

  • Sound-dampening foam on three panels keeps the build quiet
  • Three pre-installed 120 mm fans deliver airflow out of the box
  • Top panel accepts a 360 mm radiator without clearance issues
  • 415 mm GPU clearance fits the largest graphics cards
  • USB 3.2 Gen 2 Type-C front port provides modern connectivity

Silent mid-tower for rear-connector builds

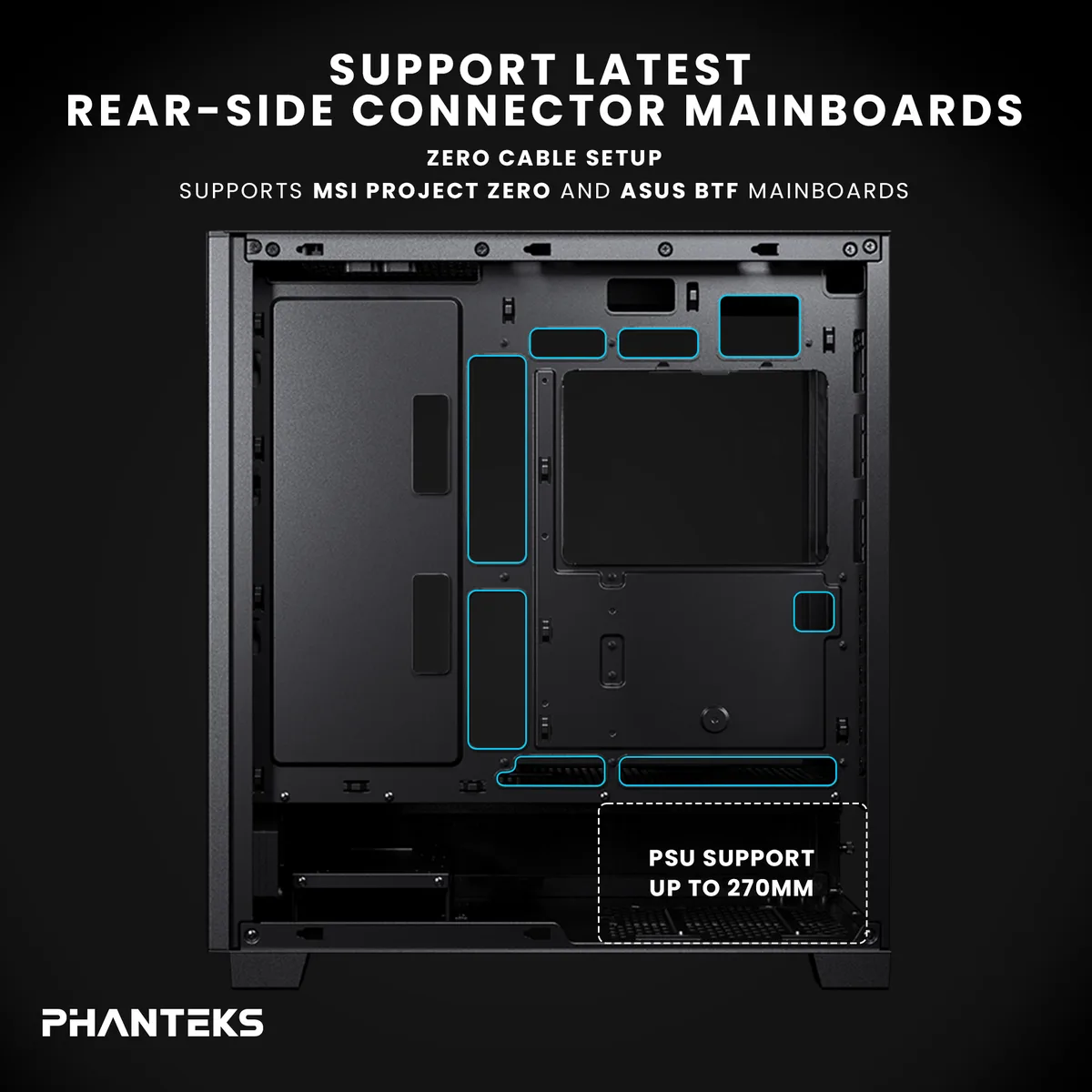

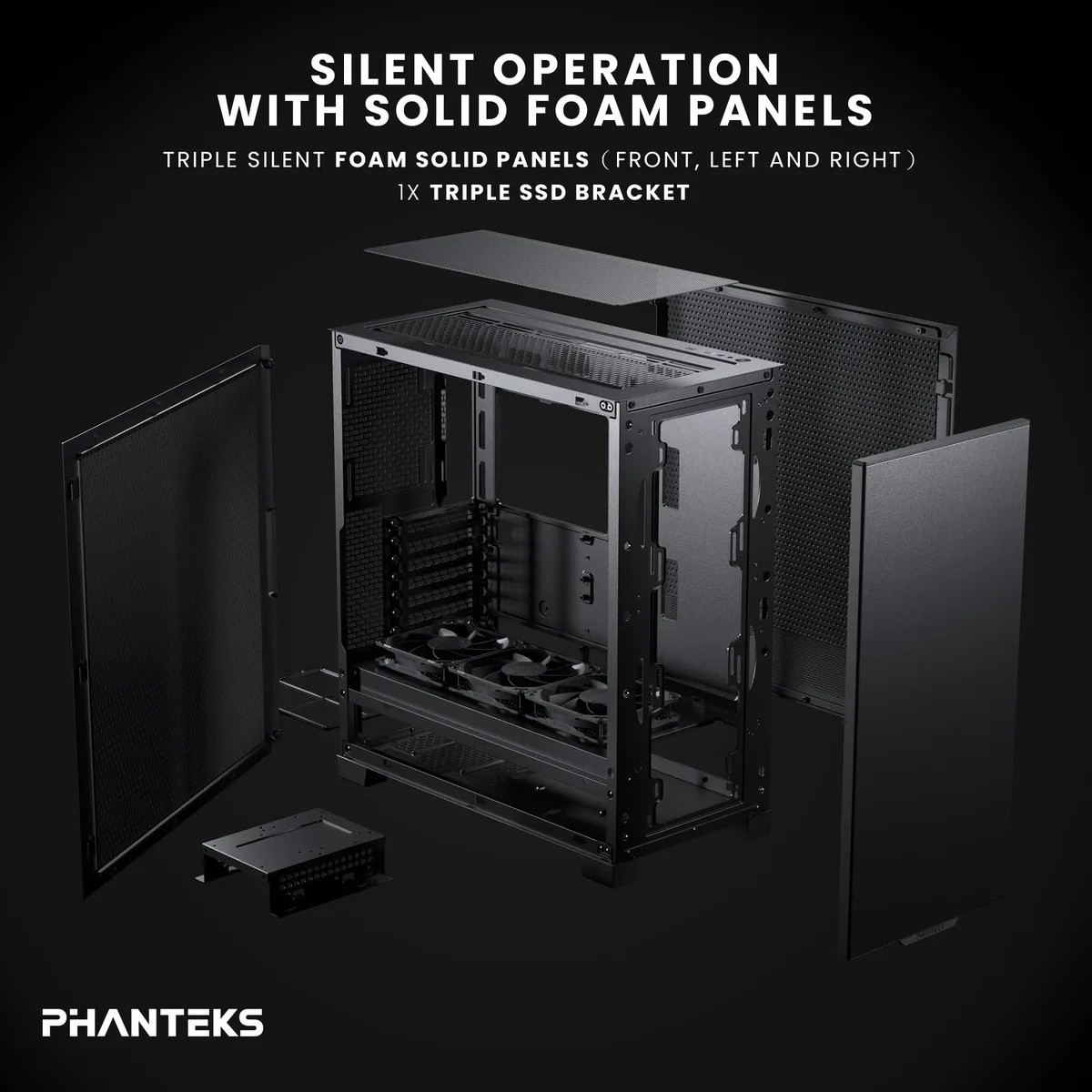

The Phanteks XT Pro Silent is a mid-tower chassis built for quiet operation. Solid steel and ABS panels on the front, left and right sides are lined with sound-dampening foam. It accepts ATX, micro-ATX, mini-ITX and E-ATX boards up to 280 mm wide, including the latest rear-side connector mainboards. Three M25-120 fans come pre-installed at the bottom.

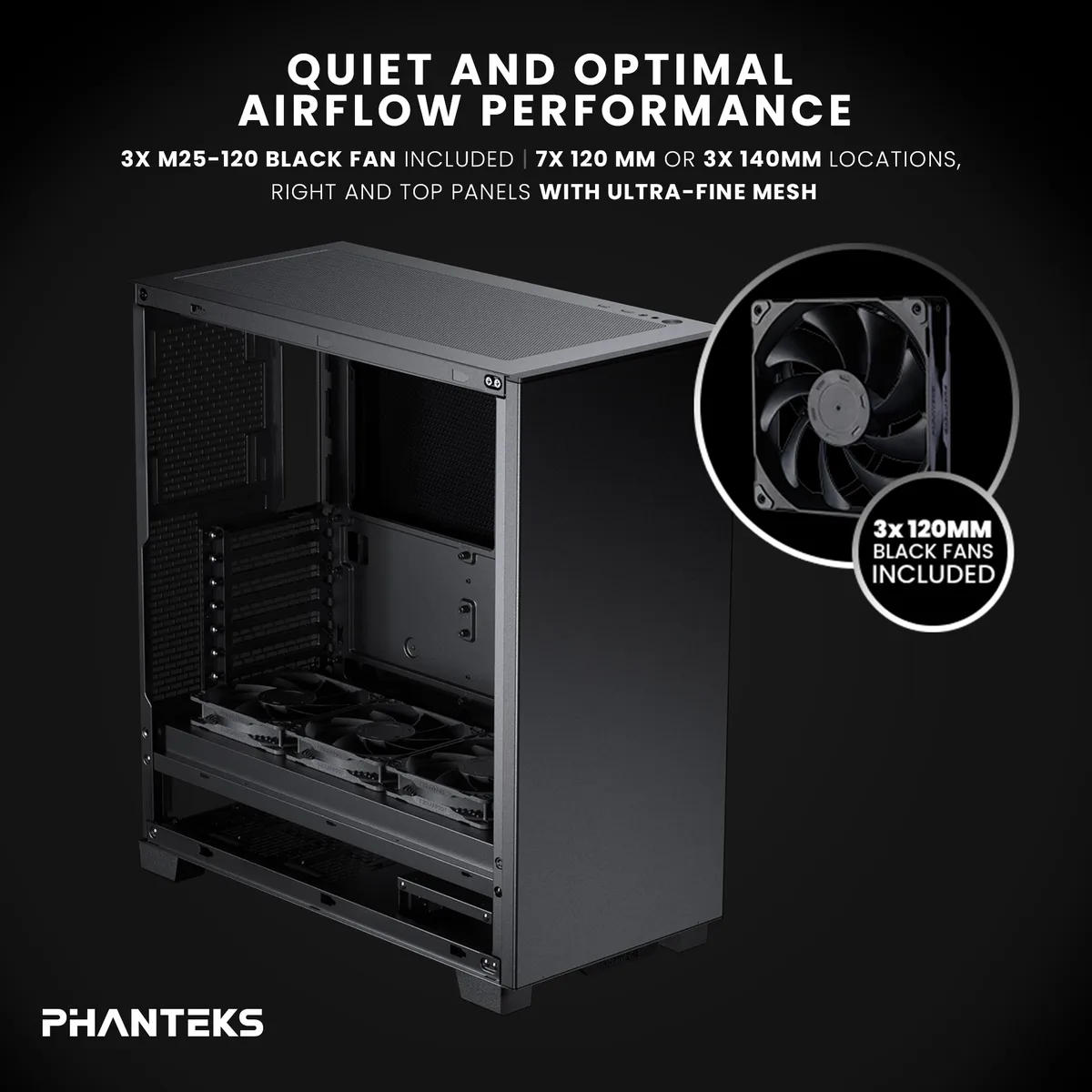

Thermals, noise and power draw in normal use

The closed panels and foam lining keep system noise low while the three included 120 mm fans supply baseline airflow. Up to seven 120 mm or three 140 mm fan locations are available across the mid-plate, rear and top for additional intake or exhaust. A 360 mm radiator fits in the top without clearance restrictions, and the rear supports a 120 mm radiator.

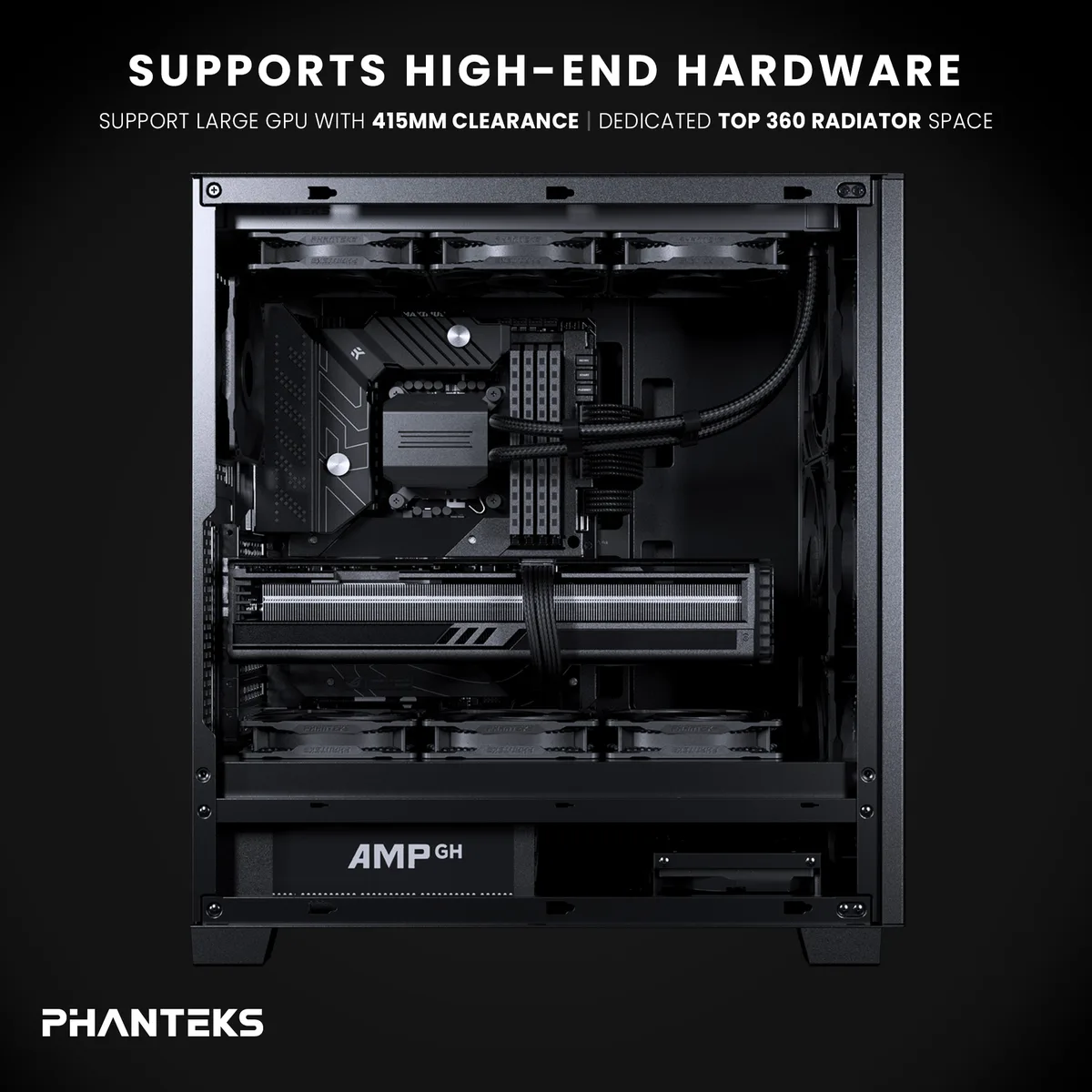

GPU clearance decides the fit

The case accommodates graphics cards up to 415 mm long, covering current flagship models. CPU cooler height is limited to 184 mm, and the power supply bay accepts units up to 270 mm deep. Front I/O provides two audio jacks, a USB 3.0 port and a USB 3.2 Gen 2 Type-E connector. Two 3.5-inch and five 2.5-inch internal drive bays handle storage needs.

Points forts

  • Sound-dampening foam on three panels keeps the build quiet
  • Three pre-installed 120 mm fans deliver airflow out of the box
  • Top panel accepts a 360 mm radiator without clearance issues
  • 415 mm GPU clearance fits the largest graphics cards
  • USB 3.2 Gen 2 Type-C front port provides modern connectivity

Caractéristiques

BrandPhanteks
ModelXT Pro Silent
TypeE-ATX Mid Tower Chassis
ColorBlack
Case MaterialSteel Chassis, ABS plastic
With Power SupplyNo
Motherboard CompatibilityATX, micro-ATX, mini-ITX, E-ATX (up to 280mm wide), Rear-Side Motherboard Support
Side Panelwithout Side Window
Internal 3.5" Drive Bays2
Internal 2.5" Drive Bays5
Expansion Slots7
Front Ports2 x Audio, USB 3.0, USB 3.2 Gen 2 Type-E
Fan OptionsMidplate - 3 x 120mm / Rear - 1 x 120mm / Rear - 1 x 140mm / Top - 2 x 140mm / Top - 3 x 120mm
Pre-installed FansBottom - 3 x 120mm
Radiator OptionsRear - Up to 120mm / Top - Up to 360mm
Max GPU Length415 mm
Max CPU Cooler Height184 mm
Max PSU Length270 mm
Dimensions450 x 230 x 500 mm / 17.7 × 9.05 × 19.68 in
Weight16.75 lbs.
Package ContentXT Pro Slient Chassis
- Storage Bracket: 2x HDD / 1x HDD + 2x SSD
- M25-120_BK Fan: 3x
Accessory Box:
- Zip ties: 30x
- MB/SSD Screw: 30x
- Thumb Screw: 4x
- HDD Screw: 8x
- Standoff Tool: 1x
- MB stand-off: 1x
- PSU Screw: 4x
- 30mm Fan Screw: 12x
Poids d’expédition6.80 kg
Dimensions du colis559 × 533 × 305 mm

Autres versions de ce modèle

4 de plus dans cette gamme

Même famille, mémoire, ventirad ou fréquence différents — comparez avant de vous décider.

Questions sur cet article

How do I mount a rear-side connector motherboard and what step is often missed?

Align the board with the rear-side cut-out and secure it using the standard ATX standoffs; the step often missed is removing the traditional I/O shield since the board has no rear ports.

What maintenance will the three pre-installed M25-120 fans need later?

Clean the fan blades and intake vents every few months with compressed air; the fans use standard 120 mm frames so they can be replaced individually if bearings become noisy.

What thermal limit appears first when running a 360 mm top radiator under sustained load?

The top panel supports a 360 mm radiator without restriction, so the first limit is the coolant temperature reaching equilibrium with the ambient air inside the sealed front and side panels.
