Low-profile workstation graphics card with DMS-59 port and single fan cooler

PNY Technologies, Inc.

PNY NVS 315 VCNVS315DVI-PB 1GB 64-bit DDR3 Low Profile workstation graphics card

SKU CH-RRKE-9SXC7

Low-profile workstation card with 48 CUDA cores, 1GB DDR3 memory and a DMS-59 connector driving up to eight displays

  • InterfacePCI Express 2.0 x16
  • Chipset ManufacturerNVIDIA
  • GPUNVS 315
  • CUDA Cores48
  • Memory Size1GB
  • Memory Interface64-bit
  • Drives up to eight displays with a single DMS-59 connector
  • Low-profile form factor fits compact workstation chassis
  • 48 CUDA cores accelerate professional applications
  • 1 GB DDR3 memory on a 64-bit interface
  • DirectX 11 and OpenGL 4.3 support for broad software compatibility

Low-profile workstation GPU for multi-display desks

The PNY NVS 315 fits a PCI Express 2.0 x16 slot in a low-profile bracket. It uses an NVIDIA GPU with 48 CUDA cores and 1GB of DDR3 memory across a 64-bit bus. DirectX 11 and OpenGL 4.3 support cover standard business applications. The card draws cooling from an onboard fan.

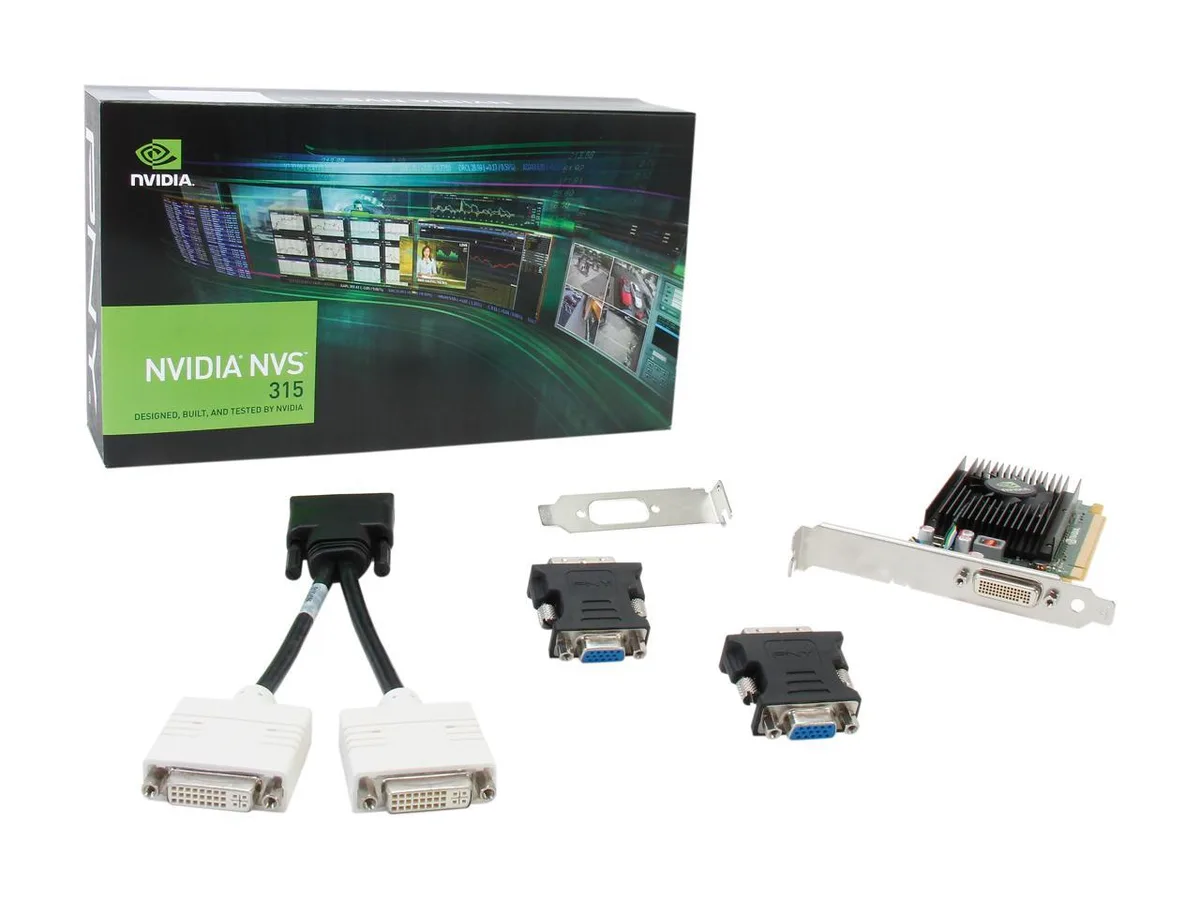

DMS-59 adapter kit drives up to eight monitors

A single DMS-59 connector ships with breakout cables for two DVI-I SL, VGA or DisplayPort screens per port. Digital output reaches 2560 x 1600 on DisplayPort and 1920 x 1200 on DVI, while analog peaks at 2048 x 1536 at 85 Hz. The bundle includes brackets, an installation disc and documentation for rapid deployment.

Suits IT fleets needing many legacy screens.

Buyers running Windows 8, 7, Vista, Linux or Solaris with 2GB system memory and a free PCIe x16 slot can add dense display walls. The 64-bit DDR3 frame buffer and 48-core GPU cannot handle modern CAD, rendering or compute tasks. Teams requiring higher 3D throughput should consider cards with wider memory buses and more cores.

Points forts

  • Drives up to eight displays with a single DMS-59 connector
  • Low-profile form factor fits compact workstation chassis
  • 48 CUDA cores accelerate professional applications
  • 1 GB DDR3 memory on a 64-bit interface
  • DirectX 11 and OpenGL 4.3 support for broad software compatibility

Caractéristiques

BrandPNY
SeriesNVS
ModelVCNVS315DVI-PB
InterfacePCI Express 2.0 x16
Chipset ManufacturerNVIDIA
GPUNVS 315
CUDA Cores48
Memory Size1GB
Memory Interface64-bit
Memory TypeDDR3
DirectXDirectX 11
OpenGLOpenGL 4.3
DMS-591
Digital Resolution2560 x 1600(DisplayPort) 1920 x 1200(DVI-I SL)
Analog Resolution2048 x 1536@85Hz
Max Displays Per Board8
CoolerWith Fan
HDCP ReadyYes
System RequirementsWindows 8, 7, Vista, SP SP3, Linux, or Solaris Available PCIe x16 expansion slot 2GB or more of system memory, 4GB recommended 200MB of available disc space for full software installation Blu-ray or DVD-ROM (or Internet access) DVI and VGA display(s)
FeaturesAdvanced Display Features -Supports versatile DMS-59 Connector -Drives two DVI-I SL, VGA or DisplayPort monitors via supported DMS-59 based break out cable adaptor -DisplayPort outputs drive two digital displays at resolutions up to 2560 x 1600 at 60Hz -DVI-I SL outputs drive two digital displays at resolutions up to 1920 x 1200 at 60Hz -Internal 400 MHz DAC drives two VGA displays at resolutions up to 2048 x 1536 at 85Hz -DisplayPort 1.2, HDMI 1.4 and HDCP support -HDMI support using optional DP-HDMI or DVI-HDMI dongles -Support for integrated audio via Display Port and HDMI -Suppor
Form FactorLow Profile

Questions sur cet article

Will the on-board fan on the NVS 315 need cleaning or replacement after long-term use?

The card uses an active fan cooler; dust build-up on the heatsink fins is the main maintenance item and the fan can be replaced if it becomes noisy or fails.

What limits sustained performance first on the NVS 315 — the 48 CUDA cores or the 64-bit DDR3 memory bus?

The 64-bit DDR3 interface caps memory bandwidth, so the memory subsystem typically becomes the bottleneck before the 48 CUDA cores saturate.

How much heat and noise does the NVS 315 produce when driving two displays all day?

The low-profile card draws modest power and its single fan runs quietly; case airflow handles the heat without noticeable noise in typical office chassis.
