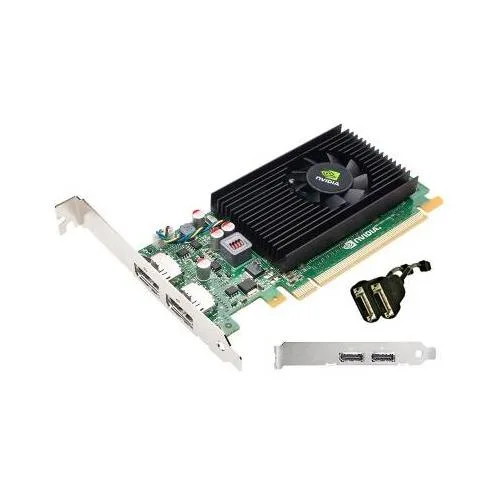

Low-profile graphics card with small fan, two DisplayPort outputs and two DVI adapters included

PNY Technologies, Inc.

PNY Technologies, Inc. Quadro NVS 310 512MB DDR3 workstation graphics card

SKU CH-CNKJ-B04Q2

Entry workstation graphics card with 48 CUDA cores and 512MB DDR3 memory driving two displays at 2560 x 1600 via DisplayPort

  • InterfacePCI Express 2.0 x16
  • Chipset ManufacturerNVIDIA
  • GPUQuadro NVS 310
  • CUDA Cores48
  • Memory Size512MB
  • Memory Interface64-bit
  • Drives two displays simultaneously with dual DisplayPort outputs
  • Fits compact chassis using low-profile PCI Express 2.0 x16 design
  • Runs professional apps on 48 CUDA cores with DirectX 11 support
  • Delivers 2560 x 1600 resolution at 60 Hz via 512 MB DDR3 memory
  • Includes DisplayPort to DVI adapters for immediate multi-monitor setup

Entry-level multi-display workstation card

The PNY Quadro NVS 310 is a low-profile workstation graphics card built for professionals who need two digital displays from a single PCI Express 2.0 x16 slot. It suits office productivity, financial trading desks and digital signage where 3D performance is not the priority. Buyers who need hardware-accelerated 3D rendering, GPU compute or more than two monitors should choose a different card.

Passive thermal profile with single fan

The card uses a compact fan cooler that keeps the GPU within spec during typical 2D workloads such as spreadsheets, video playback and multiple browser windows. Power draw stays low because the 48 CUDA cores and 64-bit memory bus are sized for display output rather than heavy compute. Acoustic output is modest in a standard workstation chassis; the fan becomes audible only under sustained load.

512 MB DDR3 frame buffer decides fit

The 512 MB DDR3 memory capacity and 64-bit interface set a hard ceiling on texture size, resolution and the number of accelerated applications that can run simultaneously. Maximum digital resolution is 2560 x 1600 at 60 Hz per DisplayPort, and the board includes two DisplayPort to DVI-D single-link adapters. If your workflow needs larger frame buffers or higher bandwidth, this specification makes the card unsuitable.

Points forts

  • Drives two displays simultaneously with dual DisplayPort outputs
  • Fits compact chassis using low-profile PCI Express 2.0 x16 design
  • Runs professional apps on 48 CUDA cores with DirectX 11 support
  • Delivers 2560 x 1600 resolution at 60 Hz via 512 MB DDR3 memory
  • Includes DisplayPort to DVI adapters for immediate multi-monitor setup

Caractéristiques

BrandPNY
ModelVCNVS310DVI-PB
InterfacePCI Express 2.0 x16
Chipset ManufacturerNVIDIA
GPUQuadro NVS 310
CUDA Cores48
Memory Size512MB
Memory Interface64-bit
Memory TypeDDR3
DirectXDirectX 11
OpenGLOpenGL 4.1
DisplayPort2
RAMDAC400 MHz
Digital ResolutionMaximum DP Digital Resolution: 2560 x 1600 at 60Hz
Max Displays Per Board2
CoolerWith Fan
Operating Systems SupportedWindows 7, Vista, XP SP3, Linux, or Solaris
System RequirementsPCIe x16 expansion slot
FeaturesFast 512 MB DDR3 graphics memory
Package ContentsIncluded 2 DisplayPort to DVI-D single-link adapters.

Questions sur cet article

How do I install the Quadro NVS 310 into a PCI Express 2.0 x16 slot, and what step is often missed with the low-profile bracket?

Align the card with the PCI Express 2.0 x16 slot, press firmly until seated, and secure the low-profile bracket with the case screw; the step often missed is swapping the full-height bracket for the included low-profile one before insertion.

What maintenance will the Quadro NVS 310 need over time?

The onboard fan should be cleaned with compressed air every few months to prevent dust build-up; the 512MB DDR3 memory and GPU are not user-serviceable, so no further maintenance is required.

What limit appears first when driving two 2560 x 1600 displays at 60Hz continuously?

The 64-bit memory interface and 512MB DDR3 frame buffer saturate first, capping sustained 3D throughput before the GPU core reaches its thermal ceiling.
