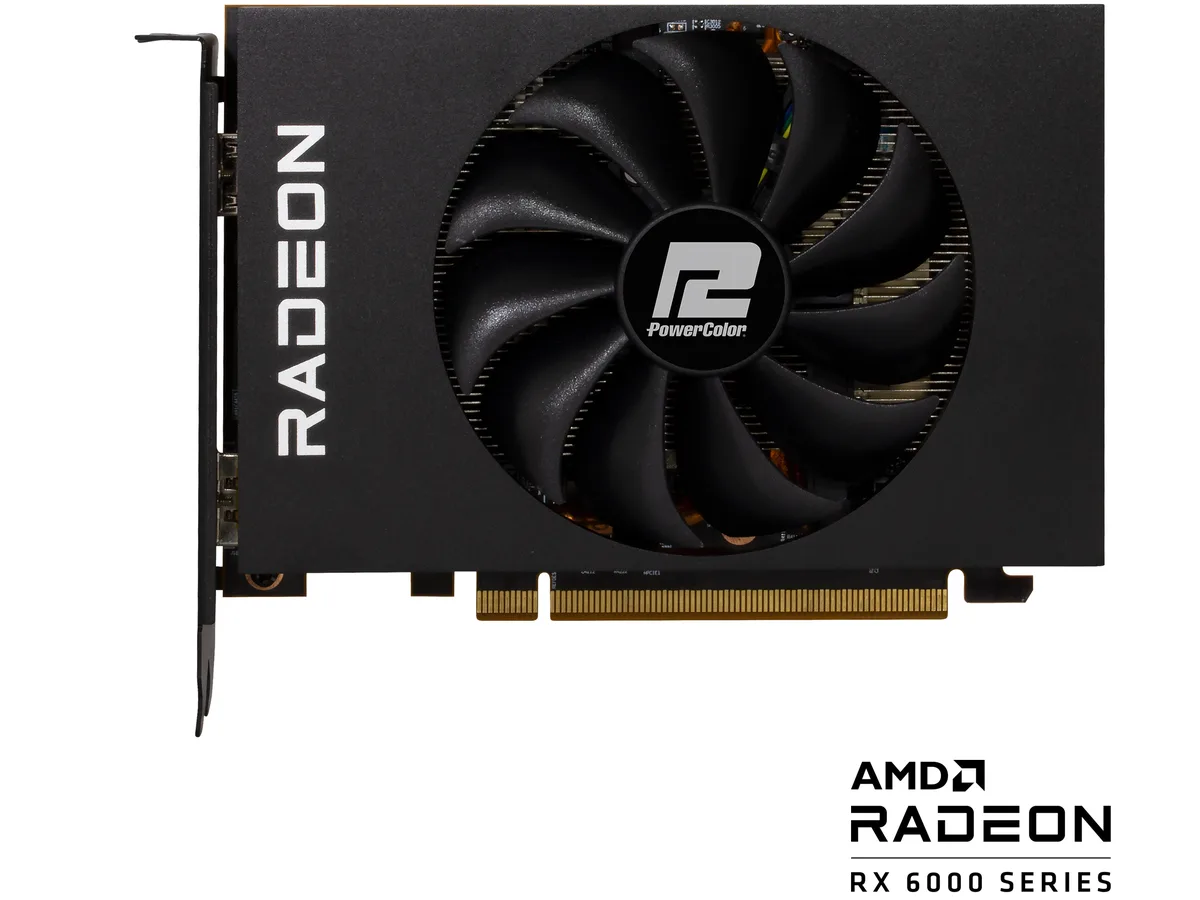

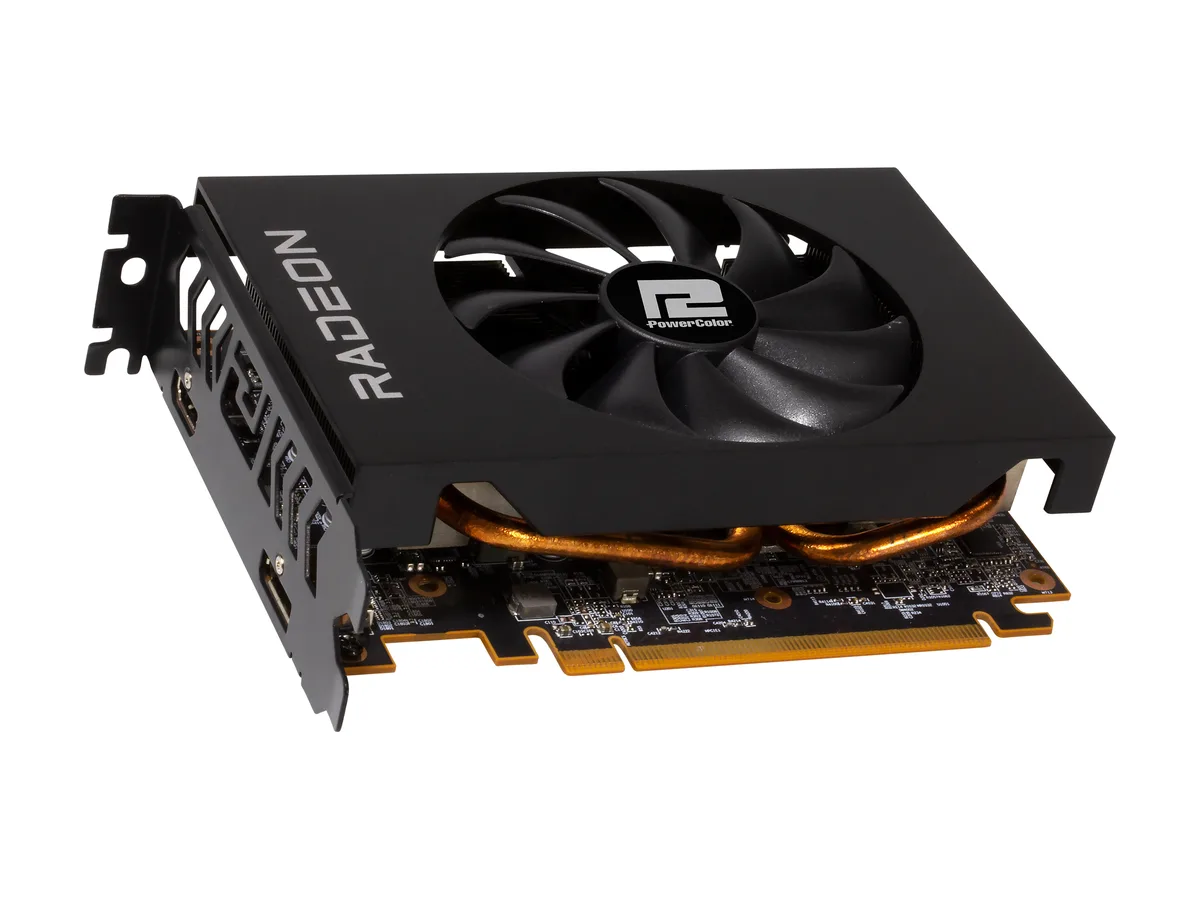

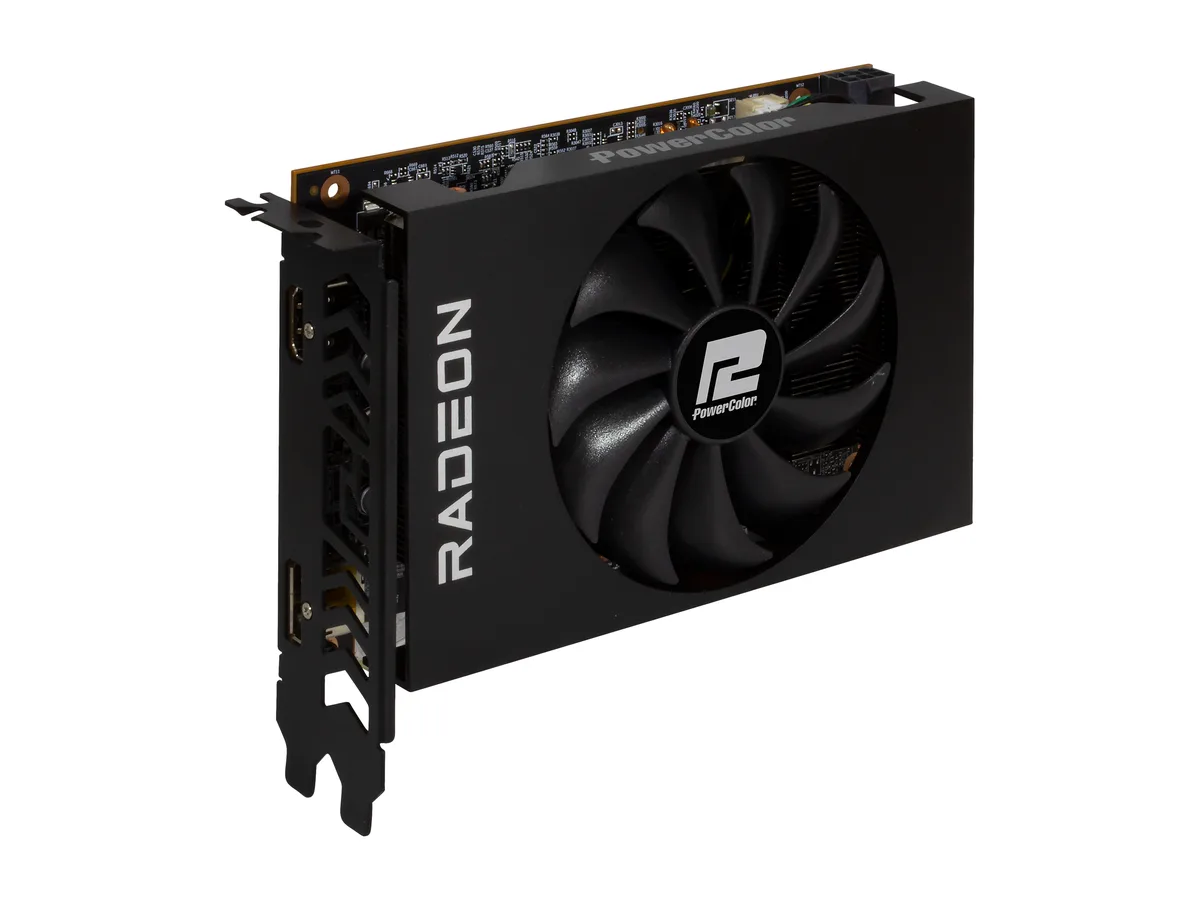

Compact ITX graphics card with a single black fan and short black shroud

PowerColor

PowerColor AXRX 6500XT 4GBD6-DH graphics card

SKU CH-GZJ0-MTYWJ MPN AXRX 6500XT 4GBD6-DH

Compact ITX graphics card with 4 GB GDDR6, 1024 stream processors, boost clock 2815 MHz, HDMI 2.1 and DisplayPort 1.4, single-fan cooler, 107 W TDP

  • InterfacePCI Express 4.0
  • Chipset ManufacturerAMD
  • GPU SeriesAMD Radeon RX 6000 Series
  • GPURadeon RX 6500 XT
  • ArchitectureRDNA 2
  • Game Clock2610 MHz
  • Compact ITX form factor fits small builds at 165 mm length
  • Boost clock of 2815 MHz drives responsive 1080p gaming
  • 4 GB GDDR6 memory on a 64-bit bus handles modern textures
  • PCI Express 4.0 interface doubles bandwidth over previous standard
  • Single-fan cooler keeps the 107 W TDP card running quietly

Compact ITX Graphics Card

The PowerColor AXRX 6500XT 4GBD6-DH is a compact ITX graphics card built around the AMD Radeon RX 6500 XT GPU. It uses the RDNA 2 architecture with 1024 stream processors and a 64-bit memory interface. The card targets small-form-factor builds needing 1080p gaming performance.

Check PCIe Slot And Power Supply

Verify your motherboard provides a PCI Express 4.0 x16 slot and that your power supply meets the 400W recommendation with a 6-pin power connector available. The card occupies two expansion slots and measures 165 mm in length, so confirm case clearance before ordering. The thermal design power is rated at 107W.

Single Fan Cooling And Dual Display Outputs

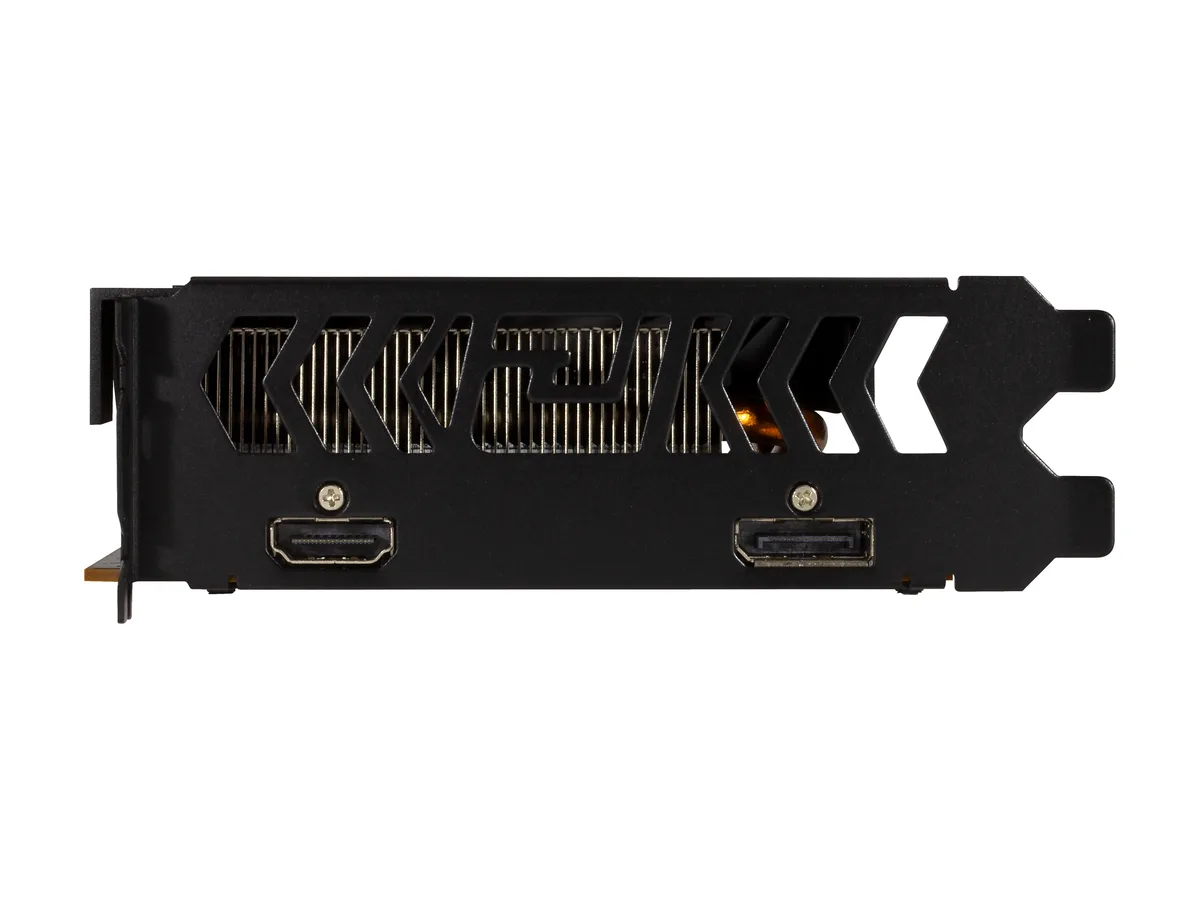

A single-fan cooler handles thermal output within the ITX form factor, freeing internal space for airflow. Video output includes one HDMI 2.1 port and one DisplayPort 1.4 connector for dual-monitor setups. The 4GB GDDR6 memory runs at 18.0 Gbps effective clock, supporting DirectX 12 Ultimate and OpenGL 4.6.

Points forts

  • Compact ITX form factor fits small builds at 165 mm length
  • Boost clock of 2815 MHz drives responsive 1080p gaming
  • 4 GB GDDR6 memory on a 64-bit bus handles modern textures
  • PCI Express 4.0 interface doubles bandwidth over previous standard
  • Single-fan cooler keeps the 107 W TDP card running quietly

Caractéristiques

BrandPowerColor
ModelAXRX 6500XT 4GBD6-DH
InterfacePCI Express 4.0
Chipset ManufacturerAMD
GPU SeriesAMD Radeon RX 6000 Series
GPURadeon RX 6500 XT
ArchitectureRDNA 2
Game Clock2610 MHz
Boost Clock2815 MHz
Stream Processors1024
Effective Memory Clock18.0 Gbps
Memory Size4GB
Memory Interface64-Bit
Memory TypeGDDR6
DirectXDirectX 12 Ultimate
OpenGLOpenGL 4.6
HDMI1 x HDMI 2.1
DisplayPort1 x DisplayPort 1.4
ColorBlack
CoolerSingle Fan
Thermal Design Power107W
Recommended PSU Wattage400W
Power Connector6-Pin
Form FactorITX
Max GPU Length165 mm

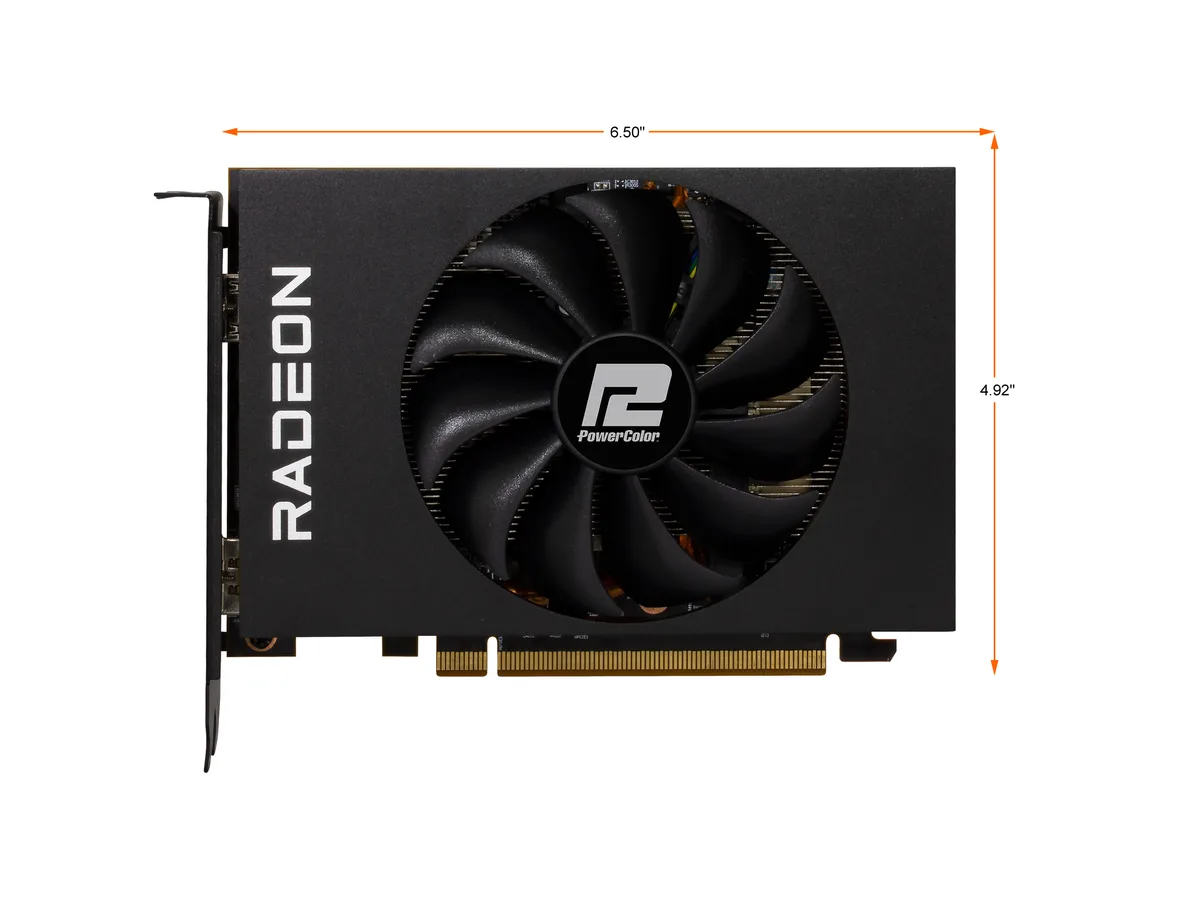

Card Dimensions (L x H)6.50" x 4.92"
Slot Width2 Slots
Poids d’expédition0.54 kg
Dimensions du colis241 × 193 × 74 mm

Questions sur cet article

What cables or adapters come in the box with the PowerColor AXRX 6500XT 4GBD6-DH?

The card includes the graphics board with its single-fan cooler and a 6-pin power connector. No video cables, adapters or mounting screws are listed, so you will need to supply an HDMI 2.1 or DisplayPort 1.4 cable and case screws separately.

The spec sheet shows a 64-bit memory interface and 4 GB of GDDR6 — how does that affect which games run well?

The narrow 64-bit bus paired with 4 GB of GDDR6 at 18.0 Gbps limits high-resolution texture performance. Expect solid 1080p frame rates in esports and older titles, but newer AAA games may require lowered texture settings to stay within the 4 GB frame buffer.

The boost clock is listed at 2815 MHz — what does that actually deliver in a typical PC?

With a 2815 MHz boost clock and 1024 stream processors on the RDNA 2 architecture, the card targets 1080p gaming at medium to high settings. Actual clocks will vary with case airflow and the 107 W power limit, so a 400 W PSU and good ventilation help sustain the rated frequency.
