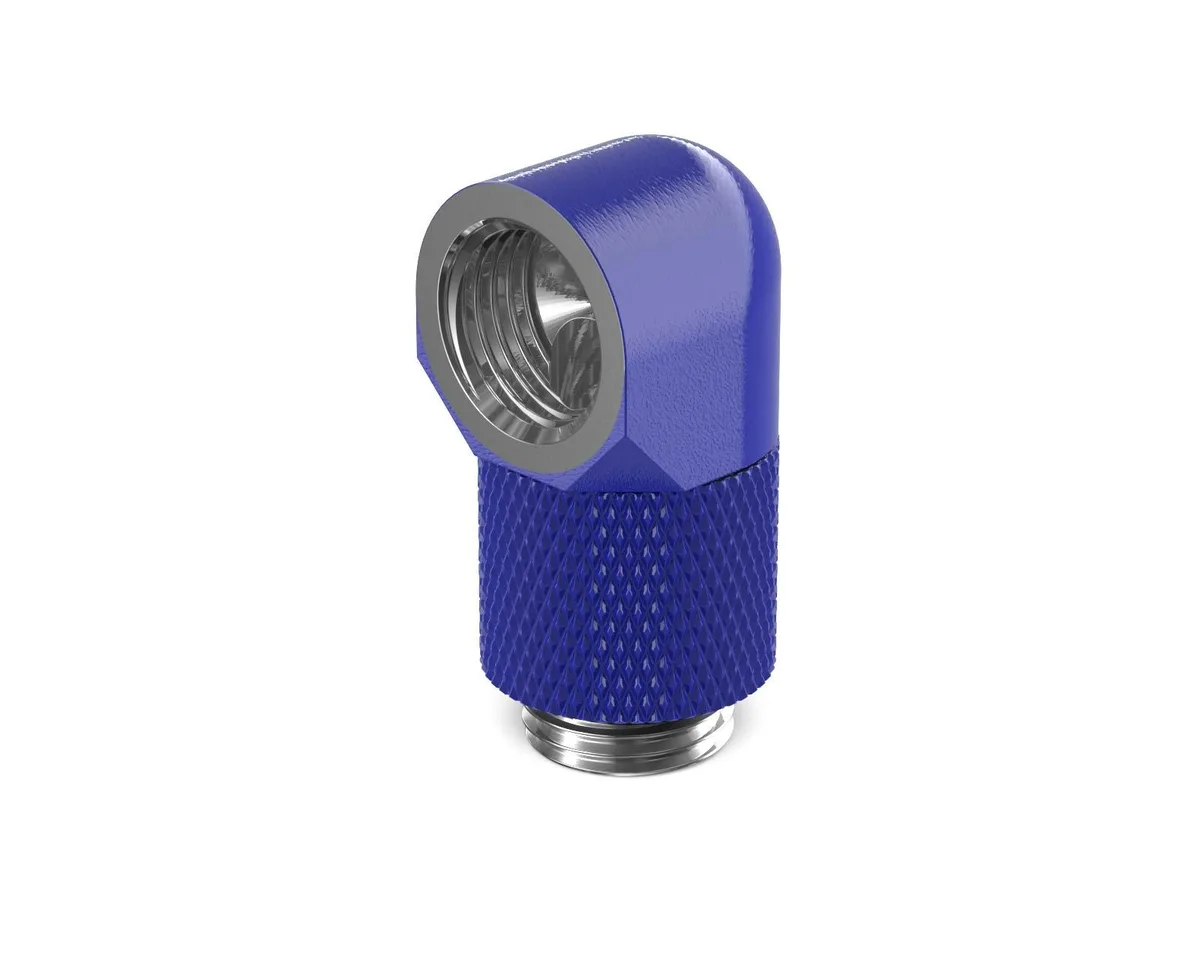

PrimoChill G1/4 90 degree rotary 15mm extension elbow fitting in True Blue finish

PrimoChill

PrimoChill G1/4 90° Rotary 15mm Extension Elbow Fitting True Blue

SKU CH-1V5P-AY815

A G1/4 90° rotary elbow fitting with 15 mm extension and 360° adjustment for custom liquid-cooling loops

  • TypeFittings
  • 360° rotary lets you aim the port in any direction
  • 90° elbow redirects tubing runs around tight corners
  • 15 mm extension adds clearance for crowded component layouts
  • G1/4 brass threads ensure a secure, leak-free seal
  • SX powder-coated True Blue finish resists corrosion and matches your build

G1/4 90° Rotary Extension Elbow

The PrimoChill G1/4 90° rotary elbow fitting redirects tubing runs by ninety degrees while adding a fifteen millimetre extension. Its male-to-female thread design allows quick direction changes away from components at unconventional angles. The 360-degree rotary function lets you aim the connection in any orientation after installation. This brass fitting suits custom liquid-cooling loops needing tight spatial adjustments.

Thread depth and installed height limits

The G1/4 thread depth is five millimetres, limiting engagement length on the mating component. Installed base height sits at fifteen millimetres, which may restrict use in extremely shallow clearance zones. Total height reaches 37.7 millimetres once fitted, so vertical space above the port must accommodate this dimension. Builders should verify port depth and surrounding component height before committing to this adapter.

15 mm extension for clearance

The fixed fifteen millimetre extension is the single specification that decides fit when standard elbows sit too close to neighbouring parts. It provides the extra standoff needed to clear obstacles or align tubing runs without adding a separate extender. If your build requires more or less standoff, a different elbow length must be chosen.

Points forts

  • 360° rotary lets you aim the port in any direction
  • 90° elbow redirects tubing runs around tight corners
  • 15 mm extension adds clearance for crowded component layouts
  • G1/4 brass threads ensure a secure, leak-free seal
  • SX powder-coated True Blue finish resists corrosion and matches your build

Caractéristiques

TypeFittings

Questions sur cet article

Which fitting length should I choose for a tight clearance build?

The 15 mm installed base height adds a short standoff that clears nearby components while keeping the loop compact.

What does the 90 degree angle do once the fitting is in the loop?

It redirects tubing at a right angle so runs can turn away from blocks or radiators without sharp bends.

How does the G1/4 thread and 360 degree rotary function affect installation?

The G1/4 male-to-female threads fit standard water-cooling ports and the full rotary lets you orient the elbow in any direction before tightening.
