Compact silver desktop NASbook with four M.2 SSD slots and dual HDMI ports

Qnap

Qnap TBS-464-8G-US 8GB DDR4 NAS

SKU CH-E25Q-6Z6YM MPN TBS-464-8G-US

Diskless four-bay M.2 NVMe SSD NASbook with Intel Celeron N5105 processor, 8 GB DDR4, dual 2.5 GbE ports and two HDMI 2.0 outputs

  • TypeDesktop NAS
  • Ports2 x 2.5GbE / 2 x HDMI 2.0 / 2 x USB 3.0 / 3 x USB 2.0
  • Port RJ-452 x 2.5 GbE
  • Port USB2 x USB3.0 + 3 x USB2.0
  • Port Others2 x HDMI 2.0
  • PCIe4 x M.2 2280 NVMe Gen3 x2 slots
  • Quad-core Intel Celeron N5105 processor bursts to 2.9 GHz for responsive NAS performance
  • Two 2.5 GbE ports enable up to 5 Gbps aggregated throughput with port trunking
  • Four M.2 2280 NVMe Gen3 x2 slots provide high-speed SSD cache acceleration
  • Dual HDMI 2.0 outputs support 4K 60 Hz display and real-time transcoding
  • Diskless 4-bay SATA design lets you choose your own storage capacity

Compact M.2 NVMe NASbook for small teams

The Qnap TBS-464-8G-US is a diskless desktop NAS powered by an Intel Celeron N5105 quad-core processor bursting to 2.9 GHz with 8 GB of soldered DDR4 memory. It targets small offices, workgroups and remote workers who need a portable, quiet system for file backup, media streaming and video conferencing through the included KoiMeeter app.

Four M.2 2280 slots limited to Gen3 x2 speeds

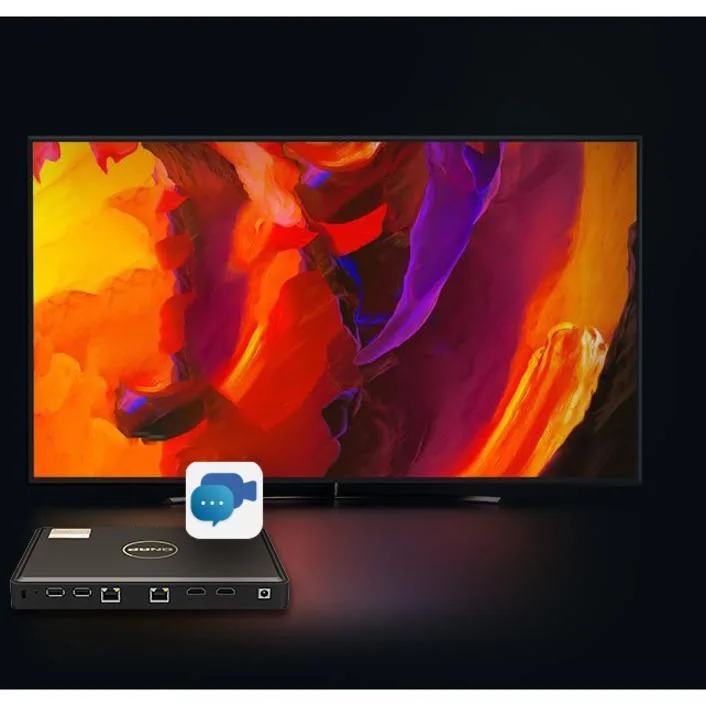

Each of the four M.2 bays accepts NVMe SSDs running at PCIe Gen3 x2, so peak throughput per drive is lower than Gen3 x4 or Gen4 alternatives. The two 2.5 GbE ports are backward compatible with 1 GbE, 100 MbE and 10 MbE networks, and port trunking can combine them for up to 5 Gbps aggregate bandwidth. HDMI 2.0 outputs deliver 4K at 60 Hz for direct media playback or transcoding.

Verify SSD form factor

The unit only accepts M.2 2280 NVMe modules; 2230, 2242 or SATA M.2 drives will not fit or function. Memory is fixed at 8 GB with no expansion slots, so workloads requiring more RAM cannot be accommodated. An external 65 W power adapter is included, and the operating temperature range spans 0 to 40 °C.

Points forts

  • Quad-core Intel Celeron N5105 processor bursts to 2.9 GHz for responsive NAS performance
  • Two 2.5 GbE ports enable up to 5 Gbps aggregated throughput with port trunking
  • Four M.2 2280 NVMe Gen3 x2 slots provide high-speed SSD cache acceleration
  • Dual HDMI 2.0 outputs support 4K 60 Hz display and real-time transcoding
  • Diskless 4-bay SATA design lets you choose your own storage capacity

Caractéristiques

BrandQNAP
ModelTBS-464-8G-US
TypeDesktop NAS
Ports2 x 2.5GbE / 2 x HDMI 2.0 / 2 x USB 3.0 / 3 x USB 2.0
Port RJ-452 x 2.5 GbE
Port USB2 x USB3.0 + 3 x USB2.0
Port Others2 x HDMI 2.0
PCIe4 x M.2 2280 NVMe Gen3 x2 slots
HDD Interface4 x SATA (4 x Bay)
ProcessorIntel Celeron N5105 4-core/4-thread processor, burst up to 2.9 GHz
Installed Memory8GB DDR4
Max Memory Capacity8GB
Memory Slot0
Included HDD CapacityDiskless System
LEDsSSD1-4
PowerExternal Power Adapter, 65W, 100-240V
Power Consumption28 W (Access)
18 W (HDD Hibernation)
TemperatureOperating temperature: 0 - 40°C (32°F - 104°F)
Storage Temperature: -20 - 70°C (-4°F - 158°F)
Humidity5-95% RH non-condensing, wet bulb: 27°C (80.6°F)
UsageBackup & stream media through personal cloud
Dimensions1.18" x 9.06" x 6.50"
Weight1.76 lbs.
Poids d’expédition1.70 kg
Dimensions du colis286 × 203 × 95 mm

Questions sur cet article

Should I pick the 8 GB model or look for a larger memory option?

This unit comes with 8 GB of DDR4 and the memory slots are already full, so there is no larger option to choose.

What does the 2.9 GHz burst speed mean for everyday file transfers and media streaming?

The Intel Celeron N5105 can boost to 2.9 GHz for short bursts, giving snappy response when opening folders or starting a 4K transcode, then settles to a lower sustained speed.

How fast can the two 2.5 GbE ports actually move data in a home network?

Each port runs at 2.5 GbE and is backwards compatible with 1 GbE; using port trunking you can reach up to 5 Gbps combined throughput.
