Silver rectangular desktop enclosure with four front drive bays and a USB Type-C port

Qnap

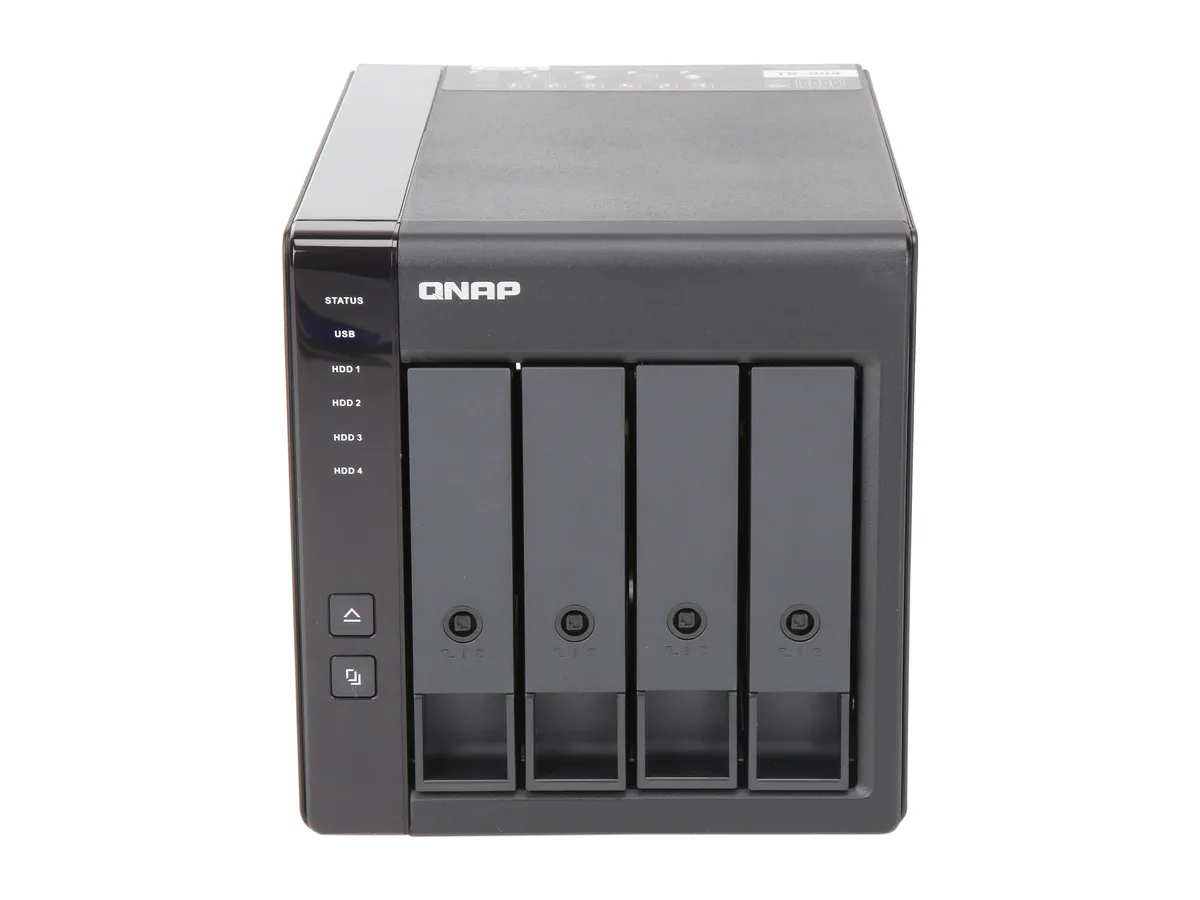

Qnap TR-004-US 4-Bay USB 3.2 Gen 2 Type-C Desktop NAS (Diskless)

SKU CH-CM0X-1CNR5 MPN TR-004-US

A four-bay desktop enclosure adds up to 80 TB of hardware RAID storage over USB 3.2 Gen 2 Type-C

  • TypeDesktop NAS
  • Ports1 x USB 3.2 Gen 2 Type-C
  • Port USB1 x Type-C USB 3.2 Gen 1
  • HDD Interface4 x SATA (4 x Bay)
  • Form Factor4-Bay
  • Operating SystemMinimum operating system requirements: QNAP NAS: QTS 4.3.6 a
  • Hardware RAID 0, 1, 5, 10, JBOD protects data without host CPU load
  • USB 3.2 Gen 2 Type-C delivers up to 10 Gbps transfer speed
  • Four 3.5-inch SATA bays support up to 80 TB total capacity

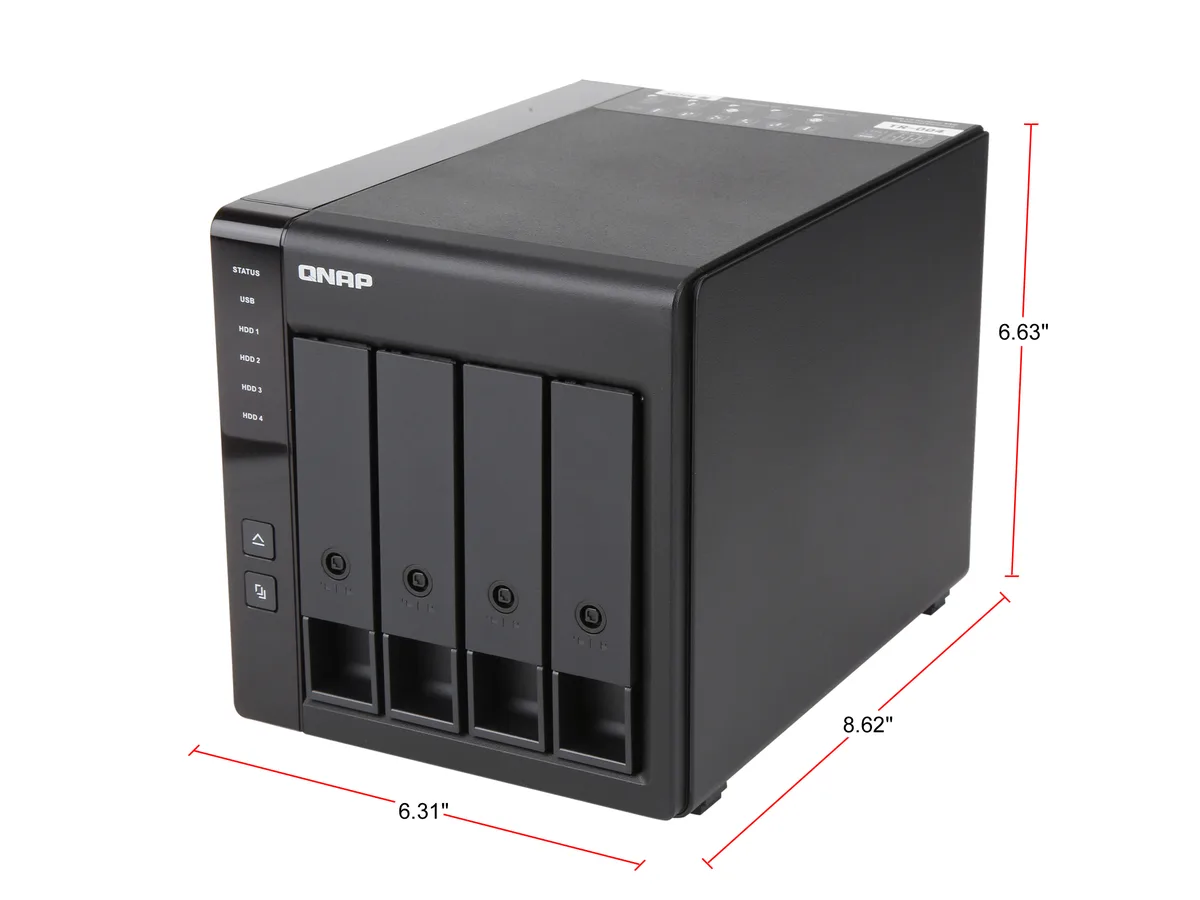

  • Compact desktop form factor fits 6.63 x 6.31 x 8.62 inches on any desk
  • Works with QTS 4.3.6+, Windows 8.1+, macOS 10.11+ for broad compatibility

Four-bay desktop DAS with hardware RAID

The Qnap TR-004-US is a diskless desktop enclosure that connects through a single USB 3.2 Gen 2 Type-C port. It accepts up to four 3.5-inch or 2.5-inch SATA drives and provides an on-board hardware RAID controller that manages RAID 0, 1, 5, 10 and JBOD without host software overhead. The unit targets users who need direct-attached capacity expansion for backup or media streaming from an existing computer or compatible Qnap NAS.

Sustained operation with external 65 W adapter

Under continuous access with all bays populated the enclosure draws 18.21 W, dropping to 4.17 W when the drives enter hibernation. The external 65 W power adapter handles the load across a 100-240 V range, so thermal output remains modest in a 0-40 °C ambient window. Hardware RAID rebuilds and parity calculations run on the dedicated microprocessor rather than the host CPU, keeping performance steady during long write sessions.

Check host port and drive selection before ordering

Your host must provide a USB 3.2 Gen 2 Type-C or USB 3.2 Gen 1 Type-C connection and run Windows 8.1 or later, macOS 10.11 or later, or QTS 4.3.6 and later on a Qnap NAS. Drives are not included; only 3.5-inch or 2.5-inch SATA HDDs and 2.5-inch SATA SSDs are supported. The package supplies drive-tray keys, mounting screws for both form factors and a Kensington lock slot for physical security.

Points forts

  • Hardware RAID 0, 1, 5, 10, JBOD protects data without host CPU load
  • USB 3.2 Gen 2 Type-C delivers up to 10 Gbps transfer speed
  • Four 3.5-inch SATA bays support up to 80 TB total capacity
  • Compact desktop form factor fits 6.63 x 6.31 x 8.62 inches on any desk
  • Works with QTS 4.3.6+, Windows 8.1+, macOS 10.11+ for broad compatibility

Caractéristiques

BrandQNAP
ModelTR-004-US
TypeDesktop NAS
Ports1 x USB 3.2 Gen 2 Type-C
Port USB1 x Type-C USB 3.2 Gen 1
HDD Interface4 x SATA (4 x Bay)
Form Factor4-Bay
Operating SystemMinimum operating system requirements:
QNAP NAS: QTS 4.3.6 and later
Windows: Windows 8.1 and later
Mac: macOS X 10.11 and later
ProcessorMicro processor with hardware RAID
Included HDD CapacityDiskless System
Max Capacity80TB
Drive Compatibility3.5" SATA 6Gb/s, 3Gb/s HDD
2.5" SATA 6Gb/s, 3Gb/s HDD
2.5" SATA 6Gb/s, 3Gb/s SSD
PowerExternal Power Adapter, 65W, 100-240V
4.17W (HDD Sleep Mode), 18.21W (Operating Mode, Typical) With drives fully populated
Power Consumption18.21 W (Access)
4.17 W (HDD Hibernation)
Temperature0 - 40°C (32°F - 104°F)
Humidity5~95% RH non-condensing, wet bulb: 27°C (80.6°F)
UsageBackup & stream media through personal cloud
Dimensions6.63" x 6.31" x 8.62"
Weight4.08 lbs.
Package ContentsTR-004 external RAID enclosure
1 x AC power adapter
1 x Power Cord
1 x USB Type-C to Type-A connector cable
2 x Drive tray keys
1 x USB cable clip
12 x Screws for 2.5-inch drives
16 x Screws for 3.5-inch drives
Quick Installation Guide (QIG)
Poids d’expédition3.04 kg
Dimensions du colis318 × 305 × 249 mm

Questions sur cet article

How much power does the TR-004-US draw when the drives are spinning all day?

It uses 18.21 W in typical operating mode with four drives installed and drops to 4.17 W when the drives enter hibernation.

What host port and cable do I need on my computer to connect this enclosure?

A USB 3.2 Gen 2 Type-C port is required; the box includes a USB Type-C to Type-A cable for compatibility.

Will my existing 3.5-inch SATA drives work inside the four bays?

Yes, the bays accept 3.5-inch SATA 6 Gb/s or 3 Gb/s hard drives up to a combined 80 TB.
