Compact silver rackmount NAS unit with front status LEDs and single drive bay visible

Qnap

Qnap TS-130-US 1-Bay rackmount NAS Realtek RTD1295 1.4GHz 1GB DDR4

SKU CH-V9SK-RC7FC MPN TS-130-US

A compact rackmount NAS that backs up files and streams media from a single SATA drive bay with a quad-core Realtek processor and 1 GB DDR4 memory

  • Port RJ-451 x 10/100/1000M
  • Port USB1 x USB 3.2 Gen 1 + 1 x USB 2.0
  • HDD Interface1 x SATA (1 x Bay)
  • Form Factor1-Bay
  • Operating SystemQTS 4.4.1 (embedded Linux)
  • ProcessorRealtek RTD1295 quad-core 1.4GHz processor
  • Backup and stream media via personal cloud using QTS 4.4.1
  • Quad-core Realtek RTD1295 processor at 1.4GHz handles everyday tasks
  • 1GB DDR4 memory supports smooth operation for single-bay use
  • Gigabit Ethernet plus USB 3.2 Gen 1 and USB 2.0 ports for flexible connectivity
  • Low power draw of 3.45W in sleep and 7.29W typical operation

One-bay personal cloud NAS

The Qnap TS-130-US is a 1-bay rackmount network-attached storage device built around a Realtek RTD1295 quad-core 1.4GHz processor with 1GB of non-expandable DDR4 memory. It runs QTS 4.4.1 and is intended for users who want a compact personal cloud for backup and media streaming. A single SATA drive bay accepts 3.5-inch or 2.5-inch SATA hard drives and 2.5-inch SATA SSDs.

Sustained load behaviour

Under typical operation the unit draws 7.29W and drops to 3.45W when the installed drive enters sleep mode, powered by an external 36W adapter that accepts 100-240V input. The single Gigabit Ethernet port and USB 3.2 Gen 1 port provide fixed bandwidth for continuous file transfers or media streaming, while the Realtek processor handles background tasks such as indexing and transcoding within its thermal envelope of 0-40°C.

Pre-purchase checks

Verify that your rack or shelf can accommodate the 7.38" x 2.60" x 6.20" chassis and that a single drive bay meets your capacity and redundancy requirements, as the memory cannot be upgraded and no additional internal bays exist. Ensure you have a SATA drive on hand, because none is included, and confirm that the single Gigabit uplink and two USB ports satisfy your connectivity plan.

Points forts

  • Backup and stream media via personal cloud using QTS 4.4.1
  • Quad-core Realtek RTD1295 processor at 1.4GHz handles everyday tasks
  • 1GB DDR4 memory supports smooth operation for single-bay use
  • Gigabit Ethernet plus USB 3.2 Gen 1 and USB 2.0 ports for flexible connectivity
  • Low power draw of 3.45W in sleep and 7.29W typical operation

Caractéristiques

BrandQNAP
ModelTS-130-US
Port RJ-451 x 10/100/1000M
Port USB1 x USB 3.2 Gen 1 + 1 x USB 2.0
HDD Interface1 x SATA (1 x Bay)
Form Factor1-Bay
Operating SystemQTS 4.4.1 (embedded Linux)
ProcessorRealtek RTD1295 quad-core 1.4GHz processor
Installed Memory1GB DDR4, not expandable
Drive Compatibility3.5-inch SATA hard disk drives
2.5-inch SATA hard disk drives
2.5-inch SATA solid state drives
LEDsSystem Status, LAN, HDD
Power36W Adapter, 100-240V
Power Consumption: HDD Sleep Mode 3.45 W
Power Consumption: Operating Mode, Typical 7.29 W
UsageBackup & stream media through personal cloud
TemperatureOperating temperature: 0 - 40°C (32°F - 104°F)
Storage Temperature: -20 - 70°C (-4°F - 158°F)
Humidity5-95% RH non-condensing, wet bulb: 27°C (80.6°F)

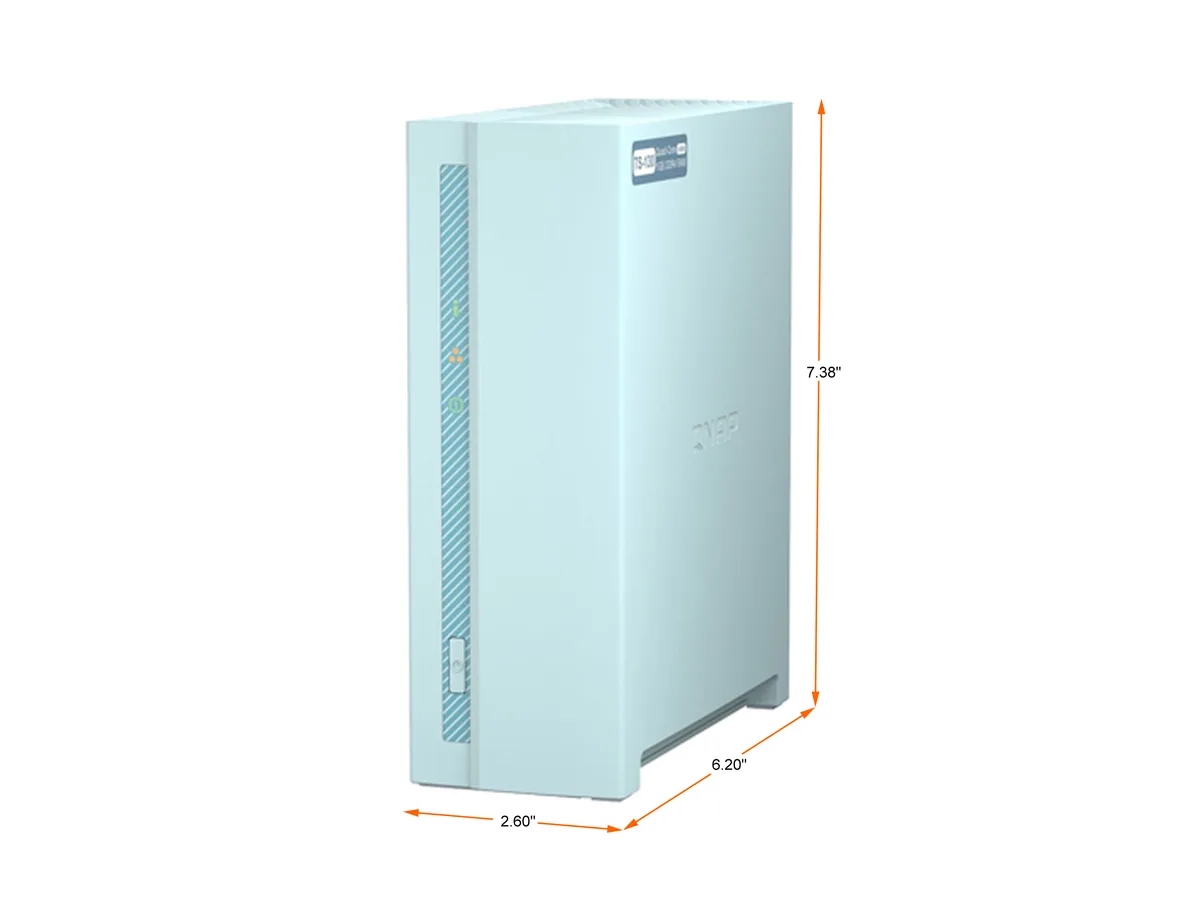

Dimensions7.38" x 2.60" x 6.20"
Weight1.34 lbs.
Package ContentsTS-130
1 x Ethernet Cable
AC Adapter
Power Cord
6 x Flat head screw (for 3.5" HDD)
2 x Flat head screw (for 2.5" HDD)
Quick Installation Guide (QIG)
Poids d’expédition1.22 kg
Dimensions du colis254 × 229 × 152 mm

Questions sur cet article

How much power does the Realtek RTD1295 NAS draw when running all day with a drive installed?

Typical operating consumption is 7.29 W with the drive active and 3.45 W when the drive enters sleep mode, supplied by the included 36 W adapter.

Do I need to supply my own drive, or does the TS-130-US ship with one?

The unit ships without a drive; you must provide a 3.5-inch SATA HDD, 2.5-inch SATA HDD or 2.5-inch SATA SSD and secure it with the included screws.

Will my older 3.5-inch SATA hard drive work in this single-bay rackmount unit?

Yes, the single SATA bay accepts 3.5-inch SATA hard drives as well as 2.5-inch SATA drives and SSDs, so existing SATA disks are compatible.
