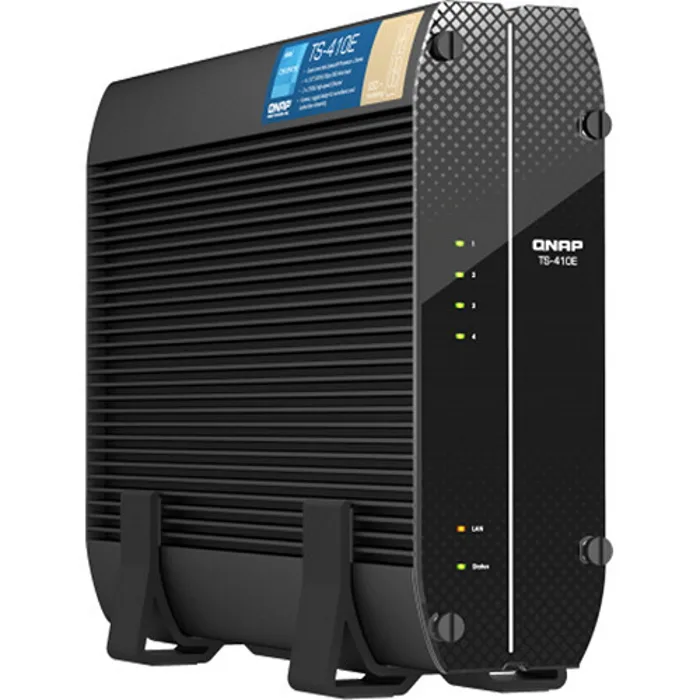

Compact fanless desktop NAS with four 2.5-inch drive bays, matte finish, HDMI and dual network ports

Qnap

Qnap TS-410E-8G-US 4-Bay Desktop NAS 8GB RAM

SKU CH-9D07-H089W MPN TS-410E-8G-US

Fanless four-bay desktop NAS with dual 2.5GbE ports, 8 GB DDR4, and HDMI 1.4b 4K output

  • TypeDesktop NAS
  • Ports1 x HDMI 1.4b / 2 x 2.5GbE / 4 x USB 3.2 Gen 2
  • Port USB4 x USB 3.2 Gen 2 Type-A | HDMI
  • HDD Interface4 x 2.5" SATA III Drive Bays
  • Form Factor4-Bay
  • Operating SystemQTS 5.0.1 Operating System
  • Quad-core Intel Celeron J6412 up to 2.6 GHz with 8 GB DDR4 on-board RAM
  • Dual 2.5GbE ports enable up to 5 Gbps aggregated throughput for faster file sharing
  • Four USB 3.2 Gen 2 Type-A ports deliver up to 10 Gb/s transfer speeds for external drives
  • HDMI 1.4b output supports 4K playback at 30 Hz and real-time transcoding
  • Fanless design runs silently at 13.494 W idle and 22.694 W typical operating power

Professional fanless NAS for quiet offices

The Qnap TS-410E-8G-US is a four-bay desktop NAS built around an Intel Celeron J6412 quad-core processor that bursts to 2.6 GHz with 8 GB of on-board DDR4 memory. It targets small teams or home offices that need shared storage without audible fan noise in noise-sensitive rooms.

Sustained file transfer and transcoding behaviour

Dual 2.5GbE ports can be trunked for up to 5 Gbps aggregate throughput during long copy jobs or multi-user access. The CPU handles 4K media playback and real-time transcoding at 30 Hz through the HDMI 1.4b output while maintaining RAID 0, 1, 5, 6, 10 or JBOD arrays across four 2.5-inch SATA SSDs up to 88 TB total capacity.

Thermals, noise and power in normal use

Fanless cooling keeps the chassis silent and prevents dust intake while the unit sits upright on a desk. Typical operating draw measures 22.694 W with drives active and drops to 13.494 W when disks enter sleep mode, powered by an external 90 W adapter.

Points forts

  • Quad-core Intel Celeron J6412 up to 2.6 GHz with 8 GB DDR4 on-board RAM
  • Dual 2.5GbE ports enable up to 5 Gbps aggregated throughput for faster file sharing
  • Four USB 3.2 Gen 2 Type-A ports deliver up to 10 Gb/s transfer speeds for external drives
  • HDMI 1.4b output supports 4K playback at 30 Hz and real-time transcoding
  • Fanless design runs silently at 13.494 W idle and 22.694 W typical operating power

Caractéristiques

BrandQNAP
SeriesTS-410E
Model4-Bay
Part NumberTS-410E-8G-US
TypeDesktop NAS
Ports1 x HDMI 1.4b / 2 x 2.5GbE / 4 x USB 3.2 Gen 2
Port USB4 x USB 3.2 Gen 2 Type-A | HDMI
HDD Interface4 x 2.5" SATA III Drive Bays
Form Factor4-Bay
Operating SystemQTS 5.0.1 Operating System
ProcessorIntel Celeron J6412 4-core/4-thread processor, burst up to 2.6 GHz
Installed Memory8GB
Max Memory Capacity8GB
Memory Slot8 GB on board (non-expandable)
Included HDD CapacityDiskless System
Max Capacity88TB
RAIDRAID 0, 1, 5, 6, 10, JBOD, Single
Drive Compatibility2.5" SATA SSD
PowerExternal Power Adapter, 90W and above, AC 100-240V
Power ConsumptionPower Consumption: HDD Sleep Mode 13.494 W
Power Consumption: Operating Mode, Typical 22.694 W
Tested with drives fully populated.
TemperatureOperating Temperature: 0 - 40 °C (32°F - 104°F)
Storage Temperature: -20 - 70°C (-4°F - 158°F)
Humidity5-95% RH non-condensing, wet bulb: 27°C (80.6°F)
UsageBackup & stream media through personal cloud
Dimensions2.36 × 7.09 × 10 inch
WeightWeight (Net): 5.82 lbs
Weight (Gross): 8.44 lbs
Poids d’expédition3.76 kg
Dimensions du colis343 × 287 × 193 mm

Questions sur cet article

How loud is the TS-410E-8G-US when running 24/7?

The fanless design means it produces no fan noise; typical operating power is 22.694 W and sleep power is 13.494 W.

What drives and network gear do I need to start using this NAS?

You must supply up to four 2.5" SATA SSDs and connect at least one 2.5GbE port to a switch or router that supports 2.5G/1G/100M speeds.

Can I keep using my existing 1 GbE switch with the dual 2.5GbE ports?

Yes, the 2.5GbE ports auto-negotiate down to 1GbE or 100M, so your current switch works without changes.
