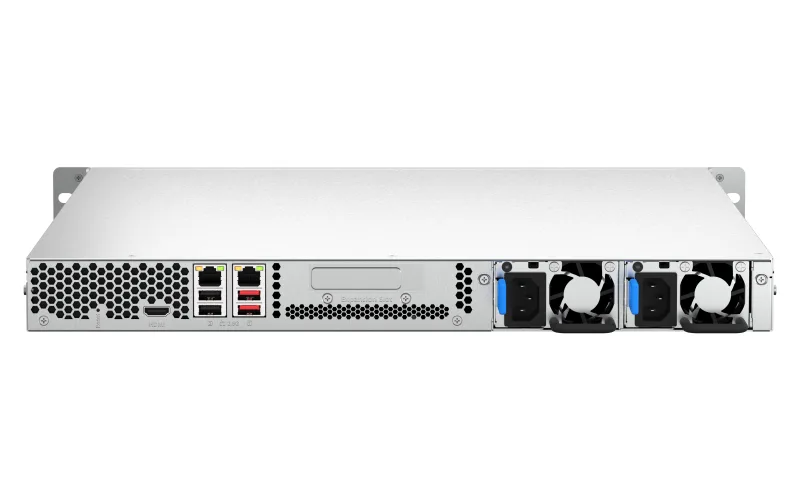

Silver 1U rackmount unit with four drive bays, dual power supplies, front LEDs and rear ports

Qnap

Qnap TS-464U-RP-8G-US rackmount NAS 4-bay N5095 8GB DDR4 2.5GbE redundant PSU

SKU CH-73RR-FXZAN MPN TS-464U-RP-8G-US

Four-bay rackmount NAS with Intel Celeron N5095 processor, 8 GB DDR4, dual 2.5 GbE ports, PCIe slot and redundant power supply

  • Port RJ-452 x 2.5 GbE
  • HDD Interface4 x SATA (4 x Bay)
  • Form Factor4-Bay
  • ProcessorIntel® Celeron® N5095 4-core/4-thread processor, burst up to
  • Installed Memory8GB
  • Max Memory Capacity8GB
  • Quad-core Intel Celeron N5095 bursts to 2.9 GHz for responsive multi-user NAS performance
  • Dual 2.5GbE ports with Port Trunking deliver up to 5 Gbps combined throughput
  • Redundant 250 W power supplies maintain uptime if one unit fails
  • PCIe Gen 3 x2 slot adds 10GbE, M.2 caching or AI acceleration cards
  • 4K HDMI 1.4b output enables direct multimedia or virtual-machine display

Rackmount NAS with redundant power

The TS-464U-RP-8G-US is a 1U four-bay rackmount NAS powered by an Intel Celeron N5095 quad-core processor that bursts to 2.9 GHz. It ships with 8 GB of DDR4 memory that cannot be expanded further. Two 2.5 GbE RJ45 ports support port trunking for up to 5 Gbps combined throughput. A PCIe Gen 3 x2 slot allows the addition of network, caching or AI accelerator cards. Dual 250 W power supplies provide full redundancy.

Suits small business and virtualisation

Organisations that need a compact, redundant storage server for file sharing, iSCSI targets or light virtual machines will benefit from the HDMI 1.4b output and AES 256-bit encryption. Buyers who require more than four drive bays or memory beyond 8 GB should consider larger chassis models. Environments demanding 10 GbE connectivity out of the box will need to add a card through the PCIe slot.

Four SATA bays and fixed 8 GB RAM

The chassis accepts four 3.5-inch SATA hard drives or 2.5-inch SATA SSDs for a maximum raw capacity of 88 TB. Memory is soldered at 8 GB DDR4 with no upgrade path, so the system cannot support workloads that need more RAM. This specification determines whether the unit fits the intended application.

Points forts

  • Quad-core Intel Celeron N5095 bursts to 2.9 GHz for responsive multi-user NAS performance
  • Dual 2.5GbE ports with Port Trunking deliver up to 5 Gbps combined throughput
  • Redundant 250 W power supplies maintain uptime if one unit fails
  • PCIe Gen 3 x2 slot adds 10GbE, M.2 caching or AI acceleration cards
  • 4K HDMI 1.4b output enables direct multimedia or virtual-machine display

Caractéristiques

BrandQNAP
ModelTS-464U-RP-8G-US
Part NumberTS-464U-RP-8G-US
Port RJ-452 x 2.5 GbE
HDD Interface4 x SATA (4 x Bay)
Form Factor4-Bay
ProcessorIntel® Celeron® N5095 4-core/4-thread processor, burst up to 2.9 GHz
Installed Memory8GB
Max Memory Capacity8GB
Included HDD CapacityDiskless System
Max Capacity88TB
Drive Compatibility3.5-inch SATA hard disk drives
2.5-inch SATA solid state drives
LEDsHDD 1-4, Status, LAN, Expansion, Power
Power250W (x2), 100-240V
Power ConsumptionPower Consumption: HDD Sleep Mode 37.469 W
Power Consumption: Operating Mode, Typical 51.404 W
UsageUltra high prerformance for large number of users
TemperatureOperating Temperature 0 - 40 °C (32°F - 104°F)
Storage Temperature -20 - 70°C (-4°F - 158°F)
Humidity5-95% RH non-condensing, wet bulb: 27°C (80.6°F)
Dimensions43.3 × 430 × 479 mm
WeightWeight (Net) 8.12 kg
Weight (Gross) 10.1 kg
Poids d’expédition10.43 kg
Dimensions du colis584 × 533 × 229 mm

Questions sur cet article

Will the Intel Celeron N5095 with 8 GB DDR4 keep up when I connect it to my existing 1 GbE switch and older SATA drives?

The processor runs at up to 2.9 GHz and the two 2.5 GbE ports fall back to 1 GbE, so your current switch and 3.5-inch or 2.5-inch SATA drives will work without a bottleneck.

How do I confirm the TS-464U-RP is running normally after the first boot?

Watch the front-panel LEDs — Status, LAN, Expansion and the four HDD indicators — and check that power draw settles near 51.404 W in operating mode.

What ships with the TS-464U-RP-8G-US and what must I buy separately?

The 1U chassis comes with the N5095 CPU, 8 GB DDR4 soldered memory, dual 250 W redundant PSUs, two 2.5 GbE RJ45 ports, HDMI 1.4b and a PCIe Gen 3 slot; you must supply four SATA drives.
