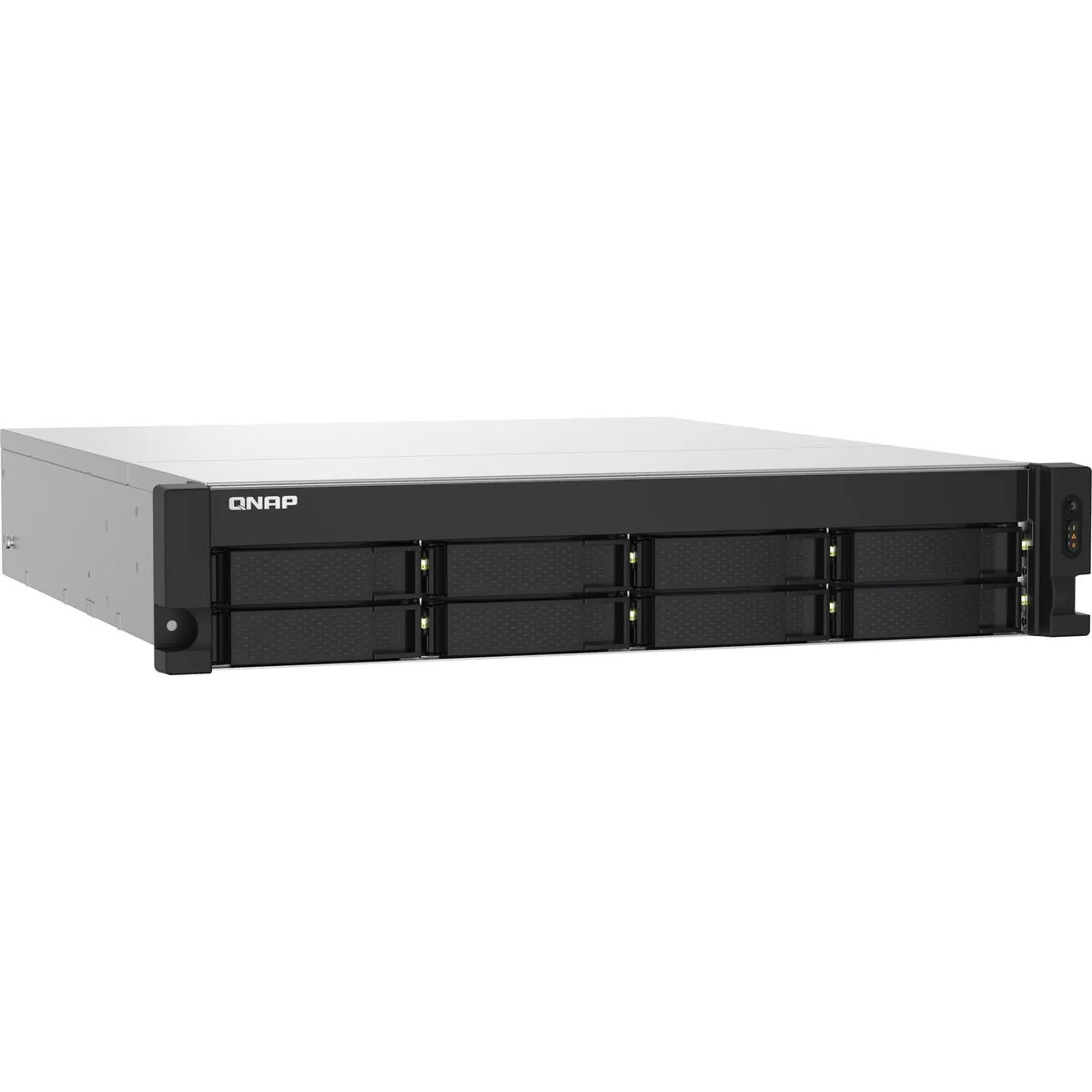

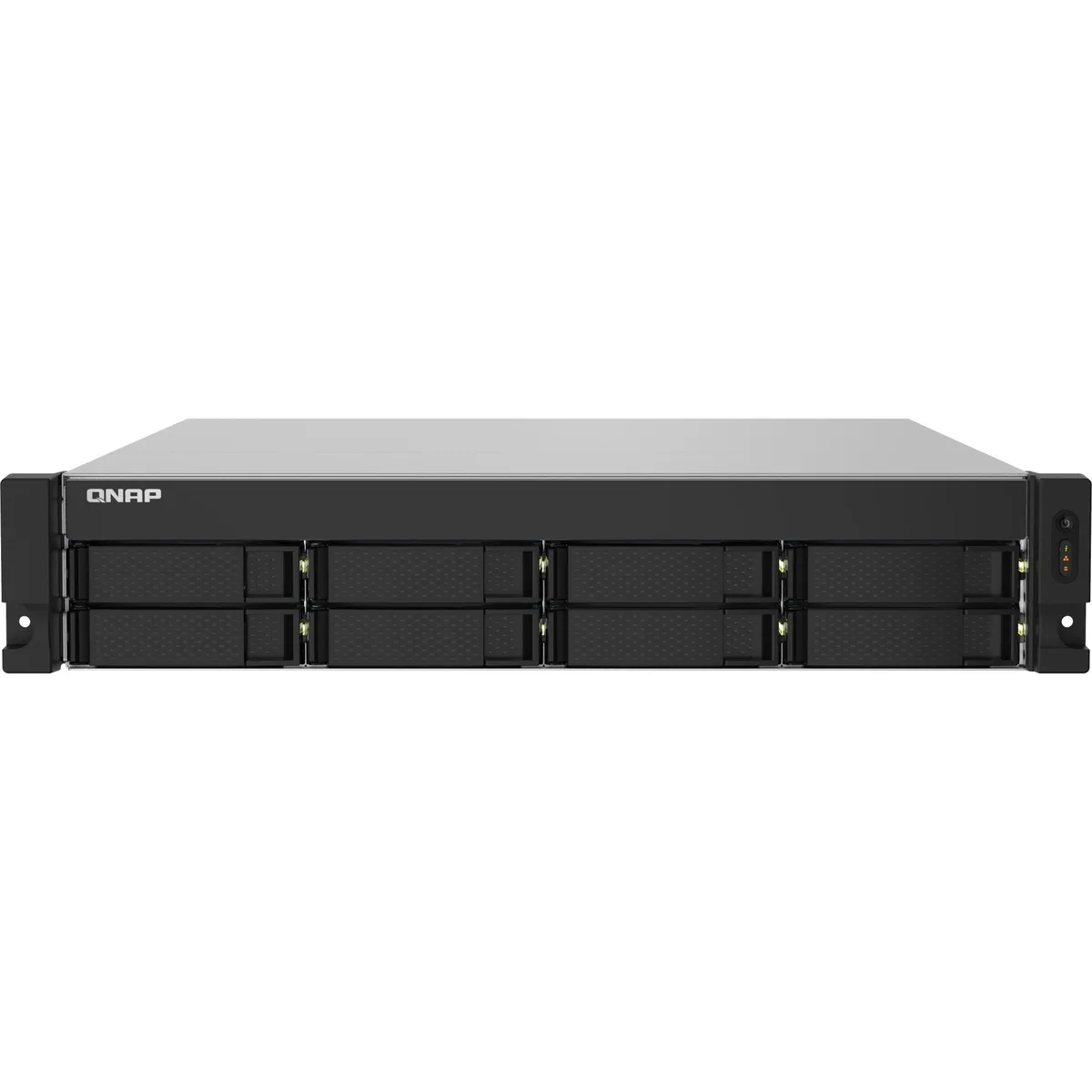

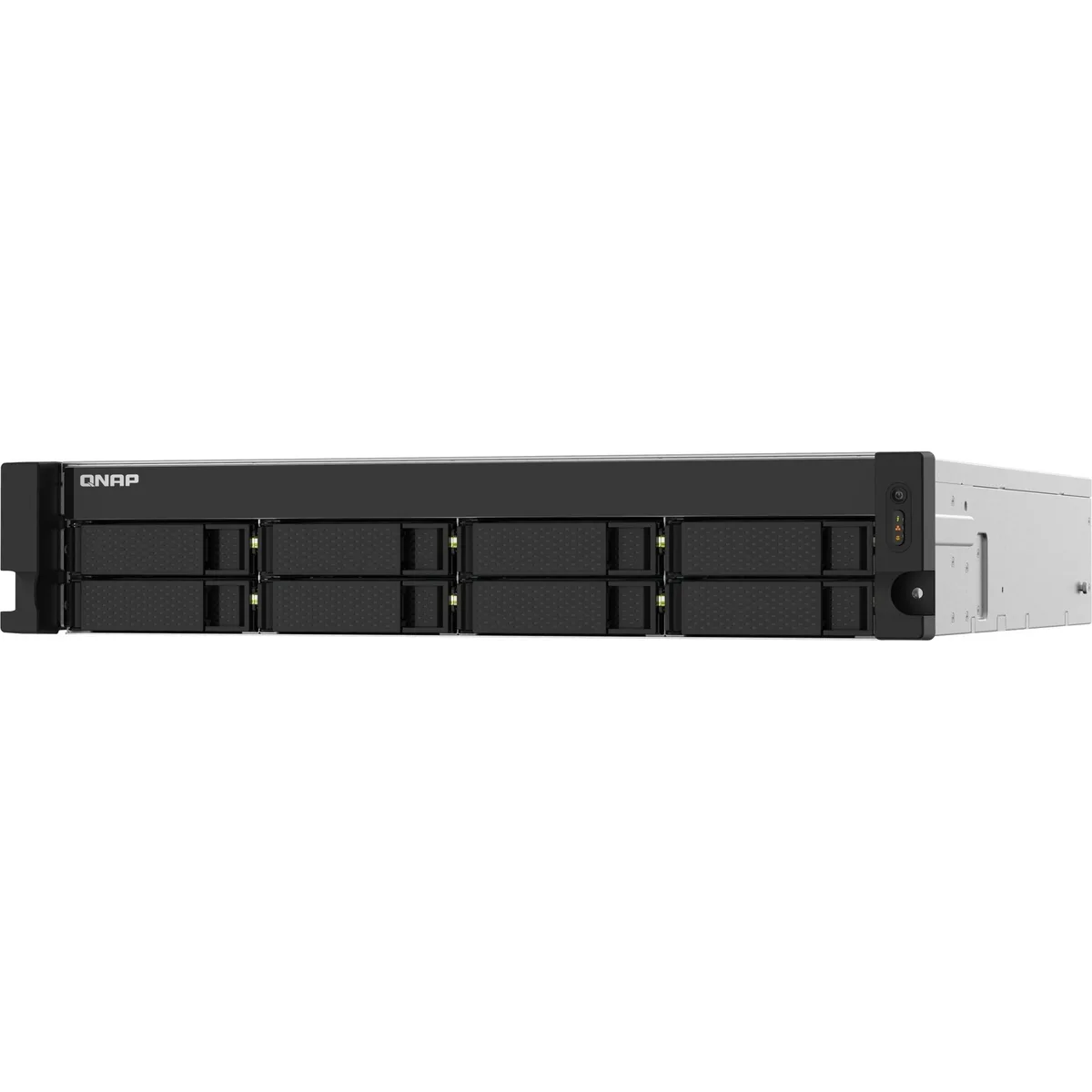

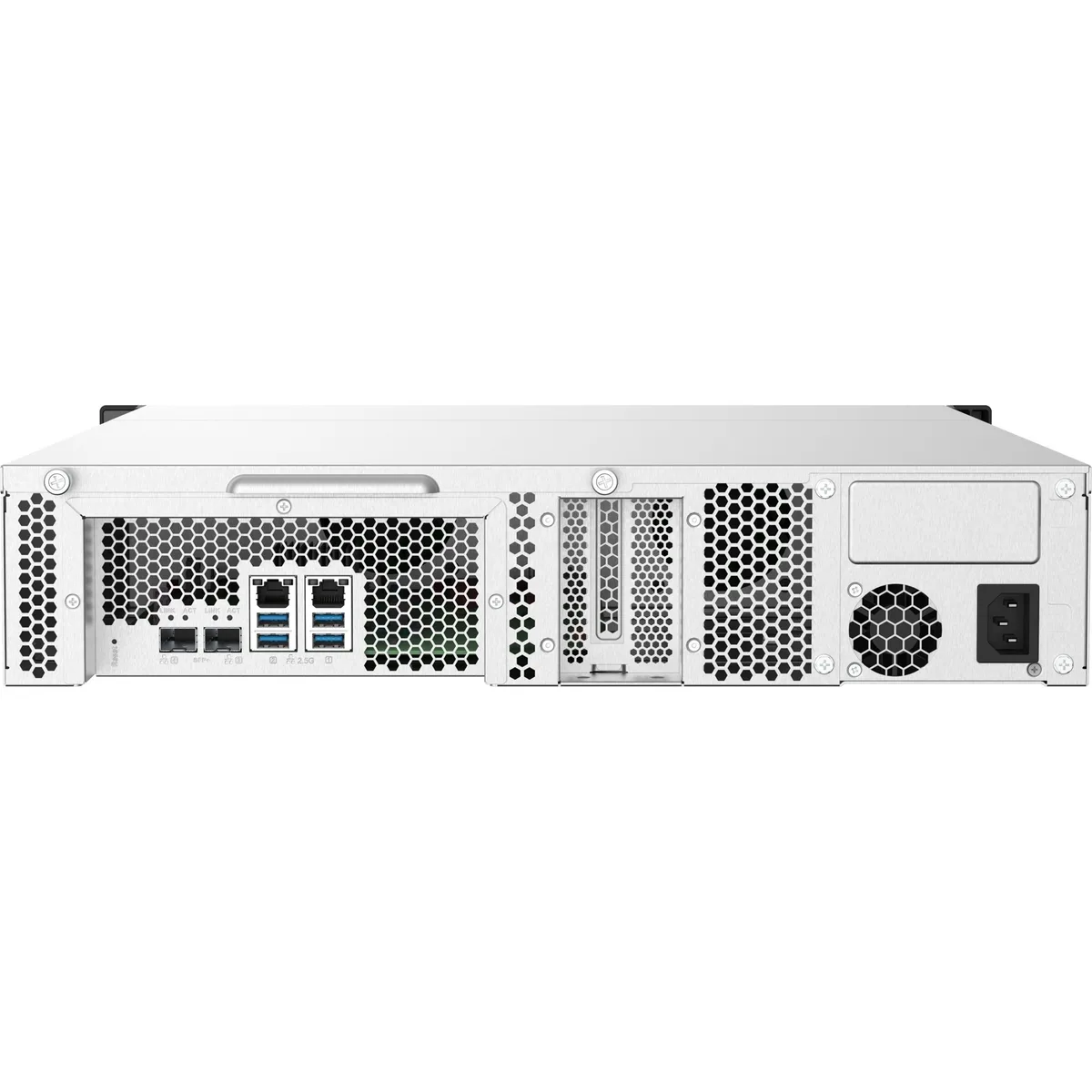

Silver 2U rackmount chassis, eight front drive bays, front status LEDs, rear dual 10GbE SFP+ and dual 2.5GbE RJ45 ports

Qnap

Qnap TS-832PXU-4G-US 2U 8-bay rackmount NAS 4GB DDR4

SKU CH-R6KS-M260W MPN TS-832PXU-4G-US

Eight-bay 2U rackmount NAS with dual 10GbE SFP+ and dual 2.5GbE RJ45 ports, quad-core 1.7GHz ARM processor, 4GB DDR4 RAM expandable to 16GB, and PCIe Gen 2 ×2 slot for expansion cards

  • Port RJ-452 x 10GbE + 2 x 2.5GbE
  • Port USB4 x USB 3.2 Gen 1 port
  • HDD Interface8 x SATA (8 x Bay)
  • Form Factor8-Bay
  • ProcessorAnnapurnaLabs Alpine AL324 64-bit ARM® Cortex-A57 4-core 1.7
  • Installed Memory4GB
  • Quad-core 1.7 GHz ARM processor handles multi-user workloads
  • Dual 10 GbE SFP+ and dual 2.5 GbE RJ45 ports deliver high-speed networking
  • 8 drive bays support up to 176 TB raw capacity
  • 4 GB DDR4 memory expandable to 16 GB via DIMM slot
  • PCIe Gen 2 ×2 slot allows add-in cards for extra connectivity

2U 8-bay rackmount NAS

The TS-832PXU-4G-US is a 2U rackmount network-attached storage server with eight SATA drive bays. It targets small and medium businesses that need high-bandwidth file sharing and backup in a compact rack form factor. The AnnapurnaLabs AL324 quad-core ARM Cortex-A57 processor at 1.7GHz drives storage services for multi-user workloads.

Thermals noise and power draw

Typical operating power consumption is 56.412 W from a 250 W single power supply rated for 100 to 240 V input. The unit is rated for continuous operation between 0 and 40 °C with 5 to 95 percent relative humidity non-condensing. No acoustic or fan-speed figures are provided in the specifications.

DDR4 memory expansion constraint

The system ships with 4 GB of DDR4 UDIMM memory installed in a single DIMM slot and supports a maximum of 16 GB. Buyers who need more than 16 GB of system memory cannot meet that requirement with this chassis.

Points forts

  • Quad-core 1.7 GHz ARM processor handles multi-user workloads
  • Dual 10 GbE SFP+ and dual 2.5 GbE RJ45 ports deliver high-speed networking
  • 8 drive bays support up to 176 TB raw capacity
  • 4 GB DDR4 memory expandable to 16 GB via DIMM slot
  • PCIe Gen 2 ×2 slot allows add-in cards for extra connectivity

Caractéristiques

BrandQNAP
ModelTS-832PXU-4G-US
Port RJ-452 x 10GbE + 2 x 2.5GbE
Port USB4 x USB 3.2 Gen 1 port
HDD Interface8 x SATA (8 x Bay)
Form Factor8-Bay
ProcessorAnnapurnaLabs Alpine AL324 64-bit ARM® Cortex-A57 4-core 1.7GHz processor
Installed Memory4GB
Max Memory Capacity16GB
Memory Slot1 x DDR4 DIMM
Included HDD CapacityDiskless System
Max Capacity176TB
Drive Compatibility3.5-inch SATA hard disk drives
2.5-inch SATA hard disk drives
2.5-inch SATA solid state drives
LEDsHDD 1-8, Status, LAN, Storage expansion
Power250W PSU, 100 - 240V
Power ConsumptionOperating Mode, Typical 56.412 W
UsageUltra high prerformance for large number of users
TemperatureOperating Temperature 0 - 40 °C (32°F - 104°F)
Storage Temperature -20 - 70°C (-4°F - 158°F)
Humidity5-95% RH non-condensing, wet bulb: 27°C (80.6°F)
Dimensions89 × 482 × 534 mm
WeightWeight (Net) 9.45 kg
Weight (Gross) 15.19 kg
Poids d’expédition12.70 kg
Dimensions du colis711 × 559 × 254 mm

Questions sur cet article

How do I install the memory upgrade in the single DDR4 DIMM slot?

Power off the unit, open the chassis, locate the one DDR4 DIMM slot on the motherboard, insert a compatible DDR4 module until it clicks, then close the chassis and power on; the system will recognise up to 16GB total.

When will the 250W power supply likely need replacement under continuous operation?

The 250W PSU is rated for 100-240V input and 56.412W typical draw; under 24/7 load in a 0-40°C environment it typically lasts several years before electrolytic capacitor ageing requires a swap.

At what drive count does the single PCIe Gen2 x2 lane become the throughput bottleneck?

With eight SATA bays sharing one PCIe Gen2 x2 connection, sustained sequential transfers across more than four drives will saturate the lane before the individual SATA 6Gb/s links do.
