Rectangular silver desktop NAS with eight front drive bays and status LEDs

Qnap

Qnap TS-873A-8G-US 8-Bay Desktop NAS Ryzen V1500B 8GB DDR4 Diskless

SKU CH-CZTQ-9PSTJ MPN TS-873A-8G-US

Eight-bay desktop NAS with AMD Ryzen V1500B processor, 8GB DDR4, dual 2.5GbE and PCIe expansion for high-performance RAID storage

  • TypeDesktop NAS
  • Ports1 x USB 3.2 Gen 1 Type-C / 2 x 2.5GbE / 3 x USB 3.2 Gen 2
  • Port RJ-452 x 2.5 GbE
  • Port USB3 x Type-A USB 3.2 Gen 2 10Gbps 1 x Type-C USB 3.2 Gen 1 5Gb
  • Port Others2 x M.2 2280 PCIe Gen3 x1
  • PCIe2 x PCI Express 3.0 x4

Form Factor 8-Bay

Les versions barrées existent, mais ne sont pas disponibles ici.

Memory Slot 2 x DDR4 SODIMM

  • 2 x DDR4 SODIMM
  • 2 x SO-DIMM

Les versions barrées existent, mais ne sont pas disponibles ici.

  • 8-bay design supports up to 176TB raw storage capacity
  • AMD Ryzen V1500B processor delivers 2.20 GHz quad-core performance for demanding workloads
  • Dual 2.5 GbE ports enable link aggregation and high-speed network transfers
  • Three USB 3.2 Gen 2 Type-A ports provide 10Gbps connectivity for external drives
  • Expandable to 64GB DDR4 via two SODIMM slots for memory-intensive applications

Eight-bay desktop NAS for high-capacity storage

The TS-873A-8G-US is a diskless desktop NAS with eight SATA drive bays supporting up to 176TB of raw capacity. It runs QTS 4.5.2 on an AMD Ryzen V1500B processor at 2.20 GHz with 8GB DDR4 installed, expandable to 64GB via two SODIMM slots. Two 2.5 GbE ports and multiple USB 3.2 connections provide flexible network and peripheral attachment.

Suited for teams needing RAID flexibility

This unit fits organisations that want to configure their own mix of 3.5" HDDs, 2.5" HDDs or 2.5" SSDs across RAID 0, 1, 5, 6, 10, 50, 60 or JBOD. The two M.2 2280 PCIe Gen3 x1 slots and two PCIe 3.0 x4 slots allow cache or expansion cards. Buyers who require 10 GbE networking out of the box or a smaller bay count should consider other models.

Eight SATA bays define the storage ceiling

The eight-bay chassis sets the hard limit of 176TB maximum capacity and determines which RAID levels are practical. If your dataset will exceed this ceiling or you need more than eight drives, this chassis cannot accommodate the requirement.

Points forts

  • 8-bay design supports up to 176TB raw storage capacity
  • AMD Ryzen V1500B processor delivers 2.20 GHz quad-core performance for demanding workloads
  • Dual 2.5 GbE ports enable link aggregation and high-speed network transfers
  • Three USB 3.2 Gen 2 Type-A ports provide 10Gbps connectivity for external drives
  • Expandable to 64GB DDR4 via two SODIMM slots for memory-intensive applications

Caractéristiques

BrandQNAP
ModelTS-873A-8G-US
TypeDesktop NAS
Ports1 x USB 3.2 Gen 1 Type-C / 2 x 2.5GbE / 3 x USB 3.2 Gen 2
Port RJ-452 x 2.5 GbE
Port USB3 x Type-A USB 3.2 Gen 2 10Gbps
1 x Type-C USB 3.2 Gen 1 5Gbps
Port Others2 x M.2 2280 PCIe Gen3 x1
PCIe2 x PCI Express 3.0 x4
HDD Interface8 x SATA (8 x Bay)
Form Factor8-Bay
Operating SystemQTS 4.5.2 (embedded Linux)
ProcessorAMD Ryzen V1000 series V1500B 2.20 GHz
Installed Memory8GB DDR4
Max Memory Capacity64GB
Memory Slot2 x DDR4 SODIMM
Included HDD CapacityDiskless System
Max Capacity176TB
RAIDRAID 0, 1, 5, 6, 10, 50, 60, JBOD, Single
Drive Compatibility3.5" SATA HDD
2.5" SATA HDD
2.5" SATA SSD
LEDsStatus/Power, USB, LAN, Drive 1-8, M.2 SSD 1-2
PowerPower Supply Unit: 250W, 100-240V AC, 50-60Hz, 3.5A
Power Consumption: HDD Sleep Mode 25.668W
Power Consumption: Operating Mode, Typical 54.067W
Power Consumption54.07 W (Access)
25.67 W (HDD Hibernation)
Temperature0°C - 40 °C
Humidity5-95% R.H
FeaturesBoth 2.5GbE ports are backwards compatible with 1GbE/ 100MbE speeds. Up to 5 Gbps transfer speeds can be achieved by using port trunking.
Add extra functionality with PCIe cards, including 10GbE ports, SSD caching, extra USB 3.2 Gen 2 ports, wireless networking, or Fibre Channel.
Supports entry-level NVIDIA graphics cards for video processing or GPU-passthrough to VMs.
Features two M.2 PCIe NVMe SSD slots for Qtier Technology and SSD Caching enable constant storage optimization.
Host containerized applications and virtual machines with various operating systems.
Features QTS operatin
UsageHigh read/write performance with RAID

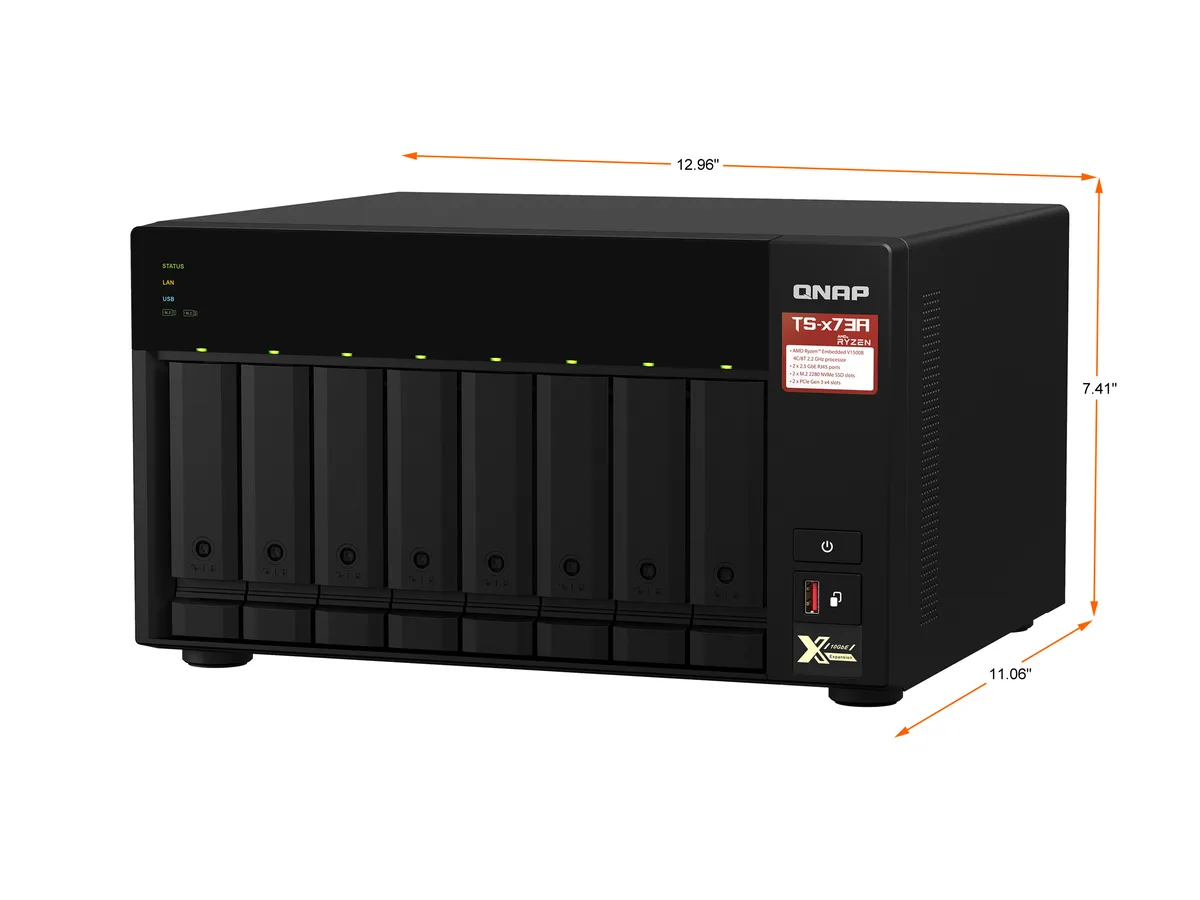

Dimensions7.41" x 12.96" x 11.06"
Weight14.90 lbs.
Package ContentsTS-873A
1 x Ethernet cable
Power Cord
24 x Flat head screw (for 3.5" HDD)
24 x Flat head screw (for 2.5" HDD)
2 x M.2 SSD Heatsink
2 x Drive tray keys
Quick Installation Guide (QIG)
Poids d’expédition8.32 kg
Dimensions du colis432 × 394 × 292 mm

Autres versions de ce modèle

1 de plus dans cette gamme

Même famille, mémoire, ventirad ou fréquence différents — comparez avant de vous décider.

Questions sur cet article

Will the TS-873A-8G-US work with my existing 3.5" SATA hard drives?

Yes, each of the eight bays accepts 3.5" SATA HDDs as well as 2.5" SATA HDDs or SSDs, so your current drives can be installed directly.

How can I confirm the two 2.5 GbE ports are running at full speed after setup?

In QTS 4.5.2 open Control Panel → Network & File Services → Network → Interface; each RJ-45 port should show a 2.5 Gbps link speed when connected to a 2.5 GbE switch.

What comes in the box and what must I purchase separately?

The unit ships diskless with a 250 W power supply, so you must buy 3.5" or 2.5" SATA drives and optional DDR4 SODIMM modules if you want more than the installed 8 GB.
