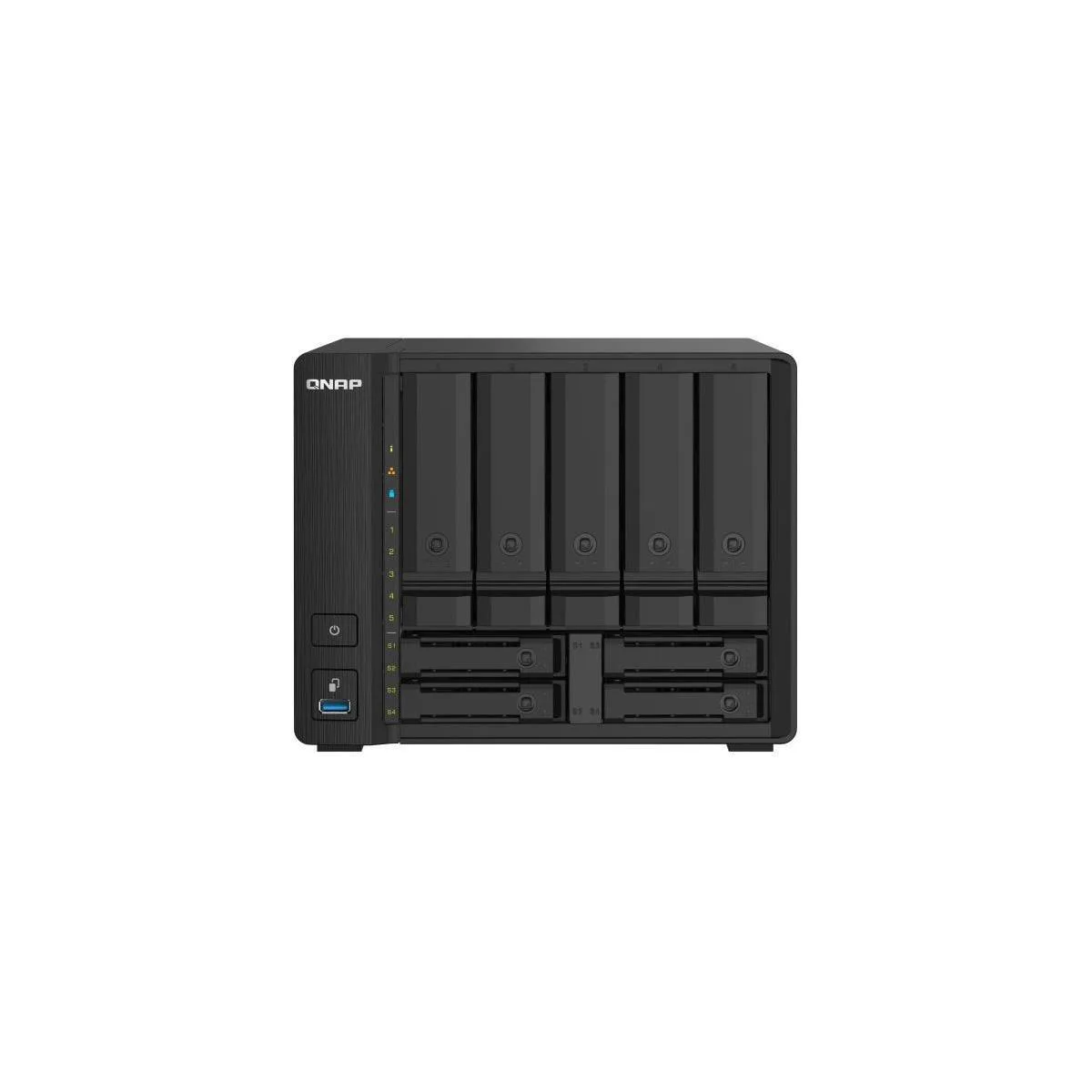

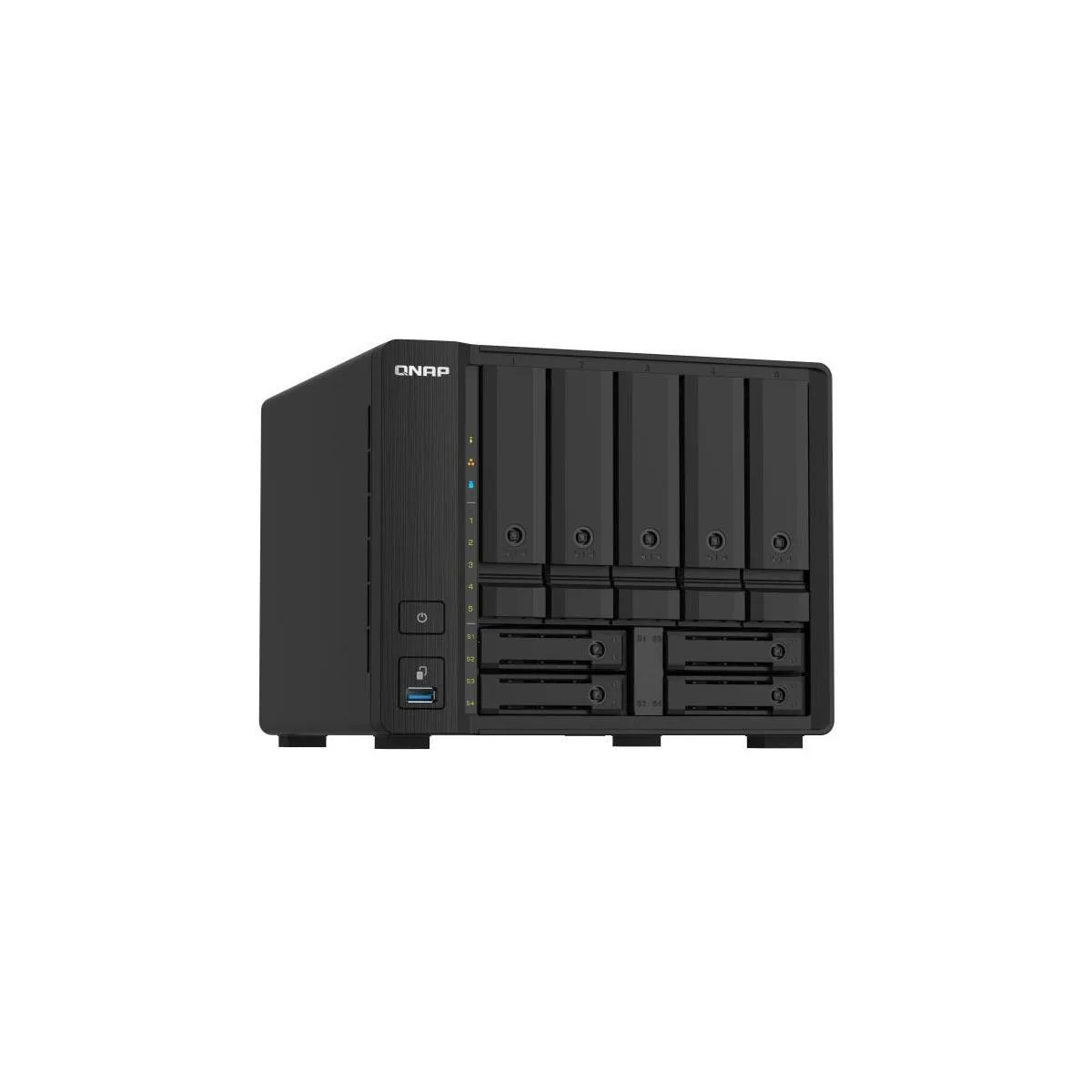

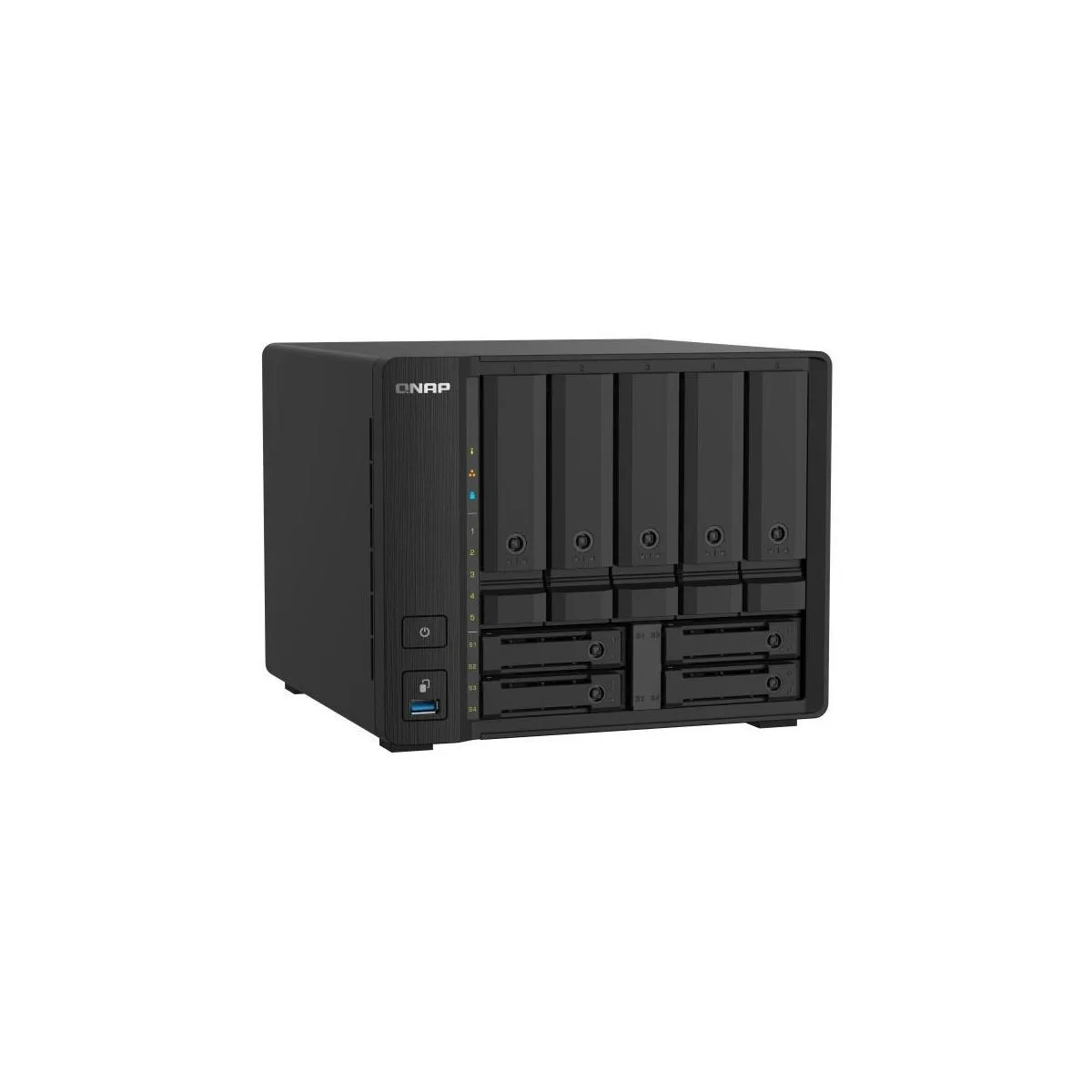

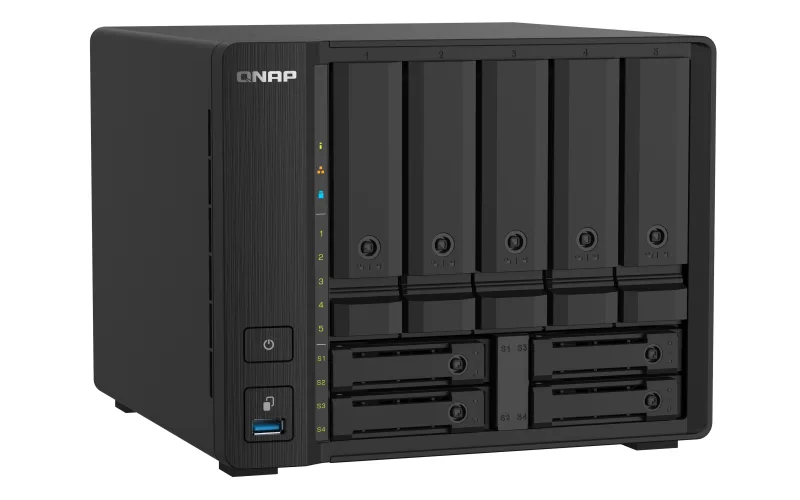

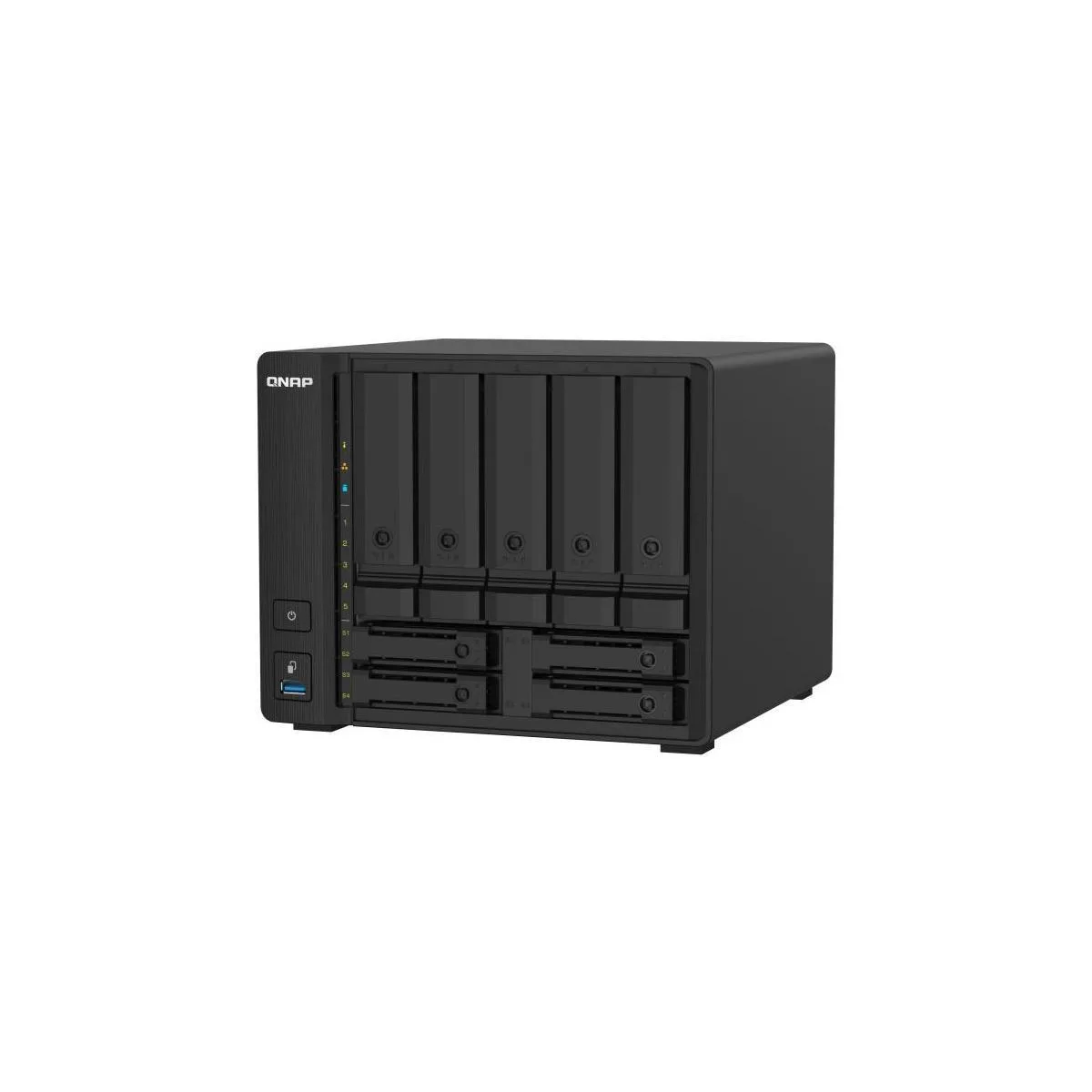

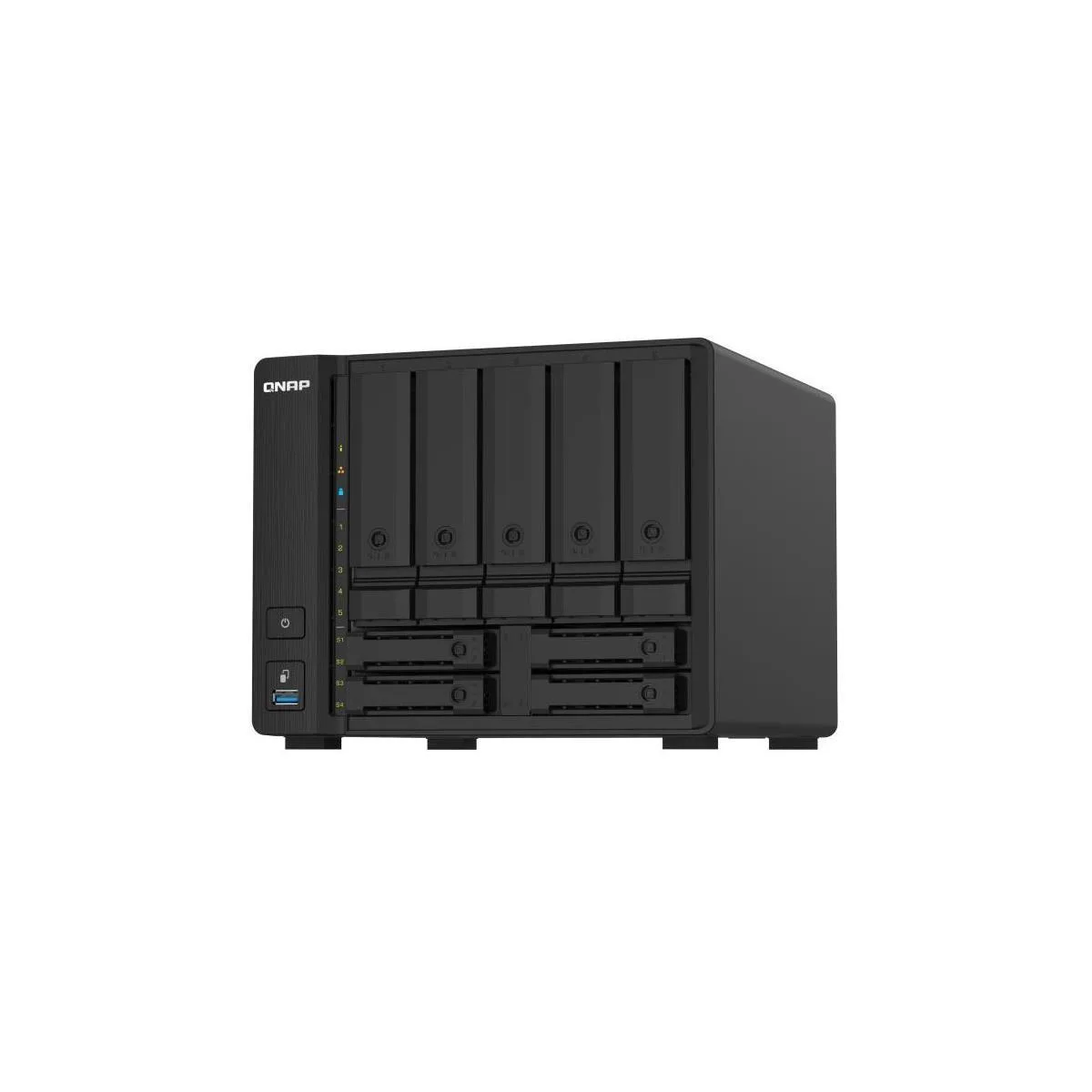

Rectangular black desktop NAS with nine drive bays, front status LEDs and rear ports

Qnap

Qnap TS-932PX-4G-US 9-Bay Desktop NAS 4 GB DDR4

SKU CH-JZQ5-RV4TZ MPN TS-932PX-4G-US

A nine-bay desktop NAS with five 3.5-inch and four 2.5-inch SATA drive slots, a quad-core 1.7GHz processor, 4 GB DDR4 RAM, dual 10GbE SFP+ and dual 2.5GbE ports, and hardware encryption

  • TypeDesktop NAS
  • HDD Interface9 x SATA (9 x Bay)
  • Form Factor9-Bay
  • ProcessorAnnapurnaLabs Alpine AL324 ARM® Cortex-A57 4-core 1.7GHz pro
  • Installed Memory4 GB SODIMM DDR4 (1 x 4 GB)
  • Max Memory Capacity16GB
  • Nine drive bays in a compact desktop form factor
  • Quad-core 1.7 GHz processor with 4 GB DDR4 for responsive multitasking
  • Two 10GbE SFP+ and two 2.5GbE LAN ports for high-speed networking
  • Supports 3.5-inch and 2.5-inch SATA drives up to 198 TB total capacity
  • Hardware encryption engine protects data without slowing performance

Nine-bay hybrid desktop NAS

The Qnap TS-932PX-4G-US packs five 3.5-inch and four 2.5-inch SATA drive bays into a compact desktop chassis. A quad-core AnnapurnaLabs Alpine AL324 processor running at 1.7 GHz and 4 GB of DDR4 SODIMM memory drive the system, which ships without drives and supports up to 198 TB of raw capacity.

Suits small offices building an HDD and SSD tier

Teams that want mixed media storage with dual 10GbE SFP+ and dual 2.5GbE RJ45 ports will benefit from the hybrid bay layout and hardware encryption. Buyers needing more than 16 GB of RAM, internal 10GbE RJ45 ports, or a rackmount form factor should consider other platforms.

198 TB maximum raw capacity

The nine SATA bays accept 3.5-inch HDDs, 2.5-inch HDDs and 2.5-inch SSDs, letting you scale to 198 TB without adding an expansion unit. If your dataset will exceed that limit, a larger chassis or expansion enclosure is required.

Points forts

  • Nine drive bays in a compact desktop form factor
  • Quad-core 1.7 GHz processor with 4 GB DDR4 for responsive multitasking
  • Two 10GbE SFP+ and two 2.5GbE LAN ports for high-speed networking
  • Supports 3.5-inch and 2.5-inch SATA drives up to 198 TB total capacity
  • Hardware encryption engine protects data without slowing performance

Caractéristiques

BrandQNAP
ModelTS-932PX-4G-US
TypeDesktop NAS
HDD Interface9 x SATA (9 x Bay)
Form Factor9-Bay
ProcessorAnnapurnaLabs Alpine AL324 ARM® Cortex-A57 4-core 1.7GHz processor
Installed Memory4 GB SODIMM DDR4 (1 x 4 GB)
Max Memory Capacity16GB
Memory Slot1 x DDR4 SODIMM
Included HDD CapacityDiskless System
Max Capacity198TB
Drive Compatibility3.5" SATA HDD
2.5" SATA HDD
2.5" SATA SSD
LEDsSystem Status, LAN, USB, HDD1~5, SSD1-4
PowerExternal, 120 W, AC 100 to 240 V
Power ConsumptionPower Consumption: HDD Sleep Mode 23.833 W
Power Consumption: Operating Mode, Typical 43.003 W
Tested with drives fully populated.
TemperatureOperating Temperature: 0 - 40 °C (32°F - 104°F)
Storage Temperature: -20 - 70°C (-4°F - 158°F)
Humidity5-95% RH non-condensing, wet bulb: 27°C (80.6°F)
UsageBackup & stream media through personal cloud
Dimensions7.19 × 8.84 × 8.82 inch
WeightWeight (Net): 7.47 lbs
Weight (Gross): 11 lbs
Poids d’expédition4.79 kg
Dimensions du colis399 × 358 × 267 mm

Questions sur cet article

How much power does the TS-932PX-4G-US draw when the nine drives are active all day?

The 120 W external adapter supplies the unit; typical operating draw with drives fully populated is 43.003 W and drops to 23.833 W when the drives enter sleep mode.

Which drives must I supply myself to populate the five 3.5-inch and four 2.5-inch SATA bays?

The NAS ships diskless; you provide any 3.5-inch SATA HDDs, 2.5-inch SATA HDDs or 2.5-inch SATA SSDs up to the 198 TB raw maximum.

Will my existing 1 GbE switch work with the two 2.5GbE RJ45 ports on this NAS?

Yes — the 2.5GbE ports auto-negotiate down to 1 GbE, so your current switch will connect immediately while still leaving the two 10GbE SFP+ ports free for faster links.
