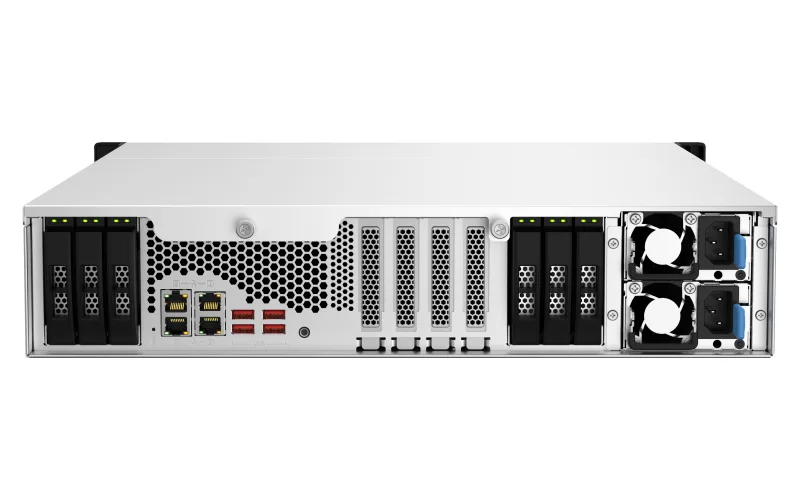

Silver 2U rackmount NAS with eighteen drive bays and redundant power supplies

Qnap

Qnap TS-h1887XU-RP-E2336-32G-US 18-bay rackmount NAS, Xeon E-2336, 32 GB DDR4

SKU CH-SWJ0-11K0N MPN TS-h1887XU-RP-E2336-32G-US

18-bay 2U rackmount NAS with Xeon E-2336, 32 GB DDR4 ECC, dual 10GbE and 2.5GbE, PCIe Gen 4 slots, redundant 550 W PSUs

  • Port RJ-452 x 10GbE + 2 x 2.5GbE
  • Port USB4 x Type-A USB 3.2 Gen 2 5V/1A 10Gbps
  • HDD Interface18 x SATA (18 x Bay)
  • Form Factor18-bay
  • ProcessorIntel® Xeon® E-2336 6C 12T 2.9GHz, up to 4.8GHz
  • Installed Memory32GB
  • Hybrid HDD and SSD architecture balances capacity with IOPS acceleration
  • Dual 10GBASE-T plus dual 2.5GbE ports accelerate virtualization and large backup tasks
  • PCIe Gen 4 slots accept 10/25GbE, QM2 or Fibre Channel cards for added throughput
  • Runs QuTS hero with inline deduplication, near-limitless snapshots and real-time SnapSync for data integrity
  • Redundant 550 W power supplies keep the 18-bay chassis running in 0–40 °C environments

18-bay rackmount NAS with Xeon E-2336

The TS-h1887XU-RP-E2336-32G-US is a 2U rackmount NAS built around an Intel Xeon E-2336 processor with six cores and twelve threads running at 2.9 GHz up to 4.8 GHz. It ships with 32 GB of DDR4 ECC memory expandable to 128 GB across four slots. The eighteen drive bays accept a mix of 3.5-inch SATA hard drives and 2.5-inch SATA solid-state drives for hybrid storage pools.

Installation notes and common issues

The unit weighs 13 kg net and measures 88.6 × 432 × 511.2 mm, so it requires a sturdy rack shelf and two people to mount safely. Dual redundant 550 W power supplies connect via standard IEC cords; ensure both circuits are live before powering on. Drive carriers are tool-less for 3.5-inch drives but 2.5-inch SSDs need the supplied screws, which are easily misplaced during first build.

Capacity headroom and limits

Maximum raw capacity reaches 396 TB when all eighteen bays are populated with the largest supported drives. The four memory slots allow growth from the included 32 GB to 128 GB of DDR4 ECC for larger ZFS deduplication tables or heavier virtualisation workloads. Operating temperature range is 0 to 40 °C; sustained loads above that threshold will trigger thermal throttling or shutdown.

Points forts

  • Hybrid HDD and SSD architecture balances capacity with IOPS acceleration
  • Dual 10GBASE-T plus dual 2.5GbE ports accelerate virtualization and large backup tasks
  • PCIe Gen 4 slots accept 10/25GbE, QM2 or Fibre Channel cards for added throughput
  • Runs QuTS hero with inline deduplication, near-limitless snapshots and real-time SnapSync for data integrity
  • Redundant 550 W power supplies keep the 18-bay chassis running in 0–40 °C environments

Caractéristiques

BrandQNAP
ModelTS-h1887XU-RP-E2336-32G-US
Port RJ-452 x 10GbE + 2 x 2.5GbE
Port USB4 x Type-A USB 3.2 Gen 2 5V/1A 10Gbps
HDD Interface18 x SATA (18 x Bay)
Form Factor18-bay
ProcessorIntel® Xeon® E-2336 6C 12T 2.9GHz, up to 4.8GHz
Installed Memory32GB
Max Memory Capacity128GB
Memory Slot4
Included HDD CapacityDiskless System
Max Capacity396TB
Drive Compatibility3.5-inch bays:
3.5-inch SATA hard disk drives
2.5-inch SATA solid state drives
2.5-inch bays:
2.5-inch SATA solid state drives
Power2 x 550W PSU
Power ConsumptionPower Consumption: HDD Sleep Mode 118.77 W
Power Consumption: Operating Mode, Typical 148.94 W
UsageUltra high prerformance for large number of users
TemperatureOperating Temperature: 0 - 40 °C (32°F - 104°F)
Storage Temperature: -20 - 70°C (-4°F - 158°F)
Humidity5~95% RH non-condensing, wet bulb: 27°C (80.6°F)
Dimensions88.6 × 432 × 511.2 mm
WeightWeight (Net): 13 kg
Weight (Gross): 19 kg
Poids d’expédition19.50 kg
Dimensions du colis533 × 457 × 102 mm

Questions sur cet article

How do I verify the NAS is operating correctly after initial setup?

Check the system status in the QuTS hero or QTS dashboard for CPU temperature within 0 to 40 °C, power draw near 148.94 W typical, and all 18 drive bays detected.

What ships with the unit and which drives must I purchase separately?

The rackmount chassis includes dual 550 W power supplies, 32 GB DDR4 ECC memory, and rails; no 3.5-inch or 2.5-inch SATA drives are included.

Should I choose the 32 GB configuration or plan to expand to 128 GB?

The installed 32 GB DDR4 ECC uses one of four slots; add three more modules up to 128 GB total if running many virtual machines or heavy deduplication workloads.
