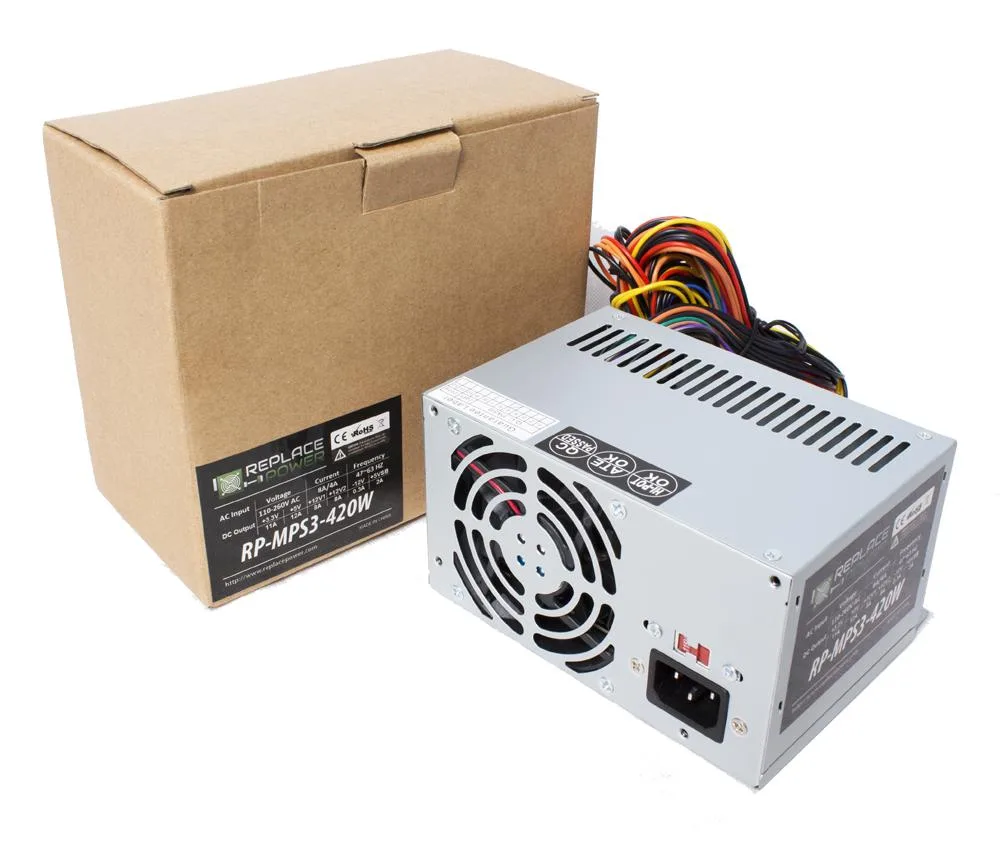

A silver metal ATX power supply unit, reduced depth, 1.5 kg, with 20+4 pin connector visible

Replace Power

Replace Power ATX power supply 667893 715185 reduced depth 1.5kg

SKU CH-195Y-JC0PV

ATX power supply with reduced depth, 110-260 V AC input, 20+4 pin, P4 4-pin, three SATA and three LP4 connectors, weighing 1.5 kg

  • TypeATX
  • Weight1.5
  • Reduced depth design fits tight ATX cases
  • 20+4 pin connector supports 24 and 20 pin motherboards
  • Multiple protection circuits guard against over current and short circuit
  • 110-260 V switchable input works worldwide
  • Three SATA power connectors drive storage devices

Replacement for HP OEM units

This new ATX power supply replaces several older HP OEM models including part numbers 667893 and 715185. It is built for owners of legacy desktop systems who need a direct swap without rewiring. The unit delivers standard output rails of +5V, -5V, +12V1, +12V2, +3.3V, -12V and +5V-SB.

Reduced depth for tight chassis

A depth of 5.86 inches lets this supply fit cases where full-size ATX units cannot. The 20+4 pin main connector supports both 24-pin and 20-pin motherboards, while a P4 4-pin, three SATA 15-pin, three LP4 4-pin and one floppy 4-pin connector cover common legacy drives. Input voltage switches between 110V and 260V AC at 47 to 63 Hz.

Protection and hold-up specs

Over current, over power, over voltage and short circuit protection guard connected components. Hold-up time is rated at 17 ms minimum at nominal load with a rise time under 70 ms. Buyers needing higher wattage, modular cables or modern PCIe connectors for discrete graphics cards should look elsewhere.

Points forts

  • Reduced depth design fits tight ATX cases
  • 20+4 pin connector supports 24 and 20 pin motherboards
  • Multiple protection circuits guard against over current and short circuit
  • 110-260 V switchable input works worldwide
  • Three SATA power connectors drive storage devices

Caractéristiques

BrandReplace Power
TypeATX
Weight1.5

Questions sur cet article

Will the 5.9" height, 3.4" width and 4" depth fit my HP chassis?

The reduced-depth ATX form factor measures 5.9" high, 3.4" wide and 4" deep, matching the legacy HP OEM units listed.

How do I connect the 20+4 pin ATX plug to a 20-pin motherboard header?

The built-in adapter splits the 24-pin connector into a 20-pin block plus a 4-pin section; leave the 4-pin portion unplugged for 20-pin boards.

When should I replace the three SATA power cables?

Inspect the SATA 15-pin connectors for melted plastic or loose pins after any major hardware change; swap cables if contacts show discolouration.
