Small green circuit board with M.2 slot and USB Type-A plug, 115 by 25 by 6 mm

RIITOP

RIITOP M2TABD-BM M.2 NVMe SATA USB 3.1 Type A Adapter

SKU CH-P3XS-HWZD5

Connects M.2 NVMe or SATA SSDs to a USB 3.1 Type-A port at up to 10Gbps, accepting B-key and M-key drives sized 42, 60 or 80mm

  • ColorNo
  • SizeM.2
  • TypePCB Board
  • AC AdapterNo
  • MaterialNo
  • Internal InterfaceM.2 NGFF B Key or M Key
  • Connect NVMe and SATA M.2 drives via USB 3.1 Type A

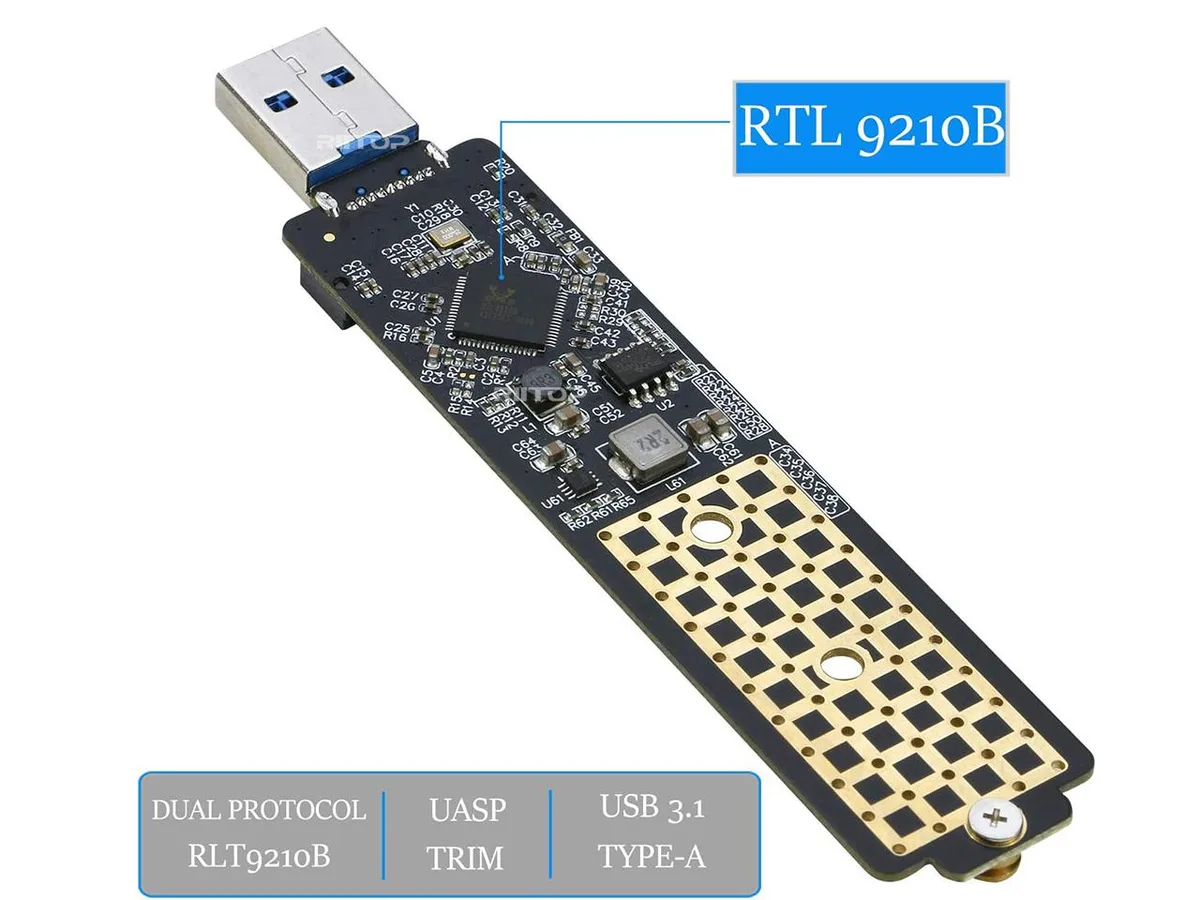

  • Realtek 9210B chipset delivers up to 10Gbps on USB 3.1

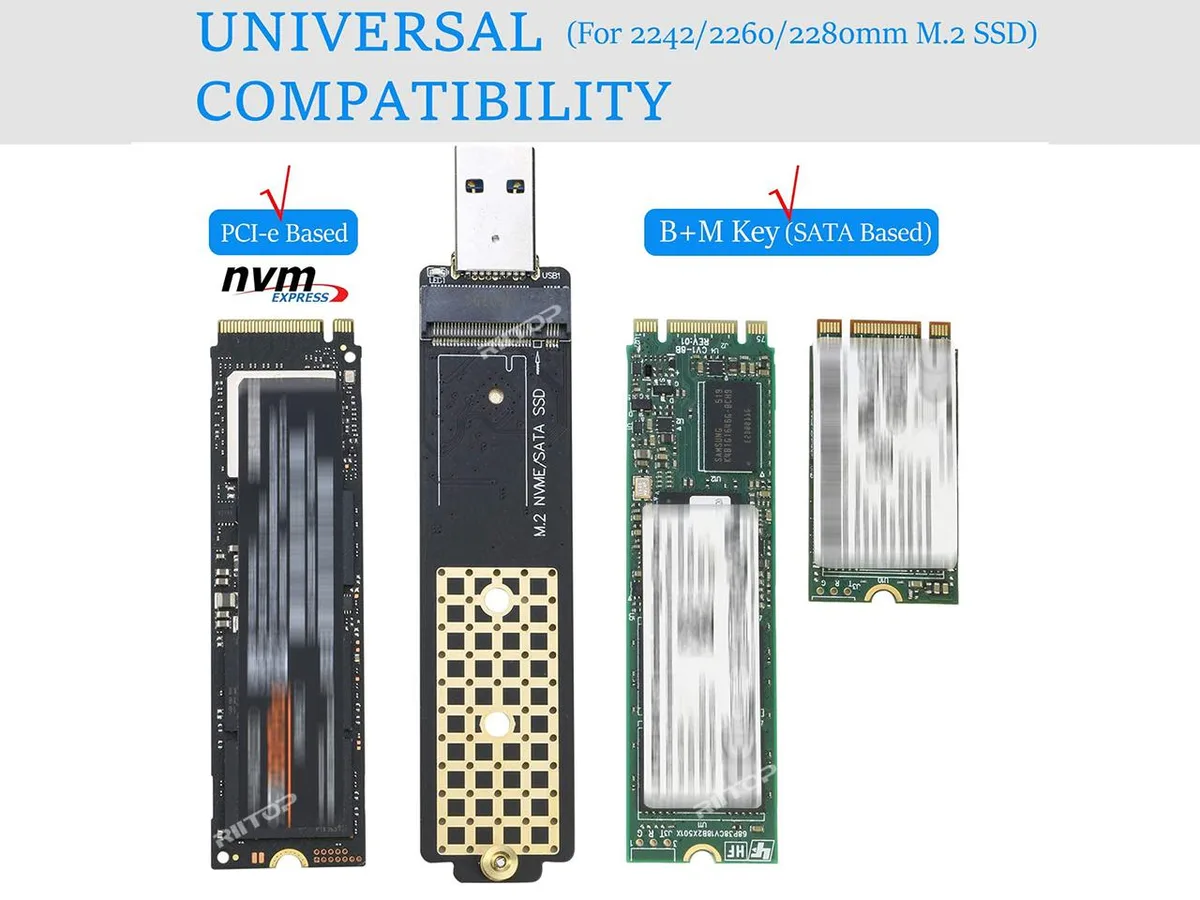

  • Supports 2242, 2260 and 2280 M.2 form factors
  • Works with B-Key, M-Key and B+M-Key SSDs
  • Plug-and-play with hot-swap support on Windows XP through 10

Dual-protocol M.2 adapter for USB 3.1 Type-A

The RIITOP M2TABD-BM is a PCB board that lets you connect a single M.2 SSD to a USB 3.1 Type-A port. It accepts both B-Key SATA and M-Key NVMe drives in 42 mm, 60 mm and 80 mm lengths. No external power supply is required. The adapter is aimed at users who want to read or clone M.2 drives on systems without an M.2 slot.

Capacity headroom at 10 Gbps and 5 Gbps

With a USB 3.1 Gen 2 connection the Realtek 9210B chipset delivers up to 10 Gbps transfer rate, while a USB 3.0 link drops to 5 Gbps. The board handles NVMe and SATA protocols equally, so high-performance NVMe drives and mainstream SATA drives both run at the speed the host port allows. It does not support drives longer than 80 mm or drives with keys other than B or M.

Plug-and-play operation with hot-swap support

The package contains only the adapter board itself; no cables, enclosures or software utilities are included. The device works immediately on Windows XP, Vista, 7, 8 and 10 without driver installation. Hot-swapping lets you swap drives without rebooting, which is useful for data recovery or quick drive imaging tasks.

Points forts

  • Connect NVMe and SATA M.2 drives via USB 3.1 Type A
  • Realtek 9210B chipset delivers up to 10Gbps on USB 3.1
  • Supports 2242, 2260 and 2280 M.2 form factors
  • Works with B-Key, M-Key and B+M-Key SSDs
  • Plug-and-play with hot-swap support on Windows XP through 10

Caractéristiques

BrandRIITOP
ModelM2TABD-BM (RIITOP M.2 to USB Adapter, M2 SSD to USB 3.0 Card Reader Compatible with Both NVMe (PCI-e) & B+M Key (SATA) SSD)
ColorNo
SizeM.2
TypePCB Board
AC AdapterNo
MaterialNo
Internal InterfaceM.2 NGFF B Key or M Key
External Interface1:1
HDD Count SupportedSingle SSD
Number of Bay1 Bay
FanNo
SpecificationsItem: M. 2 SSD to USB 3.1 Type A Adapter Board. Material: PCB Board. Protocol: B-Key and M-Key. Input: M.2 SSD Slot, both B-Key and M-Key M.2 SSD (NVMe, SATA Based). Output: USB 3.1 Type A. Dimension: 115*25*6 mm. Transfer Speed: 10Gbps/ 5Gbps (NOTE: If connect with usb 3.0 type a port, speed will be 5Gbps).
FeaturesRIITOP M.2 to USB 3.1 Type A Adapter. Both B-Key and M-Key M.2 SSD (NVMe, SATA Protocol) Support. Date Transfer Rate up to 10Gbps for USB 3.1, 5Gbps for USB 3.0 Type A. Plug & Play and Hot-Swapping. Supports Windows XP/Visata/7/8/10. Compatible with 2242, 2260, 2280 mm Four Different Specifications M. 2 SSDs. Adopt Realtek 9210B master chipset, USB3.1 GEN2 10Gbps transmission speed.
Dimensions115*25*6 mm.
Weight20g / 0.04 lb.
Package Contents1x RIITOP M.2 (B-Key and M-Key) SSD to USB Type A Adapter.

Questions sur cet article

Will this adapter let me keep using my older SATA-based M.2 drive alongside a newer NVMe stick?

Yes, the board accepts both B+M key SATA and M key NVMe drives in 42, 60 or 80 mm lengths, so you can swap either type into the same USB 3.1 Type A port.

How can I confirm the Realtek 9210B chipset is delivering the 10 Gbps link after I plug it in?

In Device Manager the drive should appear as a USB 3.1 Gen 2 device, and a quick CrystalDiskMark run will show sequential reads approaching the 10 Gbps ceiling when connected to a USB 3.1 Type A port.

Does the package include a screw for the 22 mm wide drives or do I need to source one separately?

The box contains only the 115×25×6 mm PCB adapter itself; mounting screws for 22 mm wide M.2 modules are not supplied and must be obtained separately.
