Green circuit board with seven blue USB ports along the metal bracket

RIITOP

RIITOP PCET7U3-NEC 7-Port USB 3.0 PCIe x1 Expansion Card

SKU CH-B4H9-VZVC3

Adds seven USB 3.0 ports at 5 Gbps via a PCIe x1 slot using a NEC chipset with no extra power required

  • TypeController Card
  • External USB Ports7x USB Ports
  • Internal USB Ports7x USB Ports
  • External Ports7x USB Ports
  • StandardUSB 3.0
  • Data Transfer Rate5Gbps

Option 7 Port

  • 4 Port
  • 7 Port

Les versions barrées existent, mais ne sont pas disponibles ici.

  • Add seven USB 3.0 ports through a single PCIe x1 slot
  • NEC Renesas chipset delivers stable 5 Gbps transfer speeds
  • Works without an extra power cable for simpler installation
  • Backward compatible with USB 2.0 and 1.1 devices
  • WHQL-certified drivers support Windows XP through 11, Linux and macOS 10.8.2+

Seven-Port USB 3.0 Expansion

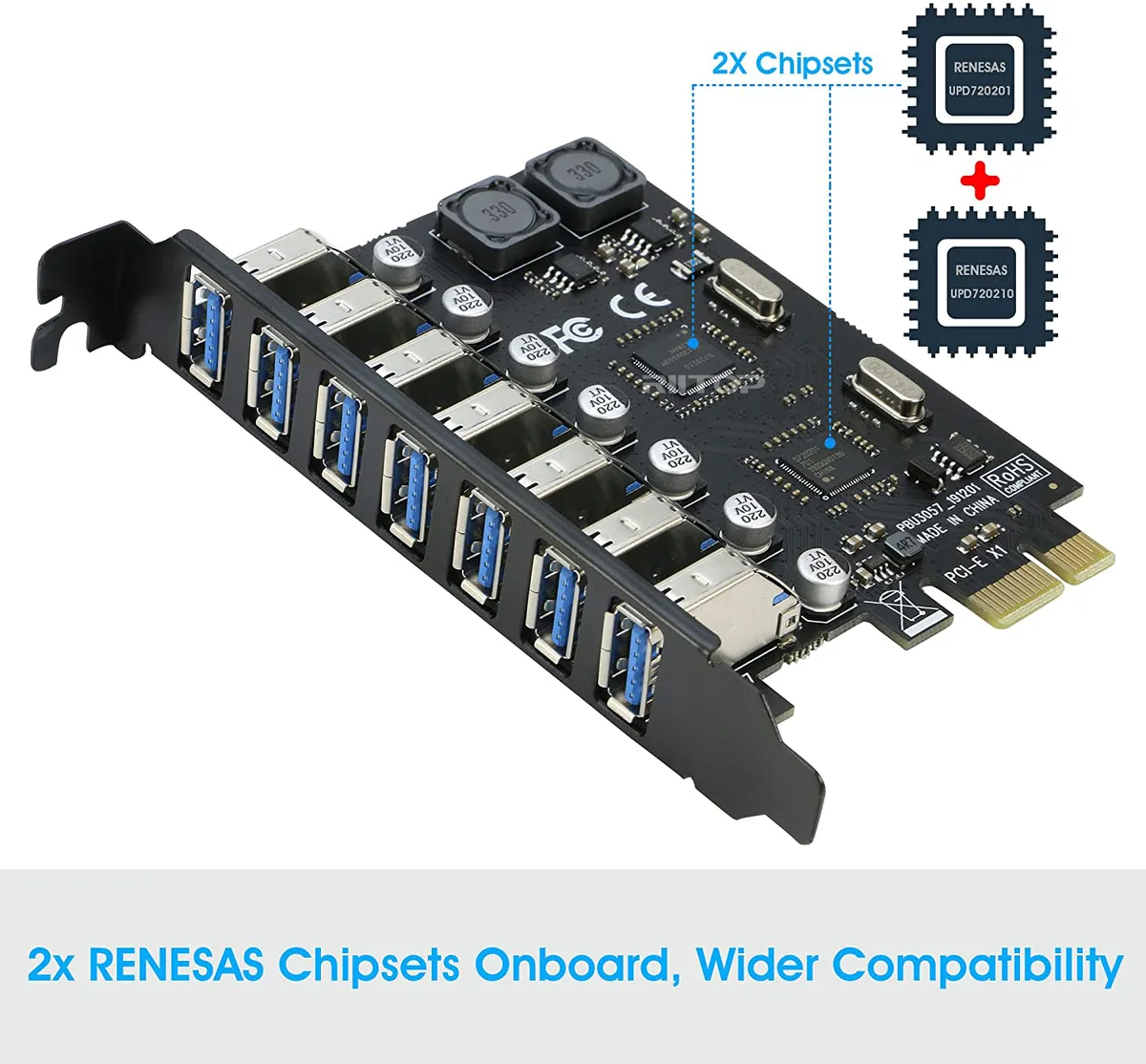

The RIITOP PCET7U3-NEC adds seven USB 3.0 ports to a desktop through a single PCI Express x1 slot. It is built around the NEC Renesas D720201 and D720210 chipsets for broad driver support across Windows, Linux and macOS. The card draws all required power from the slot itself, so no extra cables are needed. It suits users who need many high-speed ports without opening the case for auxiliary power.

PCIe 2.0 x1 Interface

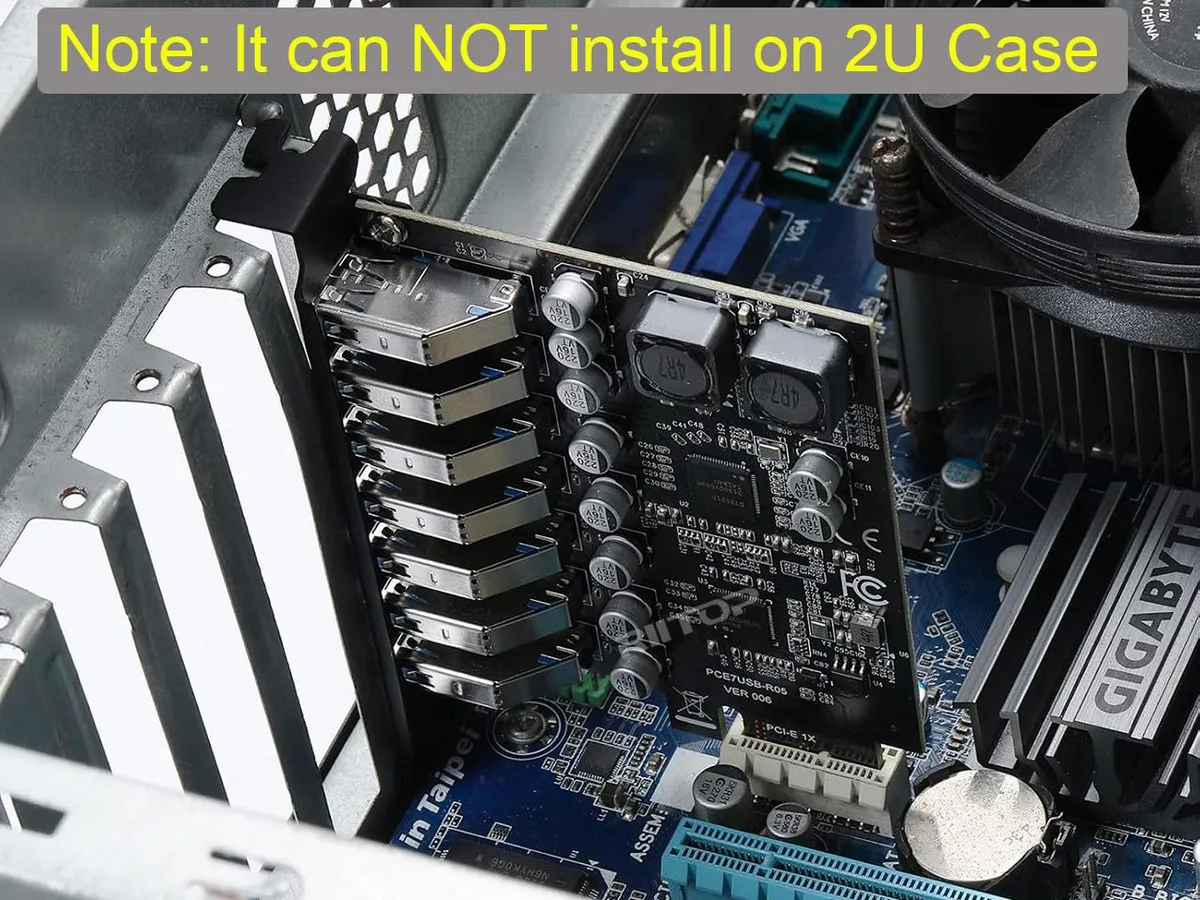

The card conforms to the PCI Express 2.0 standard and fits any x1, x4, x8 or x16 slot. Each of the seven ports delivers up to 5 Gbps and remains backward compatible with USB 2.0 and 1.1 devices. The controller can power attached peripherals at 5 V, 2 A per port. Note that the bracket dimensions prevent installation in a 2U rackmount chassis.

Thermals and Power

Because the board takes all power from the PCIe slot, total draw stays within the slot's rated limit and no external connector is required. Passive cooling is sufficient; the card runs silently under normal multi-device loads. The low-profile layout keeps airflow unrestricted in standard ATX cases.

Points forts

  • Add seven USB 3.0 ports through a single PCIe x1 slot
  • NEC Renesas chipset delivers stable 5 Gbps transfer speeds
  • Works without an extra power cable for simpler installation
  • Backward compatible with USB 2.0 and 1.1 devices
  • WHQL-certified drivers support Windows XP through 11, Linux and macOS 10.8.2+

Caractéristiques

BrandRIITOP
ModelPCET7U3-NEC
TypeController Card
External USB Ports7x USB Ports
Internal USB Ports7x USB Ports
External Ports7x USB Ports
StandardUSB 3.0
Data Transfer Rate5Gbps
Operating Systems SupportedSupports Linux / Windows XP / 7/8 / 8.1 / 10 and 32 bit or 64 bit WHQL certified driver.
CompatibilityCompatible with PCI-e x1 or above slots.
FeaturesConforms To PCI Express standard version 2.0. Meets Universal Serial Bus 3.0 standard. USB 3.0 interface Transmission rate could reach 5Gbps, downward compatible with USB 2.0 / 1.1. A USB device to be connected simultaneously 7tlg. USB interface could provide 5V2A power supply to the external device. With two power module, not need extra power supply. Supports Linux / Windows XP / 7/8 / 8.1 / 10 and 32 bit or 64 bit WHQL certified driver.
Weight0.22lb
Package Contents1x RIITOP 7 Port USB3.0 PCI Express Card. 1x Driver CD.

Questions sur cet article

What does the 5 Gbps rating mean when I plug several devices into the seven ports at once?

The 5 Gbps is the peak bandwidth of the USB 3.0 link; all seven ports share that single PCIe 2.0 x1 connection, so simultaneous transfers divide the available throughput.

Which PCIe standard does the card use and how does it limit real-world speed?

It conforms to PCI Express 2.0 x1, capping the host link at 5 GT/s so the combined USB traffic cannot exceed that lane bandwidth.

Will the 120 mm by 98 mm board fit in my low-profile chassis?

The card measures 120 mm long by 98 mm high and the supplier notes it cannot be installed in a 2U case; check your case clearance before ordering.
