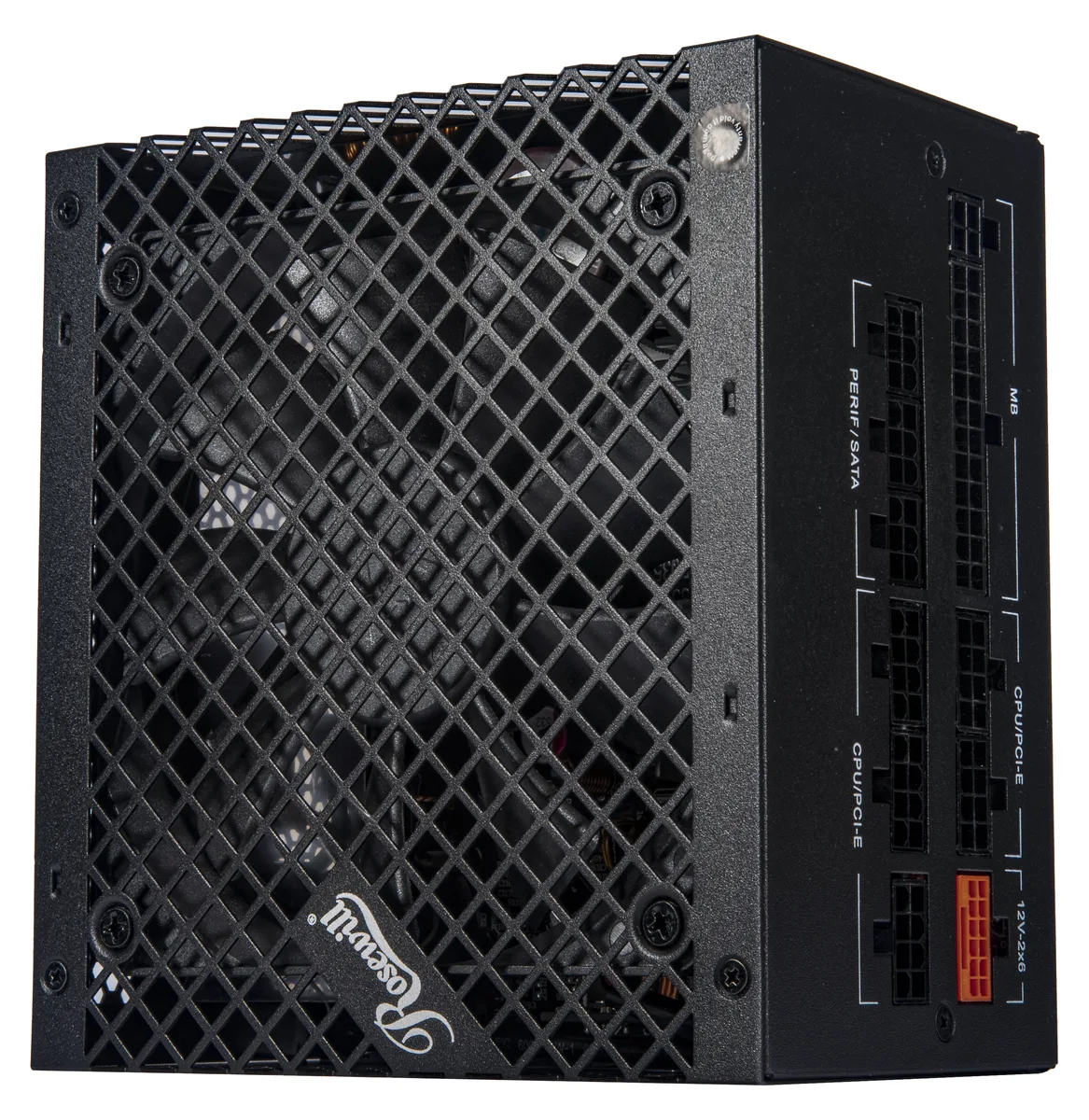

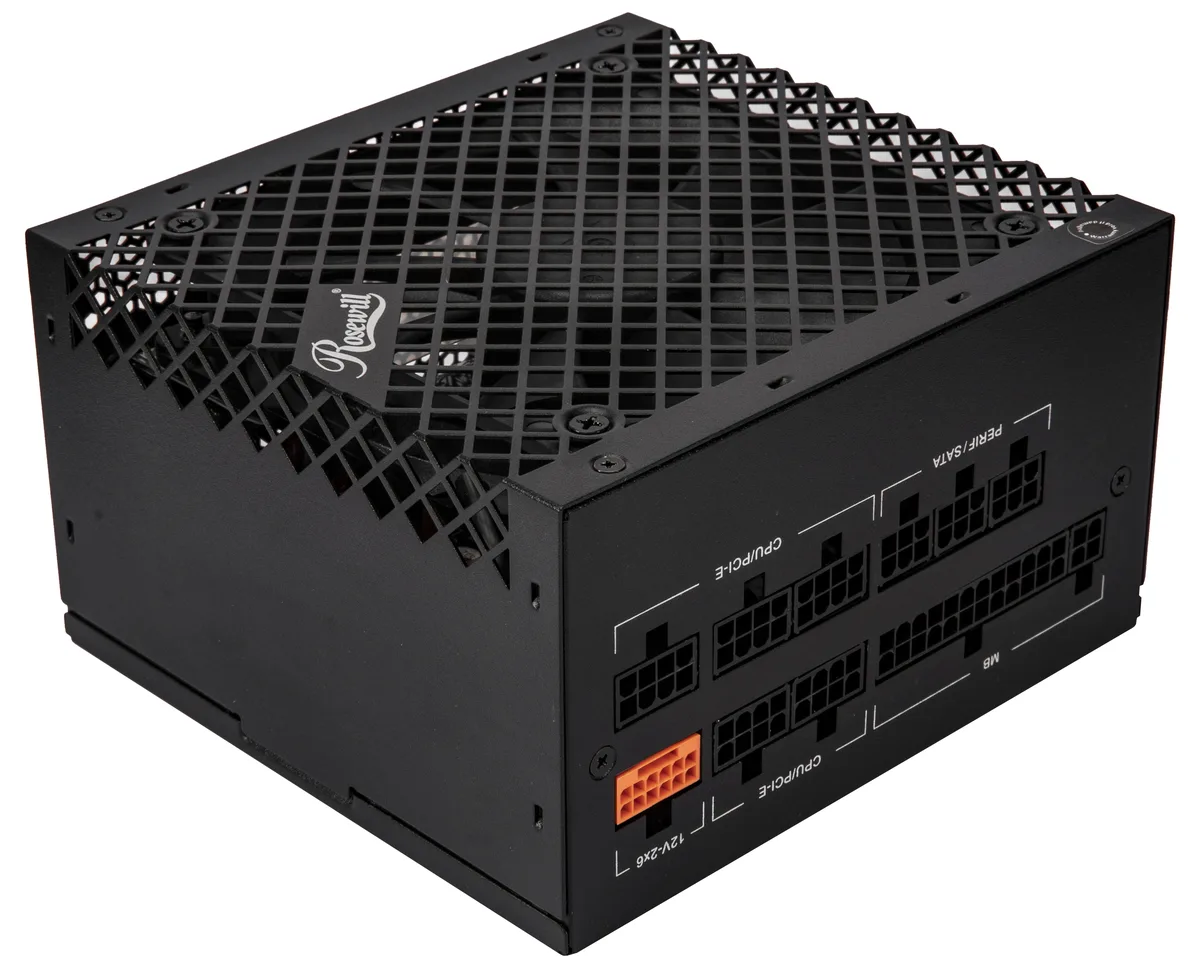

Rectangular steel PSU with large side vents, 120mm fan grille, modular cable sockets, matte black finish

Rosewill

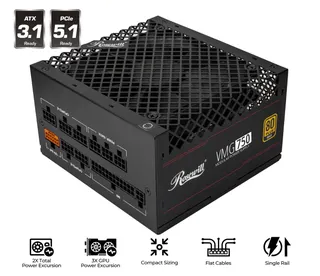

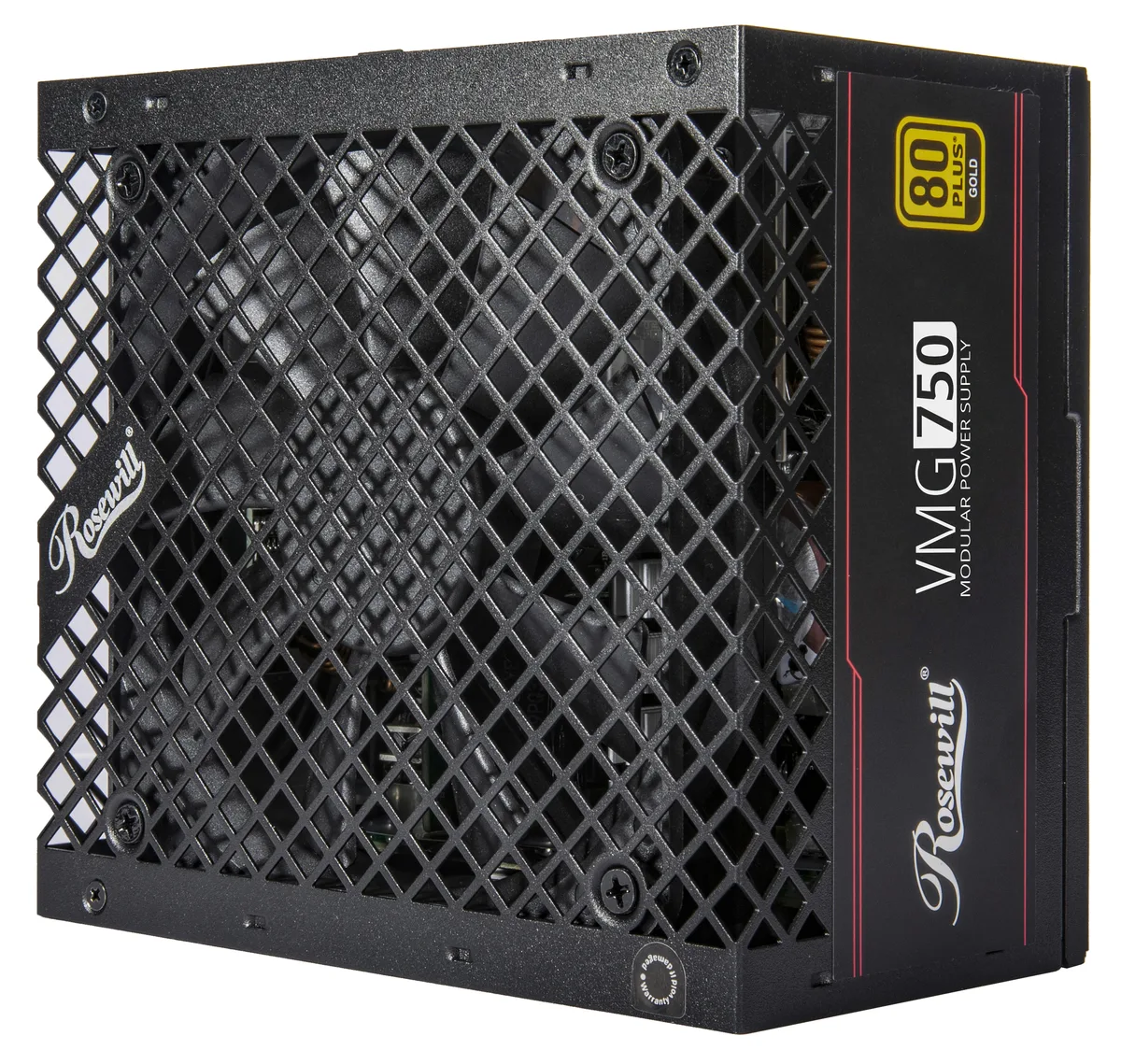

Rosewill VMG750 750W 80+ Gold ATX 3.1 Full Modular power supply

SKU CH-PQZT-XBKZ3 MPN VMG750

Full modular 750 W ATX 3.1 power supply with 80 PLUS Gold efficiency, native 12V-2x6 connector and 120 mm FDB fan

  • TypeATX 3.1 Compatible
  • Maximum Power750 W
  • Fans1 x 120mm FDBfan
  • PFCActive
  • Main Connector20+4Pin
  • +12V RailsSingle
  • ATX 3.1 compatibility future-proofs builds for modern platforms
  • 80 PLUS Gold certification delivers up to 85% efficiency

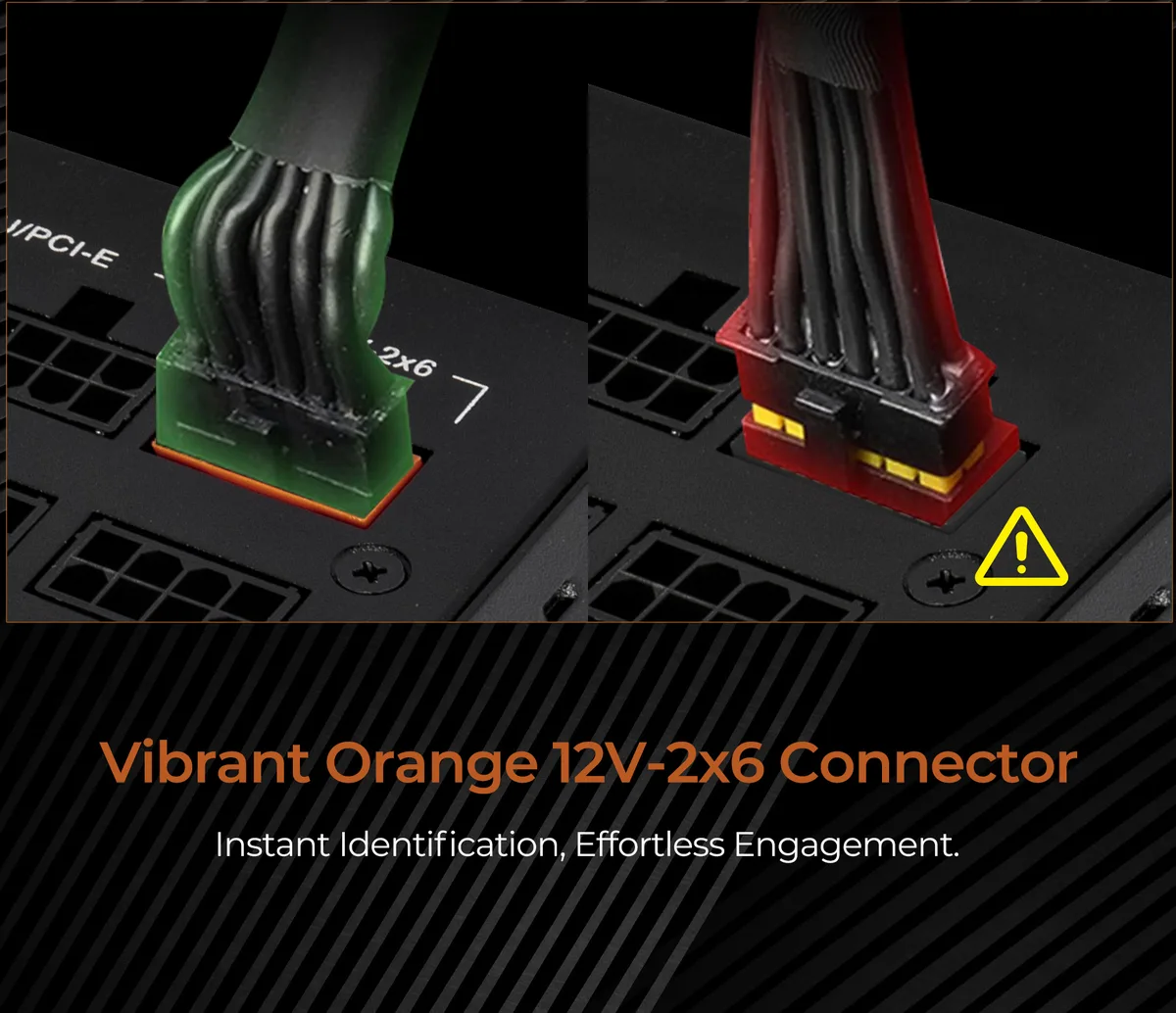

  • Native 12V-2x6 connector supplies 600W to next-gen GPUs
  • Full modular design with 140 mm length fits compact cases
  • 120 mm FDB fan and steel vented chassis enable quiet cooling

750 W ATX 3.1 power supply

The Rosewill VMG750 is a 750 W ATX 3.1 compatible power supply built for modern desktop builds. Its full modular design keeps cable routing clean in compact cases. The unit includes a native 12+4-pin 12V-2x6 connector for current-generation graphics cards. A 120 mm FDB fan provides quiet cooling under load.

Single-rail capacity and excursion headroom

A single +12 V rail delivers the full 750 W to the system. The platform is rated for up to 235 % power excursion and 300 % GPU power excursion to absorb transient spikes. Hold-up time is 16 ms minimum at full load. Continuous output above the rated wattage is not supported.

ATX 3.1 and PCIe 5.1 interface limits

The supply meets ATX 3.0 and 3.1 timing and connector requirements. One 12V-2x6 cable supplies up to 600 W directly to a compatible GPU. Three 6+2-pin PCIe connectors remain available for additional cards or adapters. Builds needing more than one native 12V-2x6 connection or power beyond 750 W will require a higher-capacity unit.

Points forts

  • ATX 3.1 compatibility future-proofs builds for modern platforms
  • 80 PLUS Gold certification delivers up to 85% efficiency
  • Native 12V-2x6 connector supplies 600W to next-gen GPUs
  • Full modular design with 140 mm length fits compact cases
  • 120 mm FDB fan and steel vented chassis enable quiet cooling

Caractéristiques

BrandRosewill
ModelVMG750
TypeATX 3.1 Compatible
Maximum Power750 W
Fans1 x 120mm FDBfan
PFCActive
Main Connector20+4Pin
+12V RailsSingle
SATA Power Connector6
CrossFireCrossFire Ready
Max PSU Length140 mm
ModularFull Modular
Hold-up Time16ms min.
EfficiencyUp to 85%
Energy-Efficient80 PLUS GOLD Certified
Over Voltage ProtectionYes
Overload ProtectionYes
Output+3.3V@18A, +5V@18A, [email protected] , [email protected] , +5VSB@3A

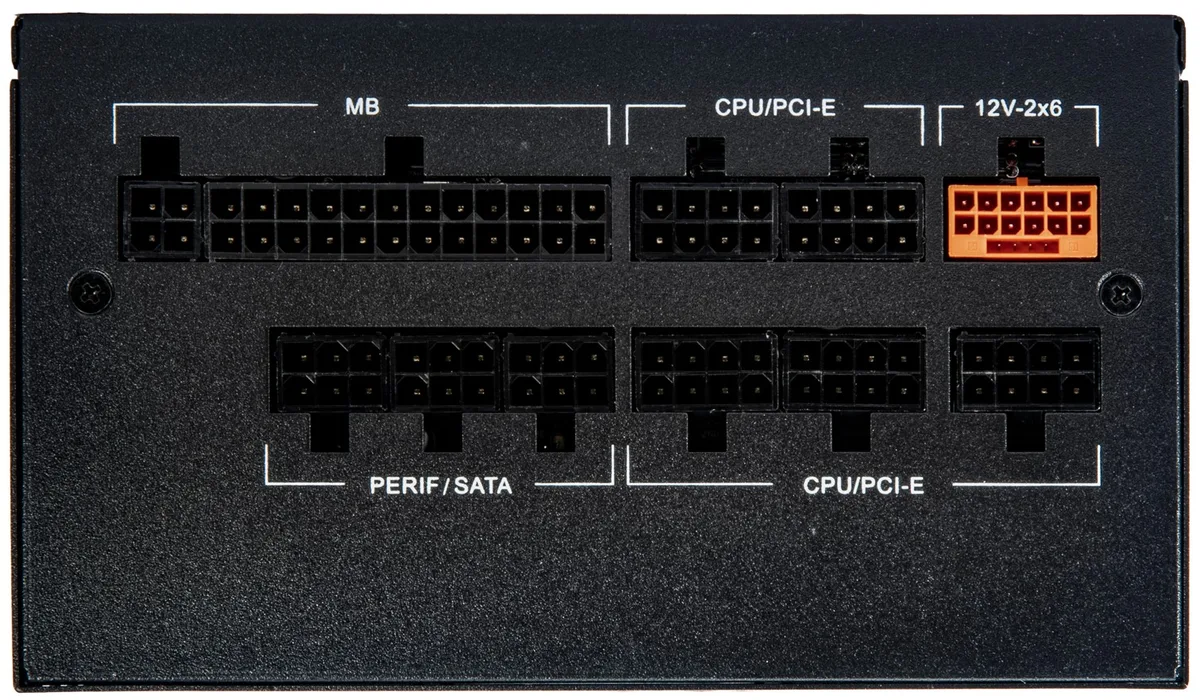

Connectors1 x 20+4-Pin Main Connector
2 x 4+4-Pin ATX12V / EPS12V Connector
3 x 6+2-Pin PCI-E Connector
1 x 12+4-Pin 12V-2x6 Connector
8 x 15-Pin SATA Connector
4 x 4-Pin Peripheral Connector
Poids d’expédition2.36 kg
Dimensions du colis273 × 203 × 114 mm

Questions sur cet article

Will the 140 mm depth and 20+4-pin main connector fit my older ATX case and motherboard?

The 140 mm chassis and standard 20+4-pin main connector match legacy ATX dimensions, so the unit installs in older cases and boards without adapters.

How do I confirm the 120 mm FDB fan and 80 PLUS Gold efficiency are operating correctly after installation?

Listen for the 120 mm FDB fan spinning at low RPM under idle loads and verify system stability; the Gold badge means the PSU meets 85 % typical efficiency at 50 % load.

Which cables come attached and which must I add for a GPU needing the 12V-2x6 connector and six SATA drives?

The box includes the native 12+4-pin 12V-2x6 cable, three 6+2-pin PCIe cables, two 4+4-pin EPS cables and eight SATA connectors — enough for the GPU and six drives without extra purchases.
