Black 3.5 inch internal card reader with seven slots and one USB 2.0 port

Sabrent

Sabrent CRW-UINB 7-slot USB 2.0 internal card reader

SKU CH-0WCC-W0RGM

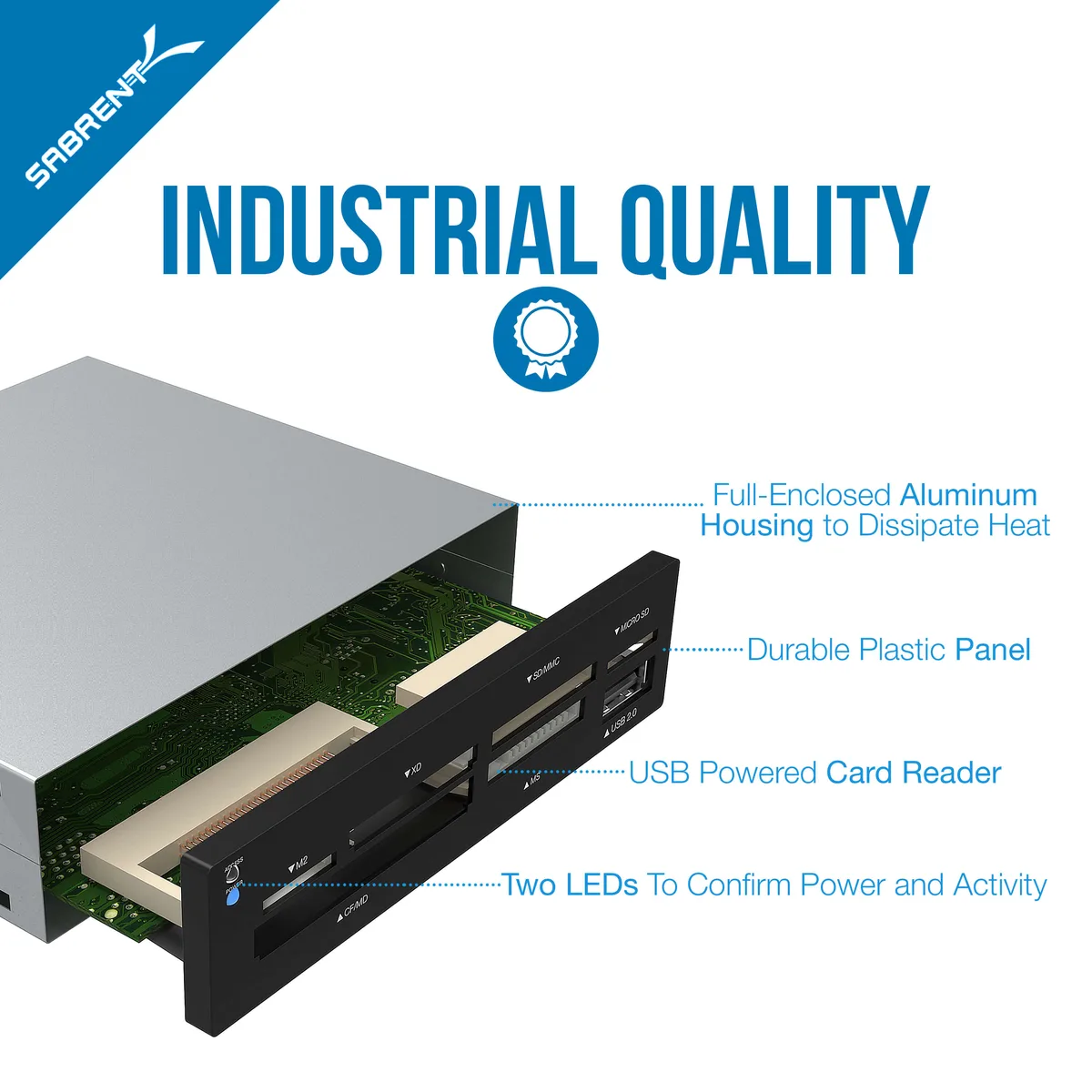

Internal 3.5" drive-bay reader with seven slots for 75 card formats plus an extra USB 2.0 port, powered by a motherboard USB header

  • Type68-in-1
  • Slots5
  • Installation TypeInternal
  • InterfaceUSB 2.0
  • CompatibilityCompactFlash Type I (CF-I) CompactFlash Type II (CF-II) Extr
  • Support - Compact FlashYes
  • Reads 68 card formats via 7 front-panel slots
  • Adds a front USB 2.0 port for extra peripherals

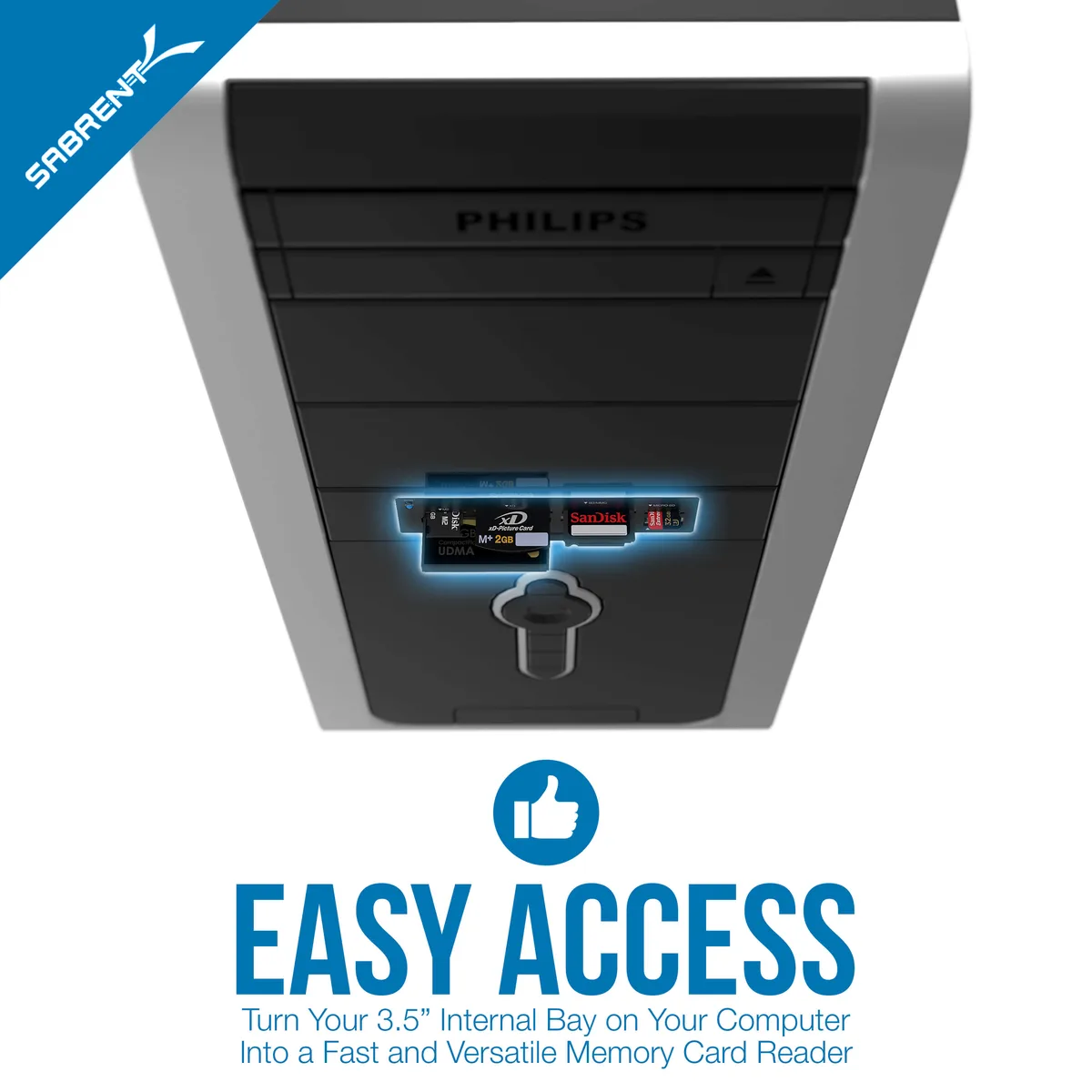

  • Installs in a standard 3.5" drive bay

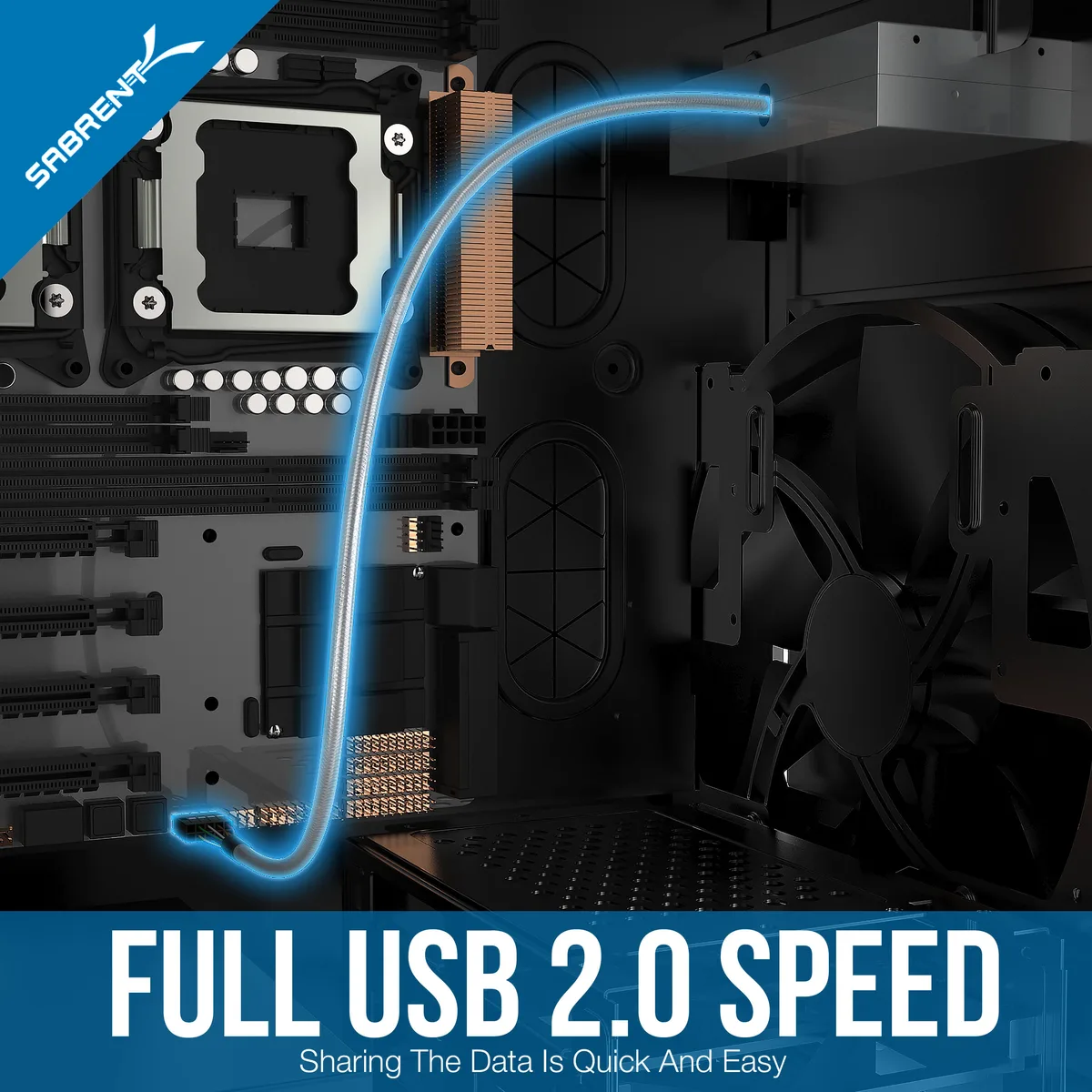

  • Powered by an internal connector for stable operation
  • Works with Windows, Linux and Mac OS X

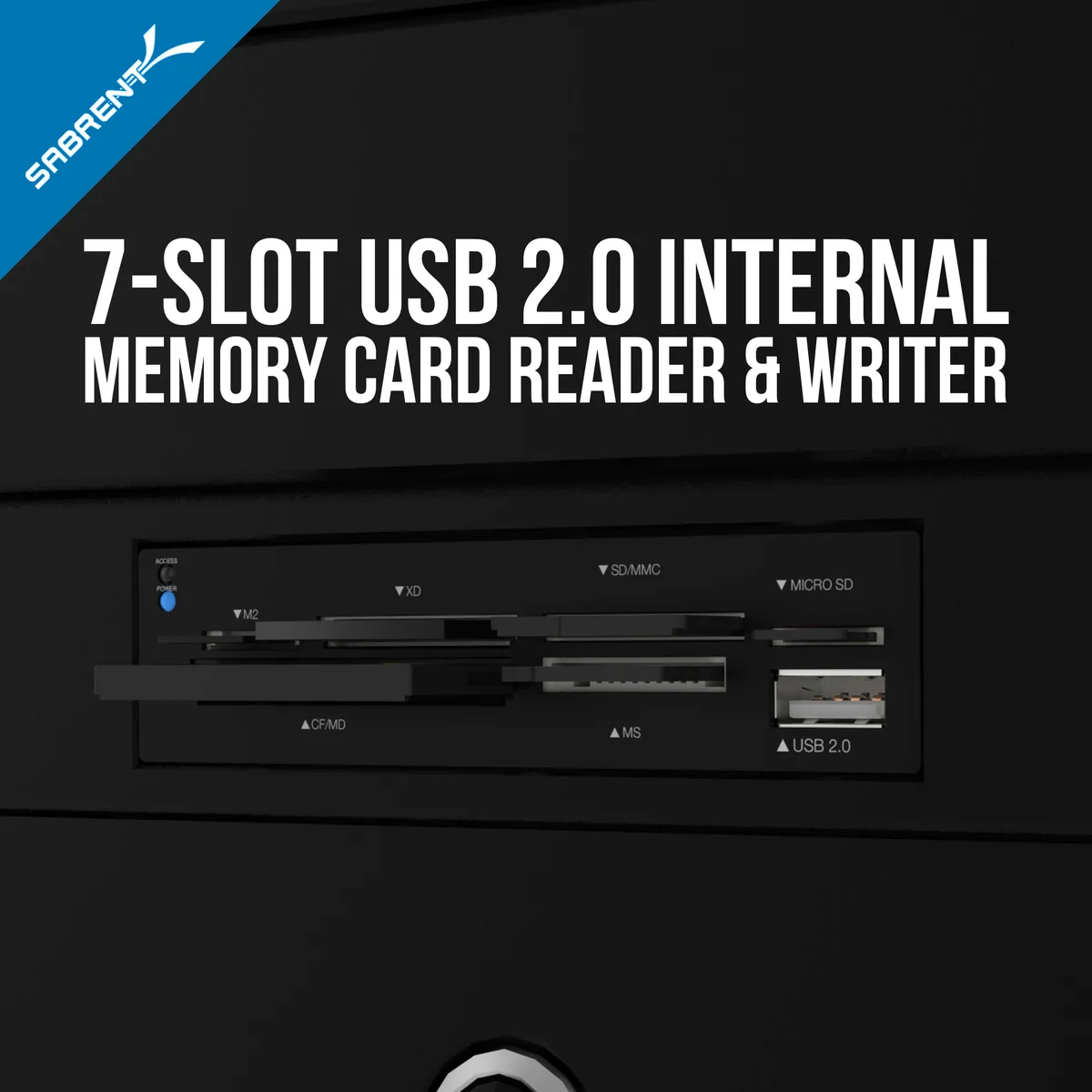

7-slot USB 2.0 internal card reader

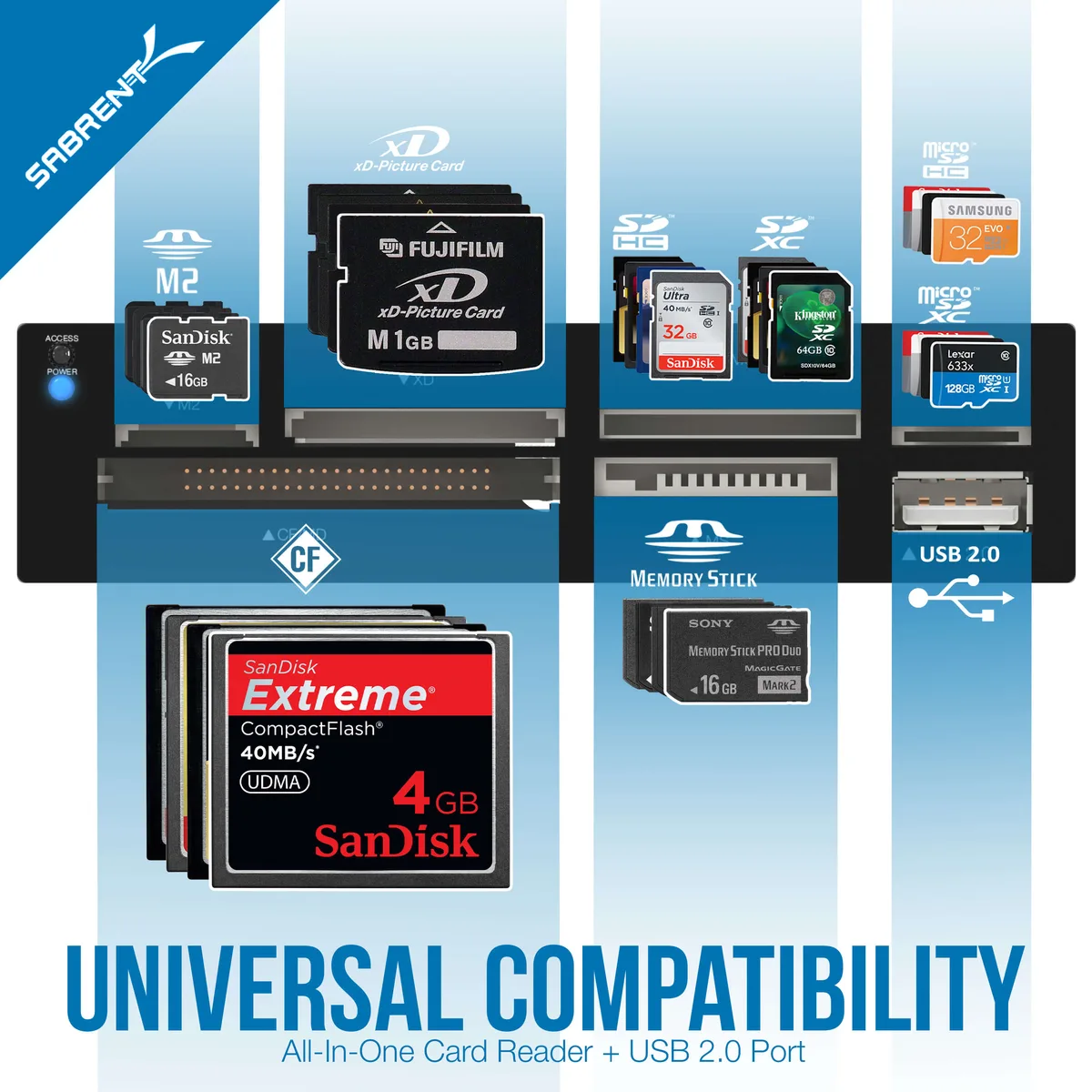

The Sabrent CRW-UINB installs in a 3.5" drive bay and connects to a motherboard USB header. It provides seven card slots covering CompactFlash, SD, Memory Stick, MMC, xD and Micro SD formats, plus one extra USB 2.0 port on the front panel. The unit supports 68 media types in total, with some cards requiring an adapter. It is aimed at desktop users who need frequent, multi-format card access without external dongles.

Before ordering

Verify that your case has a free 3.5" bay and that the motherboard offers an unused internal USB header. The reader draws power from an internal connector to ensure the hub can supply attached USB devices. Operating system support covers Windows ME, 2000, XP, Vista, 7, 8, Linux and Mac OS X, so confirm your OS is on that list. No driver installation is required for basic plug-and-play operation.

Replacing older single-slot readers

If you currently rely on a single-format reader or an external USB 1.1 device, this unit adds simultaneous slot access and USB 2.0 transfer speeds. The jump is worth it when you regularly swap between CF, SD and Memory Stick cards and want them all available at once. It does not suit builders who need USB 3.0 or faster interfaces, nor those who only use one card type and prefer a smaller footprint.

Points forts

  • Reads 68 card formats via 7 front-panel slots
  • Adds a front USB 2.0 port for extra peripherals
  • Installs in a standard 3.5" drive bay
  • Powered by an internal connector for stable operation
  • Works with Windows, Linux and Mac OS X

Caractéristiques

BrandSABRENT
ModelCRW-UINB
Type68-in-1
Slots5
Installation TypeInternal
InterfaceUSB 2.0
CompatibilityCompactFlash Type I (CF-I)
CompactFlash Type II (CF-II)
Extreme CompactFlash
Extreme III CompactFlash
Ultra II CompactFlash
High Speed CompactFlash
XS- Xtreme Speed CompactFlash
CompactFlash Elite Pro
MicroDrive
MagicStor
C-Flash
TransFlash (requires adapter)
Memory Stick (MS)
Memory Stick PRO (MS-PRO)
Memory Stick Duo (MS-DUO)
Memory Stick PRO Duo (MS-PRO DUO)
High Speed Memory Stick PRO
High Speed Memory Stick PRO Duo
Memory Stick MagicGate
Memory Stick MagicGate PRO
Memory Stick MagicGate Duo
Memory Stick MagicGate PRO Duo
High Speed Memory Stick MagicGate PRO
xD Card
High Speed M
Support - Compact FlashYes
Support - Memory StickYes
Support - MMCYes
Support - SDYes
Support - SmartMediaYes
Support - xDYes
FeaturesCompatible with USB 2.0 & 1.1 port
Support USB power saving mode
Interface USB 2.0
Support Plug & Play and Hot-Swappable.
Support slot-to-slot read/write operation.
Support auto-detecting slot with card inserted.
No external power required
Download files via USB 2.0 high-speed transfer rate up to 480Mbits/sec
High efficiency Card interface hardware engine for data transfer.
Disk to disk data transfer
Dynamic plug-into / remove-from USB port without turning off the system
Portable-compact design and low power consumption
AC power adapter is not required
Internal EPROM, provides high v
Package ContentsUSB Card Reader
Driver Disk
Poids d’expédition0.19 kg
Dimensions du colis160 × 122 × 36 mm

Questions sur cet article

What comes in the box and do I need any extra cables or adapters?

The package includes the USB card reader and a driver disk. An internal power connector is required to power the extra USB 2.0 port, and some memory card formats may need their own adapter.

The specs list both 68-in-1 and 75 card types — which figure should I use when checking my cards?

Both numbers refer to the same multi-format support; the reader handles 75 different memory card types across its 7 slots, covering CompactFlash, SD, Memory Stick, MMC, xD, SmartMedia and MicroDrive families.

What does the USB 2.0 interface mean for actual transfer speeds once installed?

The reader connects to a motherboard USB 2.0 header and is also compatible with USB 1.1 ports, so maximum throughput is limited to the USB 2.0 standard.
