M.2 2280 SSD with silver heatsink label

SAMSUNG

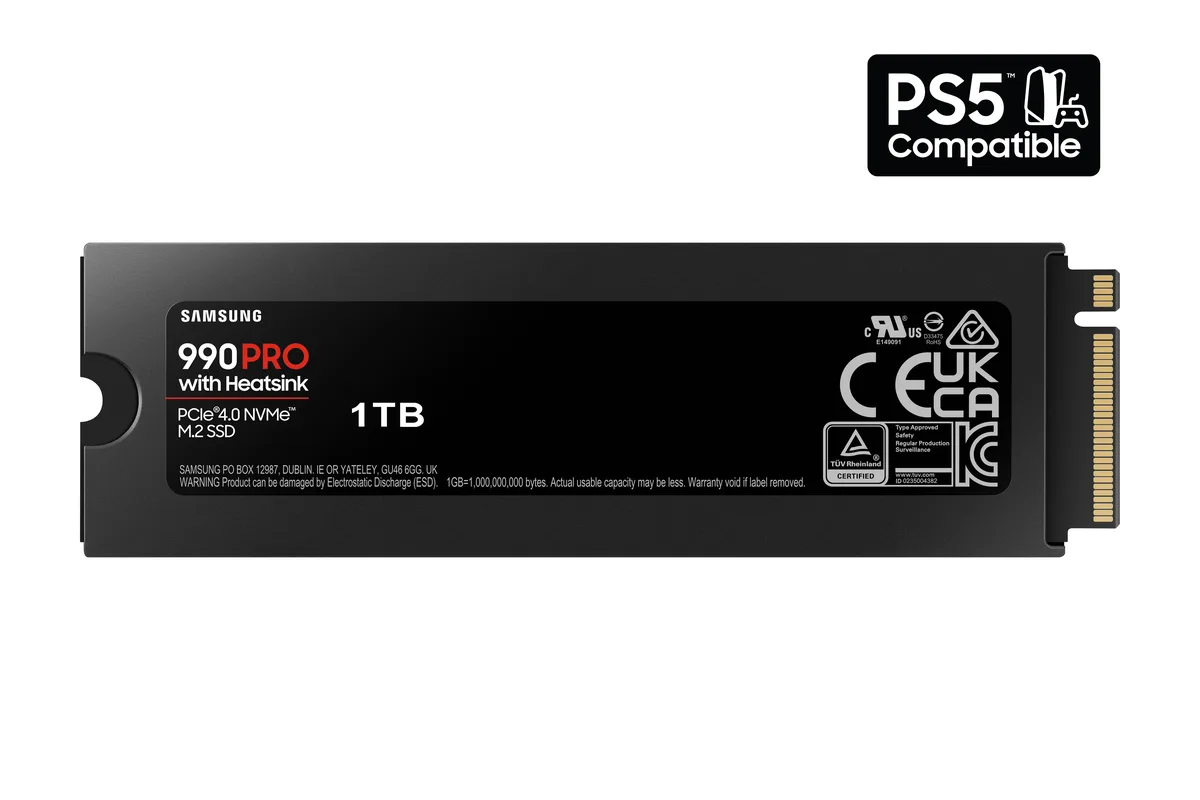

SAMSUNG 990 PRO MZ-V9P1T0CW 1TB internal SSD with heatsink

SKU CH-ZYRG-JZZAM MPN MZ-V9P1T0CW

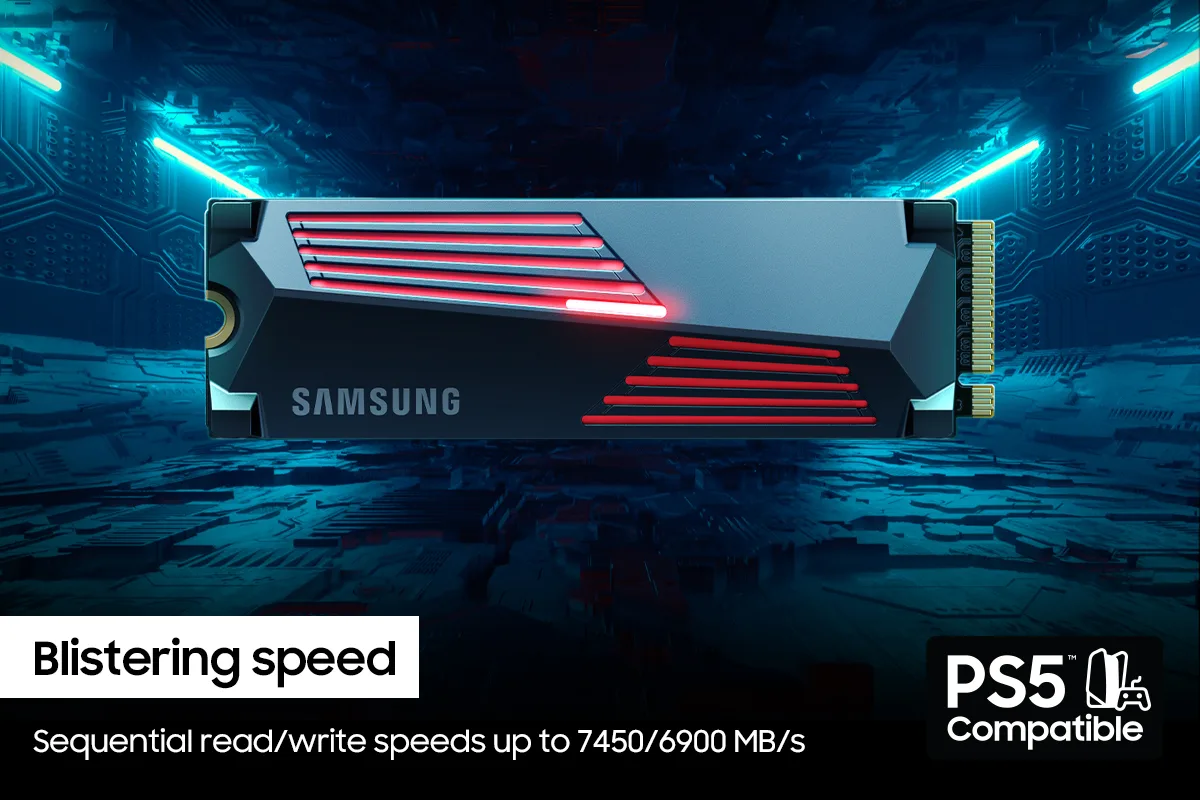

PCIe 4.0 NVMe drive with heatsink delivers 7450 MB/s reads and 6900 MB/s writes for gaming and heavy workloads

  • Device TypeInternal Solid State Drive (SSD)
  • Used ForConsumer
  • Form FactorM.2 2280
  • Capacity1TB
  • Memory ComponentsV7 V-NAND 3bit MLC
  • InterfacePCI-Express Gen 4.0 x4, NVMe 2.0

Options 1TB w/ Heatsink

  • Near-maximum PCIe 4.0 performance with up to 7450 MB/s read and 6900 MB/s write

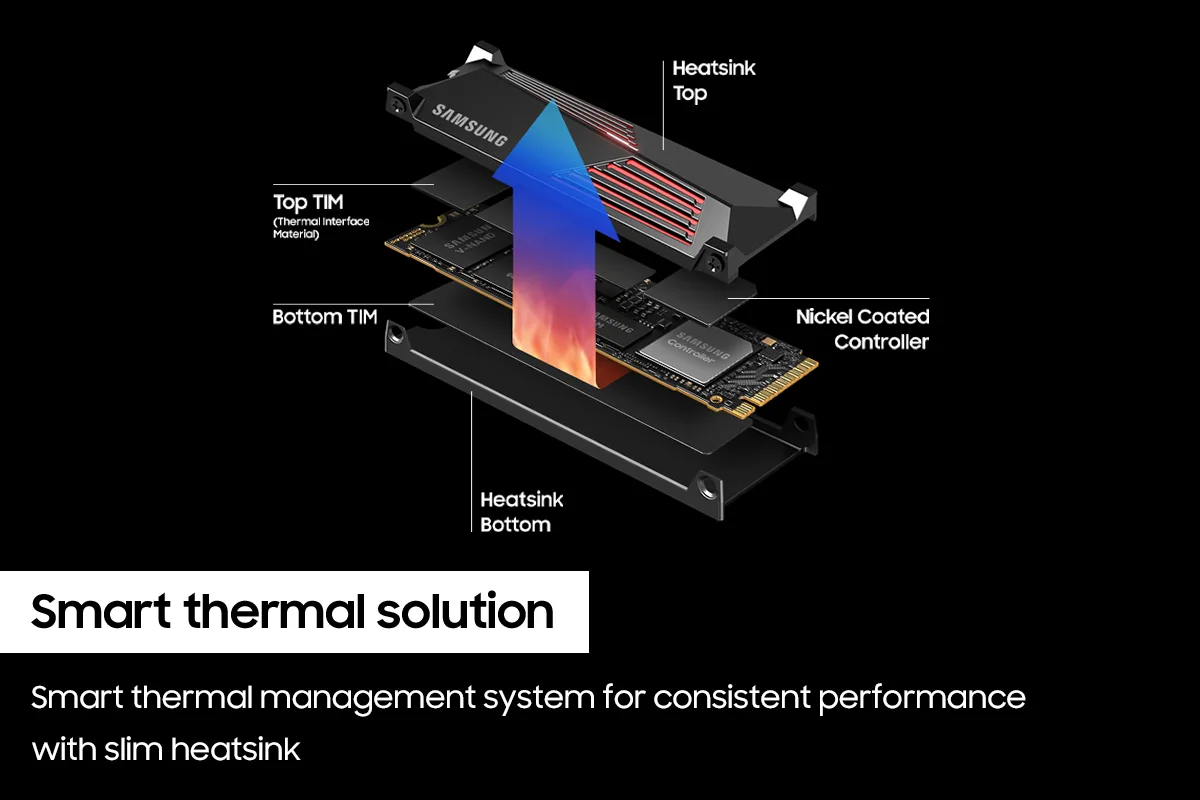

  • Nickel-coated controller plus heatsink prevents thermal throttling during sustained heavy workloads
  • 1 GB DRAM cache and Samsung in-house controller deliver up to 1400K read and 1550K write IOPS
  • AES 256-bit encryption with TCG Opal and IEEE 1667 protects data at rest
  • M.2 2280 form factor fits PlayStation 5, desktops and laptops meeting PCI-SIG D8 standard

1TB PCIe 4.0 NVMe SSD with heatsink

The Samsung 990 PRO MZ-V9P1T0CW is a 1TB internal solid-state drive built on V7 V-NAND 3bit MLC and a Samsung controller with 1GB DRAM cache. It uses the M.2 2280 form factor and connects through a PCI-Express Gen 4.0 x4 interface running NVMe 2.0. The bundled heatsink targets desktops, laptops meeting the PCI-SIG D8 standard and PlayStation 5 consoles.

1TB capacity and sequential speed headroom

Rated sequential reads reach 7450 MBps and writes 6900 MBps, with random performance up to 1400K read and 1550K write IOPS. The drive delivers 40% faster random reads and 55% faster random writes than the 980 PRO, while improving performance per watt by 50%. AES 256-bit encryption with TCG/Opal and IEEE 1667 support secures data at rest.

PCIe 4.0 x4 NVMe 2.0 interface limits

The PCIe 4.0 x4 link caps theoretical bandwidth near 8 GBps, so the 7450 MBps read ceiling leaves little headroom for protocol overhead. NVMe 2.0 adds namespace management and endurance features but does not raise the lane speed. Systems limited to PCIe 3.0 will restrict the drive to roughly half its rated throughput.

Points forts

  • Near-maximum PCIe 4.0 performance with up to 7450 MB/s read and 6900 MB/s write
  • Nickel-coated controller plus heatsink prevents thermal throttling during sustained heavy workloads
  • 1 GB DRAM cache and Samsung in-house controller deliver up to 1400K read and 1550K write IOPS
  • AES 256-bit encryption with TCG Opal and IEEE 1667 protects data at rest
  • M.2 2280 form factor fits PlayStation 5, desktops and laptops meeting PCI-SIG D8 standard

Caractéristiques

BrandSAMSUNG
Series990 PRO w/ Heatsink Normal Package
ModelMZ-V9P1T0CW
Device TypeInternal Solid State Drive (SSD)
Used ForConsumer
Form FactorM.2 2280
Capacity1TB
Memory ComponentsV7 V-NAND 3bit MLC
InterfacePCI-Express Gen 4.0 x4, NVMe 2.0
ProtocolNVMe 2.0
ControllerSamsung
Cache1GB DRAM
EncryptionAES 256-bit Encryption (Class 0)
TCG/Opal IEEE1667 (Encrypted drive)
Max Sequential ReadUp to 7450 MBps
Max Sequential WriteUp to 6900 MBps
Poids d’expédition0.08 kg
Dimensions du colis198 × 132 × 19 mm

Autres versions de ce modèle

5 de plus dans cette gamme

Même famille, mémoire, ventirad ou fréquence différents — comparez avant de vous décider.

Questions sur cet article

Will the PCIe 4.0 x4 interface work in my older motherboard that only has a PCIe 3.0 M.2 slot?

The drive is backward compatible and will function in a PCIe 3.0 slot, though sequential speeds will be limited to the Gen 3 bandwidth ceiling.

How can I verify the drive is delivering the rated 7450 MBps read and 6900 MBps write performance after installation?

Run a benchmark tool such as CrystalDiskMark using the NVMe 2.0 protocol queue depth settings and compare the sequential results to the 7450 MBps read and 6900 MBps write figures.

Does the retail box include a mounting screw for the M.2 2280 form factor or must I source one separately?

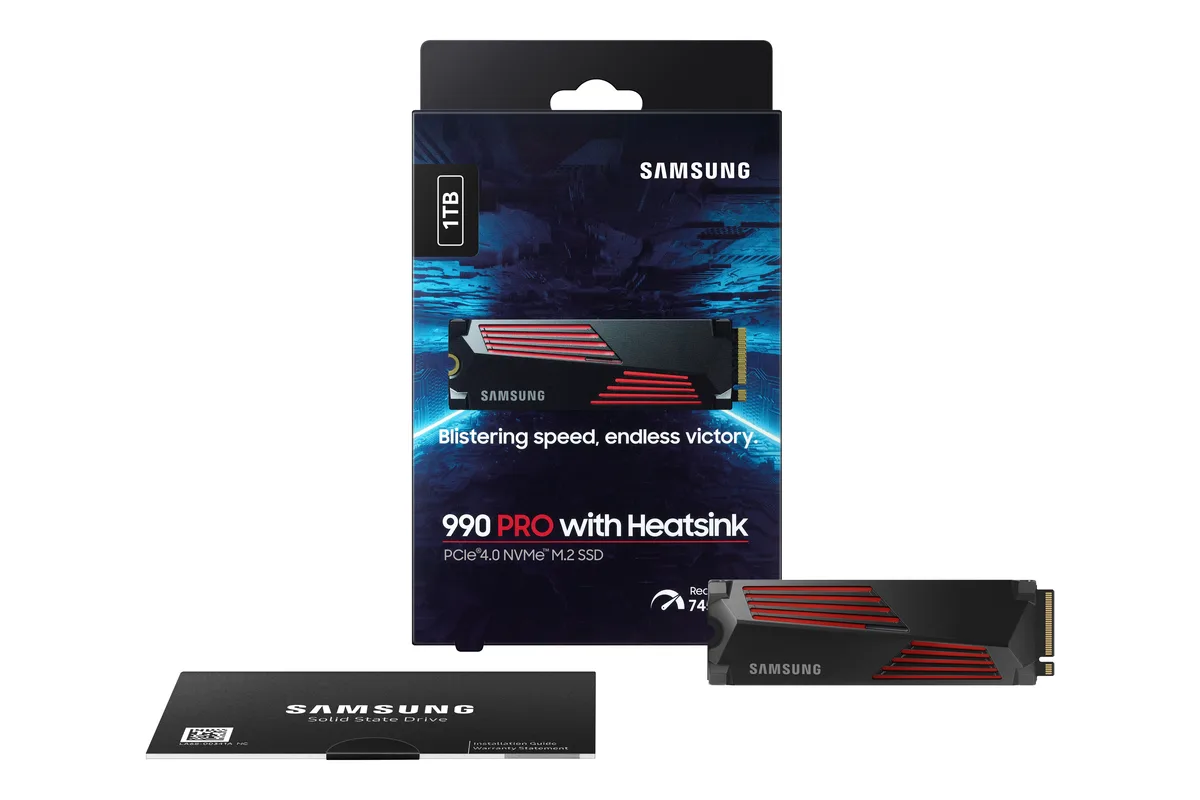

The package contains the SSD with the integrated heatsink pre-attached; a motherboard mounting screw is not included and must be supplied by the board or purchased separately.
