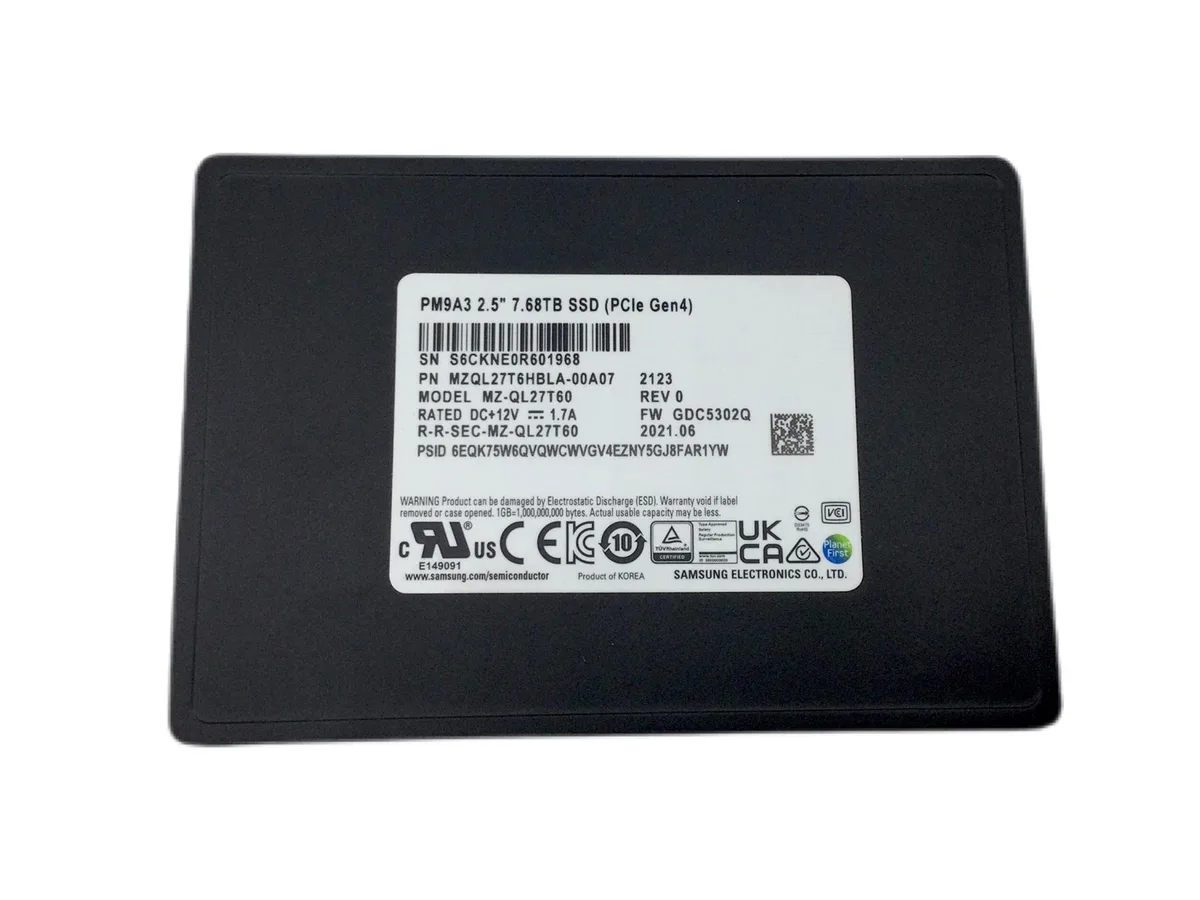

2.5 inch U.2 enterprise SSD with silver label

SAMSUNG

SAMSUNG PM9A3 MZ-QL27T60 7.68TB U.2 enterprise SSD

SKU CH-GMS2-NF8WP

A 7.68 TB U.2 enterprise NVMe SSD delivering 6500 MB/s sequential read, 3500 MB/s sequential write, 900K IOPS random read and 200K IOPS random write with power-loss protection

  • Form Factor2.5" U.2
  • Capacity7.68TB
  • Memory Components3D NAND
  • InterfacePCI-Express 4.0 x4
  • Max Sequential Read6500 MB/s
  • Max Sequential Write3500 MB/s
  • 68TB capacity for massive enterprise datasets
  • 6500 MB/s sequential read accelerates data-intensive workloads
  • 900K IOPS random read powers high-concurrency applications
  • 200K IOPS random write handles sustained write-heavy tasks
  • Power loss protection safeguards data at-rest and in-flight

Enterprise U.2 SSD for data centres

The Samsung PM9A3 MZ-QL27T60 is a 7.68TB enterprise solid-state drive built for 2.5-inch U.2 bays. It connects through a PCIe 4.0 x4 NVMe interface and uses 3D NAND with power-loss protection for data at-rest and in-flight. The drive is designed for high-utilisation server environments that require consistent quality of service.

Upgrade from PCIe 3.0 or SATA arrays

This model replaces PCIe 3.0 NVMe drives that top out near 3500 MB/s sequential read and lower random write IOPS. The jump is worth it when workloads demand up to 6500 MB/s sequential read, 3500 MB/s sequential write and 200K random write IOPS. It also supersedes SATA SSDs that cannot deliver the 900K random read IOPS or dual-port redundancy this drive provides.

Sustained mixed workload behaviour

Firmware prioritises quality of service for sustained random workloads, keeping virtual machines and containers responsive. The controller can suspend flash erase and program operations to prioritise incoming reads, which enhances consistent latency on mixed read/write patterns. Hardware accelerators maintain more than three times the random write throughput of the previous generation under continuous duty cycles.

Points forts

  • 68TB capacity for massive enterprise datasets
  • 6500 MB/s sequential read accelerates data-intensive workloads
  • 900K IOPS random read powers high-concurrency applications
  • 200K IOPS random write handles sustained write-heavy tasks
  • Power loss protection safeguards data at-rest and in-flight

Caractéristiques

BrandSAMSUNG
SeriesPM9A3
ModelMZ-QL27T60
Part NumberMZQL27T6HBLA-00A07
Form Factor2.5" U.2
Capacity7.68TB
Memory Components3D NAND
InterfacePCI-Express 4.0 x4
Max Sequential Read6500 MB/s
Max Sequential Write3500 MB/s
4KB Random Read900K IOPS
4KB Random Write200K IOPS
FeaturesPower loss protection for data at-rest and in-flight, dual-port interface, hot-pluggable, end-to-end data protection, enterprise-grade NAND flash memory
Height7mm
Width2.5in

Questions sur cet article

Will the 2.5" U.2 7mm height fit my server backplane?

The 2.5" U.2 form factor with 7mm height matches standard enterprise drive bays and hot-plug backplanes.

What is the correct way to install the dual-port U.2 drive?

Insert the drive into the U.2 bay until the connector seats fully; the dual-port interface requires both ports to be wired for failover.

How does the power loss protection affect long-term use?

The built-in power loss protection safeguards data at-rest and in-flight during unexpected shutdowns, reducing the risk of data corruption over the drive life.
