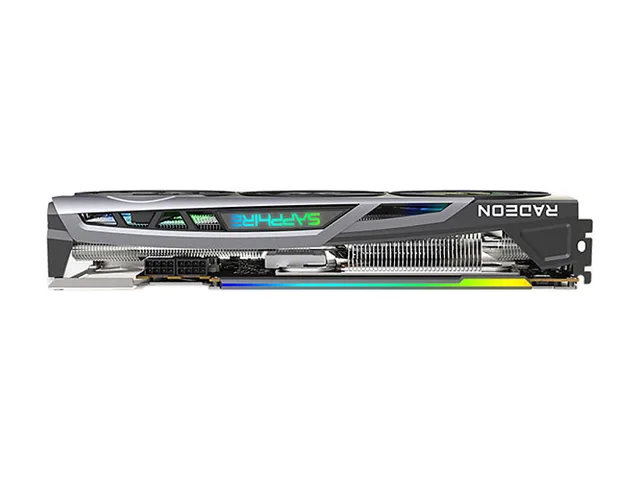

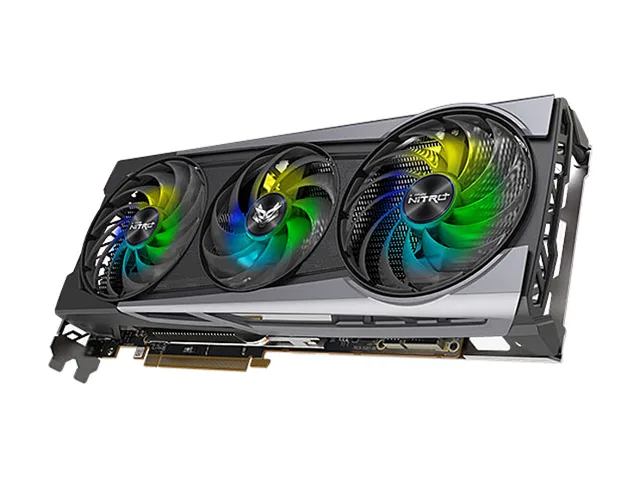

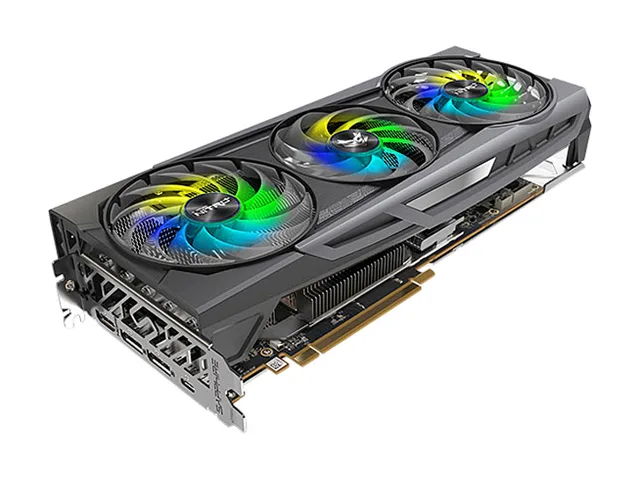

Sapphire NITRO+ Radeon RX 6800 XT graphics card with triple fans and metal backplate

Sapphire Tech

Sapphire Tech NITRO+ Radeon RX 6800 XT SE 16GB graphics card 11304-01-20G

SKU CH-MFM4-WFN9P MPN 11304-01-20G

Refurbished AMD Radeon RX 6800 XT GPU with 16GB GDDR6, 4608 stream processors, 2360 MHz boost clock, PCI Express 4.0 interface, HDMI 2.1, DisplayPort 1.4, USB-C, and 350W TDP

  • InterfacePCI Express 4.0
  • Chipset ManufacturerAMD
  • GPU SeriesAMD Radeon RX 6000 Series
  • GPURadeon RX 6800 XT
  • Boost Clock2360 MHz
  • Stream Processors4608
  • 16 GB GDDR6 memory and a 256-bit bus feed high-resolution textures
  • Boost clock reaches 2360 MHz for responsive 4K gaming
  • 4608 stream processors handle heavy compute workloads

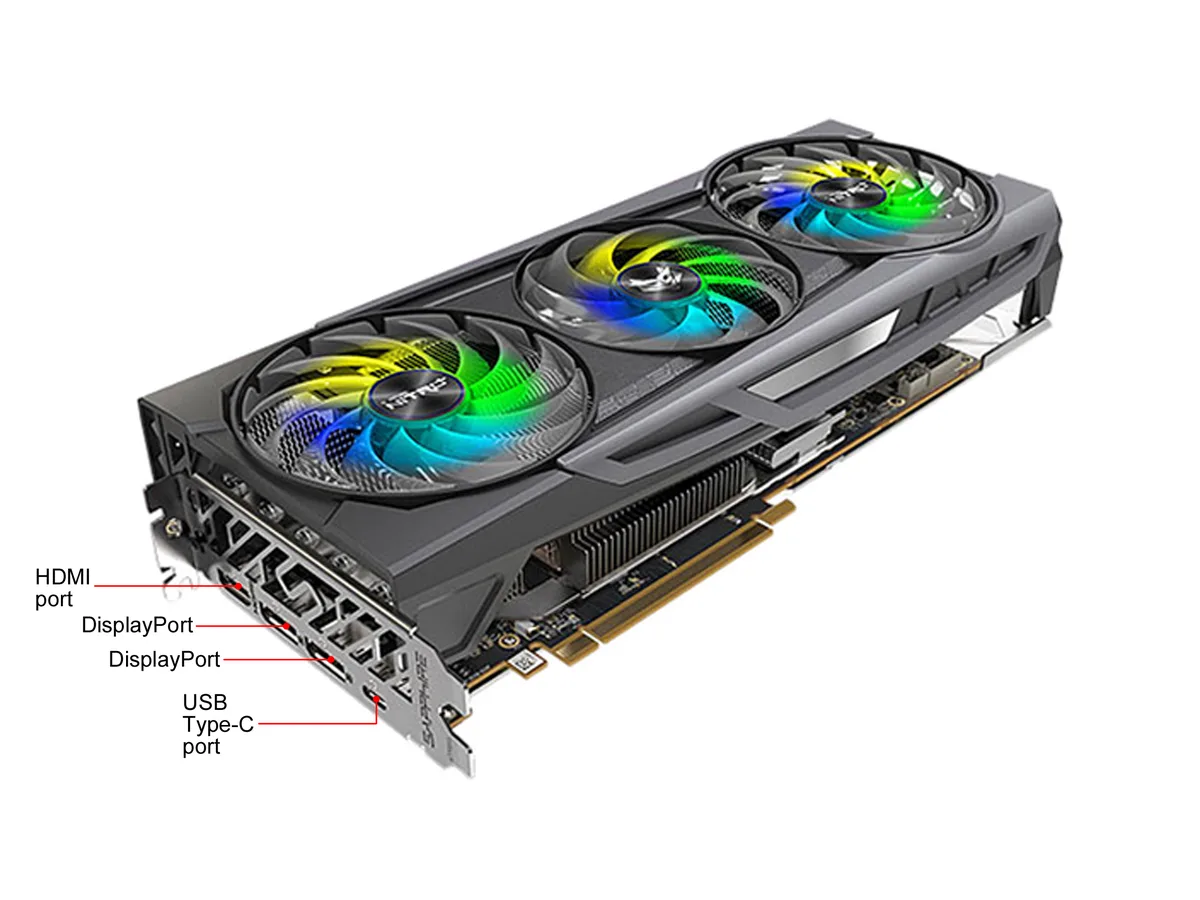

  • HDMI 2.1 plus two DisplayPort 1.4 outputs drive four displays
  • PCI Express 4.0 interface and 350 W TDP fit 850 W power supplies

Sapphire NITRO+ RX 6800 XT SE 16GB

This refurbished graphics card uses the AMD Radeon RX 6800 XT GPU with 16GB of GDDR6 memory on a 256-bit interface. It connects through a PCI Express 4.0 slot and is built for enthusiasts who need high frame rates at 1440p or 4K resolution. The card includes one HDMI 2.1 port, two DisplayPort 1.4 ports and a USB-C connector for up to four displays.

Sustained load behaviour with 350W TDP

The GPU runs at a boost clock of 2360 MHz across 4608 stream processors with memory at 16 Gbps. A triple-fan cooler handles the 350-watt thermal design power during extended gaming or rendering sessions. Stable operation depends on adequate case airflow to move heat away from the three fans continuously.

Check power and space before ordering

Your system needs a minimum 850-watt power supply with two 8-pin PCIe power connectors. The motherboard must provide a full-size PCI Express x16 slot. At least 8GB of system memory is required, though 16GB is recommended. Verify that your case length and clearance can accommodate a triple-fan card and that your operating system is a supported 64-bit version.

Points forts

  • 16 GB GDDR6 memory and a 256-bit bus feed high-resolution textures
  • Boost clock reaches 2360 MHz for responsive 4K gaming
  • 4608 stream processors handle heavy compute workloads
  • HDMI 2.1 plus two DisplayPort 1.4 outputs drive four displays
  • PCI Express 4.0 interface and 350 W TDP fit 850 W power supplies

Caractéristiques

BrandSAPPHIRE
SeriesNITRO+
Model11304-01-20G
InterfacePCI Express 4.0
Chipset ManufacturerAMD
GPU SeriesAMD Radeon RX 6000 Series
GPURadeon RX 6800 XT
Boost Clock2360 MHz
Stream Processors4608
Effective Memory Clock16 Gbps
Memory Size16GB
Memory Interface256-Bit
Memory TypeGDDR6
DirectXDirectX 12 Ultimate
Multi-Monitor Support4
HDMI1 x HDMI 2.1
DisplayPort2 x DisplayPort 1.4
Other Ports1 x USB-C
Max Resolution7680 x 4320
Virtual Reality ReadyYes
CoolerTriple Fans
Operating Systems SupportedLinux, Windows 7*, Windows 10, and Windows 8.1. 64-bit operating system required
* Does not support all features including but not limited to Hardware Raytracing ‍👉Check gaming pc with Windows 11 Pro
Thermal Design Power350W
System RequirementsMinimum 850-Watt Power Supply.
2 x 8-pin Power Connector.
PCI Express based PC is required with one X16 lane graphics slot available on the motherboard.
Minimum 8GB of system memory. 16GB recommended.
Recommended PSU Wattage850W
Power Connector2 x 8-Pin
FeaturesAMD RDNA 2 Architecture
DirectX 12 Ultimate
Hardware Raytracing
7nm GPU
GDDR6 Memory
PCI Express 4.0 Support
AMD FreeSync Technology
DisplayPort 1.4 with DSC
HDMI 2.1 VRR
Video Streaming up to 8K
Radeon VR Ready Premium
AMD FidelityFX
Radeon Image Sharpening
Radeon Anti-Lag
Radeon Software
Game Driver Optimizations
Form FactorATX
Max GPU Length310 mm

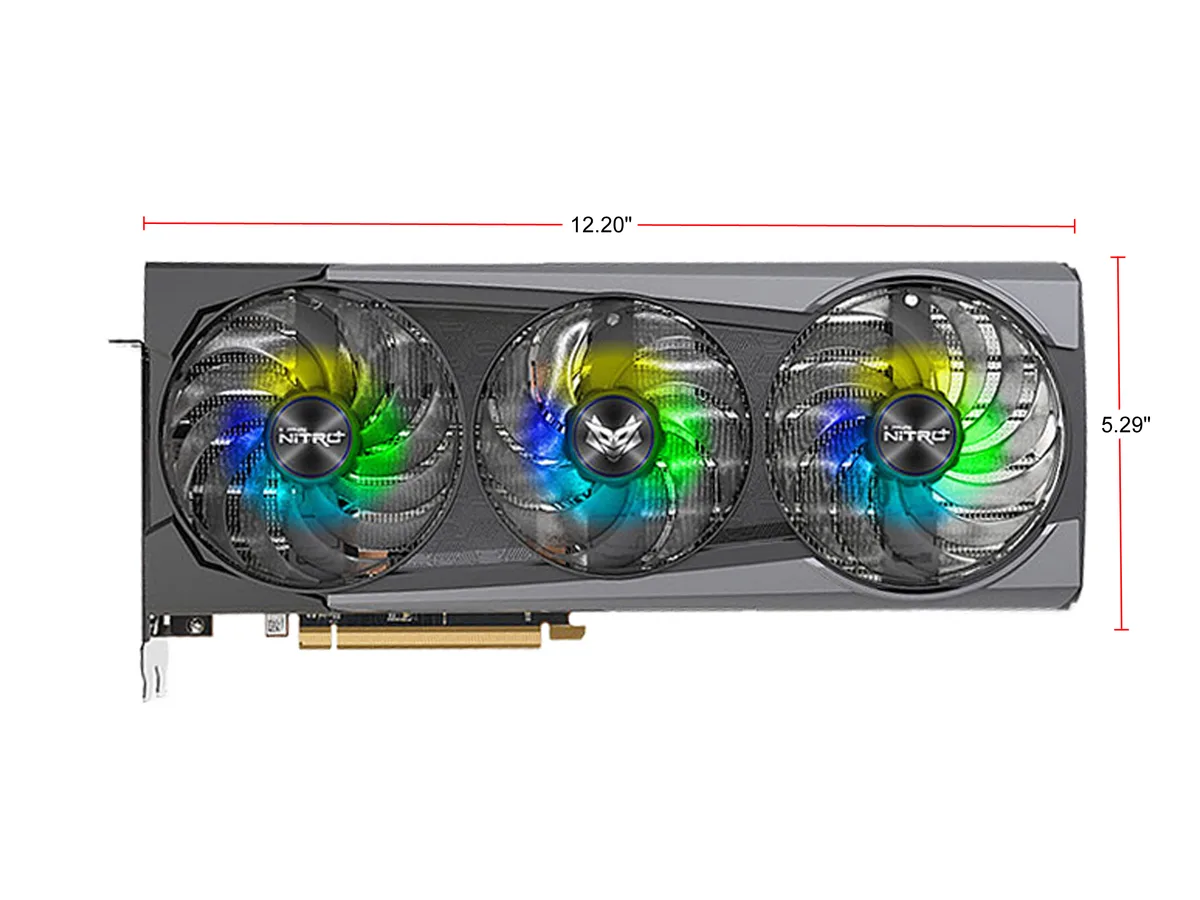

Card Dimensions (L x H)12.20" x 5.29"
Slot Width2.7 slot
Poids d’expédition1.75 kg
Dimensions du colis432 × 241 × 89 mm

Questions sur cet article

How much power does the 350 W TDP card draw under full load and what cooler handles it?

The card has a 350 W thermal design power and uses a triple-fan cooler to move that heat away from the GPU.

Which power connectors and minimum PSU does the 11304-01-20G require?

It needs two 8-pin PCIe power connectors and a system power supply rated for at least 850 W.

Will the PCI Express 4.0 interface run at full speed on a motherboard that only has PCI Express 3.0 slots?

Yes, the card is backward compatible and will operate at PCI Express 3.0 speeds in a 3.0 slot.
