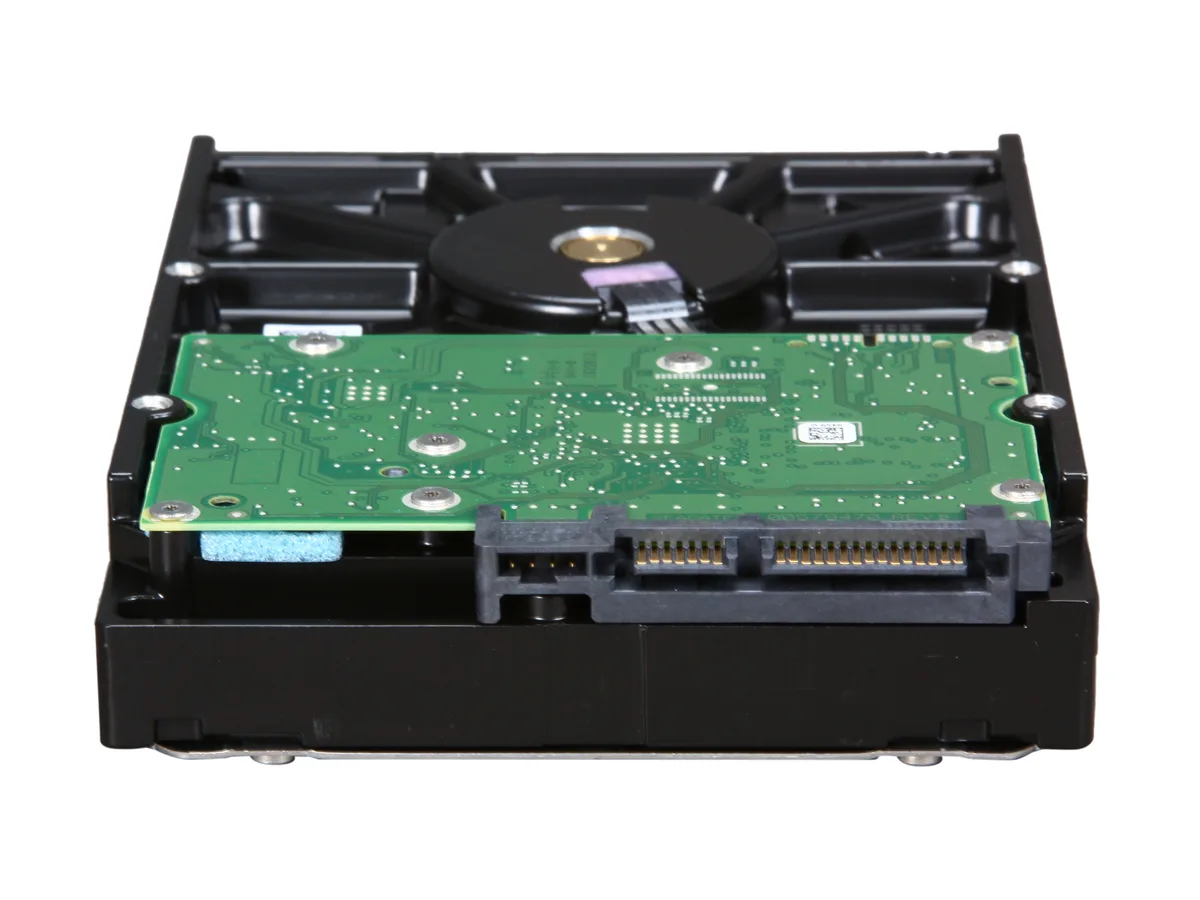

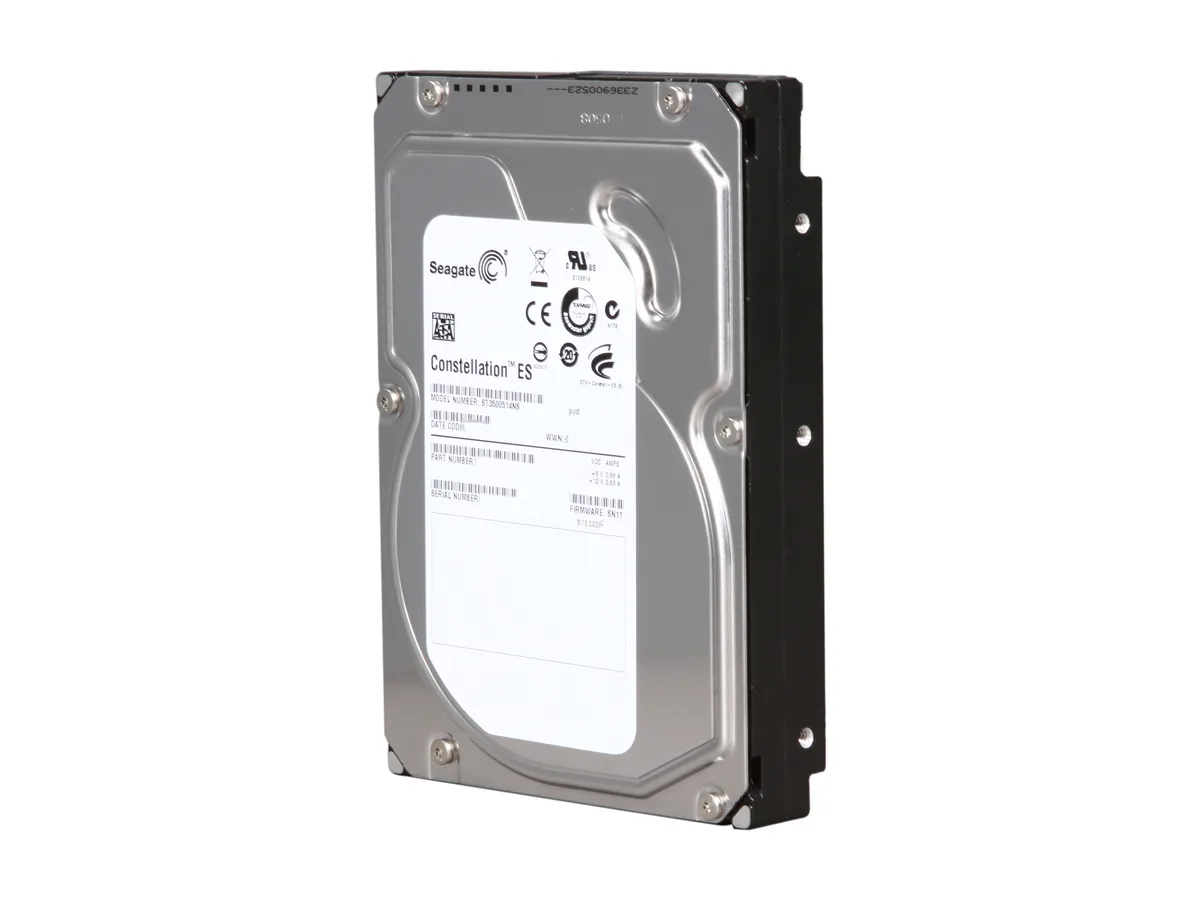

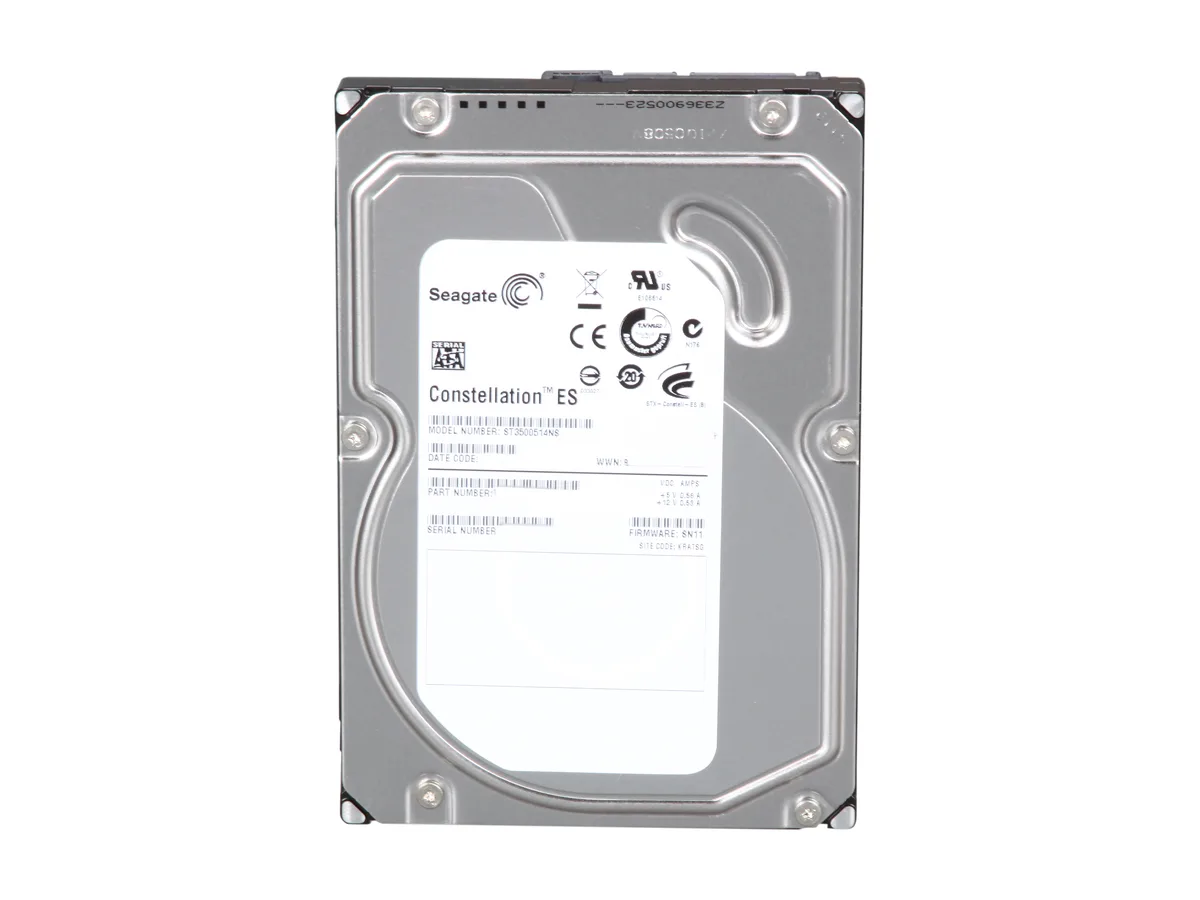

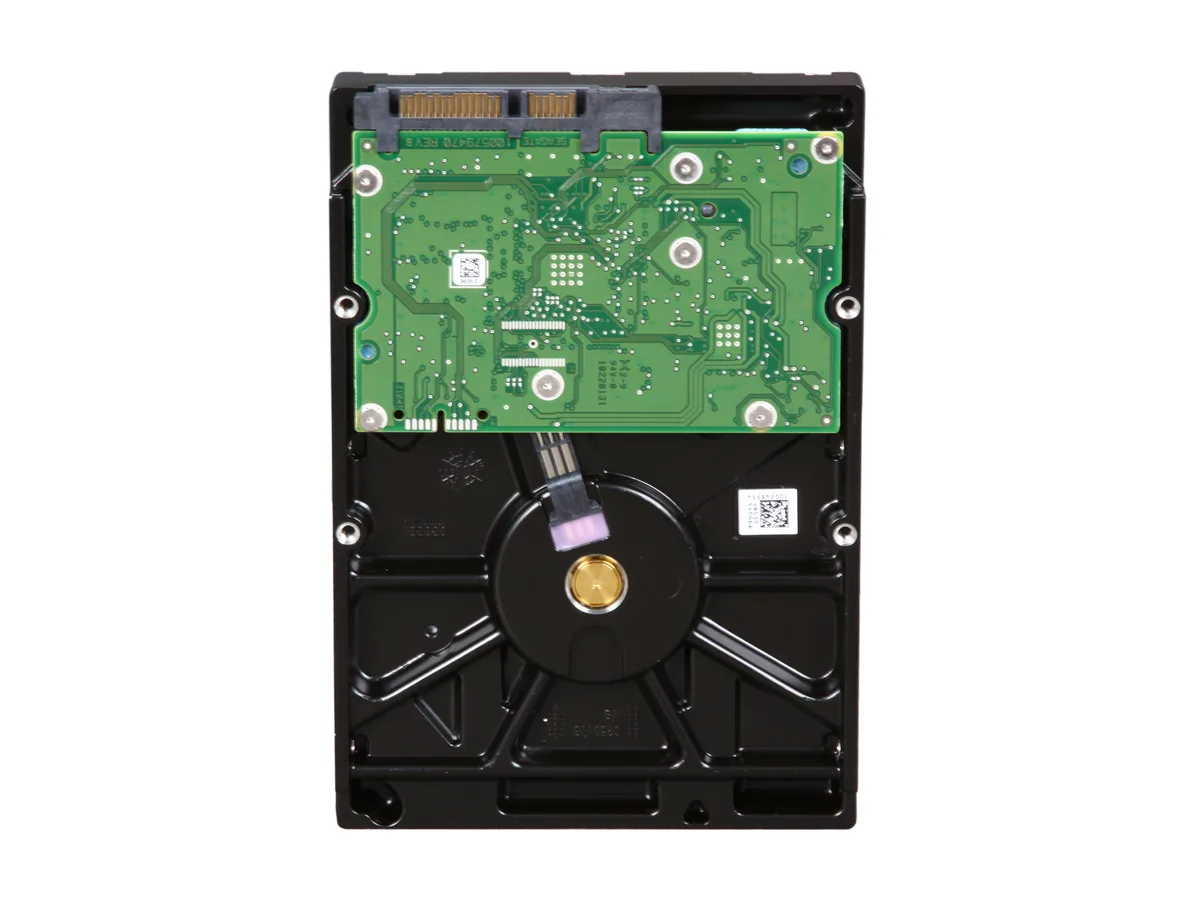

Silver 3.5-inch bare hard drive with circuit board visible underneath

Seagate

Seagate ST3500514NS Constellation ES 500GB 7200 RPM 32MB SATA 3.0Gb/s 3.5" internal hard drive

SKU CH-AWV5-5YSTK MPN ST3500514NS

A 500 GB enterprise-class 3.5-inch SATA drive with 7200 RPM, 32 MB cache and enhanced rotational vibration tolerance for server reliability

  • PackagingBare Drive
  • InterfaceSATA 3.0Gb/s
  • Capacity500GB
  • NAND Flash Memory TypeEnterprise
  • RPM7200 RPM
  • Cache32MB
  • Enterprise reliability with 1.2 million hour MTBF
  • 7200 RPM rotational speed for responsive data access
  • 32 MB cache buffers bursts for smoother throughput
  • SATA 3.0 Gb/s interface integrates with standard controllers
  • Enhanced rotational vibration tolerance rated at 12.5 rad/sec

Enterprise 500 GB SATA drive

The Seagate Constellation ES ST3500514NS is a 500 GB 3.5-inch internal hard drive built for server and nearline workloads. It runs at 7200 RPM with a 32 MB cache and a SATA 3.0 Gb/s interface. The design targets Tier 2 environments that need enterprise-class reliability and high data integrity.

Low power draw and vibration tolerance

Enhanced rotational vibration tolerance rated at 12.5 rad/sec from 20 to 1500 Hz protects the drive from chassis and fan vibrations. Seagate PowerChoice technology reduces energy use during idle or slow periods. The drive delivers the lowest power consumption of any nearline 3.5-inch model to cut cooling costs.

Self-encrypting TCG security

TCG-compliant self-encryption secures data at rest without extra software overhead. A 1.2 million hour MTBF and an unrecoverable error rate of 1E10-15 support long-term data integrity. The bare-drive packaging suits system integrators deploying multiple units in storage arrays.

Points forts

  • Enterprise reliability with 1.2 million hour MTBF
  • 7200 RPM rotational speed for responsive data access
  • 32 MB cache buffers bursts for smoother throughput
  • SATA 3.0 Gb/s interface integrates with standard controllers
  • Enhanced rotational vibration tolerance rated at 12.5 rad/sec

Caractéristiques

BrandSeagate
SeriesConstellation ES
ModelST3500514NS
PackagingBare Drive
InterfaceSATA 3.0Gb/s
Capacity500GB
NAND Flash Memory TypeEnterprise
RPM7200 RPM
Cache32MB
Average Latency4.16ms
FeaturesFeatures a traditional 3.5-inch form factor with enhanced rotational vibration tolerance and high data integrity for enterprise-class reliability in a cost-effective drive
Delivers proven reliability, with an MTBF of 1.2 million hours
Reduces energy and cooling costs, with the lowest power consumption of any nearline 3.5-inch drive
Includes Seagate PowerChoice technology for even greater on-demand power savings during slow or idle periods
UsageIdeal for Servers
Form Factor3.5"
Poids d’expédition0.91 kg
Dimensions du colis178 × 133 × 32 mm

Questions sur cet article

How do I install this 3.5" SATA drive and what step is often missed?

Mount the drive in a 3.5-inch bay using four screws, connect the SATA data cable to a 3.0Gb/s port and attach a SATA power connector; the step often missed is enabling the drive in BIOS or initialising the disk in the operating system before it becomes visible.

What maintenance or replacement will this enterprise drive need later?

No routine maintenance is required; the drive is rated for a 1.2 million hour MTBF and includes PowerChoice technology for idle power savings, so replacement is only needed if SMART attributes report reallocated sectors or the drive exceeds its rated workload limits.

What limit appears first during sustained write workloads on this 7200 RPM model?

The 3.0Gb/s SATA interface caps sustained throughput at around 300 MB/s, which is reached before the 32MB cache or 7200 RPM platters become the bottleneck during continuous sequential writes.
