Rectangular ATX power supply, matte black finish, 140 mm deep, 120 mm fan grille, full modular cable sockets visible

Seasonic

Seasonic FOCUS GX-1000 1000W 80+ Gold ATX power supply

SKU CH-KTXX-8QP0P MPN FOCUS GX-1000

A 1000 W fully modular ATX power supply with 80 PLUS Gold efficiency, a 120 mm fluid dynamic bearing fan and a compact 140 mm depth for broad case compatibility

  • TypeIntel ATX 12 V
  • Maximum Power1000 W
  • Fans120 mm Fluid Dynamic Bearing fan
  • Main Connector20+4Pin
  • +12V RailsSingle
  • PCI-Express Connector6 x 6+2-Pin

Options ATX Gold (1000W)

Les versions barrées existent, mais ne sont pas disponibles ici.

  • 1000 W output powers demanding builds with a single +12 V rail at 83 A
  • 80 PLUS Gold certification reduces wasted energy during power conversion
  • Full-modular cabling lets you connect only what you need for cleaner airflow
  • 140 mm depth fits every ATX case while leaving room for cable routing
  • Hybrid fan control offers a fanless mode for silent operation at low loads

Compact 140 mm Depth

The Seasonic FOCUS GX-1000 is a fully modular ATX power supply rated at 1000 W with 80 PLUS Gold certification. It uses a single +12 V rail delivering up to 83 A and includes premium Japanese capacitors for stable output. A 120 mm Fluid Dynamic Bearing fan provides cooling in a chassis only 140 mm deep.

Full Modular Upgrade

This unit replaces fixed-cable power supplies that restrict airflow and complicate cable routing. The jump is worthwhile when building or upgrading a system that needs six PCIe 6+2-pin connectors and ten SATA power connectors for multiple drives or GPUs. Hybrid fan control lets you choose between S2FC and S3FC modes for customised cooling behaviour.

High-Wattage Multi-GPU Builds

It suits enthusiasts assembling high-wattage systems with multiple graphics cards or dense storage arrays who value a compact footprint and a ten-year warranty. Builders needing only modest power or fewer connectors should consider lower-capacity models instead.

Points forts

  • 1000 W output powers demanding builds with a single +12 V rail at 83 A
  • 80 PLUS Gold certification reduces wasted energy during power conversion
  • Full-modular cabling lets you connect only what you need for cleaner airflow
  • 140 mm depth fits every ATX case while leaving room for cable routing
  • Hybrid fan control offers a fanless mode for silent operation at low loads

Caractéristiques

BrandSeaSonic
SeriesFOCUS GX
ModelFOCUS GX-1000 (SSR-1000FX)
TypeIntel ATX 12 V
Maximum Power1000 W
Fans120 mm Fluid Dynamic Bearing fan
Main Connector20+4Pin
+12V RailsSingle
PCI-Express Connector6 x 6+2-Pin
SATA Power Connector10
Max PSU Length140 mm
ModularFull Modular
Energy-Efficient80 PLUS GOLD Certified
Over Voltage ProtectionYes
Input Voltage100 - 240 V
Input Frequency Range50/60 Hz
Input Current13 - 6.5 A

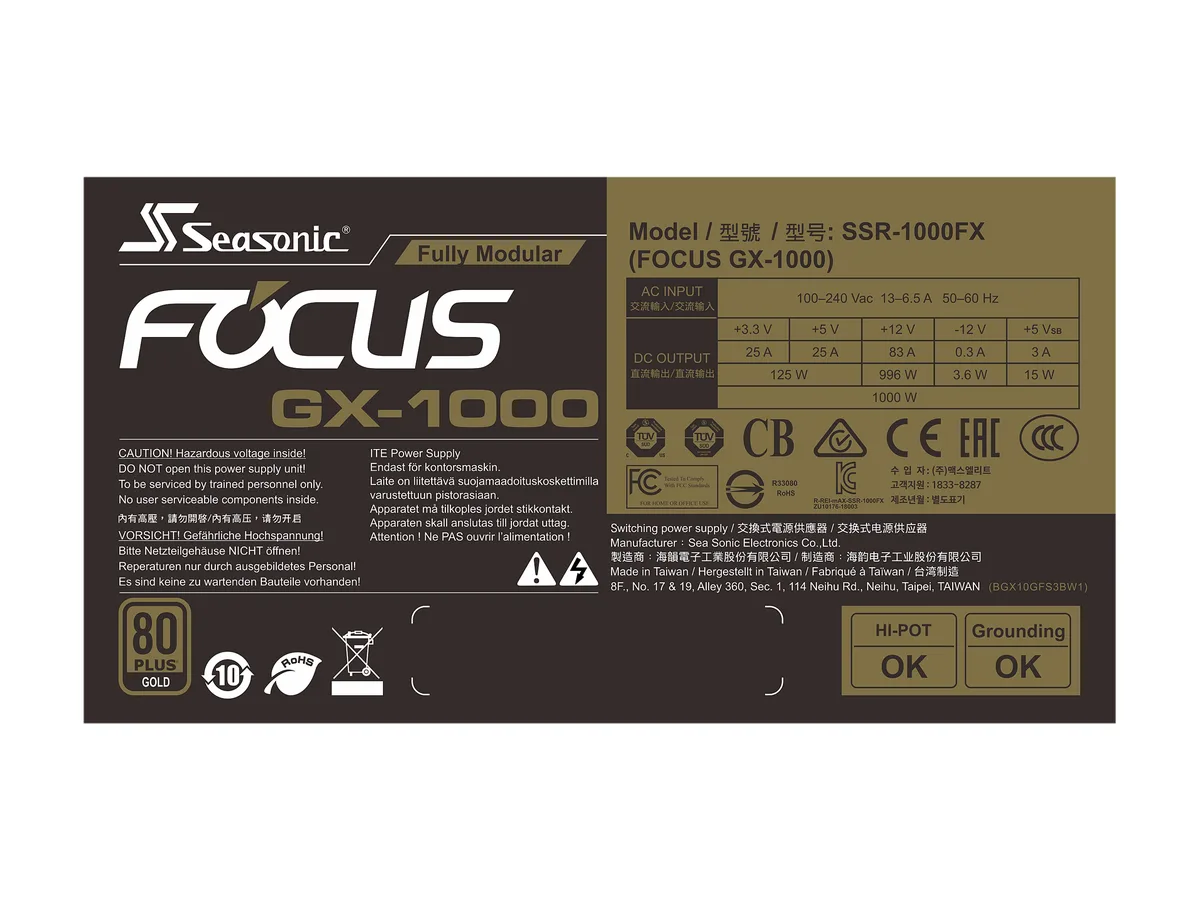

Output+3.3V@25A, +5V@25A, +12V@83A, [email protected] , +5VSB@3A
MTBF100,000 hours
ApprovalscTUVus, TUV, CB, CCC, BSMI, EAC, CE

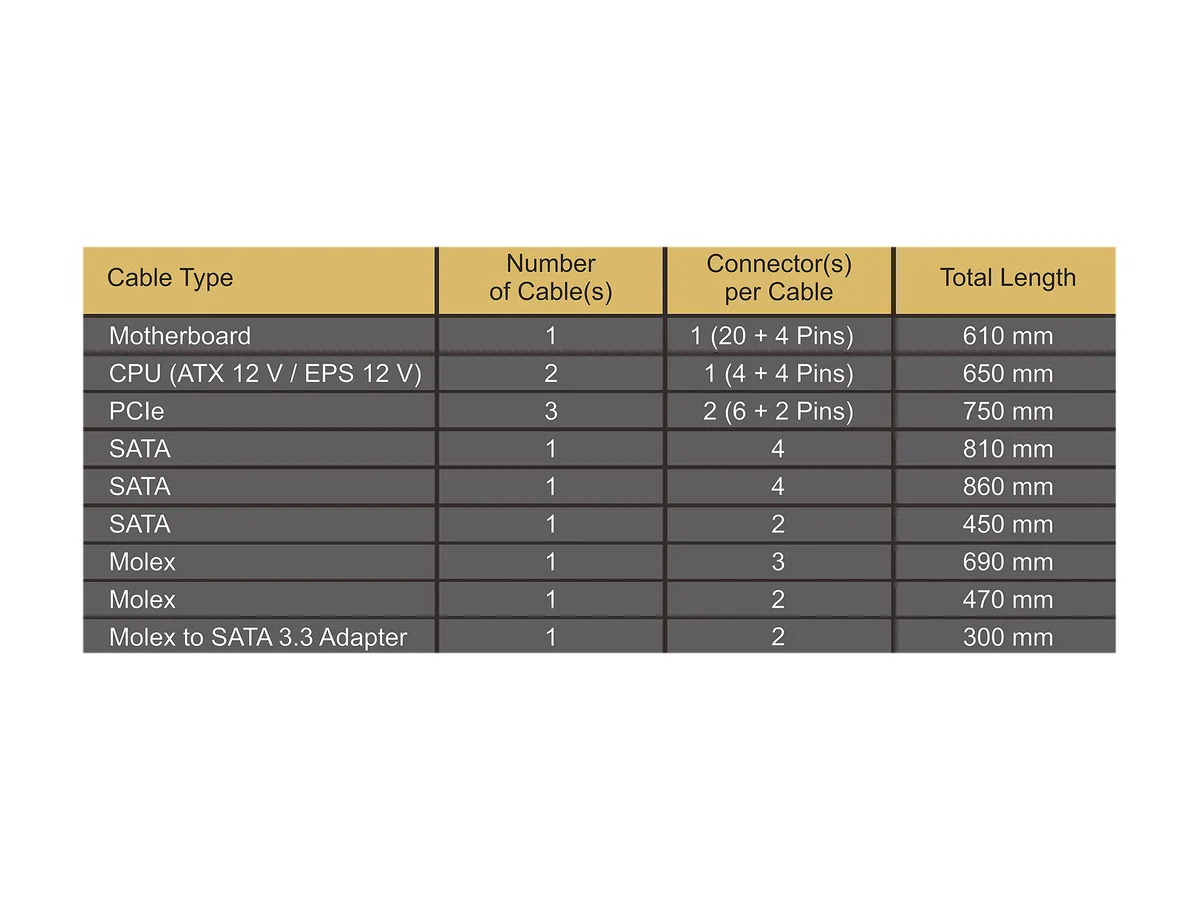

Connectors1 x Main Power (24/20 pins)
2 x CPU (8/4 pins)
6 x PCIe (8/6 pins)
10 x SATA
5 x Peripheral
1 x Floppy
Features80 PLUS Gold certified
Compact Size - 140 mm deep
Tight Voltage Regulation
Cable-free Connection Design
S3FC - Fanless until 30 % load
Multi-GPU setup
Gold plated connectors
Dimensions5.51" x 5.91" x 3.39"
Weight6.80 lbs.
Poids d’expédition3.11 kg
Dimensions du colis318 × 193 × 124 mm

Autres versions de ce modèle

5 de plus dans cette gamme

Même famille, mémoire, ventirad ou fréquence différents — comparez avant de vous décider.

Questions sur cet article

How deep is the 1000 W unit and will it fit my ATX case?

The chassis measures 140 mm deep, which matches the standard ATX form factor and fits all ATX cases.

Which cables must be connected first during a full-modular build?

Attach the 20+4 pin main cable and the required 6+2 pin PCIe cables to the PSU before routing them to the motherboard and graphics card.

How long is the fan rated to run before it may need replacement?

The 120 mm fluid dynamic bearing fan carries a 100000 hour MTBF rating, indicating a very long service life.
