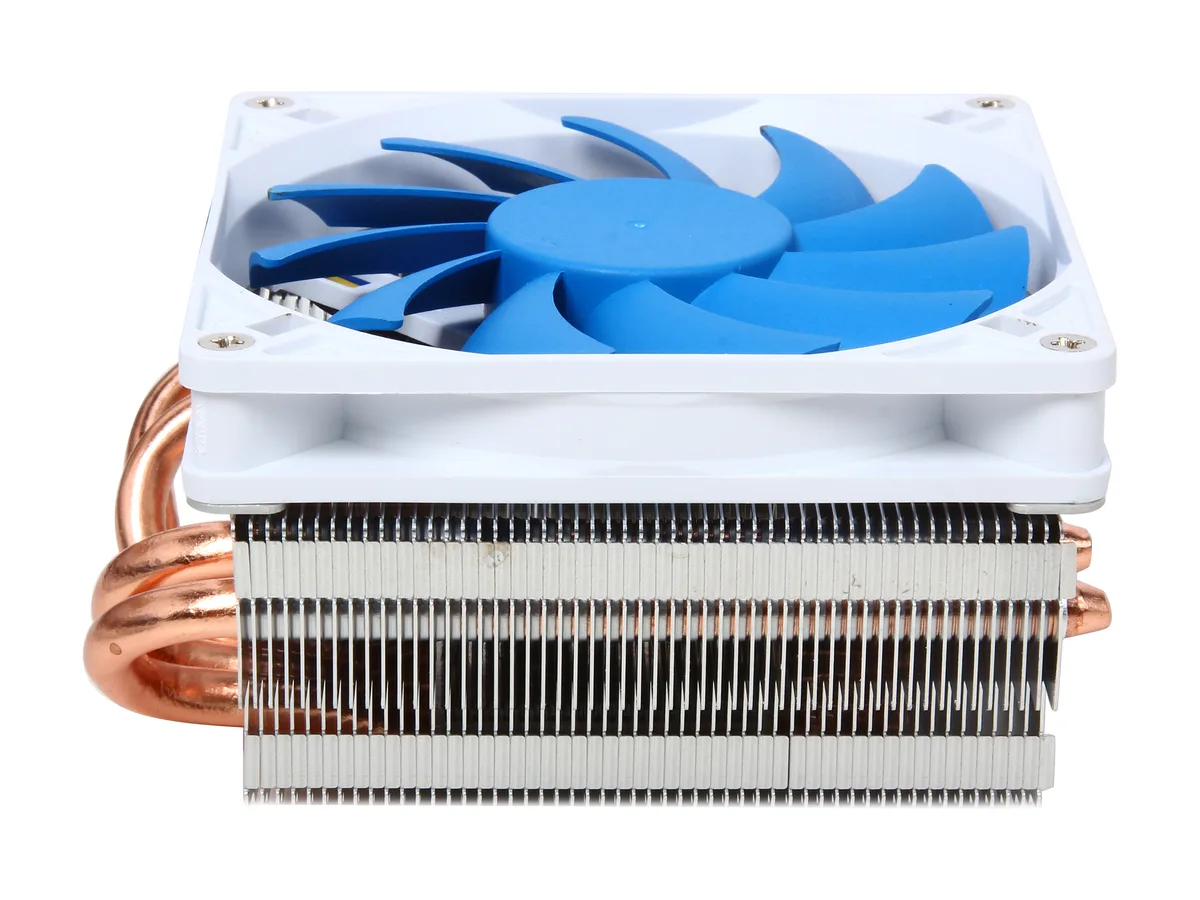

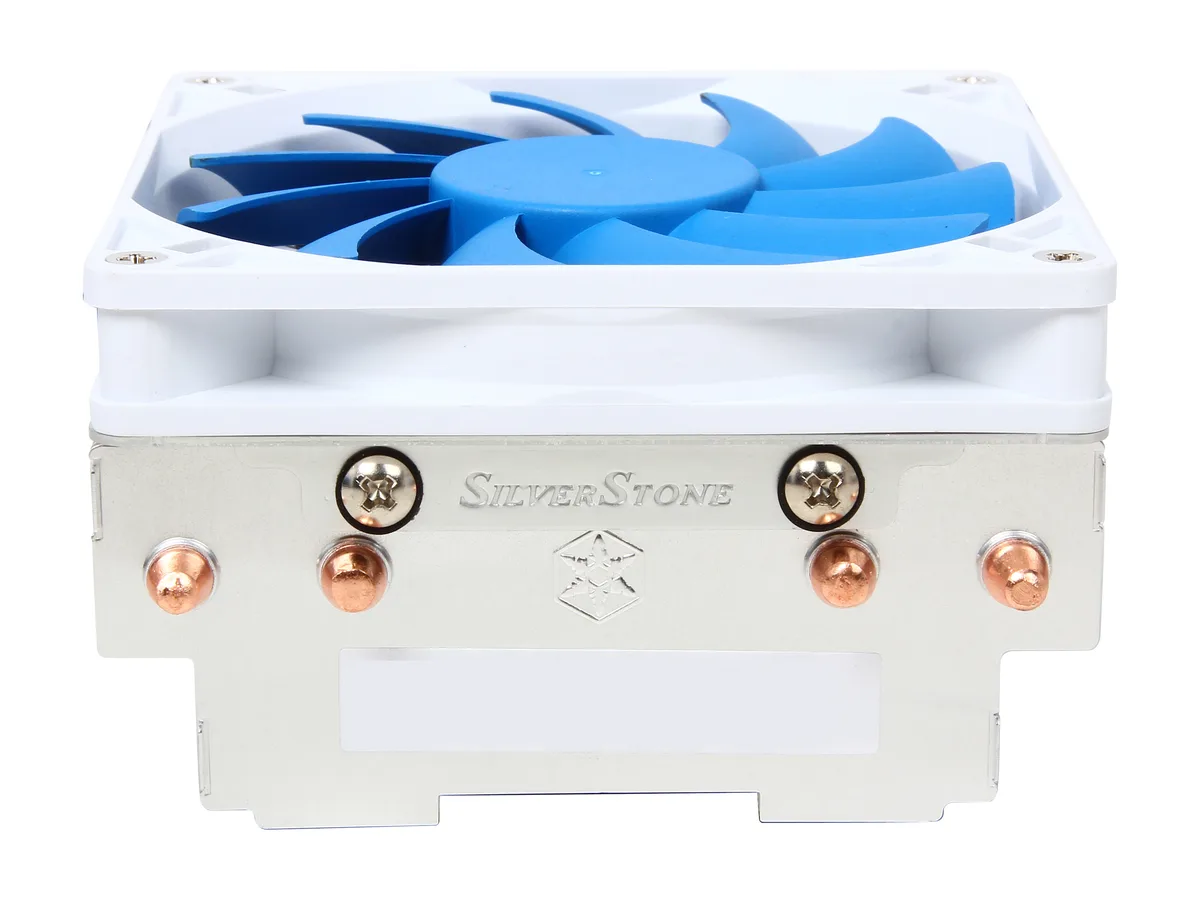

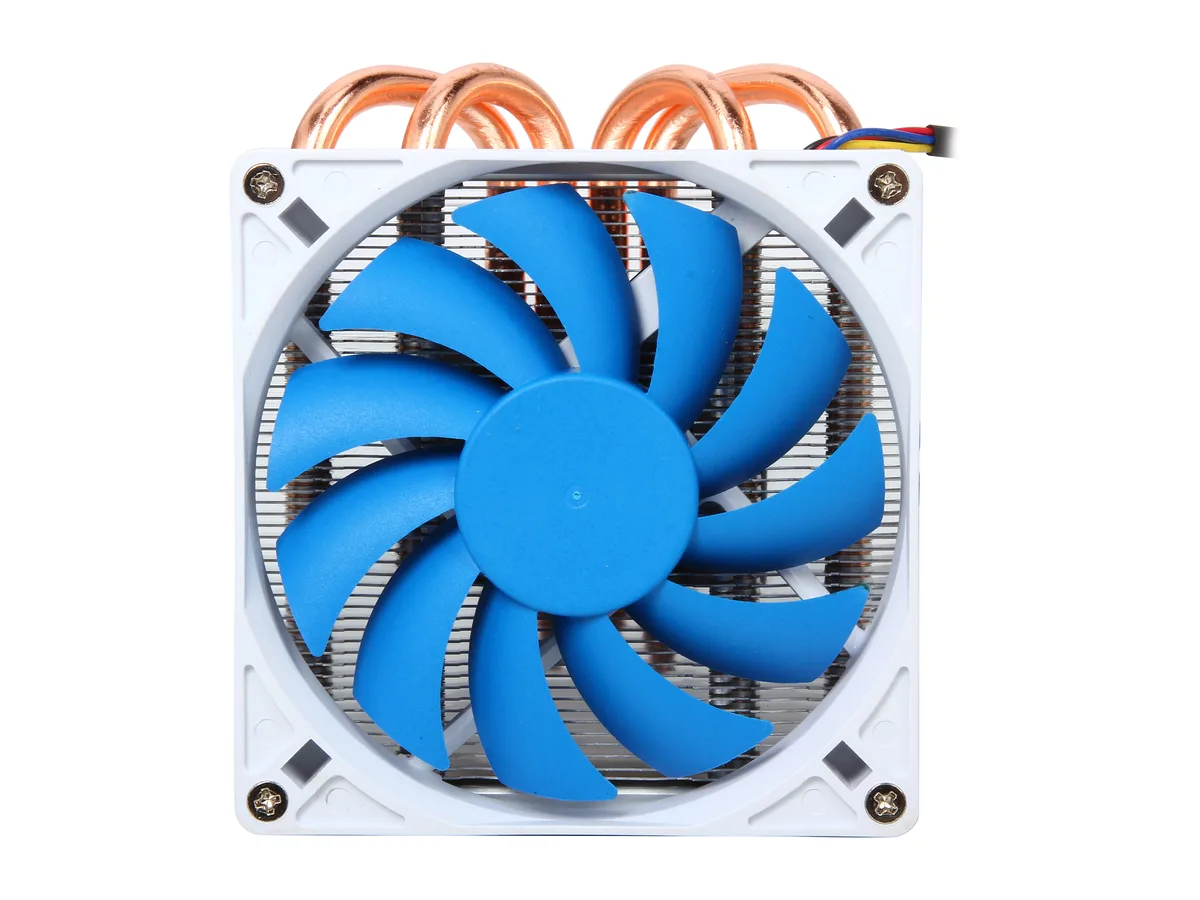

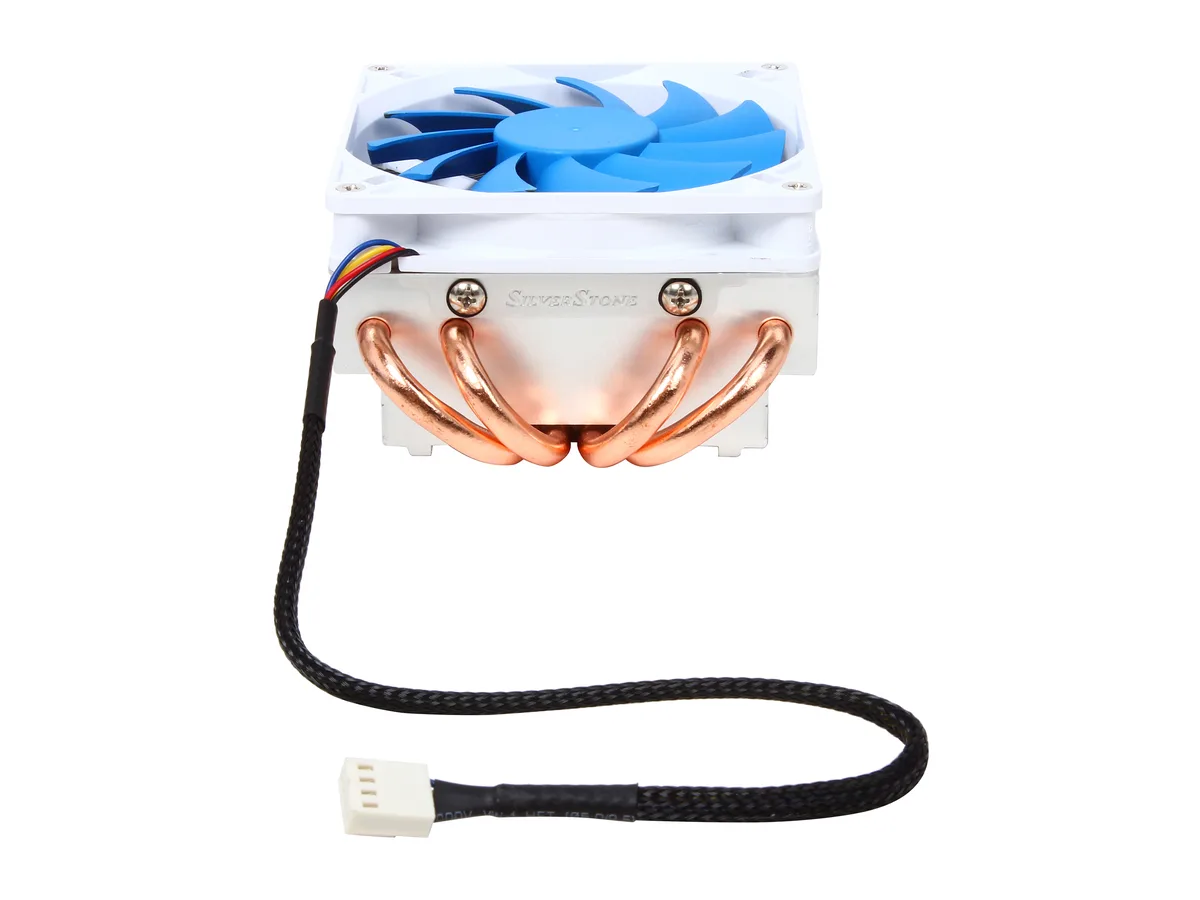

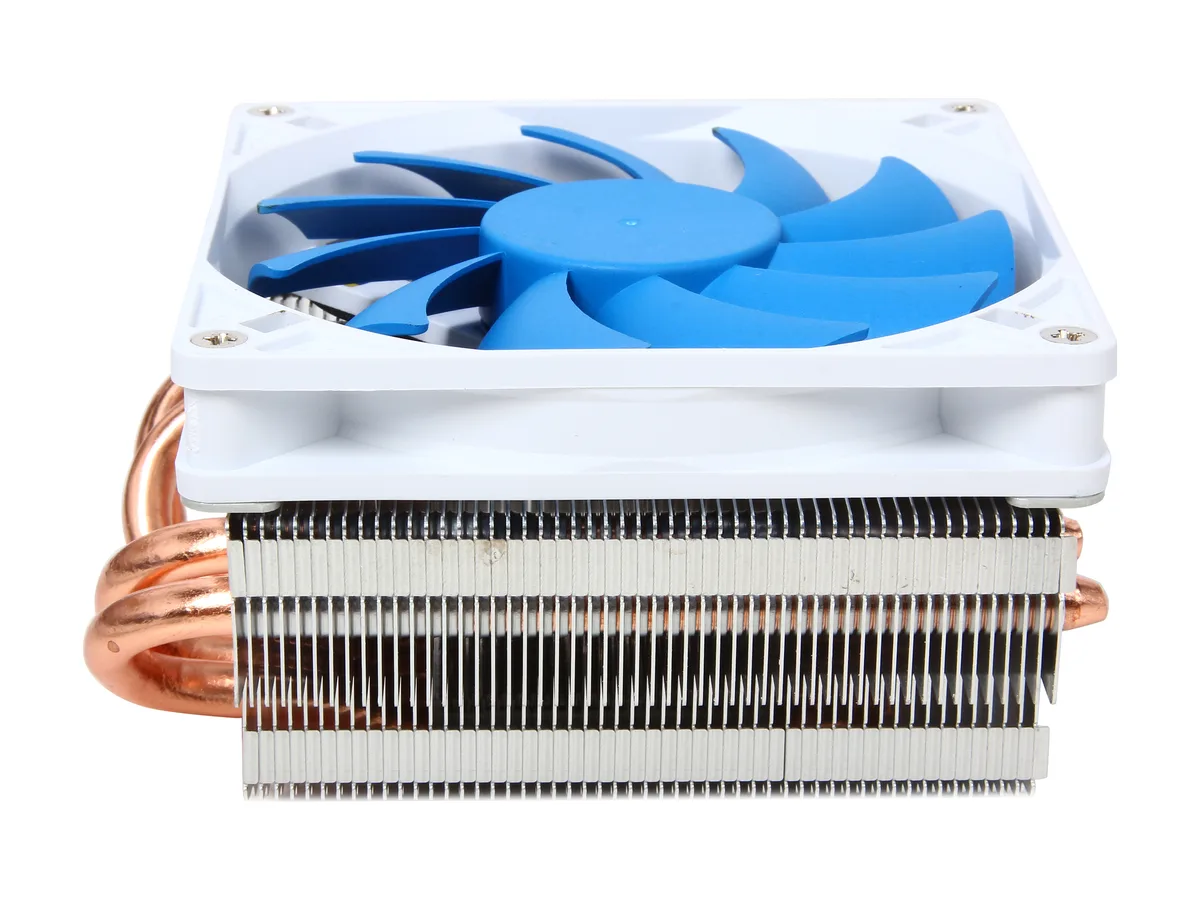

Low-profile silver CPU cooler, 58mm tall with 92mm fan and four copper heat pipes

Silverstone

Silverstone AR06 CPU Cooler 92mm 58mm Low Profile

SKU CH-NH40-W8529 MPN AR06

Low-profile 58 mm CPU cooler with four 6 mm heat-pipes, 92 mm PWM fan and 40.2 CFM airflow for sockets up to 95 W TDP

  • Color2-Tone
  • Fan Size92mm
  • CPU Socket CompatibilityIntel Socket LGA 1156 / 1155 / 1151 / 1150 AMD Socket AM3 /
  • Bearing TypeRifle Bearing
  • RPM1200-2500 RPM PWM
  • Air Flow40.2 CFM (Max.)
  • Fits slim builds with a 58 mm height
  • Four 6 mm heat pipes move heat efficiently
  • Direct-contact pipes touch the CPU for fast transfer
  • 92 mm PWM fan runs 1200–2500 RPM for up to 40.2 CFM
  • Quiet operation at 20–28.3 dBA with rifle bearing

Low-Profile 58 mm Height

The Silverstone AR06 is a compact air cooler built for slim chassis where vertical clearance is limited to 58 mm. Four 6 mm heat-pipes with direct-contact bases transfer heat into an aluminium fin stack. A 92 mm rifle-bearing PWM fan spins between 1200 and 2500 RPM to move up to 40.2 CFM while keeping noise between 20 and 28.3 dBA. The unit weighs 263 g without the fan.

Suits Older-Socket Builds

This cooler fits Intel LGA 1150, 1151, 1155 and 1156 plus AMD AM2, AM3, FM1 and FM2 sockets, making it a direct drop-in for legacy upgrades or replacement in existing small-form-factor systems. Builders working with current-generation platforms or processors above 95 W TDP will need a different mounting solution and greater thermal capacity.

58 mm Maximum Height Decides Fit

The single specification that determines compatibility is the 58 mm overall height with fan installed; any case or motherboard layout that cannot accommodate this dimension will require a lower-profile alternative.

Points forts

  • Fits slim builds with a 58 mm height
  • Four 6 mm heat pipes move heat efficiently
  • Direct-contact pipes touch the CPU for fast transfer
  • 92 mm PWM fan runs 1200–2500 RPM for up to 40.2 CFM
  • Quiet operation at 20–28.3 dBA with rifle bearing

Caractéristiques

BrandSILVERSTONE
SeriesNo
ModelAR06
Color2-Tone
Fan Size92mm
CPU Socket CompatibilityIntel Socket LGA 1156 / 1155 / 1151 / 1150
AMD Socket AM3 / AM2 / FM2 / FM1
Bearing TypeRifle Bearing
RPM1200-2500 RPM PWM
Air Flow40.2 CFM (Max.)
Noise Level20-28.3dBA
Fan Mounting Types to HeatsinkVertical
Max CPU Cooler Height58 mm
Fan Dimensions92mm x 92mm x 15mm
Heatsink Dimensions58mm x 105mm x 92mm (H x W x D) (with fan)
FeaturesDesigned for low profile system at 58mm tall
Four Ø6mm heat-pipes and aluminum fins for excellent heat conducting efficiency
Heat-pipe direct contact (HDC) technology
Includes compact 92mm PWM fan for excellent cooling and low noise
For use with CPUs up to 95W or more*
Intel Socket LGA1155/1156/1150 and AMD Socket AM2/AM3/FM1/FM2 compatible
Poids d’expédition0.51 kg
Dimensions du colis165 × 130 × 64 mm

Questions sur cet article

Which height version should I pick for a compact case?

The cooler stands 58mm tall with the fan installed, so verify your chassis allows at least that much CPU clearance before ordering.

What does the 95W rating mean once the cooler is mounted?

It indicates the thermal design power the heatsink and four 6mm heat-pipes are engineered to dissipate under typical airflow from the 92mm PWM fan.

How does the PWM fan interface affect speed control in practice?

The 4-pin PWM connection lets the motherboard vary fan speed between 1200 and 2500 RPM, delivering up to 40.2 CFM at the top end while keeping noise between 20 and 28.3 dBA.
