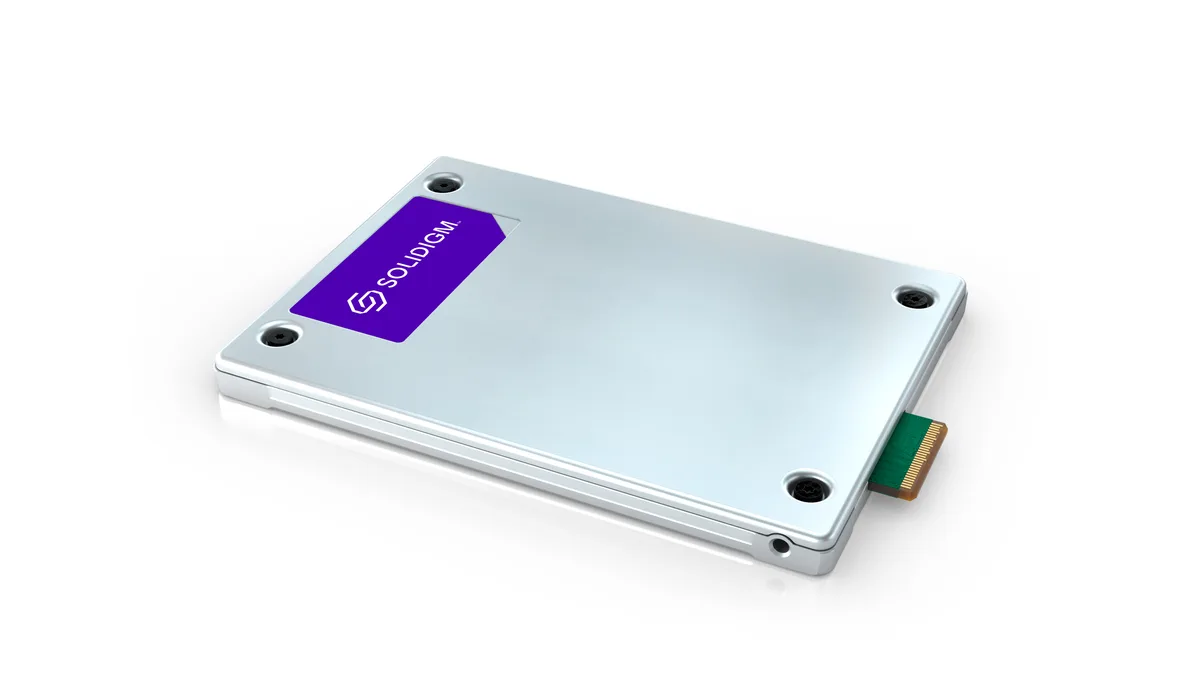

Thin rectangular E3.S SSD with gold edge connector and silver label

Solidigm

Solidigm D5-P5430 3.84TB E3.S 7.5mm PCIe 4.0 x4 enterprise SSD SBFPFABU038TOP1

SKU CH-QY1V-RN9NN MPN SBFPFABU038TOP1

E3.S 7.5mm drive holds 3.84TB of 192L QLC 3D NAND over PCIe 4.0 x4 with 5200 MBps reads and .55 DWPD endurance

  • Form FactorE3.S 7.5mm
  • Capacity3.84TB
  • Memory Components192L QLC 3D NAND
  • InterfacePCI-Express 4.0 x4
  • Max Sequential ReadUp to 5200 MBps
  • Max Sequential WriteUp to 900 MBps

Option 3.84TB E3.S Opal

Voir les 14 autres configurations

Les versions barrées existent, mais ne sont pas disponibles ici.

  • 84 TB capacity stores large read-intensive datasets
  • Up to 5,200 MB/s sequential read accelerates data access
  • 516,000 random read IOPS handles heavy queue depths
  • E3.S 7.5 mm form factor fits dense server bays
  • 55 DWPD endurance rating meets read-focused workloads

Enterprise SSD for read-intensive workloads

The Solidigm D5-P5430 is a 3.84TB enterprise solid-state drive built on 192-layer QLC 3D NAND. It uses an E3.S 7.5mm form factor and connects through a PCI-Express 4.0 x4 interface. The drive targets data-centre and server deployments that prioritise high-capacity sequential reads over write endurance.

Check E3.S slot and power budget

Verify that your chassis or server backplane accepts an E3.S 7.5mm module and can deliver up to 13W active power through the PCIe slot. The drive operates between 0°C and 70°C, so confirm airflow meets that range. Ensure the system firmware supports Opal security if hardware encryption is required.

Fits high-density server builds

The compact E3.S 7.5mm design lets you populate dense storage arrays without the height of traditional U.2 or U.3 drives. PCIe 4.0 x4 provides up to 5200 MBps sequential read bandwidth for fast data ingest. Low 0.55 DWPD endurance suits read-heavy workloads such as content delivery or analytics, freeing write cycles for other tiers.

Points forts

  • 84 TB capacity stores large read-intensive datasets
  • Up to 5,200 MB/s sequential read accelerates data access
  • 516,000 random read IOPS handles heavy queue depths
  • E3.S 7.5 mm form factor fits dense server bays
  • 55 DWPD endurance rating meets read-focused workloads

Caractéristiques

BrandSolidigm
ModelD5-P5430
Part NumberSBFPFABU038TOP1
Form FactorE3.S 7.5mm
Capacity3.84TB
Memory Components192L QLC 3D NAND
InterfacePCI-Express 4.0 x4
Max Sequential ReadUp to 5200 MBps
Max Sequential WriteUp to 900 MBps
4KB Random Read516000 IOPS (4K, QD256)
4KB Random Write54500 IOPS (4K, QD256)
EnduranceUp to 0.55 DWPD, 3.8 PBW
MTBF2,000,000 hours
SecurityOpal
Power Consumption (Idle)5W
Power Consumption (Active)13W
Operating Temperature0°C ~ +70°C
Max Shock Resistance1,000 G (Max) at 0.5 msec
Max Vibration ResistanceOperating 2.17 GRMS (5 - 700 Hz) Max
Non-Operating 3.13 GRMS (5 - 800 Hz) Max
Weight90g +/-10g
Poids d’expédition0.17 kg
Dimensions du colis140 × 110 × 17 mm

Autres versions de ce modèle

5 de plus dans cette gamme

Même famille, mémoire, ventirad ou fréquence différents — comparez avant de vous décider.

Questions sur cet article

Does the D5-P5430 E3.S 7.5mm drive ship with a heatsink or mounting bracket?

The drive is supplied as a bare E3.S 7.5mm module. Any heatsink, carrier or mounting bracket required by your server chassis must be sourced separately.

When should I choose the 3.84TB QLC model over a smaller TLC alternative?

Select this 3.84TB QLC drive when you need maximum read capacity per watt for sequential workloads and can accept 0.55 DWPD endurance.

What sustained write speed can I expect from the 5200 MBps sequential read rating in a live server?

The 5200 MBps figure is a peak sequential read; sustained writes are rated at 900 MBps, with 54,500 random write IOPS at queue depth 256.
