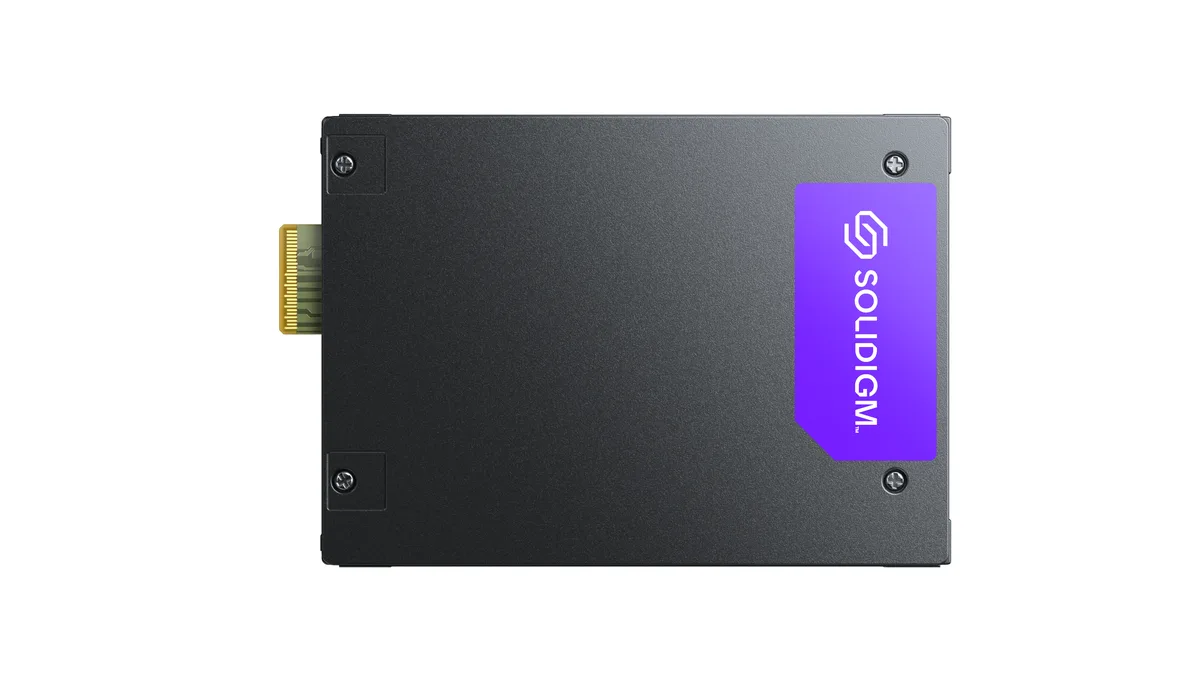

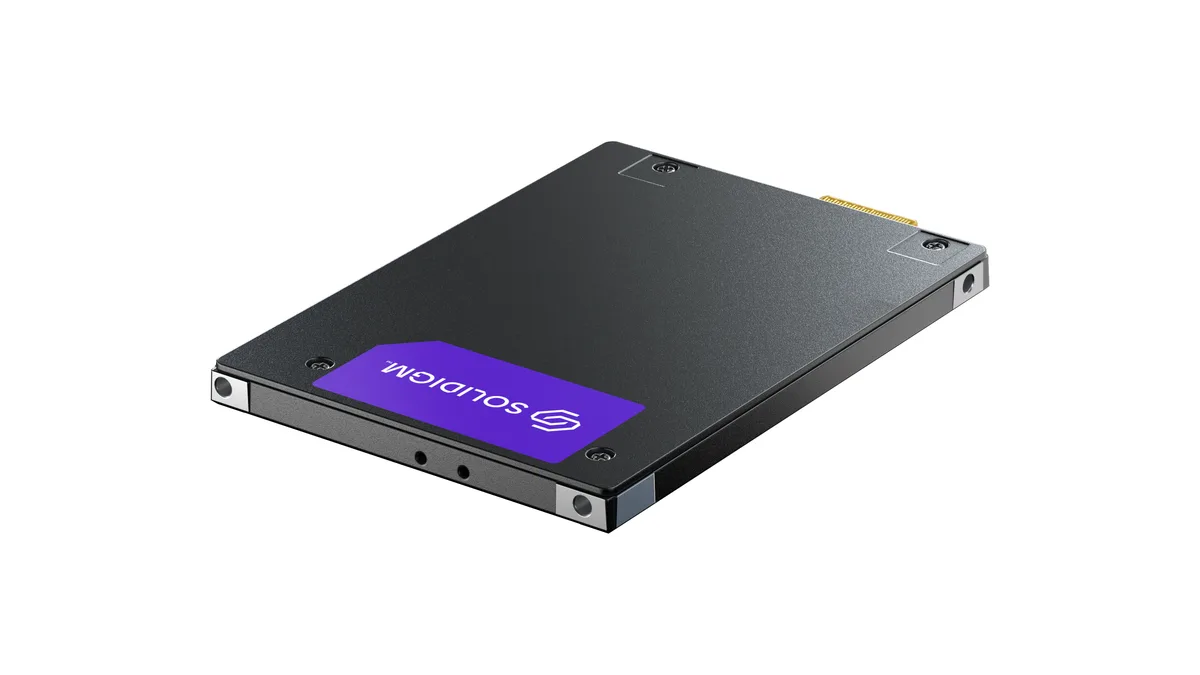

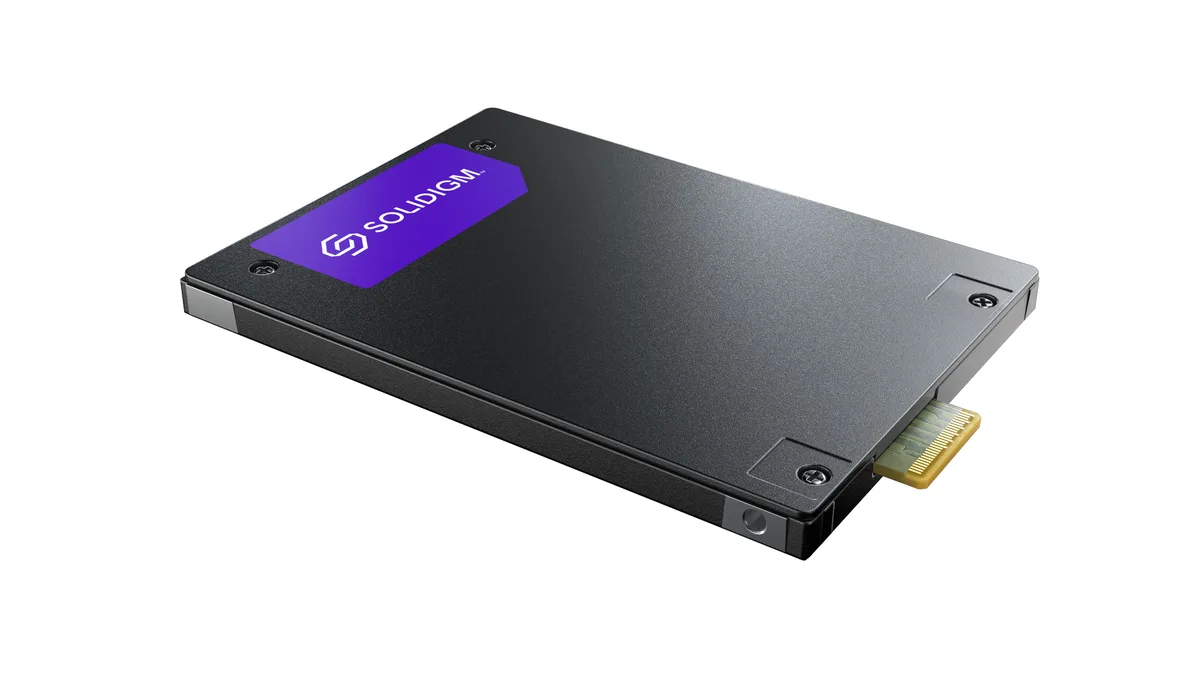

Rectangular E3.S 7.5mm SSD with silver metal casing and gold edge connector

Solidigm

Solidigm SB5PHA7E064TOP1 6.4TB E3.S 7.5mm PCIe 5.0 enterprise SSD

SKU CH-50RM-8QPHA MPN SB5PHA7E064TOP1

E3.S 7.5mm enterprise SSD delivering 6.4TB capacity with 14500 MBps sequential read and 3000000 IOPS random read for data-centre workloads

  • Form FactorE3.S 7.5mm
  • Capacity6.4TB
  • Memory Components176L TLC 3D NAND
  • InterfacePCI-Express 5.0
  • Max Sequential ReadUp to 14500 MBps
  • Max Sequential WriteUp to 10000 MBps

Option 6.4TB E3.S Opal

  • 1.6TB E3.S
  • 1.6TB E3.S FIPS
  • 1.6TB E3.S Opal
  • 1.6TB U.2
  • 1.6TB U.2 FIPS
  • 1.6TB U.2 Opal
  • 12.8TB E3.S
  • 12.8TB E3.S FIPS
  • 12.8TB E3.S Opal
  • 12.8TB U.2
  • 12.8TB U.2 FIPS
  • 12.8TB U.2 Opal
  • 3.2TB E3.S
  • 3.2TB E3.S FIPS
  • 3.2TB E3.S Opal
  • 3.2TB U.2
  • 3.2TB U.2 FIPS
  • 3.2TB U.2 Opal
  • 6.4TB E3.S
  • 6.4TB E3.S FIPS
  • 6.4TB E3.S Opal
  • 6.4TB U.2
  • 6.4TB U.2 FIPS
  • 6.4TB U.2 Opal

Les versions barrées existent, mais ne sont pas disponibles ici.

  • 4 TB capacity supports dense data workloads
  • PCIe 5.0 interface delivers up to 14500 MBps sequential read
  • 3 million random read IOPS accelerates latency-sensitive applications
  • 3 DWPD endurance rating provides 35 PBW write life
  • 5 million hour MTBF ensures long-term reliability

Enterprise E3.S drive for dense servers

The Solidigm D7-PS1030 fits a 7.5 mm E3.S bay and delivers 6.4 TB of 176L TLC 3D NAND. It targets data-centre workloads that need high capacity in a slim, hot-pluggable form factor. Security is handled by Opal encryption. The drive weighs 110 g.

PCIe 5.0 x4 interface limits

The PCI-Express 5.0 x4 link caps sequential throughput at 14 500 MB/s read and 10 000 MB/s write. Random performance reaches 3 000 000 IOPS read and 800 000 IOPS write at 4 KB blocks. Active power draw is 23 W while idle drops to 5 W.

Endurance and thermal headroom

Rated at 3 DWPD the drive sustains 35 PBW over its lifetime. MTBF is 2 500 000 hours. Operating temperature spans 0 °C to 77 °C. Shock tolerance is 1 000 G at .5 ms. Vibration limits are 2.17 GRMS operating and 3.13 GRMS non-operating.

Points forts

  • 4 TB capacity supports dense data workloads
  • PCIe 5.0 interface delivers up to 14500 MBps sequential read
  • 3 million random read IOPS accelerates latency-sensitive applications
  • 3 DWPD endurance rating provides 35 PBW write life
  • 5 million hour MTBF ensures long-term reliability

Caractéristiques

BrandSolidigm
ModelD7-PS1030
Part NumberSB5PHA7E064TOP1
Form FactorE3.S 7.5mm
Capacity6.4TB
Memory Components176L TLC 3D NAND
InterfacePCI-Express 5.0
Max Sequential ReadUp to 14500 MBps
Max Sequential WriteUp to 10000 MBps
4KB Random Read3000000 IOPS (4K Blocks)
4KB Random Write800000 IOPS (4K Blocks)
Endurance3 DWPD / 35 PBW
MTBF2,500,000 hours
SecurityOpal
Power Consumption (Idle)5W
Power Consumption (Active)23W
Operating Temperature0°C to 77°C
Max Shock Resistance1,000 G (Max) at 0.5 msec
Max Vibration ResistanceOperating: 2.17 GRMS (5 - 700 Hz) Max
Non-Operating: 3.13 GRMS (5 - 800 Hz) Max
Weight110g +/- 10g
Poids d’expédition0.09 kg
Dimensions du colis156 × 108 × 19 mm

Autres versions de ce modèle

4 de plus dans cette gamme

Même famille, mémoire, ventirad ou fréquence différents — comparez avant de vous décider.

Questions sur cet article

How do I pick the right capacity from the D7-PS1030 line for my server?

This specific part number is the 6.4TB model. Other capacities exist in the series but are separate part numbers; choose based on your total storage budget and write-endurance needs.

What does the 14500 MBps sequential read figure mean once the drive is installed in a live server?

It is the peak throughput the controller can sustain on large, queue-deep reads; real-world throughput will be lower and depends on workload mix, queue depth and the host PCIe 5.0 link.

What does the PCIe 5.0 x4 interface cap in practice for this SSD?

The x4 lane width limits the drive to the electrical bandwidth of a PCIe 5.0 x4 slot; performance cannot exceed that link even if the controller could go faster.
