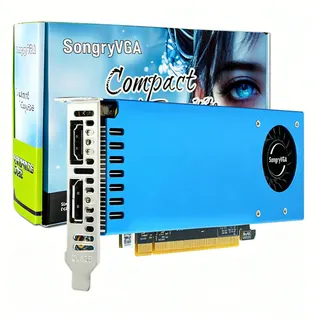

Low-profile RTX 3050 card with single fan, HDMI and DisplayPort outputs

SongryVGA

SongryVGA RTX 3050 6GB Low Profile graphics card

SKU CH-2712-VCTZP

Low-profile RTX 3050 with 6 GB GDDR6 on a 96-bit bus, single fan, 70 W TDP, HDMI 2.0 and DisplayPort 1.4 for dual 4K displays

  • InterfacePCI Express 4.0 x16
  • Chipset ManufacturerNVIDIA
  • GPUGeForce RTX 3050
  • Core Clock1042 MHz
  • Boost Clock1470 MHz
  • Effective Memory Clock1750 MHz (7.0 Gbps)

Memory Size and Output Ports 6GB With HDMI+DP Outputs

  • Low-profile design fits Mini-ITX and SFF builds
  • 6 GB GDDR6 memory with 96-bit interface for fluid gaming

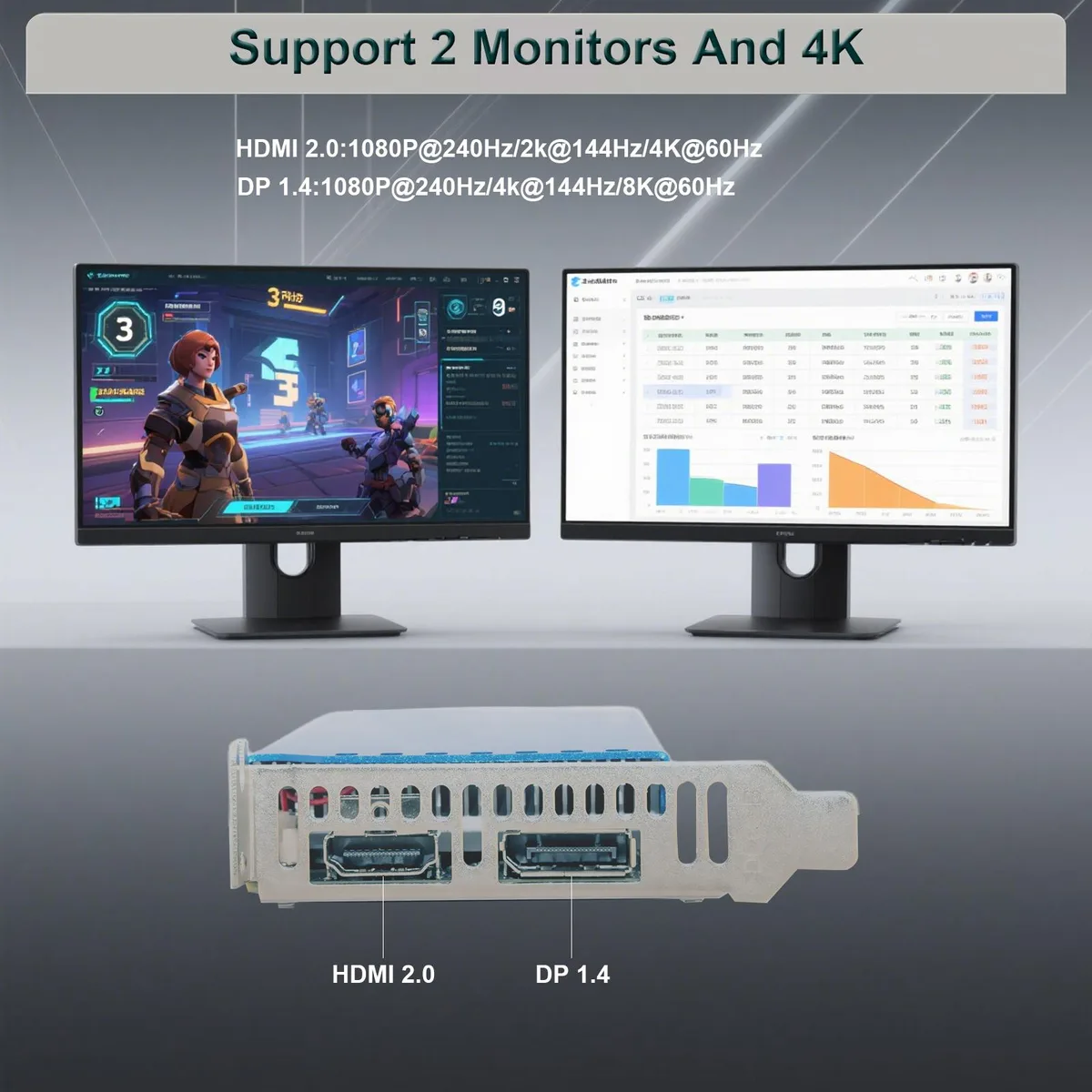

  • HDMI 2.0 plus DisplayPort 1.4 drive two 4K displays
  • 70 W TDP runs on a 200 W PSU without extra power connectors
  • PCIe 4.0 x16 interface with DirectX 12.2 and OpenGL 4.6 support

Low-Profile RTX 3050 for SFF Builds

The SongryVGA RTX 3050 6GB is a low-profile graphics card built for Mini-ITX and small-form-factor systems. It fits thin ITX and HTPC cases where full-height cards cannot be installed. The single-fan cooler keeps the 70 W TDP in check without auxiliary power connectors. It targets users who need modern GPU features in a compact chassis.

PCIe 4.0 x16 and 96-Bit Memory Limits

The card uses a PCI Express 4.0 x16 interface but operates on a 96-bit memory bus with 6 GB of GDDR6 at 7.0 Gbps. This bus width caps peak bandwidth below wider mid-range designs, so texture-heavy 1440p or 4K loads will hit the memory subsystem first. Display outputs are limited to HDMI 2.0 and DisplayPort 1.4, capping external signalling at their respective link rates. Multi-monitor support stops at two displays.

70 W TDP Decides PSU Fit

The 70 W thermal design power and 200 W recommended PSU mean the card draws all power from the slot. No six-pin or eight-pin connector is present, so the host power supply must deliver 70 W reliably on the 12 V rail. If the system PSU is below 200 W or lacks headroom on that rail, the card will not run stably.

Points forts

  • Low-profile design fits Mini-ITX and SFF builds
  • 6 GB GDDR6 memory with 96-bit interface for fluid gaming
  • HDMI 2.0 plus DisplayPort 1.4 drive two 4K displays
  • 70 W TDP runs on a 200 W PSU without extra power connectors
  • PCIe 4.0 x16 interface with DirectX 12.2 and OpenGL 4.6 support

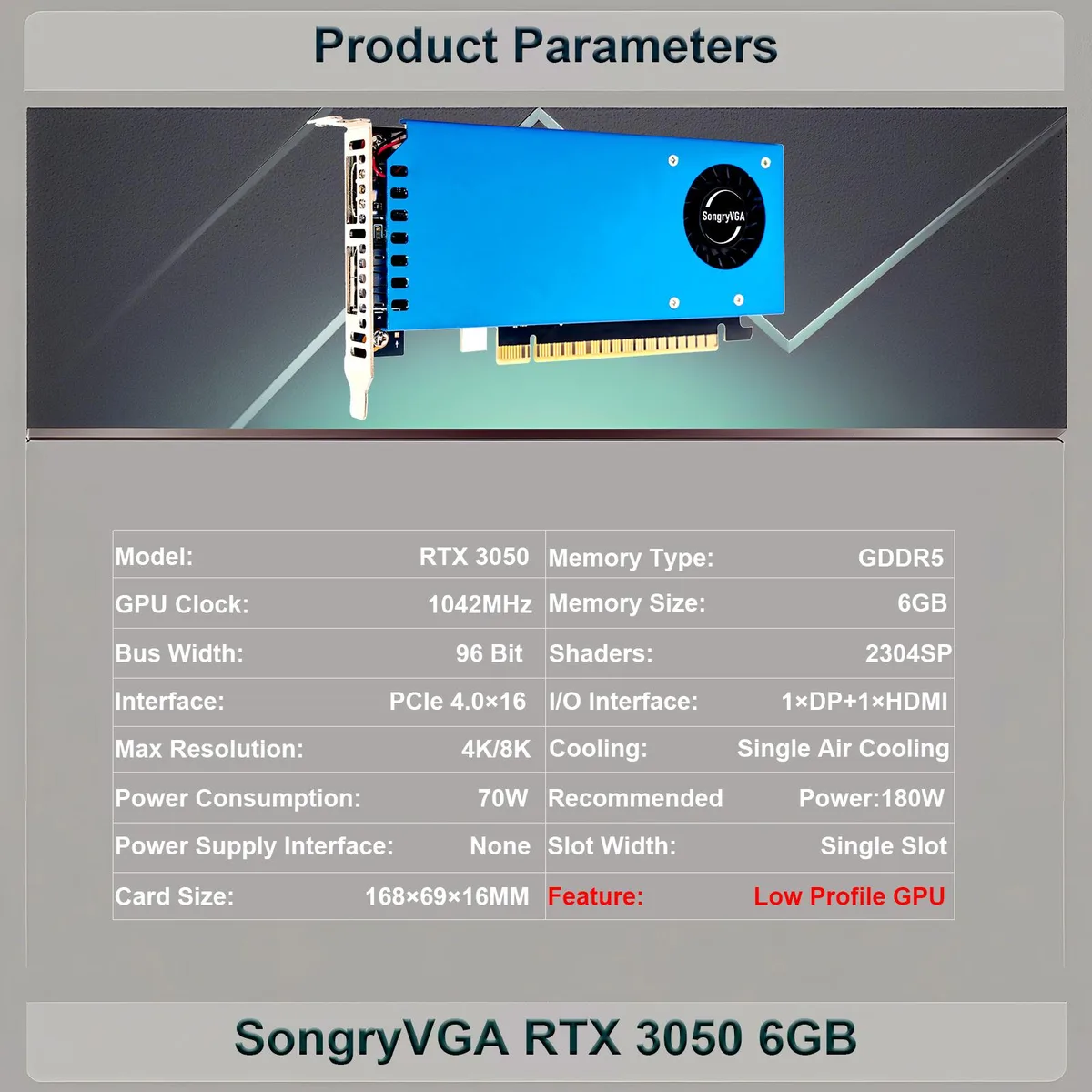

Caractéristiques

BrandSongryVGA
ModelSY305D6LP6G1
InterfacePCI Express 4.0 x16
Chipset ManufacturerNVIDIA
GPUGeForce RTX 3050
Core Clock1042 MHz
Boost Clock1470 MHz
Effective Memory Clock1750 MHz (7.0 Gbps)
Memory Size6GB
Memory Interface96-Bit
Memory TypeGDDR6
DirectXDirectX 12.2
OpenGLOpenGL 4.6
Multi-Monitor Support2
HDMI1 x HDMI 2.0
DisplayPort1 x DisplayPort 1.4
Max Resolution3840 x 2160
CoolerSingle Fan
Thermal Design Power70W
Recommended PSU Wattage200W
FeaturesSmall Form Factor Ready
Form FactorLow Profile Ready
Max GPU Length168 mm
Low Profile Bracket IncludedYes
Card Dimensions (L x H)168mm*69mm
Slot WidthSingle Slot

Autres versions de ce modèle

1 de plus dans cette gamme

Même famille, mémoire, ventirad ou fréquence différents — comparez avant de vous décider.

Questions sur cet article

Should I pick the 6 GB GDDR6 version for a small-form-factor build?

The 6 GB GDDR6 model uses a 96-bit memory interface and fits low-profile slots, making it the only variant suited for Mini-ITX and SFF cases.

What does the 1470 MHz boost clock deliver inside a real PC?

The 1470 MHz boost clock drives the RTX 3050 GPU to handle 1080p gaming and multi-monitor workloads within a 70 W power envelope.

How does the PCIe 4.0 x16 interface limit performance?

The card runs at PCIe 4.0 x16 speeds, so bandwidth caps at the slot’s 16 GT/s per lane; older PCIe 3.0 motherboards will halve that ceiling.
