Low-profile GTX 1060 card with single fan and dual HDMI ports

SongryVGA

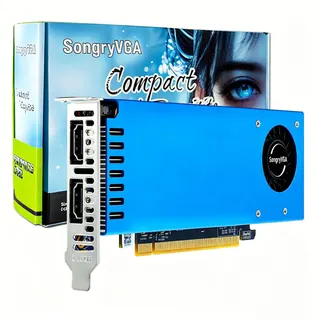

SongryVGA SY1062H61 GTX 1060 6GB Low Profile graphics card

SKU CH-18KJ-AV72S

Low-profile GTX 1060 with 6 GB GDDR5, dual HDMI 2.0 outputs, and a 65 W TDP for small-form-factor builds

  • InterfacePCI Express 3.0 x16
  • Chipset ManufacturerNVIDIA
  • GPUGeForce GTX 1060
  • Core Clock1506 MHz
  • Boost Clock1709 MHz
  • Effective Memory Clock2002 MHz

Memory Size & Output Ports 6 GB with HDMI + HDMI Outputs

  • Low-profile build fits compact SFF and thin ITX cases
  • Dual HDMI 2.0 ports drive two 4K displays simultaneously
  • 6 GB GDDR5 on 192-bit bus delivers 1060-class frame rates
  • 65 W TDP runs cool with a single-fan cooler
  • PCIe 3.0 x16 interface supports Windows 7 through 11 and Linux

Compact GTX 1060 for small-form-factor builds

The SongryVGA SY1062H61 is a low-profile GeForce GTX 1060 with 6GB of GDDR5 memory on a 192-bit bus. It targets slim desktops, HTPC enclosures and thin ITX systems that cannot fit full-height cards. A 65 W thermal design power keeps heat output modest for tight chassis airflow.

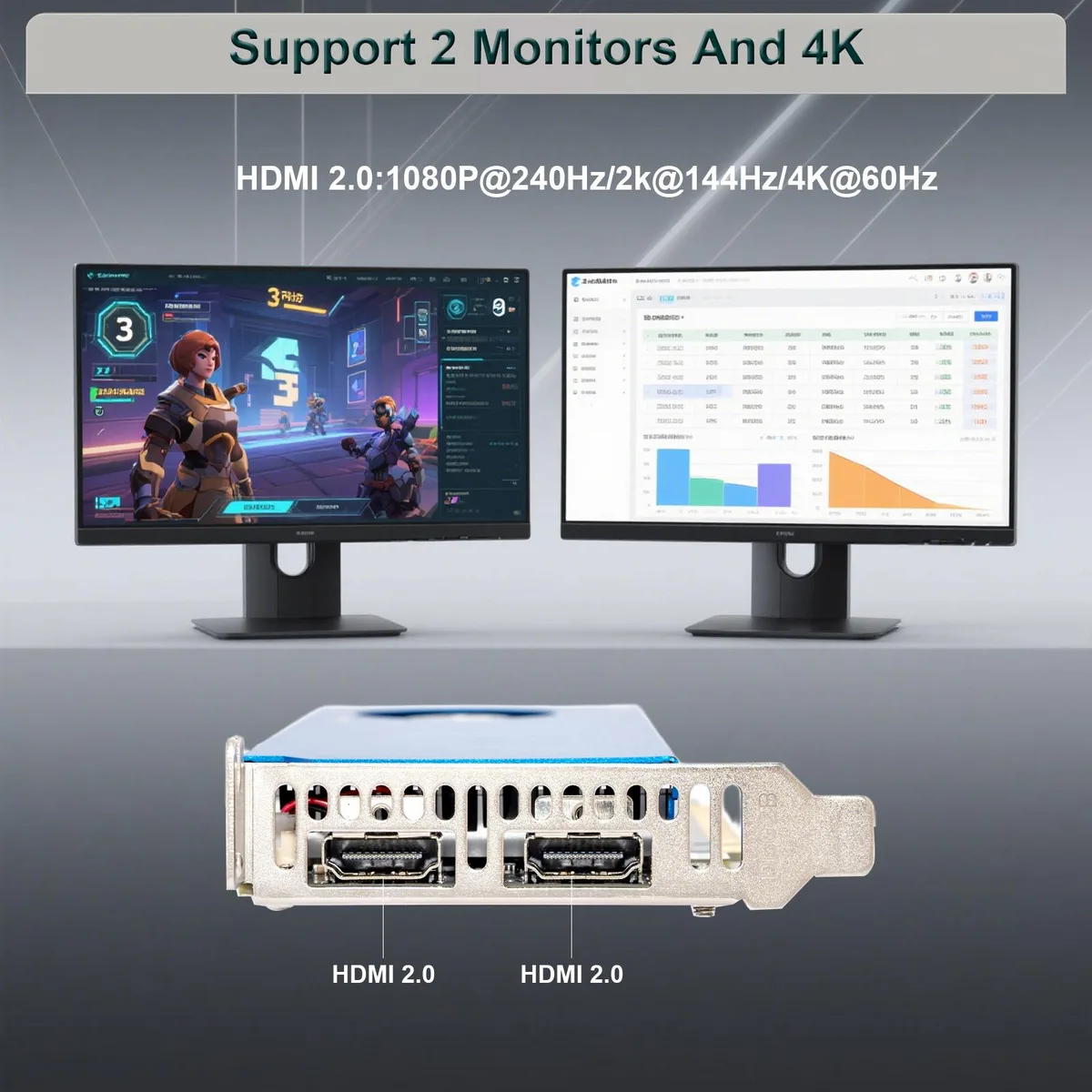

Dual HDMI 2.0 and included full-height bracket

Two HDMI 2.0 ports drive two 4K displays at 3840 x 2160 for multi-monitor productivity or entertainment. The bundled full-height bracket lets the same card move into a standard ATX case without extra hardware. Driver support spans Windows 7 through 11 and major Linux distributions.

Single-fan cooler on a PCIe 3.0 x16 board

A single axial fan exhausts heat toward the rear slot, a practical layout for cramped layouts where side clearance is limited. The PCI Express 3.0 x16 edge connector provides full bandwidth for the GP106 GPU at 1506 MHz base and 1709 MHz boost clocks. No external power connector is required.

Points forts

  • Low-profile build fits compact SFF and thin ITX cases
  • Dual HDMI 2.0 ports drive two 4K displays simultaneously
  • 6 GB GDDR5 on 192-bit bus delivers 1060-class frame rates
  • 65 W TDP runs cool with a single-fan cooler
  • PCIe 3.0 x16 interface supports Windows 7 through 11 and Linux

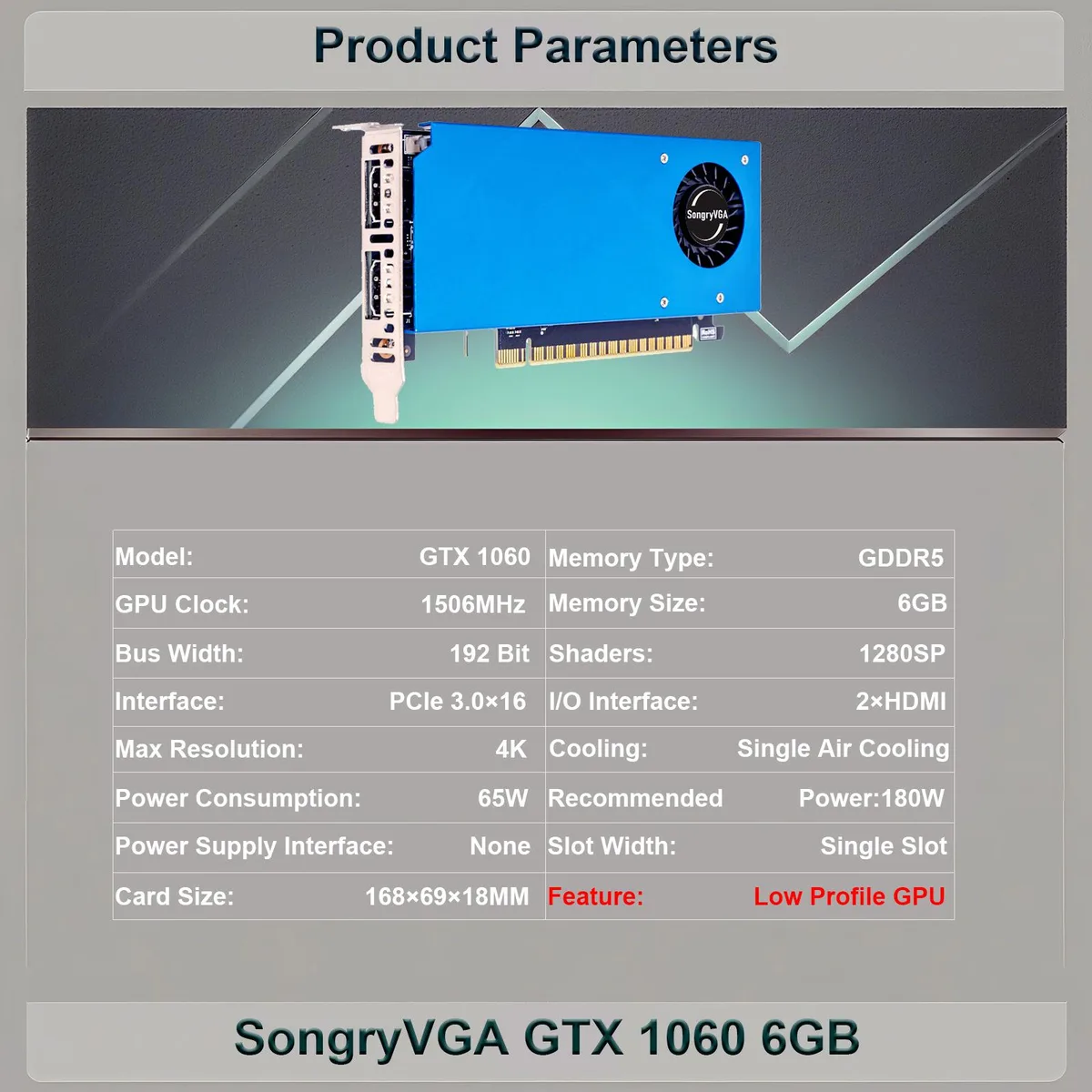

Caractéristiques

BrandSongryVGA
ModelSY1062H61
InterfacePCI Express 3.0 x16
Chipset ManufacturerNVIDIA
GPUGeForce GTX 1060
Core Clock1506 MHz
Boost Clock1709 MHz
Effective Memory Clock2002 MHz
Memory Size6GB
Memory Interface192-Bit
Memory TypeGDDR5
DirectXDirectX 12.1
OpenGLOpenGL 4.6
Multi-Monitor Support2
HDMI2 x HDMI 2.0
Max Resolution3840 x 2160
CoolerSingle Fan
Thermal Design Power65W
FeaturesSmall Form Factor Ready
Form FactorLow Profile Ready
Max GPU Length168 mm
Low Profile Bracket IncludedYes
Card Dimensions (L x H)168mm*69mm
Slot WidthSingle Slot
Package ContentsFull Height Bracket*1

Autres versions de ce modèle

2 de plus dans cette gamme

Même famille, mémoire, ventirad ou fréquence différents — comparez avant de vous décider.

Questions sur cet article

Does the single fan on the SY1062H61 need periodic cleaning or replacement?

The single fan should be cleaned of dust every few months to maintain airflow; if it becomes noisy or stops spinning, it can be replaced with a compatible low-profile fan assembly.

What thermal limit appears first when the 65W GTX 1060 runs at 1709 MHz boost for long periods?

The 65W thermal design power is the first limit; the compact cooler will hit its heat-dissipation ceiling before the GPU reaches any higher power state.

How loud and hot does the card get when both HDMI 2.0 outputs drive 3840 x 2160 displays all day?

Under sustained dual 4K load the single fan spins faster, producing audible but not extreme noise, while the 65W TDP keeps case temperatures moderate in ventilated SFF chassis.
