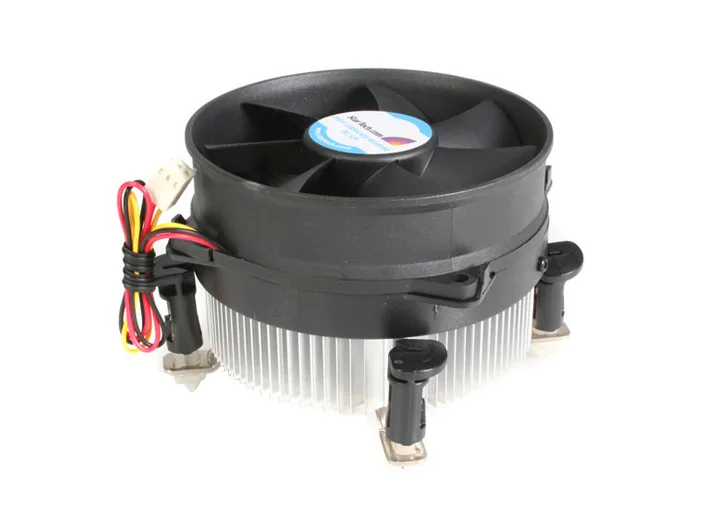

Black 95mm CPU cooler with aluminum heatsink and vertical fan mount

STARTECH

STARTECH FAN775E 95mm CPU cooler for LGA 775/771

SKU CH-Y8B5-MKS73 MPN FAN775E

95 mm aluminum heatsink with 2600 RPM Ever-Lubricate fan delivers 49.37 CFM at under 22.2 dBA for LGA 775/771 sockets

  • ColorBlack
  • TypeFan & Heatsinks
  • Fan Size95mm
  • CPU Socket CompatibilityIntel LGA 775 / 771
  • Bearing TypeEver Lubricate
  • RPM2600 +/- 10% RPM (Add Heatsink to fan): 2800 +/- 10% RPM

Model Socket T/LGA 775

  • Quiet cooling with noise under 22.2 dBA
  • High airflow delivers 49.37 CFM for effective heat removal
  • Ever-Lubricate bearing extends fan lifespan
  • Fits Intel LGA 775 and 771 sockets
  • Compact 68 mm height suits tight cases

Socket 775/771 cooler with 95mm fan

The STARTECH FAN775E pairs an aluminum heatsink with a 95mm Ever Lubricate fan for Intel LGA 775 and 771 sockets. It suits owners of Core 2 Duo or Core 2 Quad systems who need a direct replacement cooler. Builders working on modern platforms cannot use this mounting pattern.

3-pin power and 68mm height limit

The cooler connects through a standard 3-pin header, so speed reporting works but PWM control is not available. Maximum installed height is 68mm, which restricts case choice to chassis that clear this dimension. Airflow reaches 49.37 CFM at 2600 RPM, rising to 2800 RPM with the heatsink attached.

Vertical fan mount and sub-22 dBA noise

The fan mounts vertically on the heatsink, directing air down through the aluminum fins toward the motherboard. Noise stays below 22.2 dBA at full speed, keeping acoustic output low for office or bedroom PCs. The unit weighs 374g and measures 95x95x25mm for the fan, with the heatsink at 2.67x3.74x3.74 inches.

Points forts

  • Quiet cooling with noise under 22.2 dBA
  • High airflow delivers 49.37 CFM for effective heat removal
  • Ever-Lubricate bearing extends fan lifespan
  • Fits Intel LGA 775 and 771 sockets
  • Compact 68 mm height suits tight cases

Caractéristiques

BrandStarTech.com
ModelFAN775E
ColorBlack
TypeFan & Heatsinks
Fan Size95mm
CPU Socket CompatibilityIntel LGA 775 / 771
Bearing TypeEver Lubricate
RPM2600 +/- 10% RPM
(Add Heatsink to fan): 2800 +/- 10% RPM
Air Flow49.37 CFM
Noise Level<22.2 dBA
Power Connector3 Pin
Heatsink MaterialAluminum
Fan Mounting Types to HeatsinkVertical
Max CPU Cooler Height68 mm
Fan Dimensions95 x 95 x 25mm
Heatsink Dimensions2.67" x 3.74" x 3.74"
Weight374g
Poids d’expédition0.42 kg
Dimensions du colis117 × 109 × 99 mm

Autres versions de ce modèle

1 de plus dans cette gamme

Même famille, mémoire, ventirad ou fréquence différents — comparez avant de vous décider.

Questions sur cet article

Should I pick the 95mm fan version or a different size for my LGA 775 build?

This cooler uses a fixed 95mm fan paired with an aluminum heatsink, so there is no alternative size to choose; it is built specifically for LGA 775 and 771 sockets.

What does the 49.37 CFM airflow figure deliver once the cooler is installed?

The 49.37 CFM rating comes from the 95mm Ever-Lubricate fan spinning at up to 2800 RPM with the heatsink attached, moving that volume of air through the aluminum fins to draw heat off the CPU.

What does the 3-pin power connector mean for fan-speed control on my motherboard?

The 3-pin connector allows voltage-based speed control from the motherboard header; the fan will run between 2600 and 2800 RPM depending on the voltage the board supplies.
