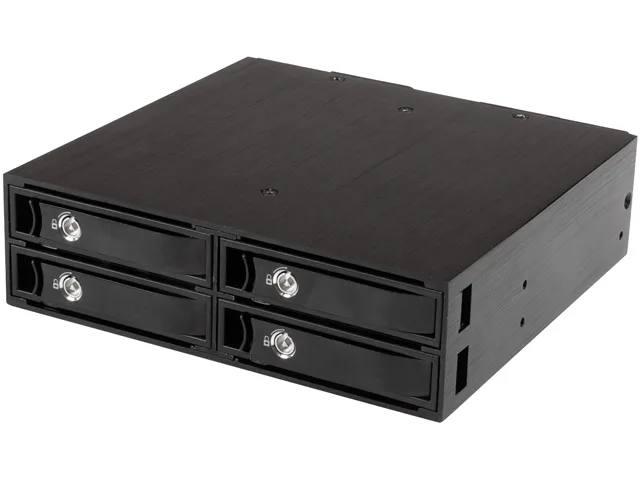

Black metal four-bay mobile rack backplane with two 40 mm fans and lockable trays

STARTECH

STARTECH SATSASBP425 4-bay 2.5in SATA SAS mobile rack backplane ssd accessory

SKU CH-SH0G-G0ZVB MPN SATSASBP425

A four-bay mobile rack backplane fits four 2.5in SATA or SAS drives into one 5.25in bay with lockable trays and dual 40 mm fans

  • ColorBlack
  • Mobile Rack InterfaceSATA I/II/III/SAS
  • Protection CaseMultiple Drives
  • Compatible Products2.5"
  • SpecificationsCompatible Drive Types (Type and Rate): SAS & SATA Drive Ins
  • FeaturesBuild your storage system by adding four 2.5in SAS or SATA d

Model 5.25in

  • PCI Expansion Card Slot
  • 5.25in

Les versions barrées existent, mais ne sont pas disponibles ici.

Option 4-Bay (2.5in SATA/SAS)

  • 4-Bay (2.5in SATA/SAS)
  • 1-Bay (2.5in SATA)

Les versions barrées existent, mais ne sont pas disponibles ici.

  • Hot-swap four drives in a single 5.25in bay
  • Supports 2.5in SAS and SATA drives from 5-15mm
  • Lockable removable trays rated for 50000 insertions
  • Dual 40mm sleeve-bearing fans keep drives cool
  • Durable metal housing protects drives during transport

Four-bay 2.5in SATA/SAS mobile rack

The StarTech.com SATSASBP425 fits four 2.5in SAS or SATA drives into a single 5.25in bay. Removable trays with a key lock enable hot-swap operation for quick drive changes. Two 40 mm sleeve-bearing fans provide active cooling for the installed drives. The unit supports drive thicknesses from 5 mm to 15 mm.

Suited for hot-swap SAS/SATA arrays

This backplane suits builders who want removable 2.5in drives in a standard 5.25in slot with hardware RAID or software arrays. The 50,000-plus insertion rating and metal housing support frequent swaps for backup or drive-sharing workflows. Systems that require more than four drive bays or a different drive form factor will need another solution. Builds without a 5.25in bay cannot install this unit.

SATA and SAS 6 Gbps interface

The backplane connects each tray through SATA I, II, III and SAS interfaces at up to 6 Gbps. This single specification determines whether the host controller and drives can communicate at full speed. Compatibility with 5 mm to 15 mm drives covers most 2.5in SSDs and HDDs including the Samsung 840 EVO.

Points forts

  • Hot-swap four drives in a single 5.25in bay
  • Supports 2.5in SAS and SATA drives from 5-15mm
  • Lockable removable trays rated for 50000 insertions
  • Dual 40mm sleeve-bearing fans keep drives cool
  • Durable metal housing protects drives during transport

Caractéristiques

BrandStarTech.com
ModelSATSASBP425
ColorBlack
Mobile Rack InterfaceSATA I/II/III/SAS
Protection CaseMultiple Drives
Compatible Products2.5"
SpecificationsCompatible Drive Types (Type and Rate): SAS & SATA
Drive Installation: Removable
Drive Size: 2.5in
Fan Bearing Type: Sleeve Bearing
Fan(s): Yes
Fans: 2 - 40 mm
Interface:
SATA
SAS
Key Lock: Yes
Number of 2.5 inch bays: 4
Number of Drives: 4
Supported Drive Height(s):
5mm
9.5mm
12.5mm
15mm
Hot Swap Capability: Yes
Insertion Rating: 50,000
Max Drive Capacity: Tested with hard drives up to 2TB at 7200 RPM
Maximum Data Transfer Rate : 6 Gbps
MTBF: 30,000
Noise Level: 20 dBA
Port Multiplier: No
Type and Rate: SATA III (6 Gbps)
Drive Connectors: 4 - SATA Data & Power Combo (7+15 pin) Recep
FeaturesBuild your storage system by adding four 2.5in SAS or SATA drives into one 5.25in bay
Supports a wide range of SSDs and HDDs from 5-15mm

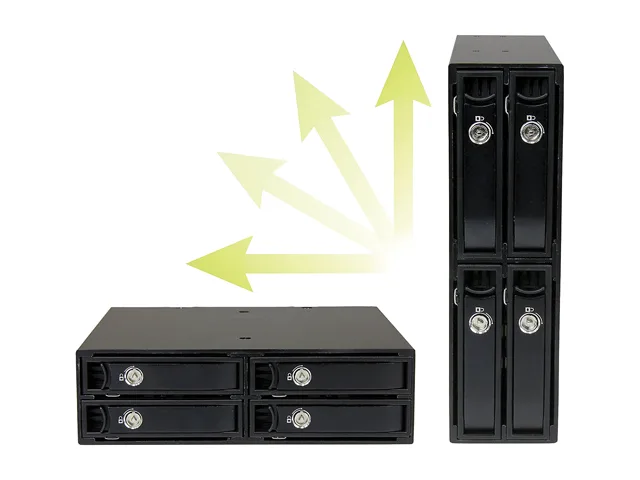

Easy, error free insertion of tray with vertically or horizontally mounted backplane

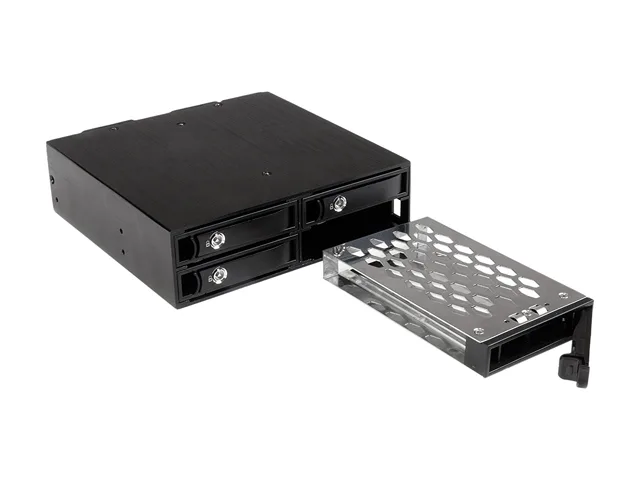

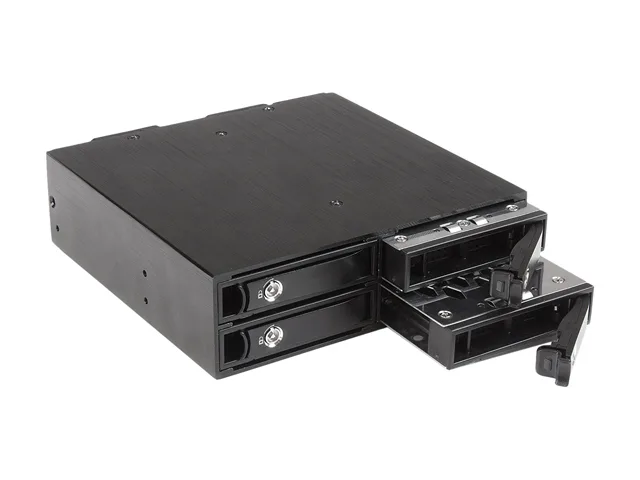

Lockable, removable trays provide drive protection
NSS connector provides 50,000+ insertion rating for long-lasting performance
Interchangeable drive trays also work with the 1-bay backplane (SATSASBP125)
High-quality metal housing provides enhanced heat dissipation

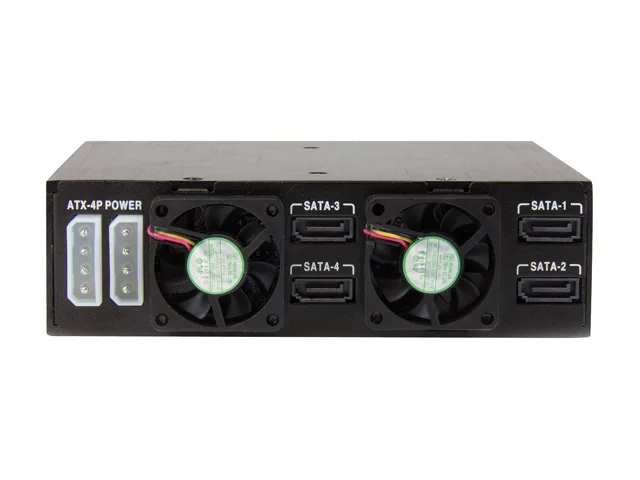

Two 40mm fans to optimize ventilation
Flammability rating of UL 94 V-O
Support for SAS II and SATA I,
Poids d’expédition1.08 kg
Dimensions du colis218 × 201 × 81 mm

Questions sur cet article

Will the SATSASBP425 fit into the 5.25in bay on my older desktop case?

Yes, the unit mounts in a single 5.25in bay and accepts four 2.5in SATA or SAS drives up to 15mm thick, so existing drives you already own will install without adapters.

How can I verify the SATSASBP425 is operating correctly once installed?

The two 40mm sleeve-bearing fans should spin up immediately, the tray key locks will engage with a click, and each drive appears in BIOS or OS disk management at full SATA III or SAS II 6 Gbps link speed.

What comes with the SATSASBP425 and what must I supply?

The package includes the backplane, four lockable removable trays, mounting hardware and two pre-installed 40mm fans; you provide the 2.5in SATA or SAS drives and the host SATA or SAS cables.
