Supermicro AS -1115CS-TNR-G1 1U rack server EPYC 9454P 48-core 384GB DDR5 2x 960GB NVMe
1U rack server with AMD EPYC 9454P 48-core processor, 384GB DDR5-5600 memory, dual 960GB M.2 NVMe SSDs, and redundant 860W power supplies
- WorkloadGeneral Purpose Server
- TypeRack
- Rack Height1U
- LEDsDrive activity Network activity Power status Universal Infor
- Hot-swap Fans6x 4cm heavy duty fans with optimal fan speed control
- CPU TypeAMD EPYC 9004 Series
- 48-core EPYC 9454P handles heavy workloads
- 384GB DDR5-5600 memory for fast data access
- 2x 960GB NVMe SSDs provide rapid storage
- Dual 860W platinum power supplies ensure redundancy

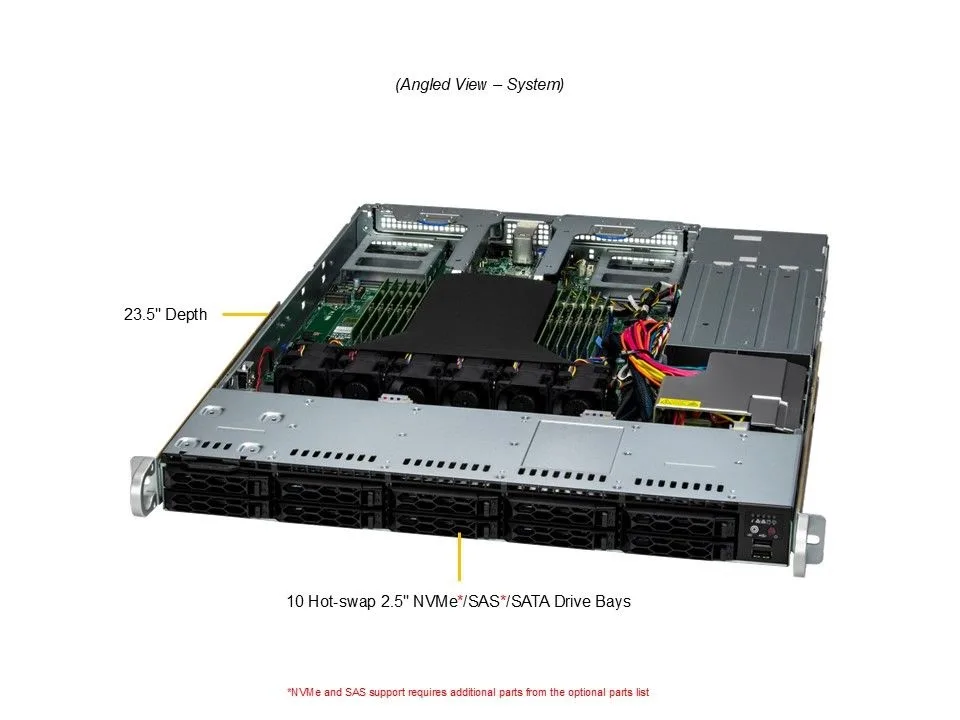

- 10 front hot-swap 2.5" bays allow easy expansion
1U EPYC 9454P server for dense compute
This 1U rack system ships with a single AMD EPYC 9454P 48-core processor at 2.75 GHz, 384 GB of DDR5-5600 memory and two 960 GB M.2 NVMe drives. It is built for workloads that need high core counts in a single-socket footprint.
Before ordering check rack depth and power
The chassis accepts 10 front hot-swap 2.5-inch SATA bays and two M.2 PCIe 3.0 x2 slots for additional storage. Dual 860 W platinum supplies provide redundancy; verify your rack PDU can deliver the required current. Network connectivity uses a dual-port 10 GbE RJ45 adapter.
Suits single-socket density needs.
Organisations running virtualisation, container platforms or memory-heavy analytics will benefit from the 48 cores and 384 GB installed RAM. Buyers who require two processors or more than 3 TB of memory should consider a different platform.
Points forts
- 48-core EPYC 9454P handles heavy workloads
- 384GB DDR5-5600 memory for fast data access
- 2x 960GB NVMe SSDs provide rapid storage
- Dual 860W platinum power supplies ensure redundancy
- 10 front hot-swap 2.5" bays allow easy expansion
Caractéristiques
| Brand | SUPERMICRO |
|---|---|
| Series | Gold Series |
| Model | AS -1115CS-TNR-G1 |
| Workload | General Purpose Server |
| Type | Rack |
| Rack Height | 1U |
| LEDs | Drive activity Network activity Power status Universal Information (UID) |
| Hot-swap Fans | 6x 4cm heavy duty fans with optimal fan speed control |
| CPU Type | AMD EPYC 9004 Series |
| CPU Speed | 9454P (2.75 GHz) |
| Number of CPU Cores | 48-Core Processor |
| Cache Memory | 256 MB L3 Cache |
| # of Processors Installed | 1 |
| MAX Processors | 1 |
| Installed Memory Size | 384GB |
| Memory Type | DDR5 5600 |
| Max Memory Capacity | 3TB |
| Memory Features | Max Memory (1DPC): Up to 3TB 4800MT/s ECC DDR5 RDIMM (AMD EPYC 9004 Series Processor) Max Memory (1DPC): Up to 3TB 6000MT/s ECC DDR5 RDIMM (AMD EPYC 9005 Series Processor) |

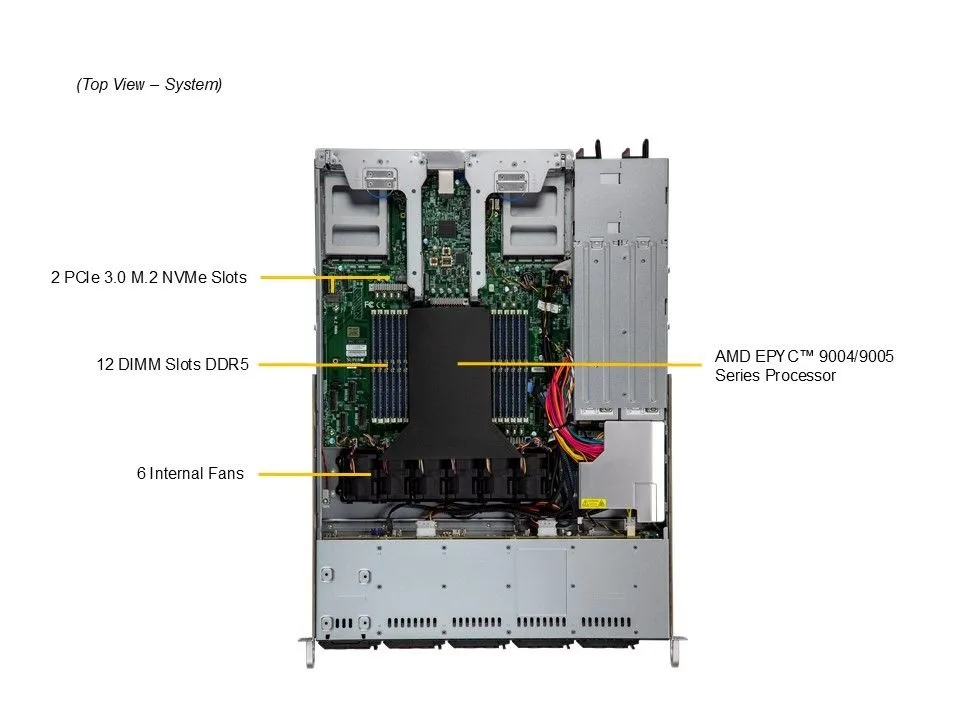

| Number of Memory Slots | 12 |
| SSD (Installed) | 2 x 960GB M.2 NVMe |
| Ethernet Controller | Supermicro 10-Gigabit X710-AT2 (2 x RJ45) Ethernet Network Adapter |

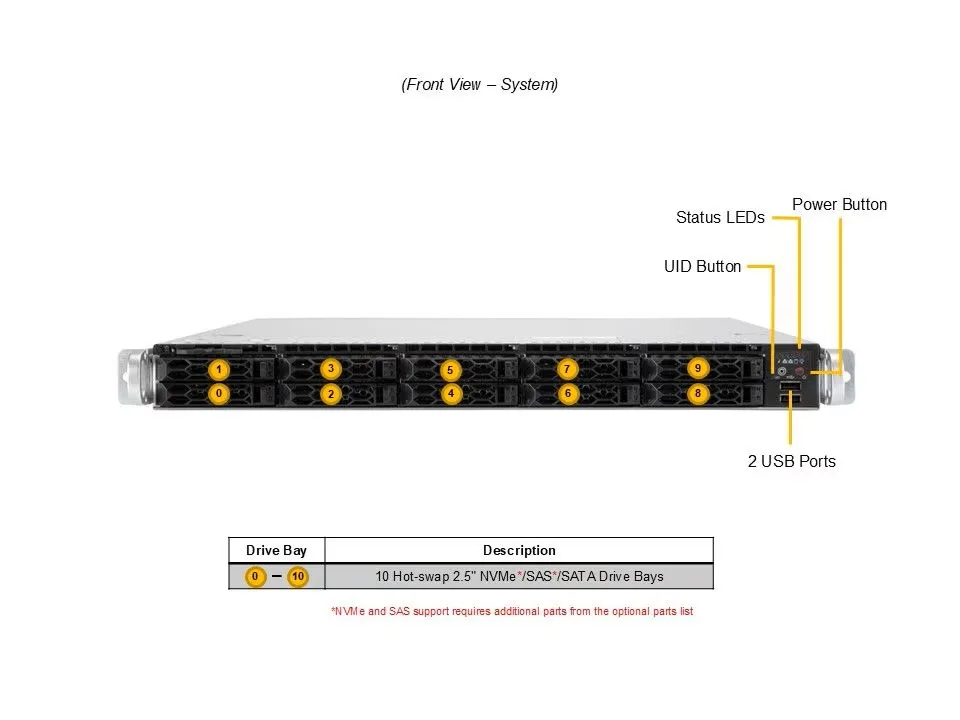

| Expansion Bays | 10 front hot-swap 2.5" SATA drive bays 2 M.2 PCIe 3.0 x2 NVMe slots (M-key 2280/22110) |

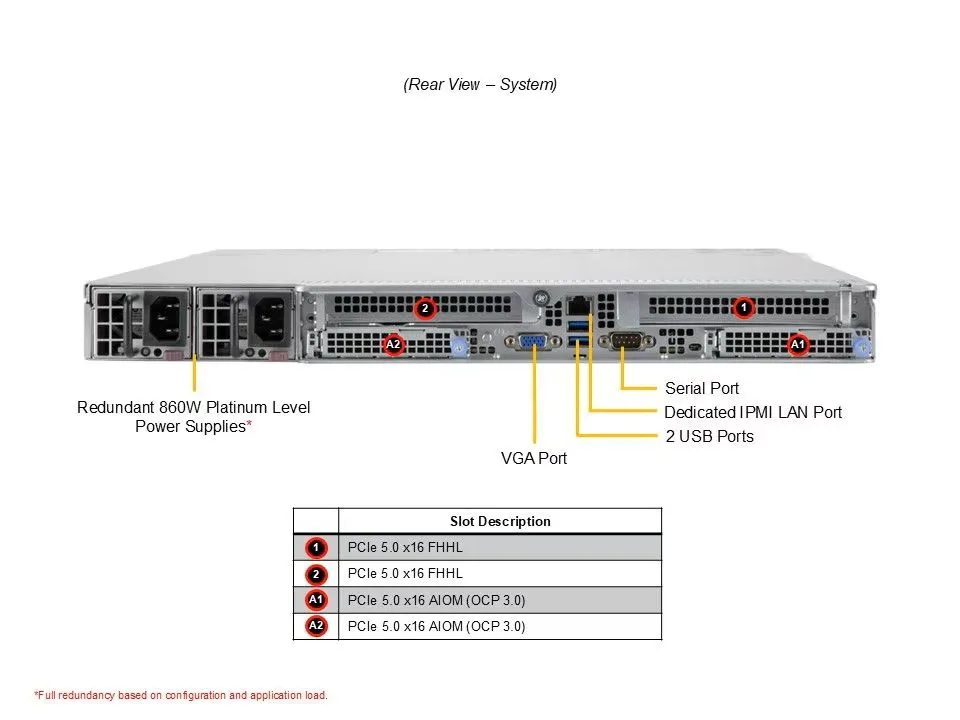

| Power Characteristics | 2x 860W Redundant Platinum Level (94%) power supplies |
| Temperature | Operating Temperature: 10°C to 35°C (50°F to 95°F) Non-operating Temperature: -40°C to 60°C (-40°F to 140°F) |
| Humidity | Operating Relative Humidity: 8% to 90% (non-condensing) Non-operating Relative Humidity: 5% to 95% (non-condensing) |
| Dimensions | 1.7" x 17.2" x 23.5" |
| Weight | 25 lbs. |
| Poids d’expédition | 22.68 kg |
| Dimensions du colis | 889 × 635 × 229 mm |
Questions sur cet article
What comes in the box and what must I buy separately?
The server ships with one EPYC 9454P processor, 384GB DDR5-5600 memory, two 960GB M.2 NVMe SSDs, a dual 10GbE RJ45 adapter and two 860W Platinum power supplies. Ten front 2.5-inch SATA drive bays and two M.2 PCIe 3.0 x2 slots are empty.
Should I choose the 48-core 2.75GHz EPYC 9454P or a different CPU option?
This system supports a single processor socket; the installed EPYC 9454P is the only CPU available for this model.
What does the 384GB DDR5-5600 figure mean once the server is running?
The memory operates at 4800MT/s with the EPYC 9004 series processor, providing 384GB ECC RDIMM capacity across 12 slots with room to expand to 3TB.
