Green rectangular Extended ATX server motherboard with silver LGA 3647 socket and twelve black DDR4 slots

Supermicro

Supermicro MBD-X11SPA-TF-O server motherboard LGA 3647 12 DDR4 2933 8 SATA 4 M.2 10GbE

SKU CH-ZJW5-ZXXMH MPN MBD-X11SPA-TF-O

Extended ATX server board for dual Xeon Scalable CPUs with 12 DDR4 slots, 8 SATA ports, four M.2 connectors and onboard 10 GbE LAN

  • CPU Socket TypeLGA 3647
  • CPU TypeSupports 1st / 2nd Gen Intel Xeon Scalable Processors
  • North BridgeIntel C621
  • Number of DDR4 Slots12 x 288-pin
  • DDR4 StandardDDR4 2933
  • Maximum Memory SupportedUp to 3TB 3DS ECC RDIMM, DDR4-2933MHz; Up to 3TB 3DS ECC LRD
  • Supports up to 3 TB DDR4-2933 ECC memory across 12 slots
  • Dual 10 GbE and 1 GbE LAN for high-throughput networking
  • Four M.2 PCIe 3.0 x4 drives with RAID 0/1/5/10
  • Eight SATA 6.0 Gb/s ports with hardware RAID 0/1/5/10
  • Seven PCIe 3.0 x16 slots for maximum add-in-card expansion

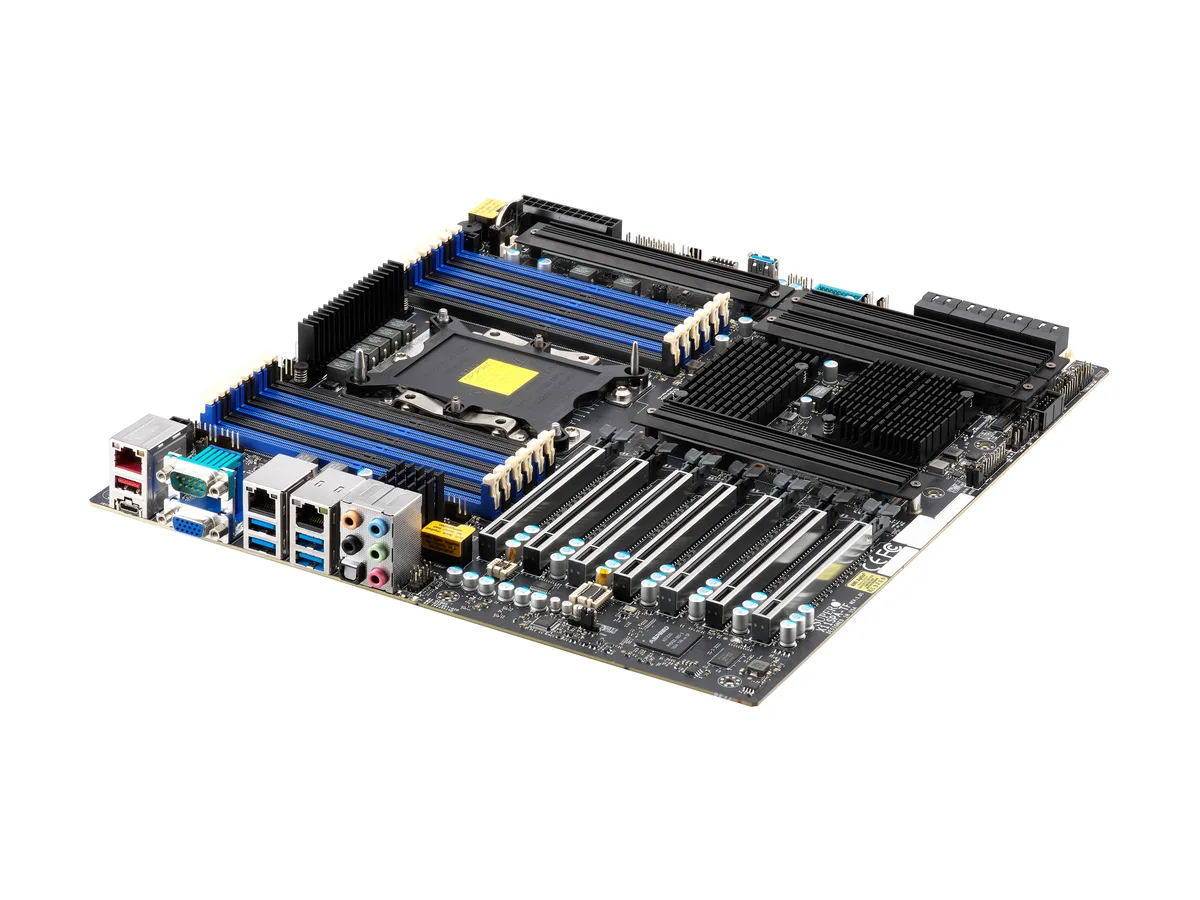

Extended ATX Server Motherboard

The Supermicro MBD-X11SPA-TF-O is an Extended ATX server motherboard built for Intel Xeon Scalable processors. It uses the LGA 3647 socket and the Intel C621 chipset to support 1st and 2nd Generation Xeon Scalable CPUs. Twelve DDR4 288-pin slots accept up to 3TB of ECC RDIMM, LRDIMM or Intel Optane Persistent Memory. The board targets compute-intensive workloads such as AI, deep learning and simulation.

Suited for high-density storage and 10GbE networking

Builders who need eight SATA 6.0Gb/s ports and four M.2 PCI-E 3.0 x4 slots with RAID 0 and 1 support will find the storage layout flexible. Dual LAN provides a 10Gbps Aquantia AQC107 port plus an Intel I210-AT Gigabit connection and a dedicated IPMI interface. Systems requiring more than seven PCI-E 3.0 x16 slots or 25GbE connectivity fall outside this feature set.

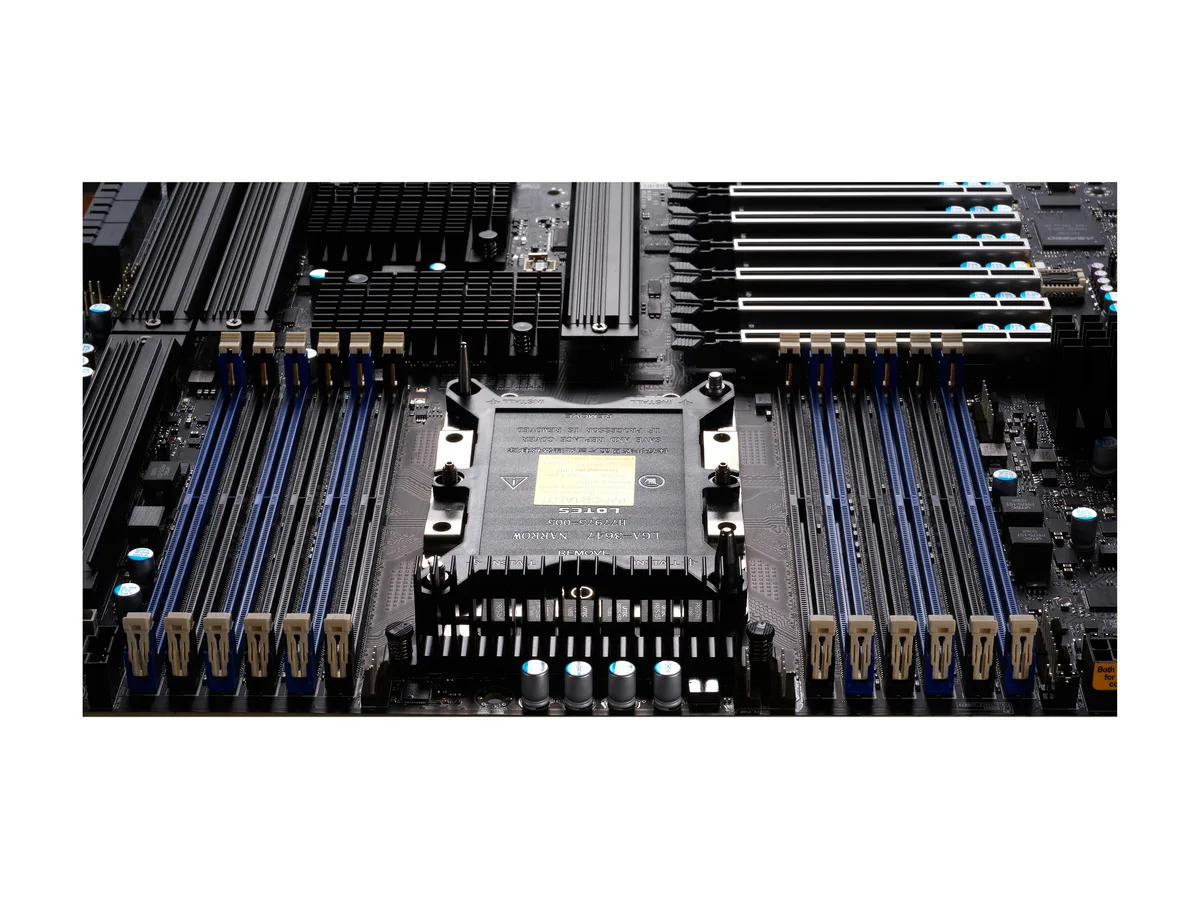

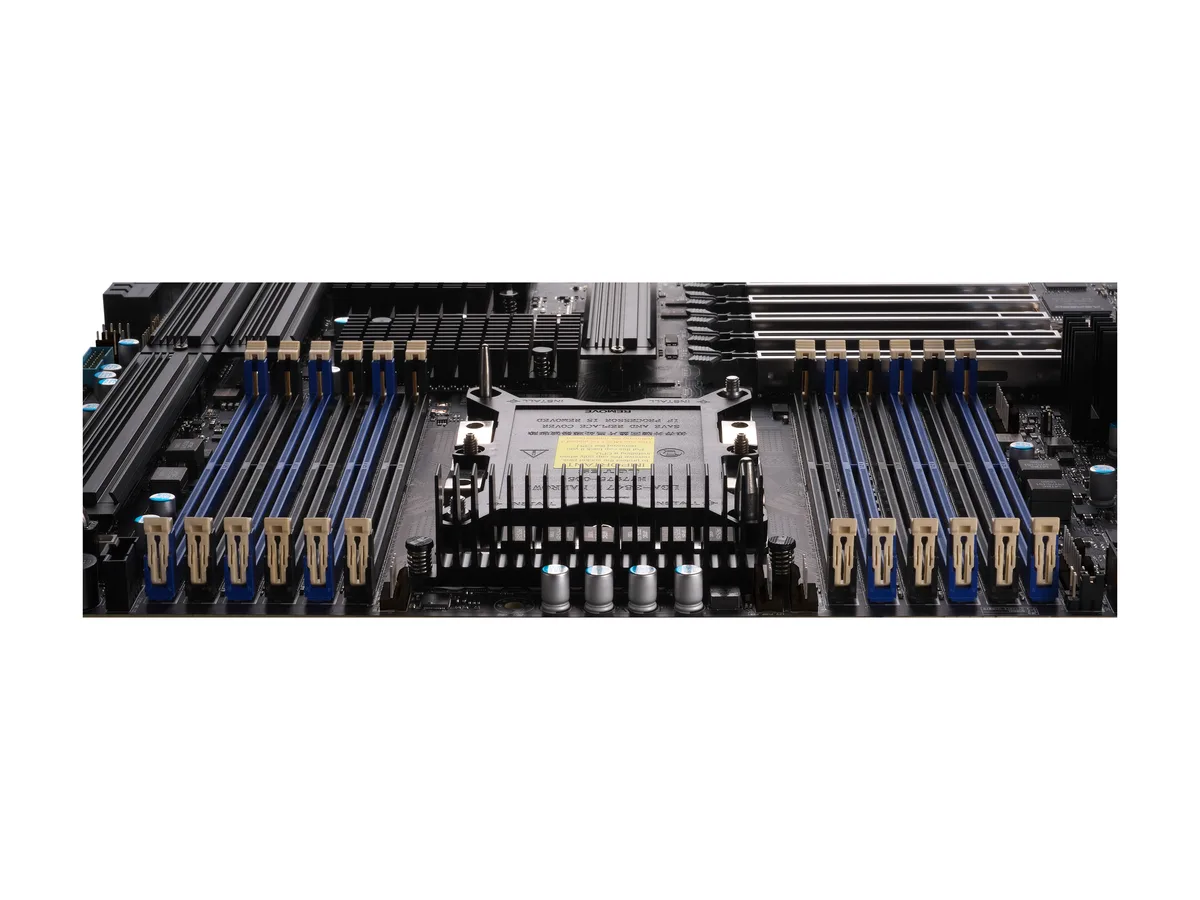

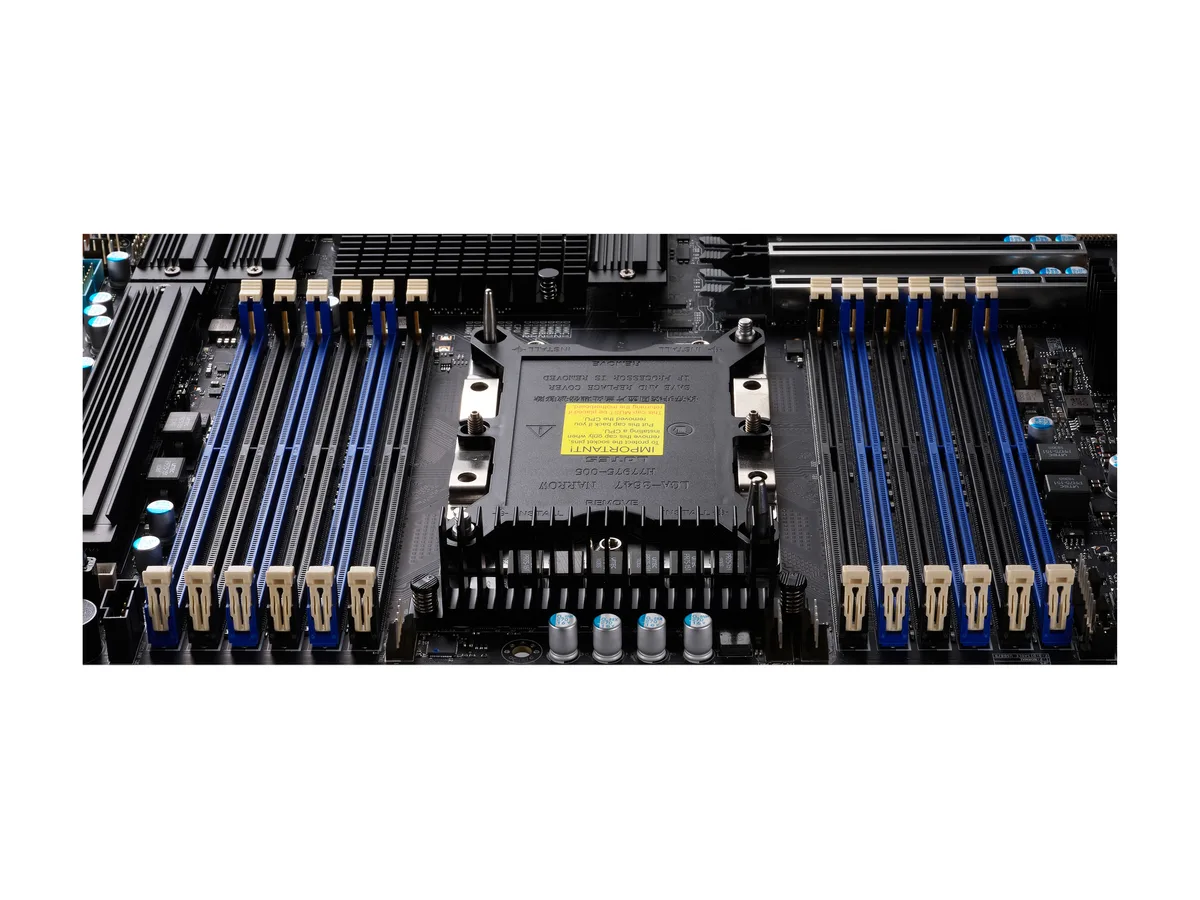

Twelve DDR4 slots with 3TB maximum capacity

The single specification that decides fit is the memory subsystem: twelve 288-pin DDR4 slots running at 2933MHz with a 3TB ceiling for 3DS ECC RDIMM, LRDIMM or Optane Persistent Memory. This density determines whether the board meets the workload’s RAM requirements.

Points forts

  • Supports up to 3 TB DDR4-2933 ECC memory across 12 slots
  • Dual 10 GbE and 1 GbE LAN for high-throughput networking
  • Four M.2 PCIe 3.0 x4 drives with RAID 0/1/5/10
  • Eight SATA 6.0 Gb/s ports with hardware RAID 0/1/5/10
  • Seven PCIe 3.0 x16 slots for maximum add-in-card expansion

Caractéristiques

BrandSUPERMICRO
ModelMBD-X11SPA-TF-O
CPU Socket TypeLGA 3647
CPU TypeSupports 1st / 2nd Gen Intel Xeon Scalable Processors
North BridgeIntel C621
Number of DDR4 Slots12 x 288-pin
DDR4 StandardDDR4 2933
Maximum Memory SupportedUp to 3TB 3DS ECC RDIMM, DDR4-2933MHz; Up to 3TB 3DS ECC LRDIMM, DDR4-2933MHz
Up to 3TB Intel Optane Persistent Memory, DDR4-2666MHz
ECC SupportedYes
RegisteredYes
PCI Express 3.0 x164
PCI Express x83 PCI-E 3.0 x8 (in x16 slot)
* PCI-Ex16 Slot#1 shares with M.2, Slot#2 shares with Slot#3(NA/16,8/8), Slot#4 shares with Slot#5(NA/16,8/8), Slot#6 shares with Slot#7(NA/16,8/8)
SATA8 x SATA 6.0Gb/s
SATA RAID0/1/10/5
M.2M.2 Interface: 4 PCI-E 3.0 x4, RAID 0 & 1
Form Factor: 2242/2260/2280/22110
Key: M-Key
M.2 support RAID 0,1 (up to RAID 5, 10), VROC key is required for Raid.
Onboard Video ChipsetAspeed AST2500
Audio ChipsetALC 888S HD Audio
LAN ChipsetAQUANTIA AQC107
LAN Speed10Gbps
Second LAN ChipsetSingle LAN with Intel Ethernet Controller I210-AT
Single LAN with Realtek RTL8211E PHY (dedicated IPMI)
Max LAN Speed10Gbps + 2 x 1Gbps

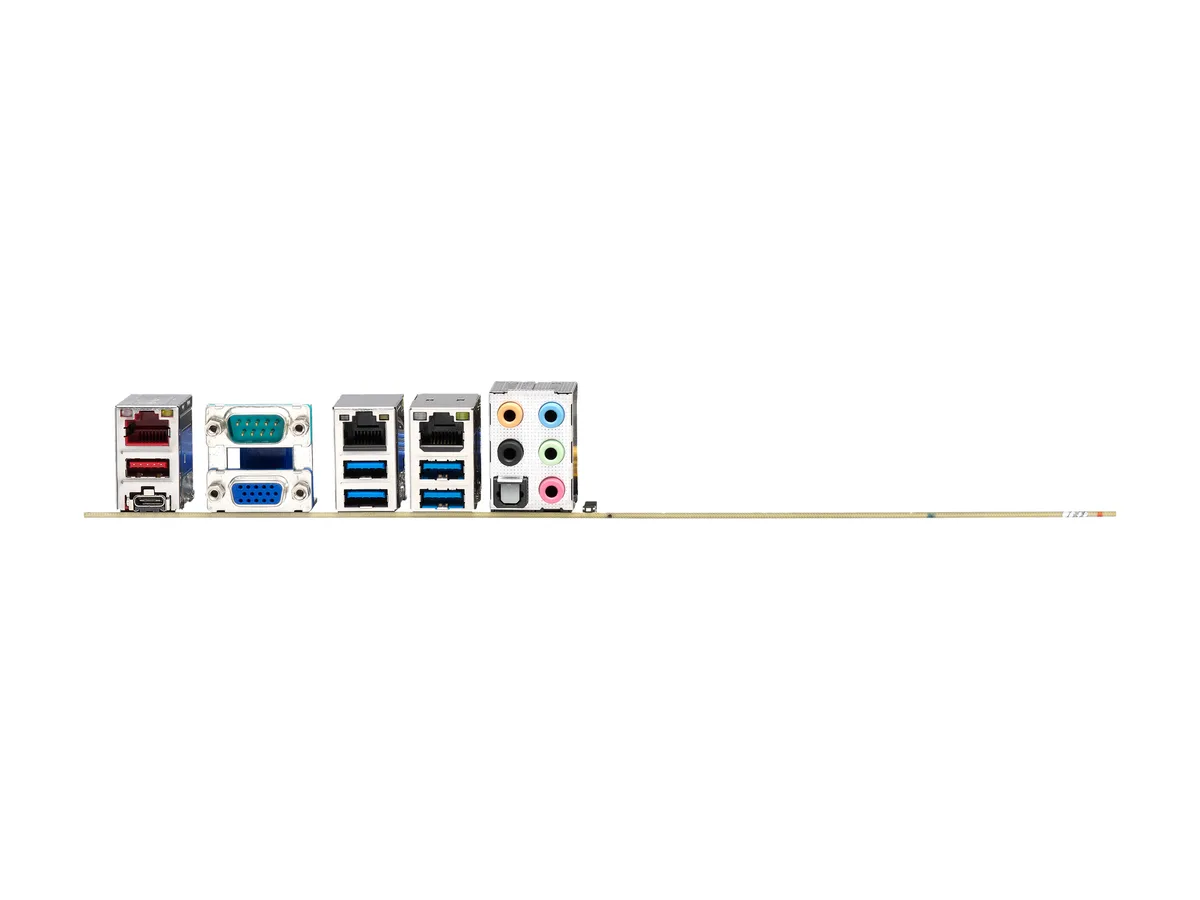

Back I/O Ports1 x COM (Serial Port) / 1 x D-Sub / 1 x Optical S/PDIF Out / 1 x USB 3.1 Gen 2 Type-A / 1 x USB 3.1 Gen 2 Type-C / 3 x LAN (RJ45) / 4 x USB 3.1 Gen 1 Type-A / 5 x Audio Jacks
Onboard USBOne front accessible USB 2.0 header with two (2) USB connections
One front accessible USB 3.1 Gen1 header with two (2) USB connections
Two front accessible USB 3.1 Gen2 headers (1 x Type A, 1 x Type C)
Form FactorExtended ATX
Dimensions (W x L)12.0" x 13.0"
Poids d’expédition2.20 kg
Dimensions du colis457 × 404 × 86 mm

Questions sur cet article

Will my existing DDR4-2933 ECC RDIMMs work in the 12 slots of this Supermicro MBD-X11SPA-TF-O?

Yes, the board accepts up to 3TB of DDR4-2933 3DS ECC RDIMM or LRDIMM across its 12 288-pin slots, so your current modules are compatible.

How can I verify the Aquantia AQC107 10GbE port is running at 10Gbps after installation?

Check the link speed in the OS network settings or the switch port LED; the AQC107 controller reports 10Gbps when the link is negotiated correctly.

Does the box include the VROC key needed for M.2 RAID 5 or 10, or must I buy it separately?

The VROC key is not included; it must be purchased separately to enable RAID 5 or 10 on the four M.2 PCIe 3.0 x4 slots.
