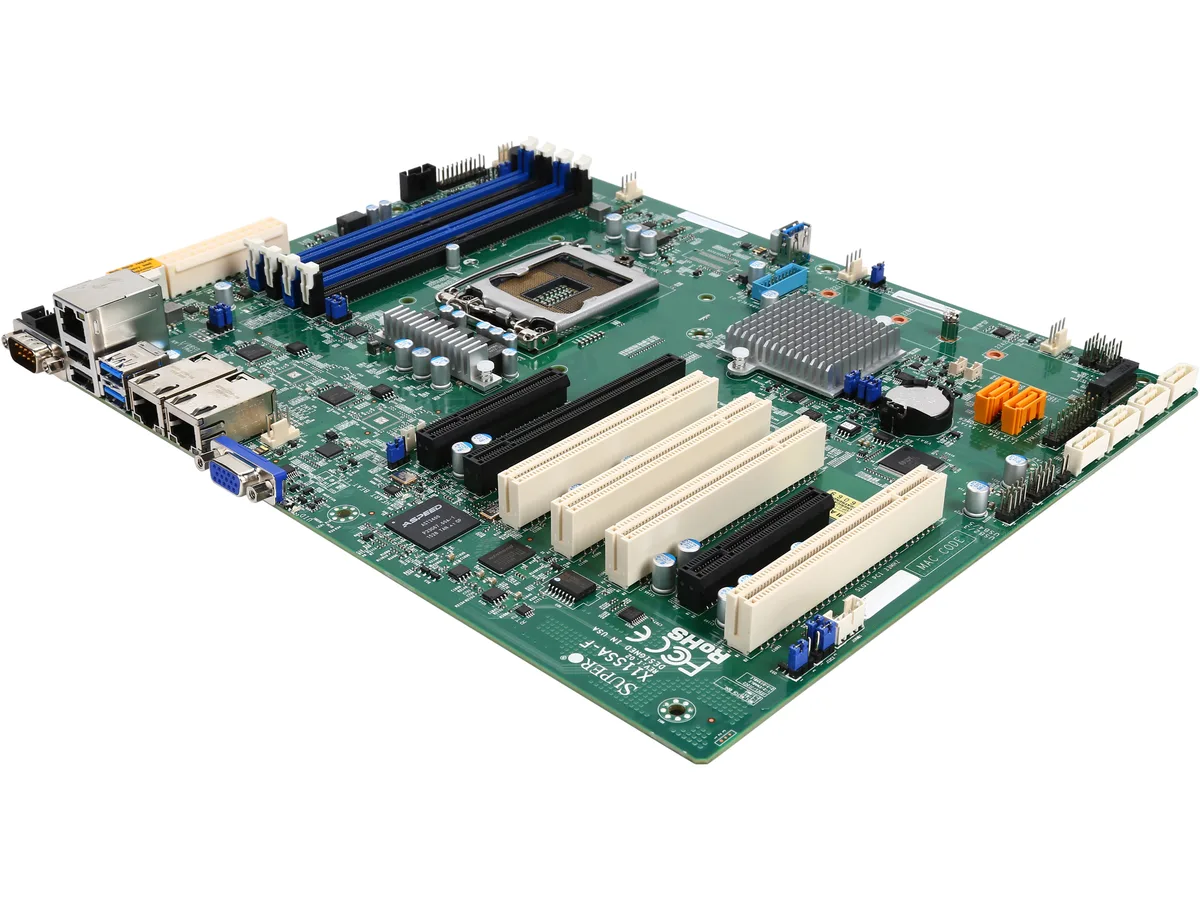

Green ATX server motherboard with LGA 1151 socket, four DDR4 slots, multiple PCI-E and PCI slots, dual RJ45 LAN ports, VGA output

Supermicro

Supermicro MBD-X11SSA-F-O LGA 1151 ATX server motherboard

SKU CH-A31A-AZRYY MPN MBD-X11SSA-F-O

ATX server board with LGA 1151 socket, 64 GB DDR4 ECC, dual Intel Gigabit LAN, six SATA 6 Gbps ports with RAID and IPMI management

  • CPU Socket TypeLGA 1151
  • CPU TypeSupports: Intel 7th / 6th Generation Core i3 series Intel Xe
  • North BridgeIntel C236
  • Number of DDR4 Slots4 x 288-pin
  • DDR4 StandardDDR4 2133 / 1866 / 1600MHz
  • Maximum Memory Supported64GB
  • Supports Intel Xeon E3-1200 v5/v6 and 6th/7th Gen Core i3 CPUs via LGA 1151 socket
  • Intel C236 chipset provides six SATA 6.0Gb/s ports with RAID 0/1/5/10 support
  • Dual Intel I210-AT Gigabit Ethernet controllers plus dedicated IPMI LAN port for management
  • Four DDR4 288-pin slots accept up to 64GB ECC UDIMM at 2133/1866/1600MHz
  • Expansion includes PCI-E 3.0 x8 (in x16), PCI-E 3.0 x8, PCI-E 3.0 x4 (in x8) and four 5V PCI slots

Server board for Xeon E3-1200 v5/v6

This ATX motherboard uses the LGA 1151 socket and Intel C236 chipset to support Intel Xeon processor E3-1200 v5 and v6, 6th and 7th Generation Core i3, Celeron and Pentium CPUs. It targets builders assembling rack or tower servers that need ECC memory and dual gigabit LAN in a standard form factor.

Verify CPU cooler clearance

The board fits a standard ATX chassis measuring 30.5cm by 24.4cm. Supported processors have a TDP up to 80W. Four full-size 5V PCI 32-bit slots sit alongside the PCIe slots, so check that any legacy expansion cards do not interfere with cooler mounting or airflow paths.

Dual Intel I210-AT controllers sustain throughput

Two independent gigabit Ethernet ports share no single controller bottleneck, allowing continuous network traffic on both links. The Aspeed AST2400 BMC provides dedicated IPMI LAN access for remote management even when the main CPU is saturated. Six SATA 6.0Gb/s ports with hardware RAID 0, 1, 5, 10 maintain steady storage I/O during prolonged workloads.

Points forts

  • Supports Intel Xeon E3-1200 v5/v6 and 6th/7th Gen Core i3 CPUs via LGA 1151 socket
  • Intel C236 chipset provides six SATA 6.0Gb/s ports with RAID 0/1/5/10 support
  • Dual Intel I210-AT Gigabit Ethernet controllers plus dedicated IPMI LAN port for management
  • Four DDR4 288-pin slots accept up to 64GB ECC UDIMM at 2133/1866/1600MHz
  • Expansion includes PCI-E 3.0 x8 (in x16), PCI-E 3.0 x8, PCI-E 3.0 x4 (in x8) and four 5V PCI slots

Caractéristiques

BrandSUPERMICRO
ModelMBD-X11SSA-F-O
CPU Socket TypeLGA 1151
CPU TypeSupports:
Intel 7th / 6th Generation Core i3 series
Intel Xeon processor E3-1200 v6/v5
Intel Celeron
Intel Pentium
North BridgeIntel C236
Number of DDR4 Slots4 x 288-pin
DDR4 StandardDDR4 2133 / 1866 / 1600MHz
Maximum Memory Supported64GB
ECC SupportedYes
Other Slots1 x PCI-E 3.0 x8 (in x16) slot
1 x PCI-E 3.0 x8 slot
1 x PCI-E 3.0 x4 (in x8) slot
4 x 5V PCI 32-bit slots
SATA6 x SATA 6.0Gb/s
SATA RAID0/1/5/10
Onboard Video ChipsetAspeed AST2400 BMC
LAN ChipsetIntel I210-AT
Second LAN ChipsetIntel I210-AT
Max LAN Speed2 x 1Gbps
COM1
Video Ports1 x VGA
RJ452 x RJ45 Gigabit Ethernet LAN ports
1 x RJ45 Dedicated IPMI LAN port
USB 1.1/2.02 x USB 2.0
USB 3.02 x USB 3.0
FeaturesSingle socket H4 (LGA 1151) supports Intel Xeon processor E3-1200 v5, Intel 6th Gen. Core i3 series, Intel Celeron and Intel Pentium
Intel C236 chipset
Up to 64GB Unbuffered ECC UDIMM DDR4 2133 MHz; 4 x DIMM slots
Expansion slots:1 PCI-E 3.0 x8 (in x16), 1 PCI-E 3.0 x8, 1 PCI-E 3.0 x4 (in x8), 4 5V PCI 32-bit slots
Dual GbE LAN with Intel i210-AT
6 x SATA3 (6 Gbps) via C236; RAID 0, 1, 5, 10
I/O: 1 x VGA, 2 x COM, TPM 1.2 header
2 x SuperDOM with built-in power
5 x USB 3.0 (2 rear + 2 via header + 1 Type A), 6 x USB 2.0 (2 rear + 4 via headers)
M.2 NGFF connector
Form FactorATX
Dimensions (W x L)12.0" x 9.6"
Poids d’expédition1.07 kg
Dimensions du colis335 × 259 × 71 mm

Questions sur cet article

Does the box include a CPU, cooler or memory, or must they be purchased separately?

The motherboard ships alone; you must supply a compatible LGA 1151 processor, DDR4 ECC UDIMM modules and a cooler rated for up to 80 W TDP.

Which memory speed should I select — 2133, 1866 or 1600 MHz — for best performance?

Choose DDR4 2133 MHz ECC UDIMMs; the board runs them at that speed and supports up to 64 GB across the four 288-pin slots.

What does the 64 GB maximum memory figure mean when the board is installed in a working server?

You can populate all four slots with 16 GB DDR4 ECC UDIMMs for a total of 64 GB, which the C236 chipset will address in full.
